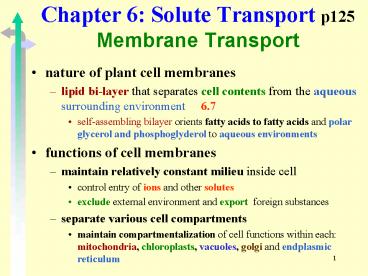

Chapter 6: Solute Transport p125 Membrane Transport

1
Chapter 6 Solute Transport p125Membrane
Transport

• nature of plant cell membranes
• lipid bi-layer that separates cell contents from
  the aqueous surrounding environment 6.7
• self-assembling bilayer orients fatty acids to
  fatty acids and polar glycerol and
  phosphoglyderol to aqueous environments
• functions of cell membranes
• maintain relatively constant milieu inside cell
• control entry of ions and other solutes
• exclude external environment and export foreign
  substances
• separate various cell compartments
• maintain compartmentalization of cell functions
  within each mitochondria, chloroplasts,
  vacuoles, golgi and endplasmic reticulum

2
Membrane Transport

• two major factors in membrane transport
• permeability- property of ease of passage of a
  species through a membrane
• permeability promoted by membrane transport
  proteins 6.6
• motive force- the force that moves molecules or
  ions through the membrane
• transport of one species is coupled to chemical
  potential of another
• properties correspond to conductivity and driving
  force that comprise the factors in equations for
  flow across a membrane
• membrane proteins are involved in both 6.7
• channels- selective pores enhance diffusion
  permeability
• pumps- transporter for primary active transport,
  transport that is directly connected to energy
  source ATP or light
• transporter- for secondary active transport
  coupled to transport of another species such as
  protons

3
6-3,
aquaporin
ion specific carriers
permeability enhanced by membrane proteins

• Figure 6.6 Membrane permeability for substances
  diffusing across

4

• Figure 6.7 Three classes of membrane transport
  proteins

5
Passive and Active Transport

• transport- movement of ions, molecules between
  the various compartments in biological systems
• passive transport- net movement of solute
  molecules by diffusion down a its electrochemical
  potential gradient
• no transport occurs at equilibrium i.e. there is
  no net movement of a species without a driving
  force being supplied
• active transport- net movement of a specific
  substance against its own electrochemical
  potential gradient
• transport is driven by a driving force supplied
  in some manner
• species can be changed in the course of or after
  transport
• transport by coupling the transport of one
  species down its gradient to the movement of
  another species against its gradient

6
Energy and Transport

• chemical potential- potential energy source that
  moves a substance against a gradient
• sum of potential energy, generally of three
  components
• ?j ?j RT lnCj zj FE
  Vj P (eq. 6.1)
• solute concentration Cj conditioned by the
  absolute temperature T that moves the solute
• electrostatic charge zj conditioned by
  electrical potential E that moves the charged
  particles
• electrochemical potential involves both C and z
• hydrostatic pressure P that moves the solute
  particles
• R, F and Vj are constants for the respective
  terms
• ?j is a way of handling the value of standard
  water potential, which is not able to be
  calculated

7
Energy and Transport

• when each of the three applies to transport
• P for osmotic water movement, bulk flow
• Cj and T for membrane transport of non-ionic
  solute species
• E and zj for membrane transport of ionic
  species
• ?? j for membrane transport of species between
  solutions inside and outside ?? j (? ji
  - ? jo )
• uncharged charged ions
• ?? j RT ln Ci ?? j RT ln Ci
  zF(Ei - Eo)
• Co
  Co
• for the first equation, transport is due to ?
  concentration
• for the second equation, transport is due to the
  resultant of the sum of ? concentration and ?
  charge
• in each case, the sign gives the direction of net
  movement

8
Energy and Transport

• passive and active transport are compared in
  6.1
• note the sign of the inequality
• (1) ? jA gt ? jB ?? j ? jA - ? jB ()
  spontaneous A to B
• (2) ? jA ? jB ?? j ? jA - ? jB (0)
  at equilibrium, A , B
• (3) ? jA lt ? jB ?? j ? jA - ? jB (-)
  spontaneous B to A
• passive transport diffusion moves solute
  molecules spontaneously down the potential energy
  gradient
• (1) ? jA gt ? jB spontaneous A to B
• active transport transport of solute against a
  chemical potential gradient
• (1) ? jA gt ? jB active transport needed to go
  from B to A
• (2) ? jA ? jB active transport needed to go
  either way

9

• Figure 6.1 Relationship between chemical
  potential transport

10
Membrane Potential

• concentration gradients of ions across membranes
  generate electrical potential across the membrane
• typically the inside of the cell is more negative
  than the external solution
• proton transport is the main determinant of
  membrane potential
• a charged solute is at equilibrium of takes into
  account both the charge gradient and the chemical
  concentration gradient
• at equilibrium the difference in concentration is
  balanced by the difference in voltage, the
  Nernst potential
• two sources of force to tranport species across
  the membrane
• Nernst potential is given by the Nernst equation
• ?En (Ei - Eo)
  RT ln Co
•
  zjF Ci
• potential difference and ion
  concentration gradient across the membrane
  balance each other

11
Table 6.1 Comparison of observed and predicted
ion concentrations in pea root tissue based on
the observed membrane potential.In which cases
does observed predicted? Why or why not? see
6.4

• __________________________________________________
  ____________________
• Concentration
• in external medium Internal Concentration
  (m mol L-1)__
• Ion (m mol L-1)
  Predicted Observed
• __________________________________________________
  ____________________
• K 1 74 75
• Na 1 74 8
• Mg2 0.25 1,340 3
• Ca2 1 5,360 2
• NO3- 2 0.0272 28
• Cl- 1 0.0136 7
• H2PO3- 1 0.0136 21
• SO42- 0.25 0.00005 19
• __________________________________________________
  ____________________________
• Data from Higinbotham et al. 1967
• Note membrane potential was mesured as 110 mV

12
Membrane Potential

• in T6.1 note the differences between internal
  concentration predicted from the Nernst equation
  and the observed concentration
• those at predicted levels are at equilibrium
• only K is at equilibrium
• anions NO3-, Cl-, H2PO3-, SO42- are higher than
  predicted showing that they enter by active
  transport
• cations Na, Ca2, Mg2 enter by diffusion down
  their electrochemical gradient but are actively
  extruded
• T6.1 is oversimplified since cell has several
  compartments

13
contributions of ions to membrane potential

• Figure 6.4 Ion concentrations transport.
  Figure 6.5 Proton potential

14
a voltage step triggers the selective flow of
ions of a given species as determined by the
selective filter

• Figure 6.8 Model of a voltage-gated K channel

15

• Figure 6.9 secondary active transport of sucrose
  against its concentration gradient driven by
  transport of protons down their concentration
  gradient

16
night
night
day
Photosynthetic carbon reduction cycle
chloroplast transporters that supply carbon for
synthesis of sucrose for export during day and
night
17
protein loops that regulate transport of glucose
through the inner chloroplast envelope
18
