Student Name: Kae Thong Chew

1

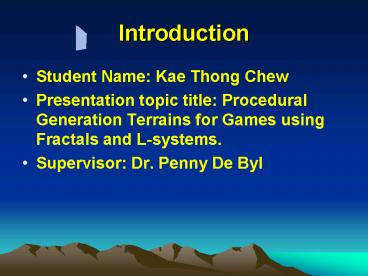

Introduction

• Student Name Kae Thong Chew
• Presentation topic title Procedural Generation
  Terrains for Games using Fractals and L-systems.
• Supervisor Dr. Penny De Byl

2
Why is this research important

• Computer games today are incredibly complex
• As game universes become more complex more
  worlds, more buildings, more rooms, with more
  polygons, textures, characters and so on
• Hiring game artists become a very expensive
  exercise.

3
Why is this research important

• As game worlds grow larger, so do the data files
  storing the game information game map designs,
  character models etc..
• Example Castle Wolfenstein install file(1983)
  69kb but Return to Castle Wolfenstein (2001) demo
  install file 114.1 MB
• How to solve this problem
• Procedural terrain generation

4
Procedural Terrain Generation

• Procedural terrain generation  is about making
  use of computer algorithms to dynamically
  generate terrain without manually hand drawn each
  of the terrain.

5
Different Approaches to Procedural Generated
Terrain

• Some of the procedural generation methods used in
  contemporary games include
• Fractal landscape
• Perlin Noise
• Pseudo Random Number Generator (PRNG)
• L-systems
• Voronoi maps

6
Fractal Landscape

• A fractal landscape is recursively self-similar,
  that appears similar at all scales of
  magnification.

7
Fractal Landscape

• A way to create this fractal landscape is to
  employ random midpoint displacement algorithm.

8
Fractal Landscape

• Another method is to divide and purturb.

9
Fractal Landscapes
10
Fractal Landscapes
11
Perlin Noise

• Developed by Ken Perlin to create textures.
• Uses interpolation between a large number of
  pre-calculated gradient vectors to construct a
  value that varies pseudo-randomly over space
  and/or time to create textures.
• linear interpolation cosine
  interpolation

12
Perlin Noise

• Two-dimensional Perlin noise.

• Salt and pepper noise, band-limited, and then
  up-sampled.

• Procedural marble texture

13
Pseudo Random Number Generator (PRNG)

• A pseudorandom number generator (PRNG) is an
  algorithm that generates a sequence of numbers
  which are not truly random.
• This is used together with Perlin Noise to
  achieve nice-looking textures.

14
Voronoi maps

• Voronoi maps choose a limited number of random
  specific points and calculates the distance of
  each grid cell from the nearest defined point.
• Each point creates territories around itself
  until it meets a neighbouring shape.

15
Voronoi Maps

• The final image represent the boundaries or the
  graduated distances where the calculations can be
  varied to generate different results.

16
Procedural Generation Methods used in Games

• One good example of a game that uses the
  procedurally generated content technology is a PC
  simulation game called Spore.
• Spore is a simulation game about life evolution.

17
Procedural Methods used in Games

• Spore uses procedural generation methods where
  the game itself can generate its unique animation
  based from players creature design on the fly
  without game artists create them.

18
Procedural Methods used in Games

• Spore implements procedural planet generation and
  a simulation of dynamic atmospheric scattering
  like the space phase of Spore.

19
L-systems

• L-systems are a special kind of string rewriting
  grammars introduced by A.Lindenmayer in 1968 for
  modeling plants.
• They rewrite a given string (a sequence of
  symbols) according to a grammar, i.e. a set of
  rules. To give an example, the single rule
• a ? b a b
• transforms the string
• a b a c
• into
• b a b b b a b c

20
Examples of L-systems

• Used for modelling tree plant branches
• Example using
• Axiom Xwhere rules F --gt FFrules X --gt
• F-XXFFX-Xangle 22.5
• will produce the image

21
Examples of L-systems

• Using turtle graphics, to draw images
• The Sierpinski triangle drawn using an L-system.
• variables  A B
• constants  -
• axiom   A
• rules   (A ? B-A-B),
• (B ? ABA)
• angle   60º

• Evolution for n 2, n 4, n 6, n 9

22
L-System Turtle Implementation

• L-Systems use string symbols to model elements of
  drawing on the computer screen as turtle graphics
  to produce screen images.
• The "turtle" is an imaginary pen that is given
  drawing commands, such as go forward and turn
  right to draw on the screen.

23
L-systems used for creating cities

• Parish and Müller (2001) procedurally using
  extended L-systems to build street maps and city
  buildings.

24
L-systems used for creating cities

• This is useful for urban modelling and planning
  environment but lacks support for real time
  interactively.
• However, this problem has been approached and
  refined by G. Stefan, P. Jeremy, S. Nigel and
  L.Geoff (2003) by creating a pseudo infinite
  virtual cities in real-time to the user.

25
L-systems used for creating cities

• Real time procedural cities screenshots.

26
Research Interest

• Both these L-System research work focus on
  modelling exterior look of buildings only but no
  attempt has been made on creating the interior
  design of the buildings
• How do we determine the interior of buildings for
  game maps ?

27
L-Systems for Dynamic Creation of Building
Interiors

• Using L-systems as modeling structure, we defined
  an interior area by giving a different sets of
  rules.
• Considering the following example
• The axiom as been defined as F F F F
• to model a square shape
• The rewriting rules for F string would be
• F ? F W F
• Where W is another set of rules to draw internal
  walls
• W ? W W W W

28
Example of Research Implementation Results

• The initial axiom screenshots for square shape.

29
Example of Research Implementation Results

• After 1st iteration, interior walls which is
  grey texture are rendered within the square shape

30
Example of Research Implementation Results

• At the 2nd iterations, more grey interior texture
  can be seen rendered within the square shape.

31
Creating L-System Interiors using Regular Polygons

• Using the same L-Systems rules, regular polygons
  from triangles to decagons are chosen to create
  interior textures.
• The result of the image are analyzed and compared
  with other regular polygon generated interiors.
• Interior textures issues like overlapping and
  collision detection are discussed.

32
Example of L-System regular polygon interiors

• Triangle L-Systems string rules
• atom FFF
• Fstr FWF
• Wstr WW-WW
• angle 120

33
Example of L-System regular polygon interiors

• Square L-Systems string rules
• atom FFFF
• Fstr FWF
• Wstr WW-WW
• angle 90

34
Example of L-System regular polygon interiors

• Pentagon L-Systems string rules
• atom FFFFF
• Fstr FWF
• Wstr WW-WW
• angle 72

35
Example of L-System regular polygon interiors

• Hexagon L-Systems string rules
• atom FFFFFF
• Fstr FWF
• Wstr WW-WW
• angle 60

36
Example of L-System regular polygon interiors

• Heptagon L-Systems string rules
• atom FFFFFFF
• Fstr FWF
• Wstr WW-WW
• angle 51.42857143

37
Example of L-System regular polygon interiors

• Octagon L-Systems string rules
• atom FFFFFFFF
• Fstr FWF
• Wstr WW-WW
• angle 45

38
Example of L-System regular polygon interiors

• Nonagon L-Systems string rules
• atom FFFFFFFFF
• Fstr FWF
• Wstr WW-WW
• angle 40

39
Example of L-System regular polygon interiors

• Decagon L-Systems string rules
• atom FFFFFFFFFF
• Fstr FWF
• Wstr WW-WW
• angle 36

40
L-System Interiors Discussion

• Some regular polygons were considered suitable
  for modelling purposes like generating game maps.
• These polygons are squares and hexagons ? do not
  have overlapping and collision detections issues.

41
L-System Interiors Discussion

• Squares are suitable candidates in generating
  city buildings architecture and game maps for
  tile-based strategy RPG.
• Each of the squares are arranged to adjacent to
  one another in the grid, and each of the tile
  usually represents a game terrain for that game
  map.

42
L-System Interiors Discussion

• Examples of square-based game maps like Super
  Robot Wars and Disgaea

43
L-System Interiors Discussion

• Hexagon is used to generate hexagonal game map
  grids called hex map. Most of the war strategy
  games use this layout to generate their game
  maps.
• The distance between the center of each hex cell
  and the center of all six adjacent hex cells
  remains constant.

44
L-System Interiors Discussion

• Example of hex map game maps like Battle for
  Wesnoth.

45
L-System Interiors Discussion

• The L-System examples can be further added
  graphics visually with different kinds of
  textures like doors, windows and picture frames
  to the system to become L-buildings.
• Different algorithms can be added within string
  production rules to create interesting building
  structure patterns.

46
L-Buildings Examples

• Screenshots of L-buildings interior design

47
L-System Versus Software Editor Tools

• Reason of using L-Systems for procedurally
  generating building interiors.
• L-System can achieve similar results of images to
  those images generated by graphic software
  editors like Maya.
• The models file size generated by L-Systems and
  Maya are reviewed and compared.

48
L-System Versus Software Editor Tools
49
L-System Versus Software Editor Tools
50
L-System Versus Software Editor Tools
51
L-System Versus Software Editor Tools
52
L-System Versus Software Editor Tools

• L-System rules settings file rarely increase in
  file sizes and used up a very small storage space
  because it depend on computational algorithm
  method.
• For the Maya model files, it have significant
  increase in the file size depending on how many
  textures needed to be drawn on that screen.

53
L-System Versus Software Editor Tools

• The level of efforts are easy for L-Systems
  string rules file.
• Maya models need to manually draw again the
  required model.
• L-Systems string rules only took a small amount
  of time to build the model .
• Maya models files needed to take a lot of time.

54
Contributions to the Research and Games Community

• Reduce the workload of game level designers.
• Possibilities to create infinite game worlds.
• Generate random interior textures with ease and
  produce interesting design.
• Produce cheaper games while maintained the same
  or high standard quality of its gameplay.

55
Future Work For This Research

• Complexity of the modelling task.
• No collision detection.
• More Randomness.

56
Thank you

• Any Questions ?
