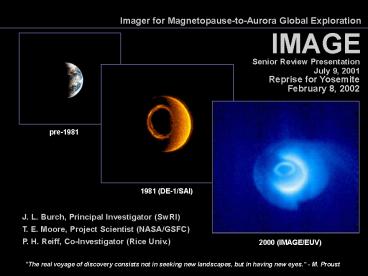

Imager for Magnetopause-to-Aurora Global
Exploration
Senior Review Presentation July 9, 2001 Reprise
for Yosemite February 8, 2002
pre-1981
1981 (DE-1/SAI)
J. L. Burch, Principal Investigator (SwRI) T. E.
Moore, Project Scientist (NASA/GSFC) P. H. Reiff,
Co-Investigator (Rice Univ.)
2000 (IMAGE/EUV)
The real voyage of discovery consists not in
seeking new landscapes, but in having new eyes.
- M. Proust
2
Senior Review Presentation July 9, 2001
Purpose of the Senior Review Allocate scarce
MODA resources for missions.
Strong impetus to turn off missions whose
additional science is not as cost-effective Winne
rs IMAGE, Cluster Loser IMP-J
3
Senior Review Presentation July 9, 2001
The extended IMAGE mission focuses on geomagnetic
activity during the declining phase of the solar
cycle.
The evolution of the IMAGE orbit provides a new,
mid- and low-latitude and ultimately southern
hemisphere viewing perspective.
4
Senior Review Presentation July 9, 2001
The sunspot cycle has passed a double peak, and
the magnetic field flip. It should be on its way
down now. But CIR storms and major storms can
still occur (like Aug 1972)
5
Senior Review Presentation July 9, 2001
Prime Mission (2000-2002)
Extended Mission (2002-2005)
solar maximum
declining phase of the solar cycle
high-latitude, northern hemisphere viewing
mid- low-latitude, southern hemisphere
viewing (e.g. plasmasphere refilling, RC pitch
angle hanges)
6
Senior Review Presentation July 9, 2001
Extended Mission (2005) Perigee over
the Northern hemisphere Allows good
correlation With ground-based instrumentation And
VLF propagation Experiments excellent aspect
for ENA imaging


7
Senior Review Presentation July 9, 2001
Specific studies to be undertaken during the
new mission include
Solar Cycle Dependence of Ionospheric Outflow
Magnetic Field-aligned Plasma Dynamics
Dynamics and Structural Changes in the
Magnetopause and Cusp
Cusp Plasma Injection
Field-aligned Densities and the Closed Field Line
Length over Substorm Time Scales
Ring Current Pitch Angle Distributions storm
dynamics
Substorms versus storms convection jets and
eddies
Plasmasphere Refilling Dynamics
High-resolution Ionospheric Imaging
Most of these studies are made possible by the
new viewing perspective that results from the
precession of the IMAGE orbit to middle and low
latitudes. Open data policy encourages
collaborations with other missions and new
initiatives from non-team members (Guest
Investigators and others).
8
Senior Review Presentation July 9, 2001
Geomagnetic Activity at Solar Max vs. during
Declining Phase of the Solar Cycle
How does the inner magnetosphere respond to CIRs?
How does a cooler exosphere affect polar ion
outflow?
Bastille Day Storm, 15-18 July 2000
9
Senior Review Presentation July 9, 2001
Examples of New Science Results Since Proposal
Submission
10
Senior Review Presentation July 9, 2001
IMAGE provides first global look at substorm
tail dynamics.
Sun contamination
Dipolarization and injections reach geosynchronou
s. Auroral onset.
Injection complete
Stretched tail field. Dense plasmasheet
Ions drift earthward in dipolarization
E-field faster than they can be replenished from
tail convection field
Flux increase due to conservation of adiabatic
invariance
11
Senior Review Presentation July 9, 2001
IMAGE/RPIs ability to observe ducted echoes
makes possible the determination of field-aligned
densities and field-line length and topology,
including refilling after drainage.
12
Senior Review Presentation July 9, 2001
IMAGE discovers source of kilometric continuum
radiation.
EUV imager observes previously unknown bite
outs in plasmasphere.
RPI demonstrates that kilometric continuum is
generated deep within bite outs and is beamed
along magnetic equator from a confined source
region.
13
Senior Review Presentation July 9, 2001
IMAGE sounds the magnetopause - putting M
into IMAGE.
.
RPI observes the magnetopause echoes (getting
farther away) while the plasmapause echoes become
closer.
14
Senior Review Presentation July 9, 2001
IMF Dependence of Subauroral Proton Emissions
the Q Aurora
15
Senior Review Presentation July 9, 2001
In addition to its investigation of the geospace
environment, IMAGE will continue to exploit
LENAs unique capability to observe solar wind
and interstellar neutrals. Specifically, IMAGE
will
Study seasonal and solar cycle variations in
solar wind neutral flux
Search for ENAs formed by charge exchange between
solar wind ions and interstellar neutrals, and
as interaction between the solar wind and
exosphere - magnetosheath!
Determine the angular width and start and stop
dates of the interstellar neutral signal observed
between late December and early February
Although primarily a magnetospheric mission,
IMAGE contributes to understanding of how the Sun
and the galaxy interact (Quest III, SEC Roadmap
2000).
16
Senior Review Presentation July 9, 2001
IMAGE detects solar wind and interstellar
neutrals.
17
Seasonal variation of solar wind neutral atoms
as probe of gas and dust in the inner
heliosphere
Theory
Theory Hydrogen Flux at Earth
Years after Solar Maximum
18
Senior Review Presentation July 9, 2001
New Questions, areas of research
PMEC polarization fields making major changes
in ENA location, localized
E-fields make biteouts or shoulders
Q-aurora low-altitude evidence of plasma tail,
drainage plume?
DUCTS Evidence of wrapped-up plasma tails??
CUSP ACCELERATED IONS need to nail that down
ANTIPARALLEL RECONNECTION how resolve the
IMAGE results with other low latitude results
that look more like component merging?

RING CURRENT/Plasmasphere interactions
19
And many many many more exciting results that
have been presented in this meeting!!
Years after Solar Maximum
20
Senior Review Presentation July 9, 2001
IMAGE provides real-time auroral imaging to the
NOAA Space Environment Center.
http//www.sec.noaa.gov/IMAGE/ Given the
importance of the plasma drainage tail, Maybe we
should also have EUV data realtime! (Fosters
report this meeting)
IMAGE will provide critical extended auroral
imaging that Polar will lose once its fuel is
depleted.
21
Senior Review Presentation July 9, 2001
The IMAGE / POETRY team will continue its highly
successful education and outreach activities...
Participation in teacher workshops formal
collaboration with Earth Space Science Magnet
School in Houston
Development and distribution of IMAGE-based
educational materials
Participation in museum and planetarium programs
Communication of exciting results to public via
popular press and Web
with particular emphasis on
Influencing the treatment of aurora and the
geospace environment in both undergraduate
astronomy textbooks and K-12 science books
adopted by county and state curriculum committees
22
Senior Review Presentation July 9, 2001
The IMAGE / POETRY team will continue its highly
successful education and outreach activities...

• Working with GSFC Education Office to design a
  Nations Space Science Education Matrix to
  implement systemic change in space science
  education
• NASA Connect program on SEC missions, to feature
  IMAGE (3/2002).
• 'Invisible Earth Systems' poster which
  integrates POETRY activities and national
  standards in the topic area of systems science.
• Space Weather planetarium show at Adler
  Planetarium, April 2002
• Distribution of revised undergraduate
  textbooks...sample page
• More propagation to ground experiments with
  INSPIRE
• POETRY web site upgrades
• Continue to advertise our resources to educators
  (NSTA, etc.)

23
IMAGE Mission Stars in NASA/CONNECT TV Program

• DATA ANALYSIS AND MEASUREMENT Having a Solar
  Blast!
• Starts airing Thursday, March 28, 2002, 11 am ET
  Runtime 2830
• NASA engineers and researchers use data analysis
  and measurement to predict solar storms,
  anticipate how they will affect the Earth, and
  improve our understanding of the Sun-Earth
  system.
• Mathematics data analysis, measurement Science
  science as inquiry, unifying concepts and
  processes, physical science, Earth and space
  science, science and technology, science in
  personal and
• social perspectives. NASA Research SOlar
  Heliospheric Observatory (SOHO), Imager for
  Magnetopause-to-Aurora Global Exploration (IMAGE)

Dr. Sten Odenwald (IMAGE/POETRY) is the on-camera
scientist who works with Hosts to explain IMAGE
mission and the importance of space weather
research. The Script breakdown is IMAGE
Mission850 words SOHO Mission..300
words ACE Mission.150 words
National Reach 380,000 teachers subscribe to
CONNECT 2.8 million students watch the
program 10 episodes per year.
24
Senior Review Presentation July 9, 2001
Like the prime mission, the IMAGE extended
mission addresses key NASA goals and objectives
set forth in the Space Science Enterprise
Strategic Plan and the SEC Roadmap.
25
Senior Review Presentation July 9, 2001
The IMAGE extended mission advances our efforts
to
learn how galaxies, stars, and planets
form, interact, and evolve
understand our changing Sun and its
effects throughout the solar system
develop the knowledge to improve our
under- standing of space weather
share the excitement and knowledge generated by
scientific discovery and improve science education
26
Senior Review Presentation July 9, 2001
IMAGE Makes Critical Contributions to the OSS
Strategic Plan
Goal
Objective
IMAGE Contribution
Image s.w.-mag. Interactions. Find long-term
variation of ISNs. Search for ISNs from
termination shock.
Learn how galaxies, stars, and planets form,
interact, and evolve. Understand our changing Sun
and its effects throughout the Solar System.
Chart the evolution of the
Universe from origins to destiny and understand
its galaxies, stars, planets, and life. Share
the excitement and know- ledge generated by
scientific discovery and improve
science education. Use robotic science
missions as forerunners to human
exploration beyond low-Earth orbit. Develop new
technologies to enable innovative and
less expensive research and flight missions.
Compare CME and CIR storms
Share the excitement of space science discoveries
with the public. Enhance the quality of science,
math, and technology education, particularly at
the pre-college level. Help create 21st century
workforce.
Popular articles, museum and planetarium exhibits
Teacher workshops, pre-college and college
curriculum development
Undergraduate and graduate research opportunities
Develop the knowledge to improve space weather.
Nearly continuous multi-spectral imaging of
geospace Real-time data link for NOAA
Acquire new technical approaches and
capabilities. Validate new technologies in
space. Apply and transfer technology.
Comprehensive set of new magnetospheric imaging
technologies developed, validated in space, and
published.
27
Senior Review Presentation July 9, 2001
The IMAGE extended mission addresses three of the
four fundamental quests set forth in the 2000 SEC
Roadmap.
Quest II. How do the planets respond to solar
variations?
IMAGE provides nearly continuous global imaging
of the solar-wind magnetosphere interaction at
solar maximum and, during an extended mission,
during the declining phase.
Quest III. How do the Sun and galaxy interact?
IMAGE obtains measurements of interstellar
neutrals and is conducting a search for neutral
atoms produced at the termination shock.
Quest IV. How does solar variability affect life
and society?
As the first space weather satellite, IMAGE
provides the only global monitor of space weather.
And the IMAGE extended mission offers an
effective and imaginative approach to the SEC
E/PO goals described in the Roadmap.
28
Keep up the good work!!
29
(No Transcript)
