Mobility, Security, and ProofCarrying Code Peter Lee Carnegie Mellon University

1

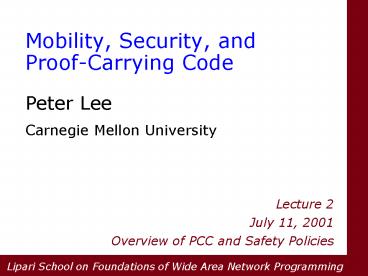

Mobility, Security, andProof-Carrying Code
Peter LeeCarnegie Mellon University

• Lecture 2
• July 11, 2001
• Overview of PCC and Safety Policies

Lipari School on Foundations of Wide Area Network
Programming
2
Key Idea Explicit Proofs
Code
Certifying Prover
Proof Engine
Proof
Trusted Host
3
Proof-Carrying Code
Code
Certifying Prover
Proof
Proof Checker
4
Certifying Compilers
Certifying Compiler
Certifying Prover
Proof Checker
5
Questions

• What is the interface between the compiler and
  the prover?
• What is meant by safety?
• Or security or privacy or ?
• How does the proof checker work?
• How does it connect code with proof?
• How are proofs represented?
• For compactness, speed, and simplicity?
• How are proofs generated?

6
Todays Lecture

• Overview of approaches.
• High-level architecture.
• Safety properties.
• Next time Detailed examples, proof generation
  and checking.

7
Overview of Approaches to Certified Code TAL,
kJava, and PCC
8
Typed Assembly LanguageMorrisett, et al., 98

• Use modern type theory to develop a static type
  system for machine code.
• Prove decidability of typechecking.
• Prove soundness of type system.
• Developing such a type system is very hard, but
  hopefully is done only once.

9
Typed Assembly Language
Type-Directed Compiler
Type Checker
Type Checker
Somewhat surprisingly, it is possible to capture
a practical subset of the x86 architecture in a
type system.
10
TAL Example
int i n1 int s 0 while (--i gt 0) s
i
mov eax, ecx inc eax mov ebx,
0 jmp test body eax B4, ebx B4
add ebx, eax test eax B4, ebx B4 dec
eax cmp eax, 0 jg body
In practice, the annotations are much more
sophisticated.
11
Novel Features of TAL

• Uses existential types to capture the concept of
  the current stack frame.
• Type system has been evolving rapidly (including
  soundness proofs).
• But painful for implementors.
• Limited use of dependent types for optimized code.

12
K Virtual Machine

• Designed to support the CLDC.
• Must fit into lt128KB.
• Must have fast bytecode verification.
• kJava class files must be Java-compatible.
• Divides bytecode verification into two stages.

13
kJava and KVM
kJava Compiler
kJava Preverifier
Verifier
14
KVM Verification

• Preverification is performed by the code
  producer.
• Uses global (iterative) analysis to compute the
  types of stack slots and local vars at every join
  point.
• Second stage is performed by class loader.
• Simple linear scan verifies correctness of
  join-point annotations.

15
KVM Examplefrom Frank Yellin
0. aload_0 1. astore_1 2. goto 10 Long Number
ltgt 5. aload_1 6. invokeStatic
nextValue(Number) 9. astore_1 Long Number
ltgt 10. aload_1 11. invokeVirtual
intValue() 14. ffne 5 17. return
static void test(Long x) Number y x
while (y.IntValue() ! 0) y
nextValue(y) return y
16
KVM Verification

• The second stage verifier is a 10KB program that
  requires
• a single scan of the code, and
• lt100 bytes of run-time storage.
• Impressive!
• This is Java verification done right.

17
PCC Certifying Compilation
Certifying Compiler
Certifying Prover
Proof Checker
18
PCC Example
L7 ANN_LOOP(INV (csubneq ebx 0), (csubneq
eax 0), (csubb edx ecx), (of rm mem),
MODREG (EDI,EDX,EFLAGS,FFLAGS,RM)) cmpl esi,
edx jae L13 movl 8(ebx, edx, 4),
edi movl edi, 8(eax, edx, 4) incl edx cmpl
ecx, edx jl L7 ret L13 call __Jv_ThrowBadA
rrayIndex ANN_UNREACHABLE nop L6 call __Jv_Thr
owNullPointer ANN_UNREACHABLE nop
ANN_LOCALS(_bcopy__6arrays6Bcopy1AIAI,
3) .text .align 4 .globl _bcopy__6arrays6Bcopy1AIA
I _bcopy__6arrays6Bcopy1AIAI cmpl 0,
4(esp) je L6 movl 4(esp), ebx movl 4(ebx),
ecx testl ecx, ecx jg L22 ret L22 xorl e
dx, edx cmpl 0, 8(esp) je L6 movl 8(esp),
eax movl 4(eax), esi
19
Join-Point Annotations

• All of these approaches to certified code make
  use of join-point typing annotations to reduce
  code verification to a simple problem.
• They are essentially the classical loop
  invariants of the Dijkstra/ Hoare program
  verification approach.

20
Overheads

• In TAL and PCC we observe relatively large
  annotations sizes (10-20), sometimes more.
• Unknown for kJava.
• Research question
• Can we reduce this size?

21
High-Level Architecture
22
High-Level Architecture
Code
Verification condition generator
Checker
Explanation
Agent
Safety policy
Host
23
High-Level Architecture
Code
Verification condition generator
Checker
Explanation
Agent
Safety policy
Host
24
The VCGen

• The verification condition generator (VCGen)
  examines each instruction.
• It essentially encodes the operational semantics
  of the language.
• It checks some simple properties.
• E.g., direct jumps go to legal addrs.
• It invokes the Checker when dangerous
  instructions are encountered.

25
The VCGen, contd

• Examples of dangerous instructions
• memory operations
• procedure calls
• procedure returns
• For each such instruction, VCGen creates a
  verification condition (VC).
• A VC is a logical predicate whose truth implies
  the instruction is safe.

26
High-Level Architecture
Code
Verification condition generator
Checker
Explanation
Agent
Safety policy
Host
27
The Checker

• When given a VC, the Checker looks in the
  explanation for its proof.
• If found, it then checks whether the proof is
  valid.
• The set of allowable VCs and their valid proofs
  is defined by the safety policy.

28
A Dialog

• VCGen Scanning code
• VCGen Danger! This memory-write is safe only if
  VC ?r.P(r) under assumptions ? is true.
• Checker Looking for proof of VC.
• Checker Found proof ??? VC.
• Checker Checking with safety policy to see
  whether ? is a valid proof.

29
High-Level Architecture
Code
Verification condition generator
Checker
Explanation
Agent
Safety policy
Host
30
The Safety Policy

• The safety policy is defined by an inference
  system that defines
• the language of predicates (for VCs)
• the axioms and inference rules for writing valid
  proofs of VCs.
• specifications (pre/post-conditions) for each
  entry point in the code.
• Informally, one thinks of the safety policy as
  defining the constraints on the execution of safe
  programs.

31
Reference Interpreters

• A reference interpreter (RI) is a standard
  interpreter extended with instrumentation to
  check the safety of each instruction before it is
  executed, and abort execution if anything unsafe
  is about to happen.
• In other words, an RI is capable only of safe
  execution.

32
Reference Interpreterscontd

• The reference interpreter is never actually
  implemented.
• The point will be to prove (by using the proof
  rules given in the safety policy) that execution
  of the code on the RI never aborts, and thus
  execution on the real hardware will be identical
  to execution on the RI.

33
Reference Interpreterscontd

• Rule of Thumb
• Any notion of safety that can be enforced by a
  reference interpreter can be encoded in a PCC
  safety policy.

34
Example

• Consider a safety policy for x86 code where
• the code must provide a function whose
  precondition is that register eax contains a
  pointer to a float array and ebx contains the
  arrays length.
• the code is allowed to read and write
  floating-point values into the given array, but
  nowhere else in the heap memory.

35
Example, contd

• As the RI executes, it must perform a special
  check every time the code attempts to read or
  write to memory.
• When reading, it must check that the address is
  within the bounds of the array.
• When writing, it must check that the value being
  written is actually a floating-point value, and
  check that the address is within bounds.

• As the RI executes, it must perform a special
  check every time the code attempts to read or
  write to memory.
• When reading, it must check that the address is
  within the bounds of the array.
• When writing, it must check that the value being
  written is actually a floating-point value, and
  check that the address is within bounds.

36
Example, contd

• To do this kind of type-checking, it will be
  useful for the RI to maintain information about
  the types of values in the registers.
• E.g., execution of xxxxxxx fadd
  eax?ebx should result in the
  knowledge that ebx contains a floating-point
  value, if eax and ebx held floating-point
  values before execution.

37
Homework Exercises

• 2. Suppose that we require the code to execute no
  more than N instructions? Is such a safety
  property enforceable by an RI?
• 3. Suppose we require the code to terminate
  eventually. Is such a safety property
  enforceable by an RI?

38
Reference Interpretersand Safety Policies

• A reference interpreter, if actually implemented,
  would enforce safety at run-time.
• PCC can be used to enforce the same safety at
  load-time.
• Essentially, the proofs given with the code
  attest to the fact that the code will never abort.

39
Operational Semantics

• In terms of operational semantics, the RI defines
  a safe machine.
• The proofs show that the code always makes
  progress (or halts normally) in the operational
  semantics.
• This leads to a standard notion of soundness.

40
Note

• I will avoid formal notation for statements of
  some key results and theorems.
• See the papers (and especially Neculas PhD
  thesis for these details).

41
Examples of Safety Properties

• Memory safety.
• Which addresses are readable / writable when,
  and what values.
• Type safety.
• What values can be stored and used in operations.
• System call safety.
• Which system routines can be called and when.

42
Examples of Safety Policiescontd

• Action sequence safety.
• E.g., no network send after reading a file.
• Resource usage safety.
• E.g., instruction counts, stack limits, etc.

43
What Cant Be Enforced?

• Informally
• Safety properties. ? Yes.
• No bad thing will happen.
• Liveness properties. ? Not yet.
• A good thing will eventually happen.
• Information-flow properties. ? ?
• Confidentiality will be preserved.

44
What Cant Be Enforced?

• Liveness properties currently cannot be enforced
  by PCC.
• Actually, PCC proofs can express proofs of such
  properties, but VCGen can not generate
  appropriate VCs.
• Conjecture
• In practice, safety properties are good enough.

45
Safety Properties AreGood Enough?

• Termination is an example of a liveness property.
• Termination within a specified number of cycles
  is a safety property.
• In practice, the latter is often more useful than
  the former.

46
Applets, Not Craplets
47
Architecture
Ginseng
Special J
Code producer
Host
48
Architecture
Java binary
Native code
Special J
VCGen
Annotations
VC
Axioms
Proof checker
Proof
Code producer
Host
49
Architecture
Java binary
Native code
Certifying compiler
VCGen
Annotations
VC
VCGen
Axioms
VC
Axioms
Proof generator
Proof checker
Proof
Code producer
Host
50
Java Virtual Machine
Java Verifier
Checker
Proof-carrying code
JVM
JNI
51
Show either the Mandelbrot or NBody3D demo.
52
Crypto Test Suite ResultsCedilla Systems
sec
On average, 72.8 faster than Java, 37.5 faster
than Java with a JIT.
53
Java Grande Suite v2.0 Cedilla Systems
sec
54
Java Grande Bench Suite Cedilla Systems
ops
55
Ginseng
15KB, roughly similar to a KVM verifier (but
with floating-point).
VCGen
4KB, generic.
Checker
19KB, declarative and machine-generated.
Safety Policy
Dynamic loading Cross-platform support
22KB, some optional.
56
Safety Policy Specifications
57
Architecture
Java binary
Native code
Certifying compiler
VCGen
Annotations
VC
VCGen
Axioms
VC
Axioms
Proof generator
Proof checker
Proof
Code producer
Host
58
Ginseng
15KB, roughly similar to a KVM verifier (but
with floating-point).
VCGen
4KB, generic.
Checker
19KB, declarative and machine-generated.
Safety Policy
Dynamic loading Cross-platform support
22KB, some optional.
Ginseng is small and easy-to-integrate.
59
Safety Policy

• The safety policy gives the inference rules for
  constructing valid proofs.
• We use a language called LF for this
  specification, using Pfennings Elf syntax.
• Much more on this next time.

60
Safety PolicySample Rules
/\ pred -gt pred -gt pred. \/ pred -gt pred -gt
pred. gt pred -gt pred -gt pred. all (exp -gt
pred) -gt pred. pf pred -gt type. truei pf
true. andi Ppred Qpred pf P -gt pf Q -gt
pf (/\ P Q). andel Ppred Qpred pf (/\ P
Q) -gt pf P. ander Ppred Qpred pf (/\ P Q)
-gt pf Q.
61
Safety PolicySome Rules
exp -gt exp -gt pred. ltgt exp -gt exp -gt
pred. gt exp -gt exp -gt pred. eq_le Eexp
E'exp pf (csubeq E E') -gt pf
(csuble E E'). jbool exp. jchar
exp. jbyte exp. jshort exp. jint
exp. of exp -gt exp -gt pred. faddf Eexp
E'exp pf (of E jfloat) -gt pf (of E'
jfloat) -gt pf (of (fadd E E') jfloat).
62
Safety PolicySample Rules
aidxi Iexp LENexp SIZEexp pf
(below I LEN) -gt pf (arridx (add (imul I
SIZE) 8) SIZE LEN). wrArray4 Mexp Aexp
Texp OFFexp Eexp pf (of A
(jarray T)) -gt pf (of M mem) -gt pf
(nonnull A) -gt pf (size T 4) -gt
pf (arridx OFF 4 (sel4 M (add A 4))) -gt pf
(of E T) -gt pf (safewr4 (add A OFF) E).
63
Homework Exercise 4

• The sample proof rules given here are very
  Java-specific and compiler-specific.
• This is clearly problematic.
• Why did Necula Lee do this?

64
Summary
65
Summary

• The Necula/Lee approach to PCC is based on the
  notion of progress in a safe operational
  semantics.
• It makes use of a verification-condition
  generator to extract predicates to be proven.
• The approach seems to cover a wide range of
  practical problems.

66
Next Time

• Detailed examples, and then the representation of
  proofs and algorithms for checking them.
