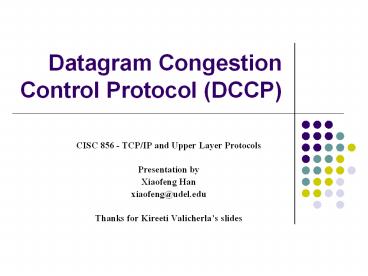

Datagram Congestion Control Protocol (DCCP)

1
Datagram Congestion Control Protocol (DCCP)

• CISC 856 - TCP/IP and Upper Layer Protocols
• Presentation by
• Xiaofeng Han
• xiaofeng_at_udel.edu
• Thanks for Kireeti Valicherlas slides

2
Overview

• Motivation
• Connection process
• Unreliable packets flow with acknowledgement
• Features negotiation
• Choice of congestion control
• Miscellaneous features

3
DCCP Which Layer?
DCCP
Figure 2-11 TCP/IP Protocol Suite, Behrouz A.
Forouzan
4
Streaming Media

• What streaming media needs?
• Timeliness of data
• What streaming media doesnt need?
• Retransmissions of lost and expired packets

Source http//streaming.wisconsin.edu/Accessible_
Tutorials/Tutorial1/p1-3.htm
5
Streaming Media Over TCP
Server
Client
D12
A12
D13
D14 - D16
A12
Data is not useful
D13
6
Streaming Media Over UDP
Server
Client

• No congestion control in UDP flows
• Harmful to Internet health

7
Streaming Media with SCTP

• Multi-streams over a single association
• Uses TCP-like congestion control
• Retransmission

8
Solution

• DCCP
• Reliable connection establishment and termination
• Unreliable packet flow
• On-demand congestion control
• Optional features
• Security concerns

9
DCCP Connection Setup
Client
Server
DCCP A
DCCP B
Similar to TCP connection setup
DCCP Request
DCCP Response
DCCP Ack
10
DCCP Data Transfer Phase
Client
Server
DCCP DATA
DCCP ACK
DCCP DATA
DCCP DATA ACK
11
DCCP Connection Termination
Client
Server
Client
Server
DCCP CloseReq
DCCP Close
DCCP Reset
DCCP Close
DCCP Reset
DCCP Reset
Wait 2 MSL
Wait 2 MSL
12
DCCP Data Transfer Example - 1

• Client

Server

• Pure Seq , not bytes
• Each packet carries a Seq
• Seq increase per packet
• Pure Acks also consume Seq

DCCP-DATA (Seq 1)
DCCP-ACK (Seq 10, Ack 1)
DCCP-DATA(seq 2)
DCCP-ACK(seq 11, ACK 2)
13
DCCP Data Transfer Example - 2

• Client

Server

• No Retransmissions
• Acks the largest Seq received

DCCP-DATA (Seq 1)
DCCP-ACK (Seq 10, Ack 1)
DCCP-DATA(seq 2)
DCCP-DATA(seq 3)
DCCP-ACK(seq 11, ACK 3)
DCCP-DATA(seq 4)
DCCP-ACK(seq 12, ACK 4)
14
DCCP Data Transfer Example - 3

• Client

Server
GSR 1 (W/4)
DATA (Seq 20)
ACK (Seq 60, Ack 20)
DATA(seq 21)
DATA(seq 22)
DATA(seq 23)
DATA (Seq 24)
ACK(seq 61, ACK 24)
GSR 3 (W/4)

• GSR Greatest Sequence Number Received
• GSS Greatest Ack Number Received
• Window Size 8

15
DCCP Data Transfer Example - 4

• Client

Server
GSR 1 (W/4)
DATA (Seq 20)
ACK (Seq 60, Ack 20)
DATA(Seq 21) DATA(Seq 30)
Seq out of range
DATA (Seq 31)
Sync(Seq 61, ACK 31)
SyncAck (Seq 32, Ack 61)
GSR 3 (W/4)

• GSR Greatest Sequence Number Received
• GSS Greatest Ack Number Received
• Window Size 8

16
DCCP Packet Types
17
DCCP Packet Formats

• DCCP header can be from 12 to 1020 bytes
• Generic header 12 bytes
• Additional fields fixed length field
• Options variable length field

18
DCCP Generic Header
19
DCCP Generic Header
20
Acknowledgement Sub-Header
X 1
X 0
21
DCCP Checksum

• Checksum Coverage (CsCov) 4 bits
• CsCov 0 covers the DCCP header, DCCP options,
  network-layer pseudoheader, and all application
  data in the packet (possibly some padding)
• CsCov 1-15 covers the DCCP header, DCCP
  options, network-layer pseudoheader, and the
  initial (CsCov-1)4 bytes of the packet's
  application data.
• Option provides CRC checksum for all application
  data

22
Congestion Control in DCCP

• Each congestion control mechanism supported by
  DCCP is assigned a congestion control identifier,
  or CCID a number from 0 to 255.
• CCID 0 and CCID 1 are reserved
• TCP-like congestion control CCID 2
• TCP friendly rate control (TFRC) CCID 3
• CCID 4-255 are reserved

23
CCID 2 TCP-like Congestion Control

• Congestion control as in TCP/IP
• Slow start
• Timeouts
• Congestion event -gt Halve congestion window
• Abrupt rate changes

(initial) ssthresh
cwnd
Loss, e.g. timeout
time
24
CCID 2 TCP-like Congestion Control

• Applications using this
• Respond quickly to changes in available
  bandwidth
• Must tolerate abrupt changes

Online interactive games prefer this kind of
congestion control
25
CCID 3 TCP Friendly Rate Control

• TFRC, RFC 3448
• Equation-based congestion control
• Minimizes abrupt changes in sending rate
• Maintains longer-term fairness with TCP

Streaming Media doesnt need responsiveness but
prefer steadier and less burst traffic as
provided by TFRC
26
CCID 3 TCP Friendly Rate Control

• s
• X ---------------------------------------------
  ----------------------------------------
• Rsqrt(2bp/3) (t_RTO (3sqrt(3bp/8)
  p (132p2)))
• Where
• X is the transmit rate in bytes/second.
• s is the packet size in bytes.
• R is the round trip time in seconds.
• p is the loss event rate, between 0 and 1.0, of
  the number of loss events as a fraction of the
  number of packets transmitted.
• t_RTO is the TCP retransmission timeout value in
  seconds.
• b is the number of packets acknowledged by a
  single TCP acknowledgement.

27
CCID 3 TCP Friendly Rate Control

• The receiver measures the loss event rate and
  feeds this information back to the sender
• The sender uses these feedback messages to
  measure the round-trip time (RTT)
• The loss event rate and RTT are then fed into
  TFRC's throughput equation, giving the acceptable
  transmit rate
• The sender then adjusts its transmit rate to
  match the calculated rate

28
Congestion related options

• Slow receiver option
• Receiver sends this option to its sender to
  indicate it is having trouble keeping up with the
  senders data
• Data dropped option
• Option indicates that some packets reported as
  received actually had their data dropped before
  it reached the application.

29
Explicit Congestion Notification
ECE set ACK
ECT set
CWR set
ECN enabled sender
ECN enabled receiver
30
Features Negotiation

• Connection attribute on what value two endpoints
  agree
• Examples
• Congestion control identifier (CCID)
• ECN capable / incapable
• Data checksum
• Sequence Window
• DCCP features are identified by a feature number
  and an endpoint
• Notation F/X is used

31
F/X Notation
Feature location for all F/B
Feature location for all F/A
B
A
Feature Remote for all F/B
Feature Remote for all F/A
32
Feature Negotiation

• Anytime during the connection process
• Carried in a reliable way
• Multiple values, priority order
• Endpoints keep sending packets containing change
  options, until agreement is reached ( and
  signalled by Confirm Option)

33
Feature Negotiation Example
Client
Server
CCID/Server agreed as 2
Change R (CCID, 2, 3)
Confirm L (CCID, 2)
Change L (CCID, 3, 4)
CCID/Server agreed as 4
Confirm R (CCID, 4, 4 2)
34
Feature Negotiation Example
Client
Server
Change R(CCID, 2)
Change R(CCID, 2)
Change R(CCID, 2)
Change R(CCID, 2)
Confirm L(CCID, 2)
CCID/Server agreed as 2
35
DCCP Miscellaneous Features

• Security Concerns
• Prevents DDoS attacks init cookie
• Prevents Sequence Number Attack
• Large Sequence Number
• Sequence and Acknowledgement Number Windows
• Data Corruption
• CRC data Checksum Option

36
DCCP Miscellaneous Features

• Path MTU discovery
• DCCP should NOT fragment data
• DCCP must maintain maximum packet size (MPS)
• Applications can usually get better error
  tolerance by producing packets smaller than the
  PMTU
• Methods
• On IPv4 connections whose applications have
  requested fragmentation, the sender SHOULD send
  packets with the DF bit not set
• On IPv6 connections whose applications have
  requested fragmentation, the sender SHOULD use
  fragmentation extension headers to fragment
  packets larger than PMTU into suitably-sized
  chunks (Those chunks are, of course,
  unfragmentable.)

37
DCCP and RTP
DCCP
Figure 28-8 TCP/IP Protocol Suite, Behrouz A.
Forouzan
38
DCCP Summary

• Transport layer protocol
• Unreliable datagrams
• Negotiable features
• Optional congestion control

39
References

• Datagram Congestion Control Protocol (DCCP)Eddie
  Kohler, Mark Handley, and Sally FloydMay 2005
  http//www.icir.org/kohler/dcp/draft-ietf-dccp-spe
  c-09.txt
• DCCP OverviewEddie Kohler and Sally Floyd
  http//www.icir.org/kohler/dcp/summary.pdf
• DCCP
• Eddie Kohler, Mark Handley, Sally Floyd,
  Jitendra Padhyehttp//www.icir.org/kohler/dcp/
• TCP Friendly Rate Control (TFRC) RFC 3448
