WiMAX

1

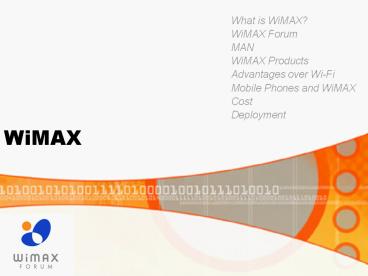

WiMAX

• What is WiMAX?
• WiMAX Forum
• MAN
• WiMAX Products
• Advantages over Wi-Fi
• Mobile Phones and WiMAX
• Cost
• Deployment

2
What is WiMAX?

• World Interoperability for Microwave Access
• Not a new tech -gt Wi-Fi( 801.11 )
• IEEE 802.16 standard (WirelessMAN)
• Last mile -gt Cable DSL
• Wireless -gt Wide Band
• Symmetrical bandwith -gt Long distances
• 50km range 70Mbps

3
WiMAX Forum

• Authority
• WiMAX certification Program
• Research new solutions to problems

4
Metropolitan Area Network (MAN)

• MANltWANltLAN
• City network
• Includes
• Telephone Network
• Television Network
• Internet
• Miles of cables
• No infastructure

5
MAN with WiMAX
6
WiMAX
7
WiMAX Products

• WiMAX Antenna

8
WiMAX Products

• Desktop Modem

9
WiMAX Products

• Redline BaseStation

10
WiMAX Products

• INTELs fist structure for WiMAX

11
Advantages over Wi-Fi

• Provides
• Telephone
• Internet
• Television
• Symmetrical bandwith long distance
• Quality of Service -gt VoIP IPTV
• Scheduling Algoritm
• Wi-Fi slow upload rates -gt Ex. Coffee Shops
  ADSL backhaul
• Non Line of Sight propagation

12
Mobile Phones and WiMAX

• Different frequencies
• WiMAX and Telephone at the same time
• Antenna integrate - GSM BaseStation
• Next generation GSM technologies in WiMAX
• Scalable OFDM,
• hARQ, FEC,
• MIMO-ASS
• Most important 4G

13
Cost

• End user -gt 250-300 -gt2007 - 100
• BaseStation -gt 5000-100.000

14
Deployment

• Yozgat Bozlayan
• 5 schools
• No cable connection
