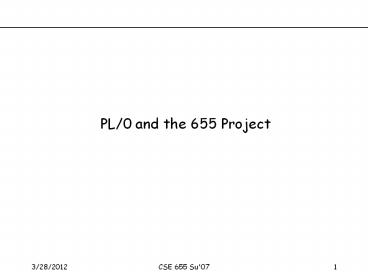

PL/0 and the 655 Project

1

• PL/0 and the 655 Project

2
Specification of Syntax

• PL/0
• How the nesting of expression, term and factor in
  PL/0 work together and generate code
• How the nesting of recognition routines has the
  effect of static scoping
• Project questions and answers
• UML Use Case Modeling
• General Problem of Describing Syntax
• Recursive Descent Parsing
• Attribute Grammars
• Describing the Meanings of Programs
  Dynamic Semantics

3
Simple Syntax Processing Prerequisites

• 321, 560, 625 cover basics of processing simple
  programs
• 655 to advance and unify that understanding
• Wirth approach to describing syntax graphs as
  flow charts for programming a parserrecursive
  descent
• Textbook Chapters
• Following slides should be a review

4
Syntax, semantics, language

• Syntax - the form or structure of the
  expressions, statements, and program units
• Semantics - the meaning of the expressions,
  statements, and program units
• Sentence - string of characters over some
  alphabet (maybe what are usually words)
• Language - set of sentences
• Lexeme - lowest level syntactic unit of a
  language (e.g., , sum, begin)
• Token - category of lexemes (e.g., identifier)

5
Language (following Wirth)

• L L ( T, N, P, S )
• Vocabulary T of terminal symbols
• Set N of non-terminal symbols(grammatical
  categories)
• Set P of productions (syntactical rules)
• Symbol S (from N) called the start symbol
• Language is set of sequences of terminal symbols
  that can be generated (directly or indirectly
  (thats his points 3 and 4)

6
Backus Normal Form (1959)

• Invented by John Backus to describe Algol 58
• BNF is equivalent to context-free grammars
• A metalanguage is a language used to describe
  another language.
• In BNF, abstractions are used to represent
  classes of syntactic structures--they act like
  syntactic variables (also called nonterminal
  symbols)
• e.g. ltwhile_stmtgt -gt while ltlogic_exprgt do
  ltstmtgt
• This is a rule it describes the structure of a
  while statement

7
Syntax rules

• A rule has a left-hand side (LHS) and a
  right-hand side (RHS), and consists of terminal
  and non-terminal symbols
• A grammar is a finite nonempty set of rules
• An abstraction (or non-terminal symbol) can have
  more than one RHS
• ltstmtgt -gt ltsingle_stmtgt begin ltstmt_listgt
  end
• Syntactic lists are described in BNF using
  recursion
• ltident_listgt -gt ident ident, ltident_listgt
• A derivation is a repeated application of rules,
  starting with the start symbol and ending with a
  sentence (all terminal symbols)

8
An example grammar

• ltprogramgt -gt ltstmtsgt
• ltstmtsgt -gt ltstmtgt ltstmtgt ltstmtsgt
• ltstmtgt -gt ltvargt ltexprgt
• ltvargt -gt a b c d
• ltexprgt -gt lttermgt lttermgt lttermgt - lttermgt
• lttermgt -gt ltvargt const

9
An example derivation

• ltprogramgt gt ltstmtsgt
• gt ltstmtgt
• gt ltvargt ltexprgt
• gt a ltexprgt
• gt a lttermgt lttermgt
• gt a ltvargt lttermgt
• gt a b lttermgt
• gt a b const

10
Derivation explanation

• Every string of symbols in the derivation is a
  sentential form
• A sentence is a sentential form that has only
  terminal symbols
• A leftmost derivation is one in which the
  leftmost non-terminal in each sentential form is
  the one that is expanded
• A derivation may be neither leftmost nor
  rightmost
• Parse tree is a hierarchical representation of a
  derivation

11
Parsing another view

12
Static Semantics

• Other information about the language not
  specified with the BNF
• Identifier length
• Maximum integer value
• Other restrictions on your compiler
• Symbol table size
• Code array size
• Specify these in your description of your
  language processor
• Recognize the restrictions youve implied

13
Unstated Assumptions

• Input program read top-to-bottom, left-to-right,
  with no backtracking
• Things declared before they are used
• No redefining at same level
• Inner declarations hidden by nesting
• Inner can locally hide outer declarations

14
Ambiguity Right Recursive

• A grammar is ambiguous iff if and only if it
  generates a sentential form that has two or more
  distinct parse trees
• If we use the parse tree to indicate precedence
  levels of the operators, we cannot have ambiguity
• Operator associativity can also be indicated by a
  grammar
• ltexprgt -gt ltexprgt ltexprgt const (ambiguous)
• ltexprgt -gt ltexprgt const const (unambiguous)
• Left recursive (left associative)(recursive
  descent will require right recursive)

15
Extended BNF (abbreviations)

• Optional parts are placed in brackets ()
• ltproc_callgt -gt ident ( ltexpr_listgt)
• Put alternative parts of RHSs in parentheses and
  separate them with vertical bars
• lttermgt -gt lttermgt ( -) const
• Put repetitions (0 or more) in braces ()
• ltidentgt -gt letter letter digit

16
BNF / EBNF

• BNF
• ltexprgt -gt ltexprgt lttermgt
• ltexprgt - lttermgt
• lttermgt
• lttermgt -gt lttermgt ltfactorgt
• lttermgt / ltfactorgt
• ltfactorgt
• EBNF
• ltexprgt -gt lttermgt ( -) lttermgt
• lttermgt -gt ltfactorgt ( /) ltfactorgt

17
Syntax Graphs

• Put the terminals in circles or ellipses and put
  the non-terminals in rectangles
• Connect with lines with arrowheads
• e.g., Pascal type declarations

18
Wirths Rules

• B1 Reduce system of syntax graphs to a few of
  reasonable size
• B2 Translate each graph to a procedure according
  to subsequent rules
• B3 Sequence of elements translates to
• begin T(S1) T(S2) T(Sn) endor T(S1)
  T(S2) T(Sn)
• procedure TSx()begin TS1()
  getsym() TS2() getsym() end

19
lttermgt -gt ltfactorgt ( /) ltfactorgt

• Pascal commentbegin factor while sym in
  times, slash do begin mulop
  sym getsym factor gen_proper_op end
  end

20
lttermgt -gt ltfactorgt ( /) ltfactorgt

• void term()
• factor() / parse the first factor/
• while (next_token aster_code
• next_token slash_code)
• lexical() / get next token /
• factor() / parse the next factor /

21
Recursive Descent Parsing

• Parsing - constructing a parse / derivation tree
  for a given input string
• Lexical analyzer is called by the parser
• A recursive descent parser traces out a parse
  tree in top-down order it is a top-down parser
• Each non-terminal in the grammar has a subprogram
  associated with it the subprogram parses all
  sentential forms that the nonterminal can
  generate
• The recursive descent parsing subprograms are
  built directly from the grammar rules
• Recursive descent parsers cannot be built from
  left-recursive grammars

22
PL/0 Program Structure

• Initialize keyword arrays, operator symbols,
  mnemonics, and so forth
• Initialize variables controlling scanning
  (getting the individual characters), lexical
  analysis (forming tokens), and parsing
• Call the ltblockgt recognizing routine
• Note that block ends with a call to listcode
• Call the virtual machine interpreter
• Machine code kept in an array between phases
• Need to add to the output capabilities of PL/0

23
Blocks and Static Scoping

• Blocks are different than sequences of statements
  or compound statements
• Blocks can include declarations
• Sort of like a single use subprogram used and
  defined here
• Where can blocks appear?
• Ada almost anywhere a statement could be
• Pascal only as bodies of procedures
• Java inner classes

24
Data Specific to a Procedure

• To be able to return from call
• Program address of its call (return address)
• Address of data segment of caller
• Keep in data segment of procedure as
• RA (return address) DL (dynamic link)
• Location of variables
• Relative address only (since memory dynamic)
• Displacement off base address of appropriate data
  segment (locally B register or by descending
  chain of static links)
• What does static scoping mean here?

25
Example of Static Scoping

• void a local variable one void b
  local variable two void c
  local variable three // beginning
  of code for c reference one,
  two call b // end of c //
  beginning of code for b reference one,
  two call c // end of b // beginning of
  code for a call b // end of a
• a ? b ? c ? b

26
Example of Static Scoping

• In a, one is local
• In b, two is local
• In b, one is a single static level out
• In c, three is local
• In c, two is a single static level out
• In c, one is double static levels out
• Then c calls b
• In b, one is still a single static level out

27
Block Recognition Processing

• Block(level, symbolTableStartingIndex)
• Page 13, left
• ltblockgt ltconst_declgt ltvar_declgt
  ltproc_declgt ltstatement_bodygt
• ltproc_declgt procedure ltnamegt ltblockgt
• Recognize inner block
• Block(currentLevel1, currentSymbolTableIndex)
• Jump around decalrations
• tx0 tx tabletx0.adrcx gen(jmp,0,0)
  ... codetabletx0.adr.acx
  tabletx0.adrcx statement() gen(opr,0,0)
  return

28
Symbol Table and Static Scope

• Variable declaration storage allocated by
  incrementing DX (data index) by 1
• Initially DX is 3 to allocate space for the
  block mark (RA, DL, and SL)
• Symbol table (table)
• enter enter object into table
• Nested in block which determines static scoping
• Recursive calls make table act like a stack
• position - find identifier id in table
• Linear search backward

29
Blocks and Scoping

• Nesting blocks does scope
• Restoring symbol table pointers makes symbol
  table work like stack
• Inner definitions lost to outer contexts
• Idea make symbol table work like a tree(one
  branch along a tree looks like a stack)

30
PL/0 Virtual Machine

• Section 5.10 (page 6 of handout)
• Stack machine primary data store is stack
• push, pop, insert or retrieve from within
• Operations on top of stack (add, test, etc.)
• Program store array named code
• Unchanged during interpretation
• I instruction register
• P program address register
• Data store array named S stack

31
Example of Static Scoping (Repeat)

• void a local variable one void b
  local variable two void c
  local variable three // beginning
  of code for c reference one,
  two call b // end of c //
  beginning of code for b reference one,
  two call c // end of b // beginning of
  code for a call b // end of a
• a ? b ? c ? b

32
Example of Static Scoping (Repeat)

• In a, one is local
• In b, two is local
• In b, one is a single static level out
• In c, three is local
• In c, two is a single static level out
• In c, one is double static levels out
• Then c calls b
• In b, one is still a single static level out

33
Stack of PL/0 Machine (Fig. 5.7)
DL RA SL
DynamicLink
A local vars
B local vars
C local vars
B
StaticLink
B local vars
T
34
Data Specific to a Procedure (again)

• To be able to return from call
• Program address of its call (return address)
• Address of data segment of caller
• Keep in data segment of procedure as
• RA (return address) DL (dynamic link)
• Location of variables
• Relative address only (since memory dynamic)
• Displacement off base address of appropriate data
  segment (locally B register or by descending
  chain of static links)
• What does static scoping mean here?

35
PL/0 Code Generation

• (page 7)
• Addresses are generated as pairs of numbers
  indicating the static level difference and the
  relative displacement within a data segment.
• But how does the compiler figure this out?
• PL/0 code
• Other questionhow does PL/0 handle forward
  references?

36
PL/0 Machine Commands

• LIT load numbers (literals) onto the stack
• LOD fetch variable values to top of stack
• STO store values at variable locations
• CAL call a subprogram
• INT allocate storage by incrementing stack
  pointer (T)
• JMP - transfer of control
• (new program address - P)
• JPC - conditional transfer of control
• OPR - arithmetic and relational operators

37
More on PL/0 Code Generation

• fct (lit, opr, lod, sto, cal, int, jmp, jpc)
• instruction packed record f fct function
  code l 0 .. levmax level a 0 ..
  amax displacement address end
• procedure gen (x fct y, z integer)
• begincodecx.f x codecx.l y
  codecx.a zcx cx 1
• end
• procedure listcodevar i integer
• begin list code generated for this bockfor i
  cx0 to cx-1 do writeln(i, mnemoniccodei.f
  5, codei.l 3, codei.a 5)
• end

38
PL/0 Interpreter

• t0 b1 p0 initialize
  registersS10 s20 s30 (initialize
  memoryrepeat instruction fetch
  loop icodep pp1 With i do case f of
  decode instruction lit begin tt1
  sta end opr case a of 1 st
  -st 2 begin tt-1 st st
  st1 end end jmp pa sto
  begin sbase(l)ast writeln(st) tt-
  1 end cal begin generate new block
  mark st1base(l) st2b st3
  p bt1 pa end enduntil p0
  not a good way to end

39
Project Virtual Machine

• Can use the design of the PL/0 one
• Operations in PL/0 are integer orientedyou
  probably want to add to this
• Can also use other machine designs
• Hybrid approach compiles to intermediate form,
  then interprets that
• Direct interpretation possible if clearly
  proposed
• Idea add output whenever computation done
• Idea build some messages in that could be output
  with new opr instructions

40
Programs Writing Programs

• Compilers basically take programs in one language
  and write programs in another
• Compiler-compilers take grammars and write
  compilers (second level program writers)
• Translation of ENBF straightforward
• terminal ? specific recognizer
• non-terminal ? call to recognizing routine
• alternatives ? explicit initial characters
• loops ? graph following algorithms
• LEXX, YACC, other compiler tools
• Add in other stuff to the language processor

41
Adding Predefined (Variable) Names

• procedure block has 2 parameters
• lev (the nesting level for the block)
• tx (starting index for the symbol table)
• The nested procedure enter is what puts symbols
  (variable names) into the symbol table
• Right-side page 14 of handout
• Initialize symbol table
• Make initial call of block non-zero table index
• Can initialize or do other things not normal in
  the user visible input language

42
Adding New Operator

• Add to getsym to recognize new symbol
• Look in condition, expression, term, factor
• Is new operator parallel to one of those
  operators?
• Basically another option in code generation
• If not like existing operators,add new syntactic
  construct.
• New action add to PL/0 machine
• Generate new instruction gen(opr,0,14)
  (square)
• Implement new instruction functionality(page 14,
  left-side)14 begin st stst end
• Add it into list of mnemonics

43
Adding Built-in Function

• Design new indicator for symbol table
• Put function name in symbol table
• Parser will recognize as defined name(there will
  be no way for user to put in)
• In termif symident then
  iposition(id) case kind of
  constant variable procedure
  built-in begin getsym left paren
  expression
  getsym right paren
  gen (opr, 0, new-thing) end

44
Adding Pre-defined Function

• Another approach
• Put entry into symbol table
• Make it a regular procedure
• Initialize the code array to represent the code
  that might have been generated
• Adding - New statement type
• Add new syntax into body of statement(page 12)
• Look at call as an example
• Syntactic sugar

45
How To Start on the Project

• Get your tokenizer working
• This is the getsym procedure of the Pascal
  version of PL/0 distributed in class
• Can also be done with classes in C and Java
• Read in sample programs in the language youre
  trying to compile and output the tokens (with
  some other information)
• Benefits
• Written some programs in your language
• Can leave the output statements for debugging

46
UML Use Case Modeling

• program actions from the user viewpointe.g.,
  directions for the grader of how to execute your
  program
• begin developing different aspects of the program
  and planning its eventual actions as soon as
  possible

user
command lineinterpreter
compilation
execution
47
(No Transcript)
48
(No Transcript)
49
655 Project

• Unified Software Development Process (Rational)
• Unified Modeling Language (UML)
• Only to begin understanding, not required to use
• Unified Process
• Inception Phasebegin understanding the problem
  and what you might do
• Spiral Approachtry to have some partial version
  at each stage
• Project Report - proposal - introductory part
• Risk analysis small steps rather than being
  overwhelmed, some small test programs

50
Project Activities

• Language and program processing
• Input (lexical) scanning
• Grammars and recursive descent parsing
• Compiling to a virtual machine
• Virtual machine interpreter
• Some other approaches to compiling

51
Project Options

• Proposals required as a first step you may want
  an alternative language or alternative
  techniques.
• Individual proposal or work as a group of two.
• Many resources on the Internet if you want to
  use them, propose to do something that goes
  beyond them in a significant way.

52
Project Stages

• Proposal (preliminary write-up) for project
• By e-mail to grader
• Simple parser for simple imperative language
• To exercise submit process
• Simple interpreter
• (step that doesn't have to be turned in)
• Final complete project
• significant write-up electronic submission
• No Other program in Lisp/Scheme

53
Test Input

• Your language, your implementation, you know the
  features and restrictions, therefore
• You supply the test input
• Tell the grader what she should expect when
  running the tests and why you chose what you did
  (show off this or that feature, exercise an error
  message, clever program in your language)

54
655 Project Options

• Encourage you to make this into something youll
  enjoy and be proud of
• Flexibility probably unusual
• Available resources (books, Internet, etc.)
• Acknowledge their use
• Do significant work of your own
• Many different backgrounds and interests
• My experience has been at detail levels after
  others have started and thought they were close
  to finished (the very large Last 10)

55
PL/0 Virtual Machine

• Section 5.10 (page 6 of handout)
• Stack machine primary data store is stack
• push, pop, insert or retrieve from within
• Operations on top of stack (add, test, etc.)
• Program store array named code
• Unchanged during interpretation
• I instruction register
• P program address register
• Data store array named S stack

56
Data specific to a procedure

• To be able to return from call
• Program address of its call (return address)
• Address of data segment of caller
• Keep in data segment of procedure as
• RA (return address) DL (dynamic link)
• Location of variables
• Relative address only (since memory dynamic)
• Displacement off base address of appropriate data
  segment (locally B register or by descending
  chain of static links)
• What does static scoping mean here?

57
Example of Static Scoping

• void a local variable one void b
  local variable two void c
  local variable three // beginning
  of code for c reference one,
  two call b // end of c //
  beginning of code for b reference one,
  two call c // end of b // beginning of
  code for a call b // end of a
• a ? b ? c ? b

58
Example of static scoping

• In a, one is local
• In b, two is local
• In b, one is a single static level out
• In c, three is local
• In c, two is a single static level out
• In c, one is double static levels out
• Then c calls b
• In b, one is still a single static level out

59
Stack of PL/0 machine (Fig. 5.7)
DL RA SL
DynamicLink
A local vars
B local vars
C local vars
B
StaticLink
B local vars
T
60
Data specific to a procedure (again)

• To be able to return from call
• Program address of its call (return address)
• Address of data segment of caller
• Keep in data segment of procedure as
• RA (return address) DL (dynamic link)
• Location of variables
• Relative address only (since memory dynamic)
• Displacement off base address of appropriate data
  segment (locally B register or by descending
  chain of static links)
• What does static scoping mean here?

61
PL/0 code generation

• (page 7)
• Addresses are generated as pairs of numbers
  indicating the static level difference and the
  relative displacement within a data segment.
• But how does the compiler figure this out?
• PL/0 code

62
PL/0 machine commands

• LIT load numbers (literals) onto the stack
• LOD fetch variable values to top of stack
• STO store values at variable locations
• CAL call a subprogram
• INT allocate storage by incrementing stack
  pointer (T)
• JMP - transfer of control
• (new program address - P)
• JPC - conditional transfer of control
• OPR - arithmetic and relational operators

63
Symbol table and static scope

• Variable declaration storage allocated by
  incrementing DX (data index) by 1
• Initially DX is 3 to allocate space for the
  block mark (RA, DL, and SL)
• Symbol table (table)
• enter enter object into table
• Nested in block which determines static scoping
• Recursive calls make table act like a stack
• position - find identifier id in table
• Linear search backward

64
More on PL/0 code generation

• fct (lit, opr, lod, sto, cal, int, jmp, jpc)
• instruction packed record f fct function
  code l 0 .. levmax level a 0 ..
  amax displacement address end
• procedure gen (x fct y, z integer)
• begincodecx.f x codecx.l y
  codecx.a zcx cx 1
• end
• procedure listcodevar i integer
• begin list code generated for this bockfor i
  cx0 to cx-1 do writeln(i, mnemoniccodei.f
  5, codei.l 3, codei.a 5)
• end

65
Programs writing programs

• Compilers basically take programs in one language
  and write programs in another
• Compiler-compilers take grammars and write
  compilers (second level program writers)
• Translation of ENBF straightforward
• terminal ? specific recognizer
• non-terminal ? call to recognizing routine
• alternatives ? explicit initial characters
• loops ? graph following algorithms
• LEXX, YACC, other compiler tools

66
655 Project Options

• Encourage you to make this into something youll
  enjoy and be proud of
• Flexibility probably unusual
• Available resources (books, Internet, etc.)
• Acknowledge their use
• Do significant work of your own
• Many different backgrounds and interests
• My experience has been at detail levels after
  others have started and thought they were close
  to finished (the very large Last 10)

67
CIS 655 Project PL/0

• Niklaus Wirth, Algorithms Data Structures
  Programs, 1976, Prentice-Hall (ISBN
  0-13-022418-9)
• PL/0 subset of Pascal
• Illustrated the way the Pascal P-code compiler
  built
• http//www.cs.rochester.edu/u/www/courses/

  254/PLzero/guide/guide.html
• 655 Project (100 pts, 40 of total grade)
• Project proposal (10 pts for turning in,
  revisable)
• Parser
• Intermediate step (non-graded) (but 10 pts for
  turning in)
• Input in syntax of programming language youre
  building a compiler/interpreter for
• Some kind of output, maybe with XML markup
• Develop your own test cases
• Freedom to make the project into something youll
  enjoy and be proud of

68
655 Project

• Unified Software Development Process (Rational)
• Unified Modeling Language (UML)
• Only to begin understanding, not required to use
• Unified Process
• Inception Phasebegin understanding the problem
  and what you might do
• Spiral Approachtry to have some partial version
  at each stage
• Project Report - proposal - introductory part
• Risk analysis small steps rather than being
  overwhelmed, some small test programs

69
Project Activities

• Language and program processing
• Input (lexical) scanning
• Grammars and recursive descent parsing
• Compiling to a virtual machine
• Virtual machine interpreter
• Some other approaches to compiling

70
Project Options

• Proposals required as a first step you may want
  an alternative language or alternative
  techniques.
• Individual proposal or work as a group of two.
• Many resources on the Internet if you want to
  use them, propose to do something that goes
  beyond them in a significant way.

71
Project Stages

• Proposal (preliminary write-up) for project
• By e-mail to grader
• Simple parser for simple imperative language
• To exercise submit process
• Simple interpreter
• (step that doesn't have to be turned in)
• Final complete project
• significant write-up electronic submission
• No Other program in Lisp/Scheme

72
655 Project Options

• Encourage you to make this into something youll
  enjoy and be proud of
• Flexibility probably unusual
• Available resources (books, Internet, etc.)
• Acknowledge their use
• Do significant work of your own
• Many different backgrounds and interests
• My experience has been at detail levels after
  others have started and thought they were close
  to finished (the very large Last 10)

73
Other Project Questions

• An answer is probably in the PL/0 handout if you
  only knew where to look and what you were looking
  for
• OK to use LEX and YACC if you build a significant
  project on top of their use
• JLex
• http//www.cs.princeton.edu/appel
  /modern/java/JLex/
• More Class Questions?

74
How to start on the project

• Get your tokenizer working
• This is the getsym procedure of the Pascal
  version of PL/0 distributed in class
• Can also be done with classes in C and Java
• Read in sample programs in the language youre
  trying to compile and output the tokens (with
  some other information)
• Benefits
• Written some programs in your language
• Can leave the output statements for debugging

75
655 Su03 Project Grading

• Pick between possible project options
• Write proposals
• Revisable
• First part of final report
• Work singly or in pairs
• Communicate with grader
• Written reports required
• Demonstration (after grader has time to read
  report)
• Submit code to be run directly by grader
• Project approximately 40 of overall grade

76
PL/0 program structure

• Initialize keyword arrays, operator symbols,
  mnemonics, and so forth
• Initialize variables controlling scanning
  (getting the individual characters), lexical
  analysis (forming tokens), and parsing
• Call the ltblockgt recognizing routine
• Note that block ends with a call to listcode
• Call the virtual machine interpreter
• Machine code kept in an array between phases
• Need to add to the output capabilities of PL/0

77
Specification of Syntax

• PL/0
• How the nesting of expression, term and factor in
  PL/0 work together and generate code
• How the nesting of recognition routines has the
  effect of static scoping
• Project questions and answers
• UML Use Case Modeling
• General Problem of Describing Syntax
• Recursive Descent Parsing
• Attribute Grammars
• Describing the Meanings of Programs
  Dynamic Semantics

78
Syntax, semantics, language

• Syntax - the form or structure of the
  expressions, statements, and program units
• Semantics - the meaning of the expressions,
  statements, and program units
• Sentence - string of characters over some
  alphabet (maybe what are usually words)
• Language - set of sentences
• Lexeme - lowest level syntactic unit of a
  language (e.g., , sum, begin)
• Token - category of lexemes (e.g., identifier)

79
Language (following Wirth)

• L L ( T, N, P, S )
• Vocabulary T of terminal symbols
• Set N of non-terminal symbols(grammatical
  categories)
• Set P of productions (syntactical rules)
• Symbol S (from N) called the start symbol
• Language is set of sequences of terminal symbols
  that can be generated (directly or indirectly
  (thats his points 3 and 4)

80
Language definitions

• Who must use language definitions?
• Other language designers
• Implementors
• Programmers (the users of the language)
• Formal approaches to describing syntax
• Recognizers - used in compilers
• Generators - approach we'll study

81
Backus Normal Form (1959)

• Invented by John Backus to describe Algol 58
• BNF is equivalent to context-free grammars
• A metalanguage is a language used to describe
  another language.
• In BNF, abstractions are used to represent
  classes of syntactic structures--they act like
  syntactic variables (also called nonterminal
  symbols)
• e.g. ltwhile_stmtgt -gt while ltlogic_exprgt do
  ltstmtgt
• This is a rule it describes the structure of a
  while statement

82
Syntax rules

• A rule has a left-hand side (LHS) and a
  right-hand side (RHS), and consists of terminal
  and non-terminal symbols
• A grammar is a finite nonempty set of rules
• An abstraction (or non-terminal symbol) can have
  more than one RHS
• ltstmtgt -gt ltsingle_stmtgt begin ltstmt_listgt
  end
• Syntactic lists are described in BNF using
  recursion
• ltident_listgt -gt ident ident, ltident_listgt
• A derivation is a repeated application of rules,
  starting with the start symbol and ending with a
  sentence (all terminal symbols)

83
An example grammar

• ltprogramgt -gt ltstmtsgt
• ltstmtsgt -gt ltstmtgt ltstmtgt ltstmtsgt
• ltstmtgt -gt ltvargt ltexprgt
• ltvargt -gt a b c d
• ltexprgt -gt lttermgt lttermgt lttermgt - lttermgt
• lttermgt -gt ltvargt const

84
An example derivation

• ltprogramgt gt ltstmtsgt
• gt ltstmtgt
• gt ltvargt ltexprgt
• gt a ltexprgt
• gt a lttermgt lttermgt
• gt a ltvargt lttermgt
• gt a b lttermgt
• gt a b const

85
Derivation explanation

• Every string of symbols in the derivation is a
  sentential form
• A sentence is a sentential form that has only
  terminal symbols
• A leftmost derivation is one in which the
  leftmost non-terminal in each sentential form is
  the one that is expanded
• A derivation may be neither leftmost nor
  rightmost
• Parse tree is a hierarchical representation of a
  derivation

86
Ambiguity Right Recursive

• A grammar is ambiguous iff if and only if it
  generates a sentential form that has two or more
  distinct parse trees
• If we use the parse tree to indicate precedence
  levels of the operators, we cannot have ambiguity
• Operator associativity can also be indicated by a
  grammar
• ltexprgt -gt ltexprgt ltexprgt const (ambiguous)
• ltexprgt -gt ltexprgt const const (unambiguous)
• Left recursive (left associative)(recursive
  descent will require right recursive)

87
Extended BNF (abbreviations)

• Optional parts are placed in brackets ()
• ltproc_callgt -gt ident ( ltexpr_listgt)
• Put alternative parts of RHSs in parentheses and
  separate them with vertical bars
• lttermgt -gt lttermgt ( -) const
• Put repetitions (0 or more) in braces ()
• ltidentgt -gt letter letter digit

88
BNF / EBNF

• BNF
• ltexprgt -gt ltexprgt lttermgt
• ltexprgt - lttermgt
• lttermgt
• lttermgt -gt lttermgt ltfactorgt
• lttermgt / ltfactorgt
• ltfactorgt
• EBNF
• ltexprgt -gt lttermgt ( -) lttermgt
• lttermgt -gt ltfactorgt ( /) ltfactorgt

89
Recursive Descent Parsing

• Parsing - constructing a parse / derivation tree
  for a given input string
• Lexical analyzer is called by the parser
• A recursive descent parser traces out a parse
  tree in top-down order it is a top-down parser
• Each non-terminal in the grammar has a subprogram
  associated with it the subprogram parses all
  sentential forms that the nonterminal can
  generate
• The recursive descent parsing subprograms are
  built directly from the grammar rules
• Recursive descent parsers cannot be built from
  left-recursive grammars

90
lttermgt -gt ltfactorgt ( /) ltfactorgt

• void term()
• factor() / parse the first factor/
• while (next_token ast_code
• next_token slash_code)
• lexical() / get next token /
• factor() / parse the next factor /

91
Wirths Rules

• B1 Reduce system of syntax graphs to a few of
  reasonable size
• B2 Translate each graph to a procedure according
  to subsequent rules
• B3 Sequence of elements translates to
• begin T(S1) T(S2) T(Sn) endor T(S1)
  T(S2) T(Sn)
• procedure TSx()begin TS1()
  getsym() TS2() getsym() end

92
lttermgt -gt ltfactorgt ( /) ltfactorgt

• Pascal commentbegin factor while sym in
  times, slash do begin mulop
  sym getsym factor gen_proper_op end
  end

93
Blocks and static scoping

• Blocks are different than sequences of statements
  or compound statements
• Blocks can include declarations
• Sort of like a single use subprogram used and
  defined here
• Where can blocks appear?
• Ada almost anywhere a statement could be
• Pascal only as bodies of procedures
• Java inner classes

94
Data specific to a procedure

• To be able to return from call
• Program address of its call (return address)
• Address of data segment of caller
• Keep in data segment of procedure as
• RA (return address) DL (dynamic link)
• Location of variables
• Relative address only (since memory dynamic)
• Displacement off base address of appropriate data
  segment (locally B register or by descending
  chain of static links)
• What does static scoping mean here?

95
Example of Static Scoping

• void a local variable one void b
  local variable two void c
  local variable three // beginning
  of code for c reference one,
  two call b // end of c //
  beginning of code for b reference one,
  two call c // end of b // beginning of
  code for a call b // end of a
• a ? b ? c ? b

96
Example of static scoping

• In a, one is local
• In b, two is local
• In b, one is a single static level out
• In c, three is local
• In c, two is a single static level out
• In c, one is double static levels out
• Then c calls b
• In b, one is still a single static level out

97
Block recognition processing

• Block(level, symbolTableStartingIndex)
• Page 13, left
• ltblockgt ltconst_declgt ltvar_declgt
  ltproc_declgt ltstatement_bodygt
• ltproc_declgt procedure ltnamegt ltblockgt
• Recognize inner block
• Block(currentLevel1, currentSymbolTableIndex)
• Jump around decalrations
• tx0 tx tabletx0.adrcx gen(jmp,0,0)
  ... codetabletx0.adr.acx
  tabletx0.adrcx statement() gen(opr,0,0)
  return

98
Symbol table and static scope

• Variable declaration storage allocated by
  incrementing DX (data index) by 1
• Initially DX is 3 to allocate space for the
  block mark (RA, DL, and SL)
• Symbol table (table)
• enter enter object into table
• Nested in block which determines static scoping
• Recursive calls make table act like a stack
• position - find identifier id in table
• Linear search backward

99
Blocks and Scoping

• Nesting blocks does scope
• Restoring symbol table pointers makes symbol
  table work like stack
• Inner definitions lost to outer contexts
• Idea make symbol table work like a tree(one
  branch along a tree looks like a stack)

100
PL/0 Virtual Machine

• Section 5.10 (page 6 of handout)
• Stack machine primary data store is stack
• push, pop, insert or retrieve from within
• Operations on top of stack (add, test, etc.)
• Program store array named code
• Unchanged during interpretation
• I instruction register
• P program address register
• Data store array named S stack

101
Stack of PL/0 machine (Fig. 5.7)
DL RA SL
DynamicLink
A local vars
B local vars
C local vars
B
StaticLink
B local vars
T
102
Data specific to a procedure (again)

• To be able to return from call
• Program address of its call (return address)
• Address of data segment of caller
• Keep in data segment of procedure as
• RA (return address) DL (dynamic link)
• Location of variables
• Relative address only (since memory dynamic)
• Displacement off base address of appropriate data
  segment (locally B register or by descending
  chain of static links)
• What does static scoping mean here?

103
PL/0 code generation

• (page 7)
• Addresses are generated as pairs of numbers
  indicating the static level difference and the
  relative displacement within a data segment.
• But how does the compiler figure this out?
• PL/0 code

104
PL/0 machine commands

• LIT load numbers (literals) onto the stack
• LOD fetch variable values to top of stack
• STO store values at variable locations
• CAL call a subprogram
• INT allocate storage by incrementing stack
  pointer (T)
• JMP - transfer of control
• (new program address - P)
• JPC - conditional transfer of control
• OPR - arithmetic and relational operators

105
More on PL/0 code generation

• fct (lit, opr, lod, sto, cal, int, jmp, jpc)
• instruction packed record f fct function
  code l 0 .. levmax level a 0 ..
  amax displacement address end
• procedure gen (x fct y, z integer)
• begincodecx.f x codecx.l y
  codecx.a zcx cx 1
• end
• procedure listcodevar i integer
• begin list code generated for this bockfor i
  cx0 to cx-1 do writeln(i, mnemoniccodei.f
  5, codei.l 3, codei.a 5)
• end

106
PL/0 Interpreter

• t0 b1 p0 initialize
  registersS10 s20 s30 (initialize
  memoryrepeat instruction fetch
  loop icodep pp1 With i do case f of
  decode instruction lit begin tt1
  sta end opr case a of 1 st
  -st 2 begin tt-1 st st
  st1 end end jmp pa sto
  begin sbase(l)ast writeln(st) tt-
  1 end cal begin generate new block
  mark st1base(l) st2b st3
  p bt1 pa end enduntil p0
  not a good way to end

107
Project Virtual Machine

• Can use the design of the PL/0 one
• Operations in PL/0 are integer orientedyou
  probably want to add to this
• Can also use other machine designs
• Hybrid approach compiles to intermediate form,
  then interprets that
• Direct interpretation possible if clearly
  proposed
• Idea add output whenever computation done
• Idea build some messages in that could be output
  with new opr instructions

108
Programs writing programs

• Compilers basically take programs in one language
  and write programs in another
• Compiler-compilers take grammars and write
  compilers (second level program writers)
• Translation of ENBF straightforward
• terminal ? specific recognizer
• non-terminal ? call to recognizing routine
• alternatives ? explicit initial characters
• loops ? graph following algorithms
• LEXX, YACC, other compiler tools

109
Static Semantics

• Other information about the language not
  specified with the BNF
• Identifier length
• Maximum integer value
• Other restrictions on your compiler
• Symbol table size
• Code array size
• Specify these in your description of your
  language processor
• Recognize the restrictions youve implied

110
Test input

• Your language, your implementation, you know the
  features and restrictions, therefore
• You supply the test input
• Tell the grader what she should expect when
  running the tests and why you chose what you did
  (show off this or that feature, exercise an error
  message, clever program in your language)

111
Submit assignment goals

• keeping you on track
• checking out the submit process
• This is not a separately graded assignment, but
  do do it within the next week or so.
• The second part of the assignment is about
  checking out the submit process. I have set
  things up like I've done before, so I expect the
  following will work for most of you very easily
  but there will be a few problems, so get them out
  of the way as soon as possible.

112
Adding to PL/0

• Predefined variable names
• New operator
• Built-in function
• Pre-defined function
• New statement type

113
Unstated Assumptions

• Input program read top-to-bottom, left-to-right,
  with no backtracking
• Things declared before they are used
• No redefining at same level
• Inner declarations hidden by nesting
• Inner can locally hide outer declarations

114
Predefined (Variable) Names

• procedure block has 2 parameters
• lev (the nesting level for the block)
• tx (starting index for the symbol table)
• The nested procedure enter is what puts symbols
  (variable names) into the symbol table
• Right-side page 14 of handout
• Initialize symbol table
• Make initial call of block non-zero table index
• Can initialize or do other things not normal in
  the user visible input language

115
New Operator

• Add to getsym to recognize new symbol
• Look in condition, expression, term, factor
• Is new operator parallel to one of those
  operators?
• Basically another option in code generation
• If not like existing operators,add new syntactic
  construct.
• New action add to PL/0 machine
• Generate new instruction gen(opr,0,14)
  (square)
• Implement new instruction functionality(page 14,
  left-side)14 begin st stst end
• Add it into list of mnemonics

116
Built-in Function

• Design new indicator for symbol table
• Put function name in symbol table
• Parser will recognize as defined name(there will
  be no way for user to put in)
• In termif symident then
  iposition(id) case kind of
  constant variable procedure
  built-in begin getsym left paren
  expression
  getsym right paren
  gen (opr, 0, new-thing) end

117
Pre-defined function

• Another approach
• Put entry into symbol table
• Make it a regular procedure
• Initialize the code array to represent the code
  that might have been generated

118
New statement type

• Add new syntax into body of statement(page 12)
• Look at call as an example

119
(No Transcript)
120
(No Transcript)
121
What is Computer Science?

• Lots of parts and specialties
• Core of computer science
• How programs developed
• How programs execute
• Programming software engineering
• 655 (programming languages) is central
• Programming
• How would you illustrate basic programming?
• Really, how would you illustrate basic
  programming?
• HTML for formatting text
• JavaScript for beginning programming

122
What is 655 Prog. Languages About?

• Compare programming languages, but how?
• Vertical Fortran, Cobol, Lisp, C, etc.
• Horizontal loops, selection, subprograms
• Topics object-oriented, event handling,
  concurrency
• Processing syntax, semantics, compiler basics
• Note textbook and course have some of all of
  these
• Fundamental programming language concepts (my
  idea)
• Divide a program into pieces (e.g., subprograms,
  types, threads, tasks, classes, packages,
  modules, components)
• Controlled modification of the pieces (e.g.,
  compilers, templates)
• Have pieces communicate (during development,
  building, and execution e.g., names, linkages,
  parameters)
• Combine pieces into program (e.g., loaders,
  building tools)
• Know the pieces will work together (e.g., design,
  reviews, proofs)
• Decisions, decisions, decisions, . . .

123
Goal of CIS 655

• New insight into the programming process and the
  languages and concepts we use.
• Knowledge of where we are and why.
• Anticipate and prepare for future programming.

124
CIS 655 Warning

• Adult Content WarningF-word of programming
  languages FORTRANA-word ALGOL
• LISP Lots of Irritating Silly Parentheses
• Sesame Streets Cookie MonsterC is for
  programming, thats good enough for me.
• COBOL Committee Originated Boloney
• America Demanded Ada
• Java Just Another Version of Ada
• C (C)

125
Traditional Content of 655

• Languages you didnt see elsewhere (1 hr courses)
• Compiler basics (used to be separate course)
• History of computing (still some of that)
• Classic languages
• Lisp (Scheme), Algol (Pascal, Ada), Snobol, etc.
• Classic computing approaches
• Recursion
• Concurrency
• New topics
• Programming with interfaces
• Distributed computing, web applications, Web
  Services

126
Now 2005

• Programming languages have changed mainly because
  of capabilities in execution environment
• Graphical User Interfaces
• Networking inside the execution environment
• Operating system concurrency in prog. language
• Classes (objects) as an extension of types
• Exception handling
• Security (probably coming soon)
• Some changes for program structuring
• Packages
• Generics and templates
• Proof conditions
• Components ?

127
Programming Languages

• Teaching at Old Dominion University
• Usual course
• Lisp
• Snobol
• APL
• Algol / Pascal
• Summer 1979
• LISP
• MUMPS
• JOVIAL
• CMS-2
• Ada
• How I got started with Ada (then for 16 years)

128
655 Summary Su05

• PL/0 compiler for traditional languages
• Lisp and its interpreter similarities
• XML/XSLT string matching (declarative)
• Patterns in programming
• High-level constructor, factory, façade,
  singleton
• Low-level loop, selection, exit, exception
• Parameterized types generics, templates
• Event-oriented programming, concurrency,
  distributed
• Environments Eclipse and its extensions
• Next generation programs (Oracle HTML DB)

129
Plan and Expectations for Su05

• Classical languages and topics
• History, comparisons, Algol (and its influence)
• Basic control structures, data structures, types
• Binding, parameter passing
• Lisp and functional programming
• Compilation basics
• Instead of a separate course
• Object-oriented programming, UML
• Java, C, J2EE, .NET
• Concurrency, event driven programming
• Distributed Computing
• RMI, CORBA, RPC, SOAP (XML Protocol)
• XML, XSLT, XML Schemas, etc.

130
Summer Quarter 2005 Plan

• Trying new things in a different order
• Implementation of programming languages
• Syntax of programming languages prerequisites
• Possible Project - PL/0 handout (understanding
  large program)
• New style project assignment (presentations)
  start early
• Traditional topics middle part of quarter
• New stuff, OO, concurrency, event driven,
  distributed computing platforms, Java, C
• Course Expectations
• Broad perspective on computing
• How programs are developed executed
• Knowledge of alternatives in programming
• Information about traditional language processing
  concepts
• Some specifics about programming languages
  considered in the common knowledge domain of
  computer scientists
• Prepare for 50 more years of programming

131
Traditional 655 Programming Project(s)

• Hybrid compiler / interpreter for small language
  with C/Java-style syntax
• Transform a high-level language to low-level form
• Reasonable use of tools and software encouraged
• Primarily individual, some 2-person groups
• Build on what you already know (e.g., 560)
• Project done in stages
• Proposals in class, demonstrations, documentation
• Develop your own appropriate tests
• Software to CIS computers using submit command
• Possible alternatives may be proposed
• No Perl implementations (use C or Java)

132
How to Use the Textbook

• The textbook and web resources are very
  informative and cost effective
• Read, question, summarize
• Learn from reading
• Work on it in this class
• Bring book to class on days suggested
• Relate the authors comments to class
• Formulate your own conclusions
• Test against discussions, experience, and
  experiments
• Learning from reading is essential to being a
  successful computer scientist and leader

133
How 655 with Mathis Class Works

• Mathis usually talks a lot
• This term I want more student interaction
• Student should learn a lot
• Ive tried to structure topics of interest
• Students investigate and share with class
• Goalenable students to learn without the
  teacher
• I want to help you in this direction,not force
  it on you by default
• There will be a lot of change in the next 40
  years
• Information on web site is frequently
  updated(primary method of class communication)

134
Do I have to come to class?

• I dont usually take attendance, but . . .I
  notice who is here.
• Class attendance more important than students
  seem to realize.
• I think the topics I talk about are
  important.Lots of new material not covered in
  text.
• Class attendance is the most efficient way to
  learn the information in the text course your
  opportunity to ask questions.
• The projects and tests are discussed in class.
• Office hours and e-mail important, but not a
  substitute for class attendance.
• Ill miss you.

135
Relationship of 655 to Other Courses

• 560 (prerequisite)
• Classical system software and group projects
• 625 (prerequisite)
• 660 Operating Systems (when I have tau
