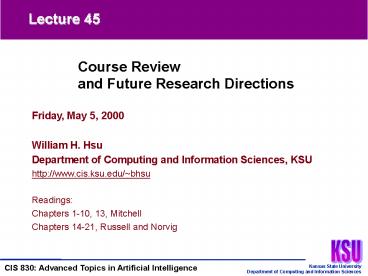

1Lecture 45
Course Review and Future Research Directions
Friday, May 5, 2000 William H. Hsu Department of
Computing and Information Sciences,
KSU http//www.cis.ksu.edu/bhsu Readings Chapte
rs 1-10, 13, Mitchell Chapters 14-21, Russell and
Norvig
2Main ThemesArtificial Intelligence and KDD
- Analytical Learning Combining Symbolic and
Numerical AI - Inductive learning
- Role of knowledge and deduction in integrated
inductive and analytical learning - Artificial Neural Networks (ANNs) for KDD
- Common neural representations current
limitations - Incorporating knowledge into ANN learning
- Uncertain Reasoning in Decision Support
- Probabilistic knowledge representation
- Bayesian knowledge and data engineering (KDE)
elicitation, causality - Data mining KDD applications
- Role of causality and explanations in KDD
- Framework for data mining wrappers for
performance enhancement - Genetic Algorithms (GAs) for KDD
- Evolutionary algorithms (GAs, GP) as optimization
wrappers - Introduction to classifier systems
3Class 0A Brief Overview of Machine Learning
- Overview Topics, Applications, Motivation
- Learning Improving with Experience at Some Task
- Improve over task T,
- with respect to performance measure P,
- based on experience E.
- Brief Tour of Machine Learning
- A case study
- A taxonomy of learning
- Intelligent systems engineering specification of
learning problems - Issues in Machine Learning
- Design choices
- The performance element intelligent systems
- Some Applications of Learning
- Database mining, reasoning (inference/decision
support), acting - Industrial usage of intelligent systems
4Class 1Integrating Analytical and Inductive
Learning
- Learning Specification (Inductive, Analytical)
- Instances X, target function (concept) c X ? H,
hypothesis space H - Training examples D positive, negative examples
of target function c - Analytical learning also given domain theory T
for explaining examples - Domain Theories
- Expressed in formal language propositional
logic, predicate logic - Set of assertions (e.g., well-formed formulae)
for reasoning about domain - Expresses constraints over relations (predicates)
within model - Example Ancestor (x, y) ? Parent (x, z) ?
Ancestor (z, y). - Determine
- Hypothesis h ? H such that h(x) c(x) for all x
? D - Such h are consistent with training data and
domain theory T - Integration Approaches
- Explanation (proof and derivation)-based
learning EBL - Pseudo-experience incorporating knowledge of
environment, actuators - Top-down decomposition programmatic (procedural)
knowledge, advice
5Classes 2-3Explanation-Based Neural Networks
- Paper
- Topic Explanation-Based and Inductive Learning
in ANNs - Title Integrating Inductive Neural Network
Learning and EBL - Authors Thrun and Mitchell
- Presenter William Hsu
- Key Strengths
- Idea (state, action)-to-state mappings as steps
in generalizable proof (explanation) for observed
episode - Generalizable approach (significant for RL, other
learning-to-predict inducers) - Key Weaknesses
- Other numerical learning models (HMMs, DBNs) may
be more suited to EBG - Tradeoff domain theory of EBNN lacks semantic
clarity of symbolic EBL - Future Research Issues
- How to get the best of both worlds (clear DT,
ability to generate explanations)? - Applications to explanation in commercial,
military, legal decision support - See work by Thrun, Mitchell, Shavlik, Towell,
Pearl, Heckerman
6Classes 4-5Phantom Induction
- Paper
- Topic Distal Supervised Learning and Phantom
Induction - Title Iterated Phantom Induction a Little
Knowledge Can Go a Long Way - Authors Brodie and Dejong
- Presenter Steve Gustafson
- Key Strengths
- Idea apply knowledge to generate
(pseudo-experiential) training data - Speedup learning curve significantly shortened
with respect to RL by application of small
amount of knowledge - Key Weaknesses
- Havent yet seen how to produce plausible,
comprehensible explanations - How much knowledge is a small amount? (How to
measure?) - Future Research Issues
- Control, planning domains similar (but not
identical) to robot games - Applications adaptive (e.g., ANN, BBN, MDP, GA)
agent control, planning - See work by Brodie, Dejong, Rumelhart,
McClelland, Sutton, Barto
7Classes 6-7Top-Down Hybrid Learning
- Paper
- Topic Learning with Prior Knowledge
- Title A Divide-and-Conquer Approach to Learning
from Prior Knowledge - Authors Chown and Dietterich
- Presenter Aiming Wu
- Key Strengths
- Idea apply programmatic (procedural) knowledge
to select training data - Uses simulation to boost inductive learning
performance (cf. model checking) - Divide-and-conquer approach (multiple experts)
- Key Weaknesses
- Doesnt illustrate form, structure of
programmatic knowledge clearly - Doesnt systematize and formalize model checking
/ simulation approach - Future Research Issues
- Model checking and simulation-driven hybrid
learning - Applications consensus under uncertainty,
simulation-based optimization - See work by Dietterich, Frawley, Mitchell,
Darwiche, Pearl
8Classes 8-9Learning Using Prior Knowledge
- Paper
- Topic Refinement of Approximate Domain-Theoretic
Knowledge - Title Refinement of Approximate Domain Theories
by Knowledge-Based Neural Networks - Authors Towell, Shavlik, and Noordewier
- Presenter Li-Jun Wang
- Key Strengths
- Idea build relational explanations compile into
ANN representation - Applies structural, functional, constraint-based
knowledge - Uses ANN to further refine domain theory
- Key Weaknesses
- Cant get refined domain theory back!
- Explanations also no longer clear after
compilation (transformation) process - Future Research Issues
- How to retain semantic clarity of explanations,
DT, knowledge representation - Applications intelligent filters (e.g., fraud
detection), decision support - See work by Shavlik, Towell, Maclin, Sun,
Schwalb, Heckerman
9Class 10Introduction to Artificial Neural
Networks
- Architectures
- Nonlinear transfer functions
- Multi-layer networks of nonlinear units (sigmoid,
hyperbolic tangent) - Hidden layer representations
- Backpropagation of Error
- The backpropagation algorithm
- Relation to error gradient function for nonlinear
units - Derivation of training rule for feedfoward
multi-layer networks - Training issues local optima, overfitting
- References Chapter 4, Mitchell Chapter 4,
Bishop Rumelhart et al - Research Issues How to
- Learn from observation, rewards and penalties,
and advice - Distribute rewards and penalties through learning
model, over time - Generate pseudo-experiential training instances
in pattern recognition - Partition learning problems on the fly, via
(mixture) parameter estimation
10Classes 11-12Reinforcement Learning and Advice
- Paper
- Topic Knowledge and Reinforcement Learning in
Intelligent Agents - Title Incorporating Advice into Agents that
Learn from Reinforcements - Authors Maclin and Shavlik
- Presenter Kiranmai Nandivada
- Key Strengths
- Idea compile advice into ANN representation for
RL - Advice expressed in terms of constraint-based
knowledge - Like KBANN, achieves knowledge refinement through
ANN training - Key Weaknesses
- Like KBANN, lose semantic clarity of advice,
policy, explanations - How to evaluate refinement effectively?
Quantitatively? Logically? - Future Research Issues
- How to retain semantic clarity of explanations,
DT, knowledge representation - Applications intelligent agents, web mining
(spiders, search engines), games - See work by Shavlik, Maclin, Stone, Veloso, Sun,
Sutton, Pearl, Kuipers
11Classes 13-14Reinforcement Learning Over Time
- Paper
- Topic Temporal-Difference Reinforcement Learning
- Title TD Models Modeling the World at a Mixture
of Time Scales - Author Sutton
- Presenter Vrushali Koranne
- Key Strengths
- Idea combine state-action evaluation function
(Q) estimates over multiple time steps of
lookahead - Effective temporal credit assignment (TCA)
- Biologically plausible (simulates TCA aspects of
dopaminergic system) - Key Weaknesses
- TCA methodology is effective but semantically
hard to comprehend - Slow convergence can knowledge help? How will
we judge? - Future Research Issues
- How to retain clarity, improve convergence speed,
of multi-time RL models - Applications control systems, robotics, game
playing - See work by Sutton, Barto, Mitchell, Kaelbling,
Smyth, Shafer, Goldberg
12Classes 15-16Generative Neural Models
- Paper
- Topic Pattern Recognition using Unsupervised
ANNs - Title The Wake-Sleep Algorithm for Unsupervised
Neural Networks - Authors Hinton, Dayan, Frey, and Neal
- Presenter Prasanna Jayaraman
- Key Strengths
- Idea use 2-phase algorithm to generate training
instances (dream stage) and maximize
conditional probability of data given model
(wake stage) - Compare expectation-maximization (EM) algorithm
- Good for image recognition
- Key Weaknesses
- Not all data admits this approach (small samples,
ill-defined features) - Not immediately clear how to use for
problem-solving performance elements - Future Research Issues
- Studying information theoretic properties of
Helmholtz machine - Applications image/speech/signal recognition,
document categorization - See work by Hinton, Dayan, Frey, Neal,
Kirkpatrick, Hajek, Gharahmani
13Classes 17-18Modularity in Neural Systems
- Paper
- Topic Combining Models using Modular ANNs
- Title Modular and Hierarchical Learning Systems
- Authors Jordan and Jacobs
- Presenter Afrand Agah
- Key Strengths
- Idea use interleaved EM update steps to update
expert, gating components - Effect forces specialization among ANN
components (GLIMs) boosts performance of single
experts very fast convergence in some cases - Explores modularity in neural systems (artificial
and biological) - Key Weaknesses
- Often cannot achieve higher accuracy than ML,
MAP, Bayes optimal estimation - Doesnt provide experts that specialize in
spatial, temporal pattern recognition - Future Research Issues
- Constructing, selecting mixtures of other ANN
components (not just GLIMs) - Applications pattern recognition, time series
prediction - See work by Jordan, Jacobs, Nowlan, Hinton,
Barto, Jaakola, Hsu
14Class 19Introduction to Probabilistic Reasoning
- Architectures
- Bayesian (Belief) Networks
- Tree structured, polytrees
- General
- Decision networks
- Temporal variants (beyond scope of this course)
- Parameter Estimation
- Maximum likelihood (MLE), maximum a posteriori
(MAP) - Bayes optimal classification, Bayesian learning
- References Chapter 6, Mitchell Chapters 14-15,
19, Russell and Norvig - Research Issues How to
- Learn from observation, rewards and penalties,
and advice - Distribute rewards and penalties through learning
model, over time - Generate pseudo-experiential training instances
in pattern recognition - Partition learning problems on the fly, via
(mixture) parameter estimation
15Classes 20-21Approaches to Uncertain Reasoning
- Paper
- Topic The Case for Probability
- Title In Defense of Probability
- Author Cheeseman
- Presenter Pallavi Paranjape
- Key Strengths
- Idea probability is mathematically sound way to
represent uncertainty - Views of probability considered objectivist,
frequentist, logicist, subjectivist - Argument made for meta-subjectivist belief
measure concept of probability - Key Weaknesses
- Highly dogmatic view without concrete
justification for all assertions - Does not quantitatively, empirically compare
Bayesian, non-Bayesian methods - Future Research Issues
- Integrating symbolic and numerical (statistical)
models of uncertainty - Applications uncertain reasoning, pattern
recognition, learning - See work by Cheeseman, Cox, Good, Pearl, Zadeh,
Dempster, Shafer
16Classes 22-23Learning Bayesian Network Structure
- Paper
- Topic Learning Bayesian Networks from Data
- Title Learning Bayesian Network Structure from
Massive Datasets - Authors Friedman, Pe'er, Nachman
- Presenter Jincheng Gao
- Key Strengths
- Idea can use graph constraints, scoring
functions to select candidate parents in
constructing directed graph model of probability
(BBN) - Tabu search, greedy score-based methods (K2),
etc. also considered - Key Weaknesses
- Optimal Bayesian network structure learning still
intractable for conventional (single-instruction
sequential) architectures - More empirical comparison among alternative
methods warranted - Future Research Issues
- Scaling up to massive real-world data sets (e.g.,
medical, agricultural, DSS) - Applications diagnosis, troubleshooting, user
modeling, intelligent HCI - See work by Friedman, Goldszmidt, Heckerman,
Cooper, Beinlich, Koller
17Classes 24-25Bayesian Networks for User Modeling
- Paper
- Topic Decision Support Systems and Bayesian User
Modeling - Title The Lumiere Project Bayesian User
Modeling for Inferring the Goals and Needs of
Software Users - Authors Horvitz, Breese, Heckerman, Hovel,
Rommelse - Presenter Yuhui (Cathy) Liu
- Key Strengths
- Idea BBN model is developed from user logs, used
to infer mode of usage - Can infer goals, skill level of user
- Key Weaknesses
- Need high accuracy in inferring goals to deliver
meaningful content - May be better to use next-generation search
engine (more interactivity, less passive
monitoring) - Future Research Issues
- Designing better interactive user modeling
- Applications clickstream monitoring, e-commerce,
web search, help - See work by Horvitz, Breese, Heckerman, Lee,
Huang
18Classes 26-27Causal Reasoning
- Paper
- Topic KDD and Causal Reasoning
- Title Symbolic Causal Networks for Reasoning
about Actions and Plans - Authors Darwiche and Pearl
- Presenter Yue Jiao
- Key Strengths
- Idea use BBN to represent symbolic constraint
knowledge - Can use to generate mechanistic explanations
- Model actions
- Model sequences of actions (plans)
- Key Weaknesses
- Integrative methods (numerical, symbolic BBNs)
still need exploration - Unclear how to incorporate methods for learning
to plan - Future Research Issues
- Reasoning about systems
- Applications uncertain reasoning, pattern
recognition, learning - See work by Horvitz, Breese, Heckerman, Lee,
Huang
19Classes 28-29Knowledge Discovery from
Scientific Data
- Paper
- Topic KDD for Scientific Data Analysis
- Title KDD for Science Data Analysis Issues and
Examples - Authors Fayyad, Haussler, and Stolorz
- Presenter Arulkumar Elumalai
- Key Strengths
- Idea investigate how and whether KDD techniques
(OLAP, learning) scale up to huge data sets - Answer it depends on computational
complexity, many other factors - Key Weaknesses
- Havent developed clear theory yet of how to
assess how much data is really needed - No technical treatment or characterization of
data cleaning - Future Research Issues
- Data cleaning (aka data cleansing), pre- and
post-processing (OLAP) - Applications intelligent databases,
visualization, high-performance CSE - See work by Fayyad, Smyth, Uthurusamy, Haussler,
Foster
20Classes 30-31Relevance Determination
- Paper
- Topic Relevance Determination in KDD
- Title Irrelevant Features and the Subset
Selection Problem - Authors John, Kohavi, and Pfleger
- Presenter DingBing Yang
- Key Strengths
- Idea cast problem of choosing relevant
attributes (given top-level learning problem
specification) as search - Effective state space search (A/A-based)
approach demonstrated - Key Weaknesses
- May not have good enough heuristics!
- Can either develop them (via information theory)
or use MCMC methods - Future Research Issues
- Selecting relevant data channels from continuous
sources (e.g., sensors) - Applications bioinformatics (genomics,
proteomics, etc.), prognostics - See work by Kohavi, John, Rendell, Donoho, Hsu,
Provost
21Classes 32-33Learning for Text Document
Categorization
- Paper
- Topic Text Documents and Information Retrieval
(IR) - Title Hierarchically Classifying Documents using
Very Few Words - Authors Koller and Sahami
- Presenter Yan Song
- Key Strengths
- Idea use rank-frequency scoring methods to find
keywords that make a difference - Break into meaningful hierarchy
- Key Weaknesses
- Sometimes need to derive semantically meaningful
cluster labels - How to integrate this method with dynamic cluster
segmentation, labeling? - Future Research Issues
- Bayesian architectures using non-Bayesian
learning algorithms (e.g., GAs) - Applications digital libraries (hierarchical,
distributed dynamic indexing), intelligent search
engines, intelligent displays (and help indices) - See work by Koller, Sahami, Roth, Charniak,
Brill, Yarowsky
22Classes 34-35Web Mining
- Paper
- Topic KDD and The Web
- Title Learning to Extract Symbolic Knowledge
from the World Wide Web - Authors Craven, DiPasquo, Freitag, McCallum,
Mitchell, Nigam, and Slattery - Presenter Ping Zou
- Key Strengths
- Idea build probabilistic model of web documents
using keywords that matter - Use probabilistic model to represent knowledge
for indexing into web database - Key Weaknesses
- How to account for concept drift?
- How to explain and express constraints (e.g.,
proper nouns that are person names dont
matter)? Not considered here - Future Research Issues
- Using natural language processing (NLP), image /
audio / signal processing - Applications searchable hypermedia, digital
libraries, spiders, other agents - See work by McCallum, Mitchell, Roth, Sahami,
Pratt, Lee
23Class 36Introduction to Evolutionary Computation
- Architectures
- Genetic algorithms (GAs), genetic programming
(GP), genetic wrappers - Simple vs. parameterless GAs
- Issues
- Loss of diversity
- Consequence collapse of Pareto front
- Solutions niching (sharing, preselection,
crowding) - Parameterless GAs
- Other issues (not covered) genetic drift,
population sizing, etc. - References Chapter 9, Mitchell Chapters 1-6,
Goldberg Chapter 1-5, Koza - Research Issues How to
- Design GAs based on credit assignment system (in
performance element) - Build hybrid analytical / inductive learning GP
systems - Use GAs to perform relevance determination in KDD
- Control diversity in GA solutions for hard
optimization problems
24Class 37-38Genetic Algorithms and Classifier
Systems
- Paper
- Topic Classifier Systems and Inductive Learning
- Title Generalization in the XCS Classifier
System - Author Wilson
- Presenter Elizabeth Loza-Garay
- Key Strengths
- Idea incorporate performance element (classifier
system) into GA design - Solid theoretical foundation advanced building
block (aka schema) theory - Can use to engineer more efficient GA model, tune
parameters - Key Weaknesses
- Need to progress from toy problems (e.g., MUX
learning) to real-world ones - Need to investigate scaling up of GA principles
(e.g., building block mixing) - Future Research Issues
- Building block scalability in classifier systems
- Applications reinforcement learning, mobile
robotics, other animats, a-life - See work by Wilson, Goldberg, Holland, Booker
25Class 39-40Knowledge-Based Genetic Programming
- Paper
- Topic Genetic Programming and Multistrategy
Learning - Title Genetic Programming and Deductive-Inductive
Learning A Multistrategy Approach - Authors Aler, Borrajo, and Isasi
- Presenter Yuhong Cheng
- Key Strengths
- Idea use knowledge-based system to calibrate
starting state of MCMC optimization system (here,
GP) - Can incorporate knowledge (as in CIS830 Part 1 of
5) - Key Weaknesses
- Generalizability of HAMLET population seeding
method not well established - General-purpose problem solving systems can
become Rube Goldberg-ian - Future Research Issues
- Using multistrategy GP systems to provide
knowledge-based decision support - Applications logistics (military, industrial,
commercial), other problem solving - See work by Aler, Borrajo, Isasi, Carbonell,
Minton, Koza, Veloso
26Class 41-42Genetic Wrappers for Inductive
Learning
- Paper
- Topic Genetic Wrappers for KDD Performance
Enhancement - Title Simultaneous Feature Extraction and
Selection Using a Masking Genetic Algorithm - Authors Raymer, Punch, Goodman, Sanschagrin,
Kuhn - Presenter Karthik K. Krishnakumar
- Key Strengths
- Idea use GA to empirically (statistically)
validate inducer - Can use to select, synthesize attributes (aka
features) - Can also use to tune other GA parameters (hence
wrapper) - Key Weaknesses
- Systematic experimental studies of genetic
wrappers have not yet been done - Wrappers dont yet take performance element into
explicit account - Future Research Issues
- Improving supervised learning inducers (e.g., in
MLC) - Applications better combiners feature subset
selection, construction - See work by Raymer, Punch, Cherkauer, Shavlik,
Freitas, Hsu, Cantu-Paz
27Class 43-44Genetic Algorithms for Optimization
- Paper
- Topic Genetic Optimization and Decision Support
- Title A Niched Pareto Optimal Genetic Algorithm
for Multiobjective Optimization - Authors Horn, Nafpliotis, and Goldberg
- Presenter Li Lian
- Key Strengths
- Idea control representation of neighborhoods
Pareto optimal front by niching - Gives abstract and concrete case studies of
niching (sharing) effects - Key Weaknesses
- Need systematic exploration, characterization of
sweet spot - Shows static comparisons, not small-multiple
visualizations that led to them - Future Research Issues
- Biologically (ecologically) plausible models
- Applications engineering (ag / bio, civil,
computational, environmental, industrial,
mechanical, nuclear) optimization computational
life sciences - See work by Goldberg, Horn, Schwefel, Punch,
Minsker, Kargupta
28Class 45Meta-Summary
- Data Mining / KDD Problems
- Business decision support
- Classification
- Recommender systems
- Control and policy optimization
- Data Mining / KDD Solutions Machine Learning,
Inference Techniques - Models
- Version space, decision tree, perceptron, winnow
- ANN, BBN, SOM
- Q functions
- GA/GP building blocks (schemata), GP building
blocks - Algorithms
- Candidate elimination, ID3, delta rule, MLE,
Simple (Naïve) Bayes - K2, EM, backprop, SOM convergence, LVQ, ADP,
simulated annealing - Q-learning, TD(?)
- Simple GA, GP
