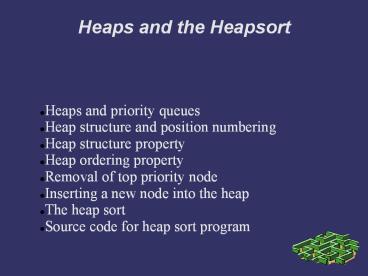

Heaps and the Heapsort

1
Heaps and the Heapsort

• Heaps and priority queues
• Heap structure and position numbering
• Heap structure property
• Heap ordering property
• Removal of top priority node
• Inserting a new node into the heap
• The heap sort
• Source code for heap sort program

2
Heaps and priority queues

• A heap is a data structure used to implement an
  efficient priority queue. The idea is to make it
  efficient to extract the element with the highest
  priority the next item in the queue to be
  processed.
• We could use a sorted linked list, with O(1)
  operations to remove the highest priority node
  and O(N) to insert a node. Using a tree structure
  will involve both operations being O(log2N) which
  is faster.

3
Heap semantics

• The usage of the term heap to describe a tree
  sorted from bottom to top is unrelated to usage
  of the same term for the pool of memory available
  for dynamic allocation, i.e. using malloc().
• It does relate to the winner of a competive
  process, e.g. a football league, as being "at the
  top of the heap".

4
Heap structure and position numbering 1

• A heap can be visualised as a binary tree in
  which every layer is filled from the left. For
  every layer to be full, the tree would have to
  have a size exactly equal to 2n1, e.g. a value
  for size in the series 1, 3, 7, 15, 31, 63, 127,
  255 etc.
• So to be practical enough to allow for any
  particular size, a heap has every layer filled
  except for the bottom layer which is filled from
  the left.

5
Heap structure and position numbering 2
6
Heap structure and position numbering 3
In the above diagram nodes are labelled based on
position, and not their contents. Also note that
the left child of each node is numbered node2
and the right child is numbered node21. The
parent of every node is obtained using integer
division (throwing away the remainder) so that
for a node i's parent has position i/2 .
Because this numbering system makes it very
easy to move between nodes and their children or
parents, a heap is commonly implemented as an
array with element 0 unused.
7
Heap structure property

• For a heap based on the above structure to be
  maintained, every layer must be complete except
  the bottom layer, which must be filled from the
  left and items must be removed from the right.
• In order to insert items elsewhere and remove
  items from the top, localised rearrangements
  along single branches will made to restore this
  structure.

8
Heap ordering property 1

• A data structure with the shape described above
  becomes useful if data within it is organised, so
  that the key of every node is smaller or equal to
  the keys of its 2 (or sometimes one) children. A
  child with a key smaller than its parent's would
  violate this condition.
• When a heap is organised like this, it can be
  useful as a priority queue, because the lowest
  key will always be at the top of the heap and
  most easy to remove. This is called a min heap.
  This ordering property is reversed (a max heap)
  if it is desired for the highest key should
  always to be removed first.

9
Heap ordering property 2
10
Removal of top priority node 1

• The rest of these notes assume a min heap will be
  used.
• Removal of the top node creates a hole at the top
  which is "bubbled" downwards by moving values
  below it upwards, until the hole is in a position
  where it can be replaced with the rightmost node
  from the bottom layer. This process restores the
  heap ordering property.

11
Removal of top priority node 2figures 6.6 6.11
from "Data Structures and Algorithm Analysis in
C", 2e, M.A. Weiss.
12
Removal of top priority node 3
13
Removal of top priority node 4
14
Inserting a node into the heap 1

• To insert a node into the heap, a hole is first
  created at the next right position available
  within the bottom layer. If the bottom layer is
  full, a new layer is started from the left. If an
  array is used to implement the heap, a size check
  must first be performed to avoid array overflow.
• Values above a hole within the structure are
  bubbled down into the hole, so the hole "bubbles
  up" to the position where the hole can receive
  the value to be inserted while maintaining the
  heap ordering property.

15
Inserting a node into the heap 2
16
Inserting a node into the heap 3
17
The heap sort

• Using a heap to sort data involves performing N
  insertions followed by N delete min operations as
  described above. Memory usage will depend upon
  whether the data already exists in memory or
  whether the data is on disk. Allocating the array
  to be used to store the heap will be more
  efficient if N, the number of records, can be
  known in advance. Dynamic allocation of the array
  will then be possible, and this is likely to be
  preferable to preallocating the array.

18
Source code 1
19
Source code 2
20
Source code 3
21
Source code 4
22
Source code 5
23
Source code 6
24
Source code 7
