Title: ATA Spec 100: Manufacturers' Technical Data


1

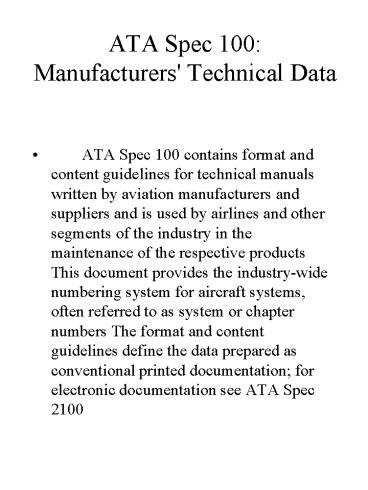

ATA Spec 100 Manufacturers' Technical Data
  • ATA Spec 100 contains format and content
    guidelines for technical manuals written by
    aviation manufacturers and suppliers and is used
    by airlines and other segments of the industry in
    the maintenance of the respective products This
    document provides the industry-wide numbering
    system for aircraft systems, often referred to as
    system or chapter numbers The format and content
    guidelines define the data prepared as
    conventional printed documentation for
    electronic documentation see ATA Spec 2100

2
  • AIRCRAFT GENERAL
  • 5 Time Limits/Maintenance Checks
  • 6 Dimensions Areas
  • 7 Lifting and Shoring
  • 8 Leveling Weighing
  • 9 Towing Taxiing
  • 10 Parking Mooring
  • 11 Placards Markings
  • 12 Servicing

3
  • AIRFRAME SYSTEMS
  • 20 Standard Practices -Airframe
  • 21 Air Conditioning
  • 22 Auto Flight
  • 23 Communications
  • 24 Electrical Power
  • 25 Equipment/Furnishings
  • 26 Fire Protection
  • 27 Flight Controls
  • 28 Fuel
  • 29 Hydraulic Power
  • 30 Ice Rain Protection

4
  • AIRFRAME SYSTEMS
  • 31 Indicating/Recording Systems
  • 32 Landing Gear
  • 33 Lights
  • 34 Navigation
  • 35 Oxygen
  • 36 Pneumatic
  • 38 Water/Waste
  • 45 Onboard Maintenance Systems (OMS)
  • 46 Information Systems
  • 49 Airborne Auxiliary Power

5
  • STRUCTURE
  • 51 Structures
  • 52 Doors
  • 53 Fuselage
  • 54 Nacelles/Pylons
  • 55 Stabilizers
  • 56 Windows
  • 57 Wings

6
  • POWER PLANT
  • 70 Standard Practices -Engines
  • 71 Power Plant
  • 72 Engine
  • 73 Engine Fuel and Control
  • 74 Ignition
  • 75 Air
  • 76 Engine Controls
  • 77 Engine Indicating
  • 78 Exhaust
  • 79 Oil
  • 80 Starting
