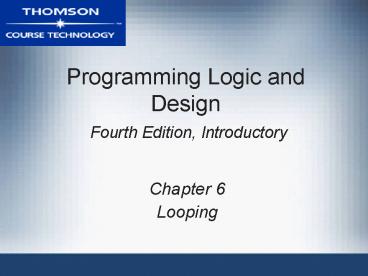

Programming Logic and Design Fourth Edition, Introductory

1
Programming Logic and Design Fourth Edition,
Introductory

• Chapter 6
• Looping

2
Objectives

• Understand the advantages of looping
• Control a while loop using a loop control
  variable
• Increment a counter to control a loop
• Loop with a variable sentinel value
• Control a loop by decrementing a loop control
  variable

3
Objectives (continued)

• Avoid common loop mistakes
• Use a for statement
• Use do while and do until loops
• Recognize the characteristics shared by all loops
• Nest loops
• Use a loop to accumulate totals

4
Understanding the Advantages of Looping

• Loop
• Set of instructions that is executed repetitively
  based on a condition
• Allows processing on large sets of data, such as
  complex payroll and benefits processing
• Main loop
• Basic set of instructions that is repeated for
  every record

5
Using a while Loop with a Loop Control Variable

• Loops also occur within program modules
• Three steps in every loop
• Initialize a control variable
• Compare the control variable to a value to
  determine if the loop should continue
• Alter the control variable within the loop

6
Using a while Loop with a Loop Control Variable
(continued)
7
Using a while Loop with a Loop Control Variable
(continued)

• Loop control variable determines whether a loop
  will continue to execute
• Sentinel value a limit or ending value to
  compare with the loop control variable
• Loop body statements inside the loop that are
  executed repetitively
• Once the loop body is entered, the entire loop
  body must execute
• Can exit from a structured loop only at the
  comparison test of the loop control variable

8
Using a Counter to Control Looping

• Developing the application
• The input file

9
Using a Counter to Control Looping (continued)

• Developing the application
• The main loop

10
Using a Counter to Control Looping (continued)

• Counter numeric variable that counts how often
  an event occurs
• Incrementing adding to a variable, usually by 1
• Loop continues executing until the condition is
  no longer met

11
Using a Counter to Control Looping (continued)

• Developing the application
• housekeeping() module

12
Using a Counter to Control Looping (continued)

• Developing the application
• createLabels() module

13
Using a Counter to Control Looping (continued)

• Three parts to the loop
• Initialize Set labelCounter to 0
• Compare compare labelCounter to 100
• Body print labelLine and inFirstName, add 1 to
  labelCounter
• When labelCounter has a value of 100, the loop
  ends
• This loop is executed for each employee record

14
Using a Counter to Control Looping (continued)

• Developing the application
• finishUp() module

15
Looping with a Variable Sentinel Value

• Developing the application
• Print labels based on employees production
  amount
• The input file

16
Looping with a Variable Sentinel Value (continued)
17
Looping by Decrementing

• Decrementing counting down
• May be more convenient to control a loop by
  decrementing
• May eliminate the need for a counter variable

18
Avoiding Common Loop Mistakes

• Neglecting to initialize the loop control
  variable
• Neglecting to alter the loop control variable
• Using the wrong comparison with the loop control
  variable
• Including statements inside the loop that belong
  outside the loop
• Initializing a variable that does not require
  initialization

19
Neglecting to Initialize the Loop Control Variable

• Uninitialized variables may contain unknown,
  unpredictable garbage
• Makes the comparison for the loop test
  meaningless
• May fail to enter the loop at all

20
Neglecting to Alter the Loop Control Variable

• May cause an infinite loop
• Infinite loop a loop that never stops executing
• A structured loop must terminate on its own

21
Using the Wrong Comparison with the Loop Control
Variable

• Using lt or gt when only lt or gt was required may
  cause an extra iteration through the loop

22
Including Statements Inside the Loop that Belong
Outside the Loop

• A statement erroneously placed in a loop will
  execute as many times as the loop executes
• Affects the performance and efficiency of the
  program
• Carefully analyze what actions must be repeated,
  and place all other actions outside the loop

23
Including Statements Inside the Loop that Belong
Outside the Loop (continued)
24
Initializing a Variable that Does Not Require
Initialization

• Consider whether the variable requires
  initialization
• Is an initial value required?
• Will the variable be assigned a value within the
  loop?

25
Using the for Statement

• Indeterminate (or indefinite) loop when the
  number of executions of the loop is not known in
  advance
• Definite loop when the number of executions of
  the loop is known in advance
• while statement can be used with both definite
  and indefinite loops
• for statement can be used with definite loops

26
Using the for Statement (continued)

• for statement performs three actions within a
  single statement
• Initializes the loop control variable
• Evaluates the loop control variable
• Alters the loop control variable (usually by
  incrementing)
• for statement is a pretest loop

27
Using the for Statement (continued)

• This for statement accomplishes these tasks
• Initializes labelCounter to 0
• Checks labelCounter to ensure it is less than or
  equal to the limit value 99
• If the evaluation is true, the loop body is
  executed
• After executing the loop body, labelCounter is
  incremented by 1 and compared to the limit value
  again

28
Using the for Statement (continued)

• Use a for statement when the loop will
• Start with a known starting value
• End with a known ending value
• Increase in equal increments
• Starting, ending and increment values can be
  represented with variables
• Size of the increment can be set

29
Using the do while and do until Loops

• With a pretest loop (for or while), the loop body
  may never execute
• With a posttest loop, the loop body is always
  executed at least once
• do while loop continues to execute as long as the
  condition remains true
• do until loop continues to execute as long as the
  condition remains false

30
Using the do while and do until Loops (continued)
31
Using the do while and do until Loops (continued)
32
Recognizing the Characteristics Shared by All
Loops

• All loops share these characteristics
• Loop-controlling question provides either an
  entry to or exit from the repeating structure
• Loop-controlling question provides the only entry
  to or exit from the repeating structure
• Structured loops do not allow premature exits

33
Recognizing the Characteristics Shared by All
Loops (continued)
34
Nesting Loops

• Nesting loops placing one loop inside another
  loop
• Outer loop a loop that contains another loop
• Inner loop a loop that is inside another loop
• Developing the application
• The input file

35
Nesting Loops (continued)

• Developing the application
• The desired output ¼ of 1 raise in each pay
  period
• Two pay periods per month

36
Nesting Loops (continued)

• Developing the application
• Use two counters
• One to track months
• One to track the checks within the month
• Use constants to self document the program
• Number of months in the year 12
• Number of checks in the month 2
• Rate of pay increase 0.0025

37
Nesting Loops (continued)
38
Nesting Loops (continued)
39
Using a Loop to Accumulate Totals

• Detail reports show details, may also show
  totals or other overall statistics at end
• Summary reports show only totals or other
  overall statistics
• Accumulator a variable used to accumulate
  values
• Accumulator variable must be initialized (usually
  to 0) to ensure it does not contain garbage

40
Using a Loop to Accumulate Totals (continued)

• Developing the application
• When finished processing the data file, the
  accumulator holds the grand total
• Summary can then be printed at end of report

41
Using a Loop to Accumulate Totals (continued)
42
Summary

• Loop a set of statements that operates on
  multiple sets of data
• Three steps must occur in a loop initialize,
  compare, and alter loop control variable
• Counter variable used to count the number of
  times an event occurs
• Sentinel value can be used to control a loop

43
Summary (continued)

• Common loop mistakes
• Failing to initialize, or neglecting to alter the
  loop control variable
• Using the wrong comparison operator
• Including statements inside the loop that do not
  belong there
• for statement used with definite loops when you
  know the number of times the loop will execute
• for statement automatically initializes,
  compares, and increments its loop control
  variable

44
Summary (continued)

• do while and do until loops
• Test the condition at the end of the loop
• Guarantee that the loop body executes at least
  once
• All structured loops share these characteristics
• Loop controlling question provides either entry
  to or exit from the repeating structure
• Loop controlling question provides the only entry
  to or exit from the repeating structure
• Nesting loops loops placed within other loops
• Accumulator variable used to accumulate values
