Ground Based Fuel Tank Inerting

1

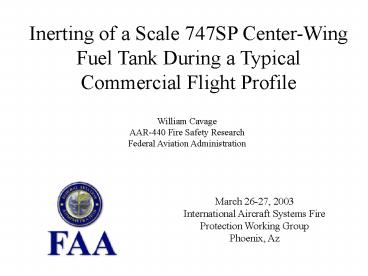

Inerting of a Scale 747SP Center-Wing Fuel Tank
During a Typical Commercial Flight Profile
William CavageAAR-440 Fire Safety
ResearchFederal Aviation Administration
March 26-27, 2003International Aircraft Systems
FireProtection Working GroupPhoenix, Az
2
Outline

• Background
• Model / Instrumentation
• Test Data
• Effect of Holds at 5K Feet
• Running System on Ground
• Effect of Deposit Schemes
• Starting Descent Altitude
• Blocking Vent System Dive Port
• Summary

3
Background

• FAA is seeking to improve upon existing fuel tank
  safety in fleet in the wake of TWA800 air
  disaster
• Inerting of fuel tanks could provide significant
  fuel tank protection.
• Focus of the testing is to validate the ability
  of the FAA simplified fuel tank inerting system
  to inert the CWT of a 747SP during a typical
  commercial flight profile
• Use modeling results to validate modeling methods
  with full-scale data
• Study inert gas distribution during the
  commercial mission

4
Description of Model

• Quarter-scale model of Boeing 747SP CWT was built
  from three-quarter inch plywood by scaling
  drawings from Shepherd report
• 24 length scale (1.4 Volume)
• Spars and spanwise beams simulated with
  quarter-inch plywood installed in slats with
  scaled penetration holes
• Vent system simulated with PVC tubing plumbed to
  an aluminum vent channel
• Removable lid to allow for model maintenance and
  modification
• Model in 6x6x7 altitude chamber
• Model inerted with manual NEA mixer

5
Photo of Model
6
747 SP Bay Diagram with Volume Data
7
Instrumentation

• Onboard oxygen analysis system (OBOAS) acquired
  bay oxygen concentration data
• One sample port in each bay
• Sample returned to tank through manifold
• Thermocouple in chamber gave temperature
• Altitude measured by absolute pressure transducer
• NEA Flow metered/measured with mass flow
  controller and oxygen concentration determined
  with flow through type oxygen analyzer

8
Onboard Oxygen Analysis System Block Diagram
9
Scale Tank Testing Block Diagram
Altitude Chamber
NEA Generator
Flow Controller
Nitrogen
NEA Mixer
Oxygen Analyzer
Compressed Air
Scale Tank Model
DAS
OBOAS
Computer
Sample Return
T
Pressure Transducer
10
Scope of Testing to Date

• All testing used same generic flight profile with
  different cruise times and different holds at 5K
  feet
• All testing uses same predicted system
  performance in terms of NEA flow and purity
  during above mentioned mission
• All tests had right side vent system blocked
• Some tests had aft port on open vent side also
  blocked

11
OBIGG System Model
12
Effect of Hold at 5K Feet

• Baseline case (no hold) repeated with two
  different hold times
• Hold at 5K feet
• 5 and 10 minute holds
• Results indicate that holds using high flow mode
  have little effect on both tank average oxygen
  concentrations and worst bay oxygen
  concentrations
• System is depositing NEA at approximate oxygen
  concentration as tank
• 5-10 minutes not that long to improve
  distribution for relatively small spread

13
747SP Scale Fuel Tank Inerting Data
14
747SP Scale Fuel Tank Inerting Data
15
747SP Scale Fuel Tank Inerting Data
16
Effect of Hold at 5K Feet (Contd)

• Ideally like to decrease tank average oxygen
  concentration before you use high flow mode to
  improve distribution
• Use low flow mode during a hold at 5K feet
  (lowers average tank oxygen concentration)
• Switch back to high flow for final descent
  (distributes)
• Results illustrate this flow methodology improves
  overall average tank oxygen concentration at
  touchdown but doesnt increase in the worst bay
  oxygen concentration
• Using high flow mode to distribute gas has
  diminishing returns
• Effect of sample system minimal when checked

17
747SP Scale Fuel Tank Inerting Data
18
747SP Scale Fuel Tank Inerting Data
19
747SP Scale Fuel Tank Inerting Data
20
Running System After Touchdown

• Repeated baseline case touchdown data with two
  tests that run system on ground after touchdown
• 15 and 30 minutes system run times
• one test only sampled beginning and end of ground
  sit time
• Running System in Low Flow Mode After Touchdown
  did little for worst bay oxygen concentration
• Gave consistent benefit over time for tank
  average oxygen
• Running System in High Flow Mode After Touchdown
  did decrease bay oxygen concentration spread
• Average oxygen concentration changed little
• Again, diminishing returns on reducing spread

21
747SP Scale Fuel Tank Inerting Data
22
747SP Scale Fuel Tank Inerting Data
23
747SP Scale Fuel Tank Inerting Data
(High Flow Mode)
24
Deposit Scheme Comparison

• Compared running system after touchdown with two
  different deposit scenarios
• Duel deposit method deposits low flow mode in bay
  6 and high flow mode in bays 1 and 3
• Multi-deposit method deposits all flow into bay 6
  and bay 2 (approximate equal split)
• Baseline used low flow mode during 10 minute hold
  pattern
• Fancy deposit schemes did little to improve
  touchdown average or worst bay oxygen
  concentration
• More work needed
• Repeatability check gave excellent results

25
747SP Scale Fuel Tank Inerting Data
26
747SP Scale Fuel Tank Inerting Data
27
747SP Scale Fuel Tank Inerting Data
28
Starting Altitude Comparison

• Compared original baseline descent case (from 39K
  feet) with two additional starting altitudes (32K
  and 25K)
• Used same altitude profile with different
  starting point (same descent rates) with no hold
• Approximated system performance best possible
• Results were as expected
• Starting altitude will have dramatic effect on
  resulting average oxygen concentration provided
  the tank is consistently inert for all cases

29
747SP Scale Fuel Tank Inerting Data
30
Effect of Blocking Dive Port

• Existing venting scheme does not give optimal
  inerting efficiency
• Illustrated in constant inerting tests
• Would improve by blocking dive port (aft vent
  port) on open side
• Repeated baseline test data (no hold) with this
  venting configuration
• No effect on average tank oxygen concentration
• Had adverse effect on distribution with 2 higher
  spike in worst bay and a full 3 greater
  resulting worst bay oxygen concentration
• Compared two deposit schemes with this venting
  config
• Use 10 min hold for comparison case
• Only small effect observed on bay 1 spike and on
  result

31
747SP Scale Fuel Tank Inerting Data
32
747SP Scale Fuel Tank Inerting Data
33
747SP Scale Fuel Tank Inerting Data
34
Summary

• Scale model data shows FAA inerting methodology
  sound given the predicted system performance
• System could be slightly undersized
• Using high flow mode only, decent hold buy you
  very little in terms of average of worst bay
  oxygen concentrations
• Running system on ground after touchdown in high
  flow mode will decrease oxygen concentration
  spread, but has diminishing returns (when average
  oxygen concentration is near 12)
• More elaborate deposit schemes and system
  methodologies give relatively small performance
  benefit, but could improve inerting capability
  significantly of a marginal system
