Title: GGF4 Toronto Feb 2002


1

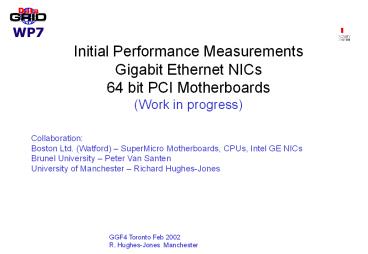

Initial Performance MeasurementsGigabit Ethernet
NICs64 bit PCI Motherboards(Work in progress)
CollaborationBoston Ltd. (Watford)
SuperMicro Motherboards, CPUs, Intel GE
NICsBrunel University Peter Van
SantenUniversity of Manchester Richard
Hughes-Jones
2
The Measurements (1)
  • Latency
  • Round trip times measured using Request-Response
    UDP frames
  • Latency as a function of frame size
  • Slope gives sum of individual data transfer rates
    end-to-end
  • Mem copy pci Gig Ethernet pci mem copy
  • Histograms of individual measurements

3
The Measurements (2)
  • UDP Throughput
  • Send a burst of UDP frames spaced at regular
    intervals
  • Vary the frame size and the frame transmit
    spacing
  • Record
  • The time to send and the time to receive the
    frames
  • The number received, the number lost, number out
    of order
  • The received inter-packet spacing
  • CPU load, Number of interrupts

4
The Measurements (3)
  • PCI Activity
  • Logic Analyzer with
  • PCI Probe cards in sending PC
  • Gigabit Ethernet Fiber Probe Card
  • PCI Probe cards in receiving PC

Gigabit Ethernet Probe
CPU
CPU
NIC
NIC
chipset
chipset
mem
mem
Logic Analyser Display
5
Latency Alteon AceNIC
  • Motherboard SuperMicro 370DLE Chipset
    ServerWorks III LE Chipset
  • CPU PIII 800 MHz PCI64 bit 66 MHz
  • RedHat 7.1 Kernel 2.4.14

6
UDP Throughput Alteon AceNIC
  • Motherboard SuperMicro 370DLE Chipset
    ServerWorks III LE Chipset
  • CPU PIII 800 MHz PCI64 bit 66 MHz
  • RedHat 7.1 Kernel 2.4.14

7
PCI Alteon AceNIC
  • Motherboard SuperMicro 370DLE Chipset
    ServerWorks III LE Chipset
  • CPU PIII 800 MHz PCI64 bit
  • RedHat 7.1 Kernel 2.4.14
  • ALT33102
  • PCI 33 MHz
  • 1400 bytes sent
  • Wait 16 us
  • ALT66101
  • 66 MHz
  • 1400 bytes sent
  • Wait 16 us
  • NIC cannot sustain 66 MHz

Send PCI
Receive PCI
8
Latency SysKonnect
  • Motherboard SuperMicro 370DLE Chipset
    ServerWorks III LE Chipset
  • CPU PIII 800 MHz PCI64 bit 33 MHz
  • RedHat 7.1 Kernel 2.4.14
  • Latency low good
  • Latency well behaved
  • Slope 0.0252 us/byte
  • Expect
  • PCI 0.00758
  • GigE 0.008
  • PCI 0.00758
  • 0.0236 us/byte

9
UDP Throughput SysKonnect
  • Motherboard SuperMicro 370DLE Chipset
    ServerWorks III LE Chipset
  • CPU PIII 800 MHz PCI64 bit 33 MHz
  • RedHat 7.1 Kernel 2.4.14
  • Max throughput 690Mbit/s
  • No packet loss
  • Packet loss during drop

10
PCI SysKonnect
  • Motherboard SuperMicro 370DLE Chipset
    ServerWorks III LE Chipset
  • CPU PIII 800 MHz PCI64 bit 66 MHz
  • RedHat 7.1 Kernel 2.4.14
  • SK300
  • 1400 bytes sent
  • Wait 100 us
  • 8 us for send or receive

Gigabit Ethernet frame
11
PCI SysKonnect
  • Motherboard SuperMicro 370DLE Chipset
    ServerWorks III LE Chipset
  • CPU PIII 800 MHz PCI64 bit 66 MHz
  • RedHat 7.1 Kernel 2.4.14
  • SK301
  • 1400 bytes sent
  • Wait 20 us
  • Sk303
  • 1400 bytes sent
  • Wait 10 us
  • Frames are back-to-back
  • Cannot go any faster !

Gig Eth frames back to back
12
Latency Intel
  • Motherboard SuperMicro 370DLE Chipset
    ServerWorks III LE Chipset
  • CPU PIII 800 MHz PCI64 bit 66 MHz
  • RedHat 7.1 Kernel 2.4.14
  • Latency high
  • Latency well behaved
  • Slope 0.0187 us/byte
  • Expect
  • PCI 0.00188
  • GigE 0.008
  • PCI 0.00188
  • 0.0118 us/byte

13
PCI Intel
  • Motherboard SuperMicro 370DLE Chipset
    ServerWorks III LE Chipset
  • CPU PIII 800 MHz PCI64 bit 66 MHz
  • RedHat 7.1 Kernel 2.4.14
  • IT66M200
  • 64 bytes sent
  • CSR time 1.75 us
  • Data time 0.25 us
  • Interrupt delay70 us
  • 1400 response

14
Throughput Intel
  • Motherboard SuperMicro 370DLE Chipset
    ServerWorks III LE Chipset
  • CPU PIII 800 MHz PCI64 bit 66 MHz
  • RedHat 7.1 Kernel 2.4.14
  • Max throughput 910Mbit/s
  • No packet loss
  • Packet loss during drop

15
Throughput Intel
  • Motherboard SuperMicro 370DLE Chipset
    ServerWorks III LE Chipset
  • CPU PIII 800 MHz PCI64 bit 66 MHz
  • RedHat 7.1 Kernel 2.4.14
  • losses occur in groups
  • 50 pkts every 140

16
PCI Intel
  • Motherboard SuperMicro 370DLE Chipset
    ServerWorks III LE Chipset
  • CPU PIII 800 MHz PCI64 bit 66 MHz
  • RedHat 7.1 Kernel 2.4.14
  • IT66M212
  • 1400 bytes sent
  • Wait 11 us
  • 4.7us on send PCI bus
  • PCI bus 45 occupancy
  • 3.25 us on PCI for data recv
  • IT66M212
  • 1400 bytes sent
  • Wait 11 us
  • Packets lost
  • Action of pause packet?

17
Latency Intel on P4CD6
  • Motherboard SuperMicro P4CD6 Chipset Intel
    i860
  • CPU Dual Xeon Prestonia (2cpu/die) 2.2 GHz
    PCI64 bit 66 MHz
  • RedHat 7.1 Kernel 2.4.2
  • Latency high
  • Slope 0.0195 us/byte
  • Expect
  • PCI 0.00188
  • GigE 0.008
  • PCI 0.00188
  • 0.0118 us/byte

18
Throughput Intel on P4CD6
  • Motherboard SuperMicro P4CD6 Chipset Intel
    i860
  • CPU Dual Xeon Prestonia (2cpu/die) 2.2 GHz
    PCI64 bit 66 MHz
  • RedHat 7.1 Kernel 2.4.2
  • Max throughput 950Mbit/s
  • No packet loss
  • Negligible Packet loss

19
PCI Intel on P4CD6
  • Motherboard SuperMicro P4CD6 Chipset Intel
    i860
  • CPU Dual Xeon Prestonia (2cpu/die) 2.2 GHz
    PCI64 bit 66 MHz
  • RedHat 7.1 Kernel 2.4.2
  • IT66M220
  • 1400 bytes sent
  • Wait 1000 us
  • CSR time 12.25 us
  • Data time 0.25 us
  • Interrupt delay79 us
  • IT66M224
  • 1400 bytes sent
  • Wait 100 us
  • Detail
  • Chipset limits PCI transfers with STOPs
  • Try i870 Chipset

20
PCI Intel on P4CD6
  • Motherboard SuperMicro P4CD6 Chipset Intel
    i860
  • CPU Dual Xeon Prestonia (2cpu/die) 2.2 GHz
    PCI64 bit 66 MHz
  • RedHat 7.1 Kernel 2.4.2
  • IT66M221
  • 1400 bytes sent
  • Wait 11 us

21
Latency Intel on IBM board
  • Motherboard IBM das Chipset ServerWorks
    CNB20LE
  • CPU Dual PIII 1GHz PCI64 bit 33 MHz
  • RedHat 7.1 Kernel 2.4.14
  • Latency high
  • Latency well behaved
  • Slope 0.0206 us/byte
  • Expect
  • PCI 0.00376
  • GigE 0.008
  • PCI 0.00376
  • 0.0155 us/byte

22
Throughput Intel on IBM board
  • Motherboard IBM das Chipset ServerWorks
    CNB20LE
  • CPU Dual PIII 1GHz PCI64 bit 33 MHz
  • RedHat 7.1 Kernel 2.4.14
  • Max throughput 930Mbit/s
  • No packet loss
  • Packet loss during drop

23
PCI Intel on IBM board
  • Motherboard IBM das Chipset ServerWorks
    CNB20LE
  • CPU Dual PIII 1GHz PCI64 bit 33 MHz
  • RedHat 7.1 Kernel 2.4.14
  • uva64m02
  • 1400 bytes sent
  • Wait 11 us
  • 9.3us on send PCI bus
  • PCI bus 82 occupancy
  • 5.9 us on PCI for data recv.
