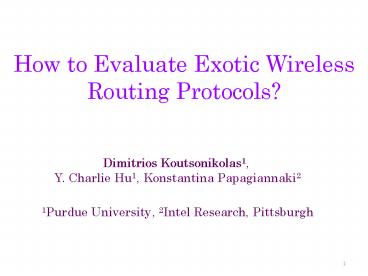

How to Evaluate Exotic Wireless Routing Protocols?
Dimitrios Koutsonikolas1, Y. Charlie Hu1,
Konstantina Papagiannaki2 1Purdue University ,
2Intel Research, Pittsburgh
2
Evolution of Wireless Routing Protocols

• From the Ad Hoc Era to the Mesh Era
• New design goals
• High throughput vs. connectivity
• New exotic optimization techniques
• Cross layer design

AODV TORA
ExOR ROMER
DSDV
Performance comparisons
SOAR
DSR
MORE MC2 noCoCo
ETX
ETT
COPE
1994
1996
1997
1998
2000
2003
2004
2005
2006
2007
Ad Hoc Networking Era
Mesh Networking Era
3
In This Talk

• Review the evolution of wireless protocol design
• Reveal challenges to evaluation methodology of
  new routing protocols
• Discuss current practices
• Weaknesses
• Suggest guidelines for fair and meaningful
  evaluation

4
Ad Hoc Networking Era

• Primary challenge
• Deal with route breaks due to host mobility
• Layering principle
• Routing protocol discovers route
• 802.11 unicast transmits packets to next hop
• ACK/RETX, exponential backoff
• Evaluation
• PDR, control overhead, tradeoffs
• Low constant offered load

5
Mesh Networking Era

• Static routers
• Mobility not a concern
• Commercial applications
• Compete with other internet technologies
• New research focus
• High Throughput

6
Towards High Throughput

• Link-quality routing metrics
• Examples ETX, ETT
• Still follow layering principle
• Exotic optimization techniques
• Examples Opportunistic Routing, Network Coding
• Abandon layering principle

7
Opportunistic Routing

• First demonstrated in ExOR SIGCOMM 05
• Packet broadcast at each hop, all neighbors can
  receive it
• Neighbor closest to destination rebroadcasts
• Coordination required

A
0
50
50
0
S
B
D
C
S
D
A
B
0
50
C
8
Intra-Flow Network Coding

• First demonstrated in MORE SIGCOMM 07
• Routers randomly mix packets
• Benefits
• Remove need for coordination
• FEC-style reliability, no ACK/RETX

ap1 ßp2
p1, p2
A
A
p1, p2
p1, p2
Both forward
Who forwards?
S
D
S
D
B
B
p1, p2
?p1 dp2
Coordination Required!
No Coordination!
9
Inter-Flow Network Coding

• First demonstrated in COPE SIGCOMM 06
• Routers mix packets from different flows
• Increase network capacity!
• Implied evaluation methodology
• Subject network to congestion
• Use network coding to eliminate congestion

1p1
2p2
1p1
2p2
4p2
3p1
3p1p2
3p1p2
Alice
Router
Bob
Alice
Router
Bob
Traditional Routing 4 TX
Network Coding 3 TX
10
Implications of 802.11 Broadcast

• 802.11 broadcast has no ACK/RETX, no exponential
  backoff
• No reliability
• Nodes can send faster than in unicast
• Exotic techniques do not work well with TCP
• Batching
• Consequence
• Reliability and rate control are brought to
  routing layer from lower or upper layers

11
Evolution of Protocol Stack
Application Layer
Application Layer
End-to-end Rate Control
Network Sublayer 3
End-to-end Rate Control
End-to-end Reliability
Transport Layer
End-to-end Reliability
Network Sublayer 2
Packet Forwarding
Network Layer
Packet Forwarding
Network Coding
Network Sublayer 1
Hop-by-hop Rate Control
Hop-by-hop Reliability
Hop-by-hop Reliability
MAC Layer
MAC Layer
Medium Access
Medium Access
Physical Layer
Physical Layer
Traditional Network Stack
New Network Stack
12
Implications on Protocol Evaluation

• Evaluation becomes a much subtler task
• Possible conflicts between new and old mechanisms
• Inter-flow network coding vs. rate control
• Current state
• Diverse set of evaluation methodologies
• Lack of clear guidelines

13
Evaluation of Unreliable Protocols
14
Practice 1 Making Both Protocols Reliable

• Evaluation of ExOR, comparison with Srcr
• ExOR guarantees delivery of 90 of the file
• Srcr offers no guarantee
• Methodology
• Download a 1MB file
• Send 1.1MB with ExOR to compensate for loss
• Carry the whole file hop-by-hop with Srcr to
  avoid collisions

Problem Removes spatial reuse from traditional
routing
15
Practice 2 No Rate Control Varying the Sending
Rate

• Evaluation of COPE, comparison with Srcr
• COPE increases network capacity
• Methodology
• UDP traffic
• Vary offered load
• Exceed nominal
• capacity (6Mbps)

Problem PDR drops quickly as network capacity is
exceeded
16
Practice 3 A Protocol With Rate Control Against
a Protocol Without Rate Control

• Evaluation of SOAR, comparison with Shortest Path
  (SP)
• SOAR applies rate control
• SP has no rate control

Problem Not clear what fraction of gain comes
from opportunistic routing and what from rate
control

• Methodology
• Saturate the network

17
Evaluation of Reliable Protocols
18
Practice 5 A Reliable Against an Unreliable
Protocol

• Evaluation of MORE, comparison with Srcr
• MORE offers FEC-style e2e reliability
• Srcr offers no reliability
• Methodology
• UDP sent at maximum possible rate

• Problem
• Srcr suffers losses due to congestion
• Same amount of data sent by src, different amount
  delivered to dst

19
Practice 6 Running an Unreliable Protocol Under
TCP

• Evaluation of noCoCo, comparison with COPE
• noCoCo applies backpressure-based congestion
  control/reliability
• COPE has no congestion control, weak reliability
• Methodology
• Run COPE under TCP

Problem TCP performs poorly in multihop wireless
networks
Solution Practice 7 Modify COPE to use noCoCos
congestion control/reliability
20
Use (or No Use) of Autorate Adaptation

• Traditional routing uses 802.11 unicast
• Exploits autorate adaptation
• Exotic optimization techniques rely on 802.11
  broadcast
• Operates on single rate
• Methodology
• Evaluation of most exotic protocols disables
  autorate adaptation for traditional routing
• For faircomparison

Problem Methodology can be unfair to traditional
routing
21
Recommendations for more consistent and
meaningful evaluation
22
The Importance of Rate Control I Unreliable
Protocols

• Traditional routing under UDP has no rate control
• Packets dropped beyond capacity
• Throughput reduction

• Exotic protocols w/o rate control
• Increase throughput, may increase capacity
• Packets still dropped beyond (new) capacity
• Exotic protocols w/ rate control
• Constant throughput beyond capacity
• No need to increase offered load beyond capacity

23
The Importance of Rate Control II Reliable
Protocols

• FEC-style reliability provides no rate control
• PDR remains 100, rate control still needed
• Exceeding capacity may lead to
• Increased delays
• Unfairness among flows
• Related recommendation
• Evaluate with multiple flows

24
Isolating the Benefit from Exotic Technique

• Evaluation should quantify the gain from new
  exotic optimization technique
• Tricky part
• Adding an exotic technique may require old
  techniques to move to the routing layer
• Recommendation
• Old techniques should also be incorporated into
  traditional routing

25
Separating Rate Control from End-to-end
Reliability

• Running traditional routing under TCP
• No modification to the protocol itself
• TCP performs poorly in multihop wireless networks
• TCP provides both rate control and reliability
• If new protocol has only one mechanism, overkill
  to run old protocol under TCP
• Recommendation
• Incorporate reliability/rate control mechanism of
  new protocol to old protocol

26
How to Incorporate Reliability To Traditional
Routing

• Case 1 reliability component disjoint to exotic
  technique
• Example ARQ component in noCoCo
• Method add same component to traditional routing
• Case 2 reliability component merged with exotic
  technique
• Example intra-flow NC in MORE
• Method add FEC to traditional routing?

27
MAC Autorate Adaptation

• Exotic protocols should try to incorporate
  autorate adaptation
• Not always feasible
• Recommendation
• Enable autorate adaptation for traditional
  routing
• Show exotic protocol outperforms traditional
  routing both with and without autorate adaptation

28
Conclusions

• Inconsistencies in evaluating wireless mesh
  routing protocols
• Fundamental reason
• No unified framework for understanding
  interactions among
• MAC
• Congestion
• Reliability
• Interference
• Network coding
• Real problem goes beyond how to evaluate exotic
  protocols

29
