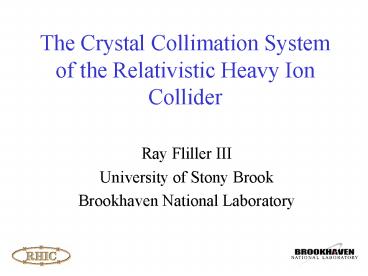

The Crystal Collimation System of the
Relativistic Heavy Ion Collider
  • Ray Fliller III
  • University of Stony Brook
  • Brookhaven National Laboratory

2
Collaborators
  • BNL
  • Angelika Drees
  • Dave Gassner
  • Lee Hammons
  • Gary McIntyre
  • Steve Peggs
  • Dejan Trbojevic
  • IHEP Protvino
  • Valery Biryukov
  • Yuriy Chesnokov
  • Viktor Terekhov

3
Outline
  • Brief RHIC Overview
  • Collimation
  • Crystal Channeling
  • RHIC Crystal Collimation System
  • Channeling Results
  • Crystal Collimation and Background Reduction
  • Conclusion

4
Run Species Integrated Luminosity Energy
2000 Au-Au 7.3 mb-1 (PHENIX) 70 GeV/u
2001 Au-Au 92.6 mb-1 (PHENIX) 100 GeV/u
2002 Polarized protons 100 nb-1 (STAR) 100 GeV
2003 d-Au 27 nb-1 (PHENIX) 100 GeV/u
2003 Polarized protons 2500 nb-1 (STAR) 100 GeV
2004 Au-Au 1368 mb-1 (PHENIX) 100 GeV/u
2004 Polarized protons 3200 nb-1 (STAR) 100 GeV
2005 Cu-Cu 100 GeV/u
5
RHIC Capabilities
  • Two 3.8 km counter-propagating superconducting
    rings BLUE (clockwise) and YELLOW
    (counterclockwise).
  • Can accelerate anything from polarized protons
    (250 GeV) to fully stripped gold ions (100
    GeV/u), possibility of colliding uneven species.
  • Six IRs with four experiments (STAR, PHENIX,
    BRAHMS, PHOBOS).
  • Typical store each ring contains 110 bunches of
    109 gold ions or 1011 polarized protons.

6
Typical RHIC Parameters
  • 95 norm. Emittance e15 p mm-mrad
  • rms momentum spread sp 0.13
  • Bunch length sl 0.19 m
  • Energy 100 GeV/u
  • Store Length 4 hours
  • Beam size at collimator 5.3mm (bPHENIX1m)

7
Need for Collimation
Various processes cause particles to enter into
unstable orbits with large betatron amplitudes,
causing beam halo formation. These halo
particles cause The job of the collimation
system is to remove the halo and alleviate these
problems. In addition, it should provide a well
defined location for beam losses in case of
equipment failure.
  • Background in experiments
  • Excessive radiation in uncontrolled areas of the
    tunnel
  • Magnet quenches in superconducting machines
  • Equipment malfunction and damage

8
Naive Collimation
Collimator
Beam
Naively, all particles that enter the collimator
are stopped in the collimator.
Most particles hit near edge and scatter out of
the collimator forming secondary halo!
However, that is usually not the case.
9
Two Stage Collimation
Since primary collimator acts as a scatterer,
secondary collimators are necessary to increase
energy loss and absorb secondary halo particles.
The number of secondary collimators grows quickly
when background or machine protection
requirements are strict and a high collimation
efficiency is required (see LHC collimation
system!).
10
A simpler way to collimate
Use a bent crystal to channel halo away from the
beam core, intercept with a scraper downstream.
Number of secondary collimators can be greatly
reduced.
11
Crystal Channeling
Ions properly aligned to the crystal planes are
channeled.
Particles with large incident angles scatter
through the crystal
12
Interplanar Potential
Ions properly aligned to the crystal planes see
an average potential. This potential is skewed
by the bending of the crystal.
dp
Curvature shifts minimum
13
Critical Angle qc
The channeling condition gives an
angle qc, above which a particle will not be
channeled.
Using a Si crystal with 100 GeV/u Au or 250 GeV p
, qc11 mrad
For 100 GeV p, qc19 mrad
14
Channeling Efficiency
The integral of the incoming particle
distribution over the channeling phase space is
the channeling efficiency
For a beam with uniform divergence 2Fgt2qc
15
Dechanneling and Volume Capture
16
CATCH Simulation
CATCH by Valery Biryukov
17
Important Considerations for Crystal Collimation
  • Crystal alignment to beam halo.
  • Angular divergence of beam halo hitting crystal.

18
Crystal Collimator Geometry
19
Model of Beam Hitting Crystal
Assuming a Gaussian beam distribution of
  • J J(x, x, d) is the particle amplitude
  • e is the rms unnormalized emittance
  • d is the fractional momentum deviation
  • sp is the rms fractional momentum spread

By transforming from J, d to x, x, d and
integrating over momentum
20
Angular Alignment
Assuming the distribution extends over the entire
crystal face, the angle between the beam orbit
and particles striking the crystal is
  • x0 is the distance between crystal and beam
    center
  • Dx is width of crystal face
  • a, b, D, D are lattice functions at crystal

The crystal planes need to be at this angle
relative to the beam orbit! This is proper
alignment!
21
Angular Divergence
The equation for angular divergence, sx(x0), is
not very illuminating. However, it depends
strongly on
  • a, D large values increase sx(x0)
  • sp large values increase sx(x0)
  • b, D large values decrease sx(x0)
  • Dx large values increase sx(x0) (assuming
    particles hit whole crystal face)

By optimizing these parameters, the angular
spread of beam across the crystal face is
minimized.
For those who REALLY want to see the equation,
read my thesis!
22
Phase Space at Crystal
When crystal is moved into beam, it needs to be
realigned
23
Angular Width Model Optics
Critical Angle
bPHENIX 2 m
model
24
Angular Width Measured Optics
  • and D affect ellipse
  • orientation and shape

Critical Angle
measured (FY2001)
bPHENIX 2 m
25
Caveat Emptor!
There are a few holes in the model
  1. Particle distribution Gaussian in the tails??
  2. Assumption that particles strike across the whole
    face of crystal.
  3. Does not take into account multiple turns.
  4. Not useful for volume capture predictions.

However, this model gives us a starting place.
26
Placement of the Crystal
  • Crystal should be placed at a location that has
    low a and D and a maximun of b so that
  • xp is independent of x0
  • sx(x0) is reduced
  • Channeling efficiency is increased
  • Operation of crystal collimator is easier

However, in RHIC all warm spaces have large a!
27
RHIC Collimation System
Changed after FY2003
STAR
Scraper can move horizontally, vertically and
rotate in horizontal plane
Downstream PIN Diodes
Upstream PIN Diodes
Hodoscope courtesy of Y. Chesnokov and V.Terekhov
28
Vessel Cutaway
Pivot
Inchworm
Crystal
Moveable Stage
29
Crystal Vessel
Crystal
Crystal Motion
Beam
30
Crystal
31
Measuring Crystal Angle
By measuring the deflection of the laser beam,
the crystal angle is measured
  • Crystal can rotate approx 6 mrad
  • Measurement Resolution 20 mrad
  • Angular Step Size 30 nrad

32
Lattice Functions
bPHENIX 2 m FY2003
33
Synopsis of Data
Run Species bPHENIX Stores Scans
FY2001 Au 5 m 8 27
FY2001 Au 2 m 4 24
FY2001 Au 1 m 12 109
FY2002 p 3 m 11 119
FY2003 Au 2 m 4 20
34
Typical Crystal Scan
sx(x0)
Volume Capture
Crystal Aligned
xp
Crystal Channeling
November 12, 2001 Au beam at store.
35
Hodoscope Signal
Very noisy compared to PIN diodes. Coincidence
rate is almost useless. Limited use in analysis.
36
Comparison to Simulation
  • Model Optics
  • Location wrong
  • dip width too narrow
  • efficiency too large

Design optics do not agree well with data.
However, measured optics agrees better.
Simulation used CATCH and one turn matrix.
37
Comparison to Simulation
Volume capture region strongly affected by number
of turns in simulation.
38
Channeling Angle vs. Position
b1m at PHENIX
Design mrad/mm
Measured Optics mrad/mm
Data mrad/mm
39
Beam Divergence
Run bPHENIX sx(x0) mrad sx(x0) mrad sx(x0) mrad sx(x0) mrad
Run bPHENIX Design optics Measured optics Simulation Channeling data
FY2001 5 12.3 39 4
FY2001 2 9.98 19 1 20 1 78 4
FY2001 1 8.91 9 1 11 1 38 3
FY2002 3 10.8 58 3
FY2003 2 9.98 14 1 16 1 28 2
Even using the correct optics, the predicted
angular spread is too small. Multiple turns are
not in the theory! Assumed Gaussian halo
distribution!
40
Channeling Efficiency
Run bPHENIX Channeling Efficiency Channeling Efficiency Channeling Efficiency Channeling Efficiency Channeling Efficiency
Run bPHENIX Design optics Measured optics Simulation Measured width Channeling data
FY2001 5 59 19 2 24 3
FY2001 2 71 39 2 37 1 9 1 28 3
FY2001 1 74 75 1 56 3 20 2 19 3
FY2002 3 79 21 2 26 3
FY2003 2 71 52 2 50 1 26 2 26 3
Channeling Efficiency does not match predictions
from the theory. This is because the beam
divergence on the crystal does not match theory.
Using the measured beam divergence (from sx(x0)
) the efficiency agrees well for most cases.
41
Channeling Results
  • RHIC optics did not match model, so initial
    predictions overestimated crystal performance
  • Simple theory overestimates channeling efficiency
    lacking multiple turns, model of halo
    distribution too simple.
  • Simulation agrees with data well.
  • Channeling efficiency is understood once optics
    and beam halo distribution are understood.
  • Accurate knowledge of lattice functions and halo
    distribution VERY IMPORTANT!

Will low channeling efficiency result in too much
scattering and hurt collimation?
42
STAR Background
4 crystal scans with different scraper positions
- xs
Crystal not moved.
43
Other Experiment Backgrounds
Only BRAHMS see significant effect
44
Placing the Scraper
Scattering from scraper
Scattering from crystal
By using both sets of PIN diodes, we can know
when the scraper becomes the primary aperture!
45
STAR Background Reduction
Scraper only
Raw Background
Crystal collimation does not do better than
scraper alone!
46
Crystal Collimation vs. Raw Background
Scraper moves closer to beam
Crystal Collimation reduces Background to
uncollimated rate
Au beam, d-Au run, crystal collimation not
always effective in reducing background.
47
Crystal Collimation Results
  • Crystal can cause background in experiments.
  • Scraper position very important.
  • Because of low channeling efficiency, crystal
    collimation was not successful.
  • Scraper alone collimated the best.
  • Crystal Collimator removed from RHIC.
    Traditional two stage collimation system
    installed for FY2004 run.

48
Summary
  • Bent Crystals were used for collimation in RHIC
  • Crystal Channeling worked as expected once
    lattice functions and halo distribution were
    understood.
  • Collimation was unsuccessful because lattice was
    not optimized in area of collimator.
  • Crystal caused background.
  • Tevatron is going to install our vessel (and Ill
    be following it there!)

Questions??
49
Single Stage Collimation
During d-Au run, backgrounds were reduced by as
much as a factor of 5.
Fill 03094 d-Au run
Vertical Collimator
Closer to beam
Horizontal Collimator
Partially retracting the vertical collimator
increases backgrounds
50
Upgraded Collimation System
PIN Diodes downstream of V1 and H1 collimators
are not shown for clarity
  • Crystal Collimator removed
  • Primary is the same collimator as previous runs,
    moved to location reserved for the Crystal
    Collimator
  • Secondary collimators are based on design of
    primary
  • Controls software upgraded to include
    manual/automatic control of collimators

51
Upgraded Collimation Results
Fill 04436 Au-Au run
PHENIX
Backgrounds reduced by factor of 11, 2x the
pervious run!
STAR
Collimators move simultaneously.
52
Summary
  • Single stage collimation was adequate during
    lower luminosity runs.
  • Two stage collimation was successful during the
    FY2004 Au-Au run.
  • Two more vertical collimators are installed for
    the FY2005 Cu-Cu run.
Write a Comment
User Comments (0)
About PowerShow.com
