Learning Hierarchical Multilabel Classification Trees for Functional Genomics

1

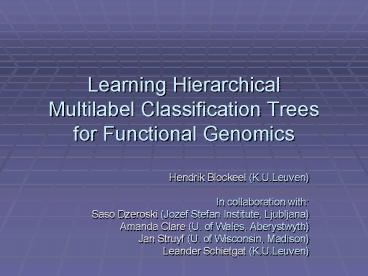

Learning Hierarchical Multilabel Classification
Trees for Functional Genomics

• Hendrik Blockeel (K.U.Leuven)
• In collaboration with
• Saso Dzeroski (Jozef Stefan Institute, Ljubljana)
• Amanda Clare (U. of Wales, Aberystwyth)
• Jan Struyf (U. of Wisconsin, Madison)
• Leander Schietgat (K.U.Leuven)

2
Whats surprising about our resultsThe
household equivalent

• What you would NOT expect is
• that the combo is smaller than
• some individual machines
• that the coffee is even better

yet that is what we found when learning
combined models for different tasks
3
Overview

• Hierarchical multilabel classification (HMC)
• Decision trees for HMC
• Motivated by problems in functional genomics
• Some experimental results
• Conclusions

4
Classification settings

• Normally, in classification, we assign one class
  label ci from a set C c1, , ck to each
  example
• In multilabel classification, we have to assign a
  subset S ? C to each example
• i.e., one example can belong to multiple classes
• Some applications
• Text classification assign subjects (newsgroups)
  to texts
• Functional genomics assign functions to genes
• In hierarchical multilabel classification (HMC),
  the classes C form a hierarchy C,?
• Partial order ? expresses is a superclass of

5
Hierarchical multilabel classification

• Hierarchy constraint
• ci ? cj ? coverage(cj) ? coverage(ci)
• Elements of a class must be elements of its
  superclasses
• Should hold for given data as well as predictions
• Three possible ways of learning HMC models
• Learn k binary classifiers, one for each class
• If learned independently difficult to guarantee
  hierarchical constraints
• Can also be learned hierarchically
• Learn one classifier that predicts a vector of
  classes
• E.g., a neural net can have multiple outputs
• We will show it can also be done for decision
  trees

6
1) Learn k classifiers independently

• C c1, c2, , ck
• Let S(x) set of class labels of x
• Learning
• For each i 1..k learn fi such that fi(x)1 if
  ci ? S(x)
• Prediction
• S(x) ?
• For each i 1..k include ci in S(x) if fi(x)1
• Predict S(x)
• Problem hierarchy constraint may not hold for
  S
• A classifier for a subclass might predict 1 when
  the classifier for its superclass predicts 0
• Can be trivially fixed at prediction time but it
  shows that the fi have not been learned optimally

7
2) Learn k classifiers hierarchically

• D data set Di x ? D ci ? S(x)
• Di Data set restricted to class i examples
• Parent(ci) immediate superclass of ci
• Learning
• For each i 1..k learn fi from Dparent(ci) such
  that fi(x)1 if ci ? S(x)
• Prediction (typically dop-down in hierarchy)
• S(x) ?
• For each i 1..k include ci in S(x) if
  parent(ci) ? S(x) and fi(x)1
• Predict S(x)
• Advantages
• Hierarchy constraint solved
• More balanced distributions to learn from

.
c1
c2
c3
c4
c5
c6
c7
8
3) Learn one classifier

• Learning
• Learn f such that f(x) S(x)
• Prediction
• Predict f(x)
• Need to have a learner that can learn models with
  gt1 output
• E.g., neural nets can output k-D vector c1, ,
  ck
• In this work, we extend decision trees (normally
  1-D output) to HMC trees
• Trees interpretable theories
• 1 tree is more interpretable than k trees
• Risks
• Perhaps that one tree will be much larger
• Perhaps the tree will be much less accurate

9
Data mining with decision trees

• Data mining learning a general model from
  specific observations
• Decision trees are a popular format for models
  because
• They are fast to build and fast to use
• They make accurate predictions
• They are easy to interpret

Name Age Salary Children Loan? Ann 25 29920
1 no Bob 32 40000 2
yes Carl 19 0 0 no Dirk
44 45200 3 yes .
. .
10
Functional genomics

• Task Given a data set with descriptions of genes
  and the functions they have, learn a model that
  can predict for a new gene what functions it
  performs
• A gene can have multiple functions (out of 250
  possible functions, in our case)
• Could be done with decision trees, with all the
  advantages that brings But
• Decision trees predict only one class, not a set
  of classes
• Should we learn a separate tree for each
  function?
• 250 functions 250 trees not so fast and
  interpretable anymore!

description
functions
Name A1 A2 A3 .. An 1 2 3 4 5 249
250 G1 x x
x x G2 x
x x G3
x x x
.
11
Multiple prediction trees

• A multiple prediction tree (MPT) makes multiple
  predictions at once
• Basic idea (Blockeel, De Raedt, Ramon, 1998)
• A decision tree learner prefers tests that yield
  much information on the class attribute
  (measured using information gain (C4.5) or
  variance reduction (CART))
• MPT learner prefers tests that reduce variance
  for all target variables together
• Variance mean squared distance of vectors to
  mean vector, in k-D space

12
HMC tree learning

• A special case of MPT learning
• Main characteristics
• Errors higher up in the hierarchy are more
  important
• Use weighted euclidean distance (higher weight
  for higher classes)
• Need to ensure hierarchy constraint
• Normally, leaf predicts ci iff proportion of ci
  examples in leaf is above some threshold ti
  (often 0.5)
• To ensure compliance with hierarchy constraint
• ci ? cj ? ti ? tj
• Automatically fulfilled if all ti equal

13
Example
.
.
c1
c2
c3
Weight 1
c1
c2
c3
x1
c4
c5
c6
c7
Weight 0.5
c4
c5
c6
c7
.
x1 c1, c3, c5 1,0,1,0,1,0,0 x2 c1, c3,
c7 1,0,1,0,0,0,1 x3 c1, c2, c5
1,1,0,0,0,0,0
c1
c2
c3
x2
c4
c5
c6
c7
d2(x1, x2) 0.25 0.25 0.5 d2(x1, x3) 11
2 x1 is more similar to x2 than to x3 DT tries
to create leaves with similar examples
.
x3
c1
c2
c3
c4
c5
c6
c7
14
The Clus system

• Created by Jan Struyf
• Propositional DT learner, implemented in Java
• Implements ideas from
• C4.5 (Quinlan, 93) and CART (Breiman et al.,
  84)
• predictive clustering trees (Blockeel et al.,
  98)
• includes multiple prediction trees and
  hierarchical multilabel classification trees
• Reads data in ARFF format (Weka)
• We used two versions for our experiments
• Clus-HMC HMC version as explained
• Clus-SC single classification version, /- CART

15
The datasets

• 12 datasets from functional genomics
• Each with a different description of the genes
• Sequence statistics (1)
• Phenotype (2)
• Predicted secondary structure (3)
• Homology (4)
• Micro-array data (5-12)
• Each with the same class hierarchy
• 250 classes distributed over 4 levels
• Number of examples 1592 to 3932
• Number of attributes 52 to 47034

16
Our expectations

• How does HMC tree learning compare to the
  straightforward approach of learning 250 trees?
• We expect
• Faster learning Learning 1 HMCT is slower than
  learning 1 SPT (single prediction tree), but
  faster than learning 250 SPTs
• Much faster prediction Using 1 HMCT for
  prediction is as fast as using 1 SPT for
  prediction, and hence 250 times faster than using
  250 SPTs
• Larger trees HMCT is larger than average tree
  for 1 class, but smaller than set of 250 trees
• Less accurate HMCT is less accurate than set of
  250 SPTs (but hopefully not much less accurate)
• So how much faster / simpler / less accurate are
  our HMC trees?

17
The (surprising) results

• The HMCT is on average less complex than one
  single SPT
• HMCT has 24 nodes, SPTs on average 33 nodes
• but youd need 250 of the latter to do the same
  job
• The HMCT is on average slightly more accurate
  than a single SPT
• (see graphs)
• Surprising, as each SPT is tuned for one specific
  prediction task
• Expectations w.r.t. efficiency are confirmed
• Learning min. speedup factor 4.5x, max 65x,
  average 37x
• Prediction gt250 times faster (since tree is not
  larger)
• Faster to learn, much faster to apply

18
Precision recall curves
Precision proportion of predictions that is
correct P(X predicted X)
Recall proportion of class memberships correctly
identified P(predicted X X)
19
An example rule

• High interpretability IF-THEN rules extracted
  from the HMCT are quite simple

IF Nitrogen_Depletion_8_h lt -2.74 AND
Nitrogen_Depletion_2_h gt -1.94 AND
1point5_mM_diamide_5_min gt -0.03 AND
1M_sorbitol___45_min_ gt -0.36 AND
37C_to_25C_shock___60_min gt 1.28 THEN 40, 40/3,
5, 5/1
For class 40/3 Recall 0.15 precision
0.97. (rule covers 15 of all class 40/3 cases,
and 97 of the cases fulfilling these conditions
are indeed 40/3)
20
The effect of merging
. . .
Optimized for c1
Optimized for c2
Optimized for c250

• Smaller than average individual tree
• - More accurate than average individual tree

Optimized for c1, c2, , c250
21
Any explanation for these results?

• Almost too good to be true how is it possible?
• Answer the classes are not independent
• Different trees for different classes actually
  share structure
• Explains some complexity reduction achieved by
  the HMCT
• One class carries information on other classes
• This increases the signal-to-noise ratio
• Provides better guidance when learning the tree
  (explaining good accuracy)
• Avoids overfitting (explaining further reduction
  of tree size)
• This was confirmed empirically

22
Overfitting

• To check our overfitting hypothesis
• Compared area under PR curve on training set
  (Atr) and test set (Ate)
• For SPC Atr Ate 0.219
• For HMCT Atr Ate 0.024
• (to verify, we tried Wekas M5 too 0.387)
• So HMCT clearly overfits much less

23
Conclusions

• Surprising discovery a single tree can be found
  that
• predicts 250 different functions with, on
  average, equal or better accuracy than
  special-purpose trees for each function
• is not more complex than a single special-purpose
  tree (hence, 250 times simpler than the whole
  set)
• is (much) more efficient to learn and to apply
• The reason for this is to be found in the
  dependencies between the gene functions
• Provide better guidance when learning the tree
• Help to avoid overfitting
