Background

1

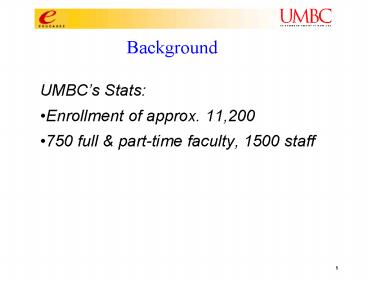

Background

• UMBCs Stats
• Enrollment of approx. 11,200
• 750 full part-time faculty, 1500 staff

2
Existing Infrastructure

• iPlanet-based LDAP directory
• Kerberos 5 used for authentication
• Campus-wide AFS-based file-store
• For instructional, research, and other use
• LAN file print services provided by Novell 4
• Used by administrative academic departments

3
The Project

• To migrate the campus LAN environment from Novell
  to Windows 2000 and Active Directory.

4
Why Not AD Everywhere?

• Pros
• Reasonably well performing LDAP server
• Already part of Win2k Server
• Powerful schema managment
• Cons
• Objectclass/Attribute definitions not 100
  standard
• ex cn (Common Name) not Multi-Valued
• New, unproven technology

5
How?

• Deploy an Active Directory infrastructure,
  containing accounts managed through our current
  account management system.
• Migrate Windows NT instructional labs to the
  Win2k/AD environment.
• Migrate departmental systems to 2k, and retire
  Novell.
• ? Begin migration to the next big thing

6
The Problem

• Integrate
• Existing campus directory and account management
  system, based on the iPlanet directory server
• Existing campus-wide authentication, based on MIT
  Kerberos 5

7
Kerberos 5 Integration

• Already supported by Microsoft!
• http//www.microsoft.com/technet/prodtechnol/windo
  ws2000serv/deploy/confeat/kerbstep.asp
• Solves most of the authentication problem
  more on this later.

8
Resources

• Directory Team
• Experienced with LDAP
• Existing directory tools connectors written in
  Perl
• Group generally takes on software development
  projects
• Windows/LAN Team
• Little LDAP experience
• Little Active Directory experience does anyone
  have a lot ?
• Not a software development oriented group

9
Choices

• Updates
• Batch, or
• real time ?
• Development platform
• Windows w/ADSI, or
• UNIX w/Perl ?

10
Batch Updates

• Heavy periodic processing load
• Long reaction time not acceptable to user
  community

11
Real Time Updates

• Uses iPlanet changelog function
• Often, but light processing
• snappy reaction times to user administrative
  actions

12
Windows/ADSI Development

• Reasonably well documented
• but also requires a reasonable amount of
  Windows development proficiency

13
Perl/LDAP/UNIX Development

• Requires a bit of poking and prodding
• Active Directorys LDAP interface is fully
  functional.
• Reasonably well documented, as these things go
  however, there are some holes in the docs.
• luckily, a bit of experimentation closed these
  holes

14
Our Choice

• Develop on Unix with Perl our platform of
  choice
• Aim for near real time updates

15
Components Needed

• Interface to the iPlanet Directory Servers
  changelog
• Logic to create Active Directory account
  objects from a umbcAccount object
• Interface to the Active Directory

16
Changelog Interface

• Used by iPlanet to manage replication
• Queried via LDAP
• Had already written an interface as part of
  another integration project!

17
Translation Logic

• Perl module
• Given a umbcAccount LDAP entry, generate an
  appropriate Active Directory entry
• Includes a standard API used by the changelog
  interface

18
AD Interface

• AD accepts LDAP and SSL-LDAP connections
• All AD attributes can be queried and modified
  via the LDAP interface
• Microsofts ADSI uses this interface too!

19
The Completed System

• Consists of
• A script to populate/mass modify all Active
  Directory account objects, and
• A daemon to monitor the LDAP changelog, and
  write appropriate changes to Active Directory

20
Problems

• Proprietary Attributes
• Pre Windows 2000 Clients

21
Proprietary Attributes

• Some AD attributes are opaque, such as
  ntSecurityDescriptor
• Interfaces to these only available when using
  Microsofts libraries
• Luckily, these are relatively uninteresting

22
Pre Windows 2000 Clients

• Windows 2k/XP can use Cross Realm Kerberos 5
• Win 3.1,95,98, NT 4? Fat Chance.
• Requires the account password be stored in
  Active Directory

23
Pre Windows 2000 Clients

• Answer
• Password Synchronization.
• Opens
• Big can of worms.

24
Questions?
