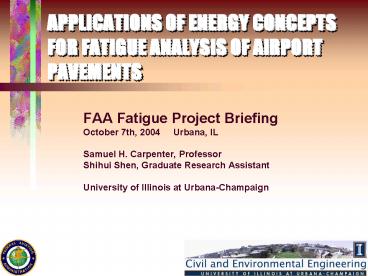

APPLICATIONS OF ENERGY CONCEPTS FOR FATIGUE ANALYSIS OF AIRPORT PAVEMENTS

1
APPLICATIONS OF ENERGY CONCEPTS FOR FATIGUE
ANALYSIS OF AIRPORT PAVEMENTS

• FAA Fatigue Project Briefing
• October 7th, 2004 Urbana, IL
• Samuel H. Carpenter, Professor
• Shihui Shen, Graduate Research Assistant
• University of Illinois at Urbana-Champaign

2
PRESENTATION

• Introduction
• Objectives to the New Approach
• Problems in Traditional Fatigue Analysis Approach
• Energy Concepts RDEC Approach
• Findings Results
• Implications for Airport Pavements
• Conclusions Future Work

3
INTRODUCTION A NEW APPROACHRDEC APPROACH

• Fatigue is a Damage Phenomenon Described by
  Energy Principles
• All Fatigue Behavior can be Described by a Single
  Parameter
• Ratio of Dissipated Energy Change (RDEC)
  Percent of Load Cycle Input Energy Producing
  Damage
• Plateau Value (PV) the Value When Materials
  Ratio of Dissipated Energy Change is Constant
  During the Fatigue Test

4
OBJECTIVES OF THE NEW APPROACH

• Overcome the problems of traditional fatigue
  analysis approach
• Examine energy concepts and the ratio of
  dissipated energy change (RDEC) approach
• Apply RDEC approach to airport pavement, and
  develop design considerations suitable for
  airfield conditions
• Heavy aircraft loads
• Very thick pavements
• Low load frequency.

5
PROBLEMS IN TRADITIONAL FATIGUE ANALYSIS APPROACH

• Cannot explain fatigue behavior under heavy loads
  on pavements of varying thicknesses
• Non-unique strain-Nf relationship. Such
  relationship is not fundamentally material based.
• A distinctly different fatigue behavior appears
  when airport pavement is built very thick (low
  strain/damage levels)
• Low load frequency in thick pavement amplifies
  the healing effect which cannot be observed and
  described by traditional approach.

6
TRADITIONAL FATIGUE PLOT
Fatigue Under Heavy Load
Fatigue In Very Thick Pavement
7
ENERGY CONCEPTS DISSIPATED ENERGY
INITIAL LOAD CYCLE

• Ratio of Dissipated Energy Change (RDEC)

STRESS
SECOND LOAD CYCLE
STRAIN
DIFFERENT DISSIPATED ENERGY BETWEEN FIRST AND
SECOND LOAD CYCLE
8
RATIO OF DISIPATED ENERGY CHANGE CALULATION
9
TYPICAL RDEC PLOT WITH THREE BEHAVIOR ZONES
Ratio of Dissipated Energy Change, Log
I
III
II
Load Repetitions, Log
Plateau Value
10
CURRENT FINDINGS IN RDEC APPROACH

• Unique relationship between PV and Nf
• Different mixtures, load levels, loading modes
  and testing conditions
• PV is a comprehensive energy based parameter.
• A lower (higher) PV is always associated with a
  lower (higher) damage, producing a longer
  (shorter) fatigue life

11
RDEC APPROACH
Various mixture types and testing conditions
under heavy aircraft loads
12
RDEC APPROACH
Including the strain conditions (low
strain/damage level) in very thick airport
pavements
13
IMPLICATIONS FOR AIRPORT PAVEMENTS

• A fatigue endurance limit exists, and is an
  important consideration for the
  design/performance of thick pavements (low
  strain/damage)
• Healing effect is significant in pavements with
  low load occurrence.

14
UNIQUE ENERGY LEVEL AT WHICH NO FATIGUE
DAMAGE EXISTS
PV8.57E-9
Nf1.10E7
15
FATIGUE ENDURANCE LIMIT

• Crucial for Design and Performance of Thick
  Pavements
• Limit to HMA Thickness
• Unique fatigue curves
• Independent of Traffic Level
• Significant element for structural design
• Minimizes Effect of Overloads

16
USE OF PV TO SHORTEN FATIGUE TESTING FOR THICK
PAVEMENTS
Compare PV projected from shortened testing with
extended testing
17
USE OF PV TO SHORTEN FATIGUE TESTING FOR THICK
PAVEMENTS

• Plateau Value period can be reached much earlier
  than Nf _at_ 50 stiffness reduction point
• Reasonable projection can be obtained through
  greatly shortened low strain/damage testing.
• 500,000 Load repetitions

18
HEALING

• Accepted Description
• Between loads the damage is reversed as the
  asphalt-aggregate interface reattaches, removing
  micro-cracks
• Actual Occurrence
• A continuous physical-chemical reaction that
  occurs even during continuous loadings at low
  strain levels

19
HEALING IN AIRPORT PAVEMENTS

• A Material Property Constant
• The HMA has the potential to recover a relative
  amount of damage
• When Load Damage Falls Below Healing Potential,
  Damage Accumulation is Minimal or Non-Existent
• Fatigue Endurance Limit exists
• Field Fatigue Life is Increased Over Lab Testing

20
CURRENT HEALING STUDY
PV An energy level related to fatigue life, Nf
21
CONCLUSIONS

• Ratio of Dissipated Energy Change (RDEC) provides
  a unique way to study fatigue behavior of HMA
• Plateau Value, PV, is a function of material
  properties and pavement response
• PV-Nf relationship is unique for mixture type,
  loading mode, and all testing conditions

22
CONCLUSIONS

• PV shows a unique threshold for the fatigue
  endurance limit (PVL). . Current results shows
  such PVL is around 8.57E-9
• PV-Nf uniqueness can be used to predict long
  fatigue life without running test to failure
• Healing can be observed with the PV.
• Represents an energy level of damage, which
  decreases with an increase in rest periods
  (healing effect).

23
FUTURE WORK

• Substantiate the relationship between PV and rest
  periods
• Relate PV with healing using energy concepts
• Healing Index
• Healing Rate
• Asphalt Type Influence

24
FUTURE WORK

• Integrate the energy based healing effects, rest
  periods, into an improved rational design
  procedure suitable for airfield conditions
• Heavy aircraft load
• Thick pavement layers
• Low loading frequency and extended rest periods

25
