Structured approach in trouble shooting

1

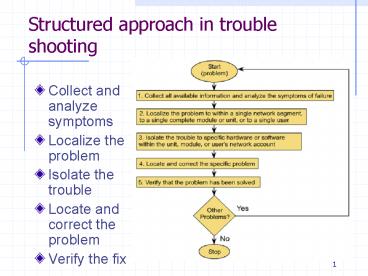

Structured approach in trouble shooting

• Collect and analyze symptoms
• Localize the problem
• Isolate the trouble
• Locate and correct the problem
• Verify the fix

2
Network Baseline

• network monitoring
• by monitoring the day-to-day operating of the
  network to establish what is normalfor a
  network.
• learn average traffic of the network
• learn the peak traffic time, over the day, over
  the week, and over the month
• learn the most and least application being used
• identify the networks users that are most prone
  to difficulties
• logs should be kept, so that administrator can
  compare the encounter problems with those
  baseline information showing what normal network
  operation should be

3
Document network problems

• The more information an administrator have, the
  easier it should be to solve the problem
• information can be collected by
• Network Management tools
• network analyzers
• problems collected from clients
• identification
• preliminary information (who report, time,
  related to previous problem, location etc)
• network information collected by network
  technician
• list of action taken
• summary (hardware, software, configuration, user
  problems)

4
Analyzing locate and fix

• localize and locate problems
• list all possible causes
• generate a problem scenario based on knowledge
  and previous information
• determine the most likely cause, by isolation and
  elimination
• use diagnostic utilities built into the devices
  (e.g. NIC, routers, PC) to help to solve locate
  the problem
• check physical and logical indicators (LEDs) for
  the status of devices
• correct the problems
• use replacement method to eliminate the possible
  causes
• start from basic user, cable, patch cords,
  malfunction machines
• verify the problems had disappeared

5
Focus Basics and Standard Tools

• Solving network problems depends a lot on your
  understanding
• Simple tools can tell you what you need to know
• Example ping is incredibly useful!

6
Troubleshooting

• Avoid it by
• redundancy
• documentation
• training
• Try quick fixes first
• simple problems often have big effects
• is the power on?
• is the network cable plugged into the right
  socket? Is LED flashing?
• has anything changed recently?
• Change only one thing at a time
• test thoroughly after the change
• Be familiar with the system
• maintain documentation
• Be familiar with your tools
• before trouble strikes

7
Troubleshooting Learn as you go

• Study and be familiar with the normal behaviour
  of your network
• Monitoring tools can tell you when things are
  wrong
• if you know what things look like when they are
  right
• Using tools such as Ethereal can help you
  understand
• your network, and
• TCP/IP better

8
Documentation

• Maintain an inventory of equipment and software
• a list mapping MAC addresses to machines can be
  very helpful
• Maintain a change log for each major system,
  recording
• each significant change
• each problem with the system
• each entry dated, with name of person who made
  the entry
• Two categories of documentation
• Configuration information
• describes the system
• use system tools to obtain a snapshot, e.g.,
  sysreport in Red Hat Linux
• Procedural information
• How to do things
• use tools that automatically document what you
  are doing, e.g., script

9
Connectivity Testing Cabling

• Label cables clearly at each end
• Cable testers
• ensure wired correctly, check
• attenuation
• length is it too long?
• 100BaseT less than 100m
• Is the activity light on the interface blinking?

10
Software tools ping

• Most useful check of connectivity
• Universal
• If ping hostname, includes a rough check of DNS
• Sends an ICMP (Internet Control Message Protocol)
  ECHO_REQUEST
• Waits for an ICMP ECHO_REPLY
• Most pings can display round trip time
• Most pings can allow setting size of packet
• Can use to make a crude measurement of throughput

11
ping Roughly Estimating Throughput

• Example
• ping with packet size 100 bytes, round-trip
  time 30ms
• ping with packet size 1100 bytes, round-trip
  time 60ms
• So takes 30ms extra (15ms one way) to send
  additional 1000 bytes, or 8000 bits
• Throughput is roughly 8000 bits per 15ms, or
  about 540,000 bits per second
• A very crude measurement no account for other
  traffic, treats all links on path, there and
  back, as one.

12
ping Roughly Estimating Throughput

• This can be expressed as a simple formula

13
Throughput Measuring with ping 1

• Measure throughput between two remote hosts may
  use tools like ping
• ping two locations with two packet sizes (4 pings
  altogether, minimum)
• Example

14
Throughput Measuring with ping 2

• Time difference / 2 (round trip time (RTT) -gt one
  way)
• Divide by size difference in bits 8000
• Multiply by 1000 (ms -gt seconds)
• Convert bps to Mbps

15
How to Use ping?

• Ensure local host networking is enabled first
  ping localhost, local IP address
• ping a known host on local network
• ping local and remote interfaces on router
• ping by IP as well as by hostname if hostname
  ping fails
• confirm DNS with nslookup (or dig) see later
• Ping from more than one host

16
What ping Result is Good, Bad?

• A steady stream of consistent replies indicates
  probably okay
• Usually first reply takes longer due to ARP
  lookups at each router
• After that, ARP results are cached
• ICMP error messages can help understand results
• Destination Network Unreachable indicates the
  host doing ping cannot reach the network
• Destination Host Unreachable may come from
  routers further away

17
Ping Responses

• On a Cisco router you will get the responses as
  to the right
• Actual response is
• routergtping www.yahoo.com
• Translating "www.yahoo.com"...domain server
  (209.1.221.10) OK
• Type escape sequence to abort. Sending 5,
  100-byte ICMP Echos to 216.115.102.81, timeout is
  2 seconds
• !!!!!
• Success rate is 100 percent (5/5), round-trip
  min/avg/max 4/16/24ms

18
Troubleshooting with ping (1)

• Standard ping used to check the availability of
  a host
• Ping ltip addressgt
• Extended ping used to track packet loss or
  latency (sending out 1 ping per second until
  the process is halted by CTRL-C)
• Unix / Linux
• Ping s ltip addressgt
• Windows
• Ping t ltip addressgt

19
Troubleshooting with ping 2

• Cisco router sends a fixed no. of packets as
  fast as it can and waits for response
• routergtpingProtocol ipTarget IP address
  www.inetdaemon.comTranslating 209.1.221.10Repeat
  count 5 100Datagram size 100Timeout in
  seconds 2Extended commands nSweep range
  of sizes nType escape sequence to
  abort.Sending 100, 100-byte ICMP Echos to
  207.150.192.12, timeout is 2 seconds!!!!!!!!!!!!
  !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
  !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!Success
  rate is 100 percent (100/100), round-trip
  min/avg/max 12/19/280 ms

20
Possible Causes of unable to ping

• If you are trying to ping a name, try pinging the
  IP address of the destination machine. If ping
  fails when you try the name of the site, but
  works when you try the IP address, it's NOT a
  network problem, it's DNS.
• If you are trying to ping a site and both the
  name and the IP address fail, they may be
  blocking ping with an access list. Try a
  traceroute instead.
• If there are multiple hops between you and the
  destination, then try pinging each host in the
  path to the destination until you find the host
  that fails to respond to ping. Use a traceroute
  (successfully) to get a list of the hosts between
  you and the destination for this purpose.

21
Path Discovery traceroute

• Sends UDP packets
• (Microsoft tracert sends ICMP packets)
• increments Time to Live (TTL) in IP packet header
• Sends three packets at each TTL
• records round trip time for each
• increases TTL until enough to reach destination

22
traceroute How it Works

• As IP packets pass through each router, TTL in IP
  header is decremented
• Packet is discarded when TTL decrements to 0
• ROUTER sends ICMP TIME_EXCEEDED message back to
  traceroute host
• When UPD packet reaches destination, gets ICMP
  PORT_UNREACHABLE, since uses an unused high UDP
  port

23
traceroute Limitations

• Each router has a number of IP addresses
• but traceroute only shows the one it used
• get different addresses when run traceroute from
  other end
• sometimes route is asymmetric
• router may be configured to not send ICMP
  TIME_EXCEEDED messages
• get stars instead of round-trip time in
  traceroute output

24
traceroute Example

• Explain the functions that are performed by
  packets 1 to 26.

25
traceroute Example (2)

• Packet 1 sends a DNS query to DNS server
  (140.112.254.4) to query IP address of
  www.csie.ntu.edu.tw
•  Packet 2 sends back the IP address of
  www.csie.ntu.edu.tw which is 140.112.30.28
• The host sends a UDP to 140.112.30.28 with
  time-to-live (TTL) set to 1. TTL decrements by 1
  when the packet passes a router. Here the TTL
  turns to 0, causing the first router
  (192.168.5.1) to send back an ICMP message
  Time-to-live exceeded.
•  Packets 5 and 6 try to resolve the name of the
  first router but unsuccessful.
•  Packets 7 to 10 repeat what packet 3 and 4
  did two more times so that different response
  time can be collected to calculate the average.

26
traceroute Example (3)

• Packets 11 to 18 send UDP packet to
  140.112.30.28 with TTL set to 2. This time the
  packet managed to reach the second router
  (140.112.4.126) before it dies and causing the
  second router to send back an ICMP message
  Time-to-live exceeded. The same UDP packet is
  repeated two times to calculate the average
  response time.
•  Packets 19 to 26 send UDP packet to
  140.112.30.28 with TTL set to 3. This time the
  packet managed to reach the third router
  (140.112.30.28) before it dies and since this
  third routers IP address matches the destination
  address of the UDP, the router return another
  ICMP message Destination unreachable because
  the destination port is deliberately selected to
  one that is normally not used (gt 3000). Name
  resolution is performed by packets 21 and 22
  successfully. The same packet is repeated two
  more time to calculate the average response time.


27
Performance Measurements delay

• Three sources of delay
• transmission delay time to put signal onto
  cable or media
• depends on transmission rate and size of frame
• propagation delay time for signal to travel
  across the media
• determined by type of media and distance
• queuing delay time spent waiting for
  retransmission in a router

28
Performance Measurements 2

• bandwidth the transmission rate through the
  link
• relates to transmission time
• throughput amount of data that can be sent over
  link in given time
• relates to all causes of delay
• is not the same as bandwidth
• Other measurements needed
• i.e., for quality of service for multimedia

29
What is Packet Capture?

• Real time collection of data as it travels over
  networks
• Tools called
• packet sniffers
• packet analysers
• protocol analysers, and sometimes even
• traffic monitors
• Sniffer, tcpdump, EtherealSee Ethereal Lab at
• http//ictlab.tyict.vtc.edu.hk/tsangkt/en/Tutoria
  ls/ethereal/

30
When Packet Capture?

• Most powerful technique
• When need to see what client and server are
  actually saying to each other
• When need to analyse type of traffic on network
• Requires understanding of network protocols to
  use effectively

31
Example

• The following gives the contents of an
  Ethernet
• frame captured by a protocol analyzer
• Sequence Captured Bit stream
• 0000 23 87 45 9A 43 88 34 CD 7E FF 34 62 08 00
  45 FF
• 0010 12 34 23 76 40 00 64 06 CD AB 85 23 43 59
  85 23
• 0020 43 5A 23 87 52 63 25 41 40 43 00 00 00 00
  FF 75
• 0030 20 00 35 75 00 00 82 04 05 91 70 90
• Given that Ethernet II frame format is
• 8 6 6 2
  variable 4
• Preamble Dest. Source Type
  Data FCS
• Address Address
• What are the source and destination MAC
  addresses?
• What is the type of Ethernet data?

32
Example (contd)

• If the frame contains an IP datagram with the
  above format, determine
• The Ethernet type value and version no. of the IP
  protocol.
• The source and destination IP addresses in
  dot-decimal notation.
• What is the protocol type?

33
Troubleshooting Protocols

• DNS
• email
• using telnet

34
DNS troubleshooting

• Suspect DNS when get long timeouts before see any
  response
• ping name, IP address, see if only IP address
  works
• tools on Linux, Unix
• nslookup,dig, host
• tools on Windows
• nslookup

35
nslookup an interactive program
Here a user asks nslookup to provide address of
sysadmin.no-ip.com nslookup displays the name
and address of the server used to resolve the
query, it then displays the answer to the query.

• nslookup
• gt sysadmin.no-ip.com
• Server dns04.netvigator.com
• Address 218.102.32.20853
• Non-authoritative answer
• Name sysadmin.no-ip.com
• Address 202.69.77.139

36
nslookup reverse lookups

• Maps IP address to hostname (PTR)
• gt 202.69.77.139
• Server dns04.netvigator.com
• Address 218.102.32.20853
• Non-authoritative answer
• 139.77.69.202.in-addr.arpa name
  077-139.onebb.com.
• Authoritative answers can be found from
• 77.69.202.in-addr.arpa nameserver
  ns1.onebb.com.
• 77.69.202.in-addr.arpa nameserver
  ns2.onebb.com.
• ns1.onebb.com internet address 202.180.160.1
• ns2.onebb.com internet address 202.180.161.1
• gt

37
DNS Record Types

• Type Name Function
• Zone Records
• SOA Start of Authority This name server
  is authoritative for this domain
• NS Name Server Identifies the
  name server for this domain
• Basic Records
• A Address Name-to-address
  mappings
• PTR Pointer Address-to-name mappings MX Mail
  Exchanger Makes mail routing decision
• Optional Records
• CNAME Canonical Name Nicknames for a host
• HINFO Host Info Identifies hardware and OS

38
The SOA Record

• Indicates that this name server is the best
  source of information for the data within this
  domain.
• There is only one SOA record for each zone the
  zone continues until another SOA record is
  encountered.
• Other secondary name servers within a domain are
  non-authoritative
• Non-authoritative name server requests zone
  transfer periodically (refresh time) from the
  primary authoritative name server in a domain
  whenever the serial number is incremented.

39
SOA Record Example

• _at_ IN SOA rusty.austin.edu admin.austin.edu
  ( 1 Serial
• 10800 Refresh after 3 hours 3600
  Retry after 1 hour 604800 Expire after 1
  week 86400 ) Minimum TTL of 1 day
• The symbol _at_ in the name field is a shorthand for
  the name of the current zone. In this example, it
  is the same as austin.edu
• rusty.austin.edu is the zone's primary name
  server
• admin.austin.edu is the email address (replace
  first dot with _at_) of the technical contact in
  charge of the data.

40
Email testing with telnet

• Email protocols SMTP, POP3 are text
• telnet a good tool to test them
• syntax
• telnet server portnumber
• SMTP port 25
• POP3 port 110

41
Test the VTC mail server

• telnet smtp.vtc.edu.hk 25
• Trying 192.168.79.191...
• Connected to smtp.vtc.edu.hk (192.168.79.191).
• Escape character is ''.
• 220 pandora.vtc.edu.hk ESMTP Mirapoint 3.2.2-GA
  Tue, 25 Feb 2003 111530 0800 (HKT)
• helo nickpc.tyict.vtc.edu.hk
• 250 pandora.vtc.edu.hk Hello 172.19.32.30,
  pleased to meet you
• mail fromltnicku_at_vtc.edu.hkgt
• 250 ltnicku_at_vtc.edu.hkgt... Sender ok
• rcpt toltnicku_at_vtc.edu.hkgt
• 250 ltnicku_at_vtc.edu.hkgt... Recipient ok
• data
• 354 Enter mail, end with "." on a line by itself
• My message body.
• .
• 250 AFF21826 Message accepted for delivery
• quit
• 221 pandora.vtc.edu.hk closing connection
• Connection closed by foreign host.

42
SMTP commands for sending mail

• helo identify your computer
• mail from specify sender
• rcpt to specify receiver
• data indicates start of message body
• quit terminate session
• Use names, not IP addresses, to specify
  destination

43
Testing the VTC pop3 server 1

• telnet pop.vtc.edu.hk 110
• Trying 192.168.79.12...
• Connected to pop.vtc.edu.hk (192.168.79.12).
• Escape character is ''.
• OK carme.vtc.edu.hk POP3 service (iPlanet
  Messaging Server 5.2 Patch 1 (built Aug 19 2002))
• user nicku
• OK Name is a valid mailbox
• pass password
• OK Maildrop ready
• stat
• OK 1 673

44
Testing the pop3 server 2

• retr 1
• OK 673 octets
• Return-path ltnicku_at_vtc.edu.hkgt
• Received from pandora.vtc.edu.hk
  (pandora.vtc.edu.hk 192.168.79.191)
• by carme.vtc.edu.hk (iPlanet Messaging Server
  5.2 Patch 1 (built Aug 19 2002))
• with ESMTP id lt0HAU00I35H3HGL_at_carme.vtc.edu.hkgt
  for nicku_at_ims-ms-daemon
• (ORCPT nicku_at_vtc.edu.hk) Tue, 25 Feb 2003
  111629 0800 (CST)
• Received from nickpc.tyict.vtc.edu.hk
  (172.19.32.30)
• by pandora.vtc.edu.hk (Mirapoint
  Messaging Server MOS 3.2.2-GA)
• with SMTP id AFF21826 Tue, 25 Feb 2003
  111601 0800 (HKT)
• Date Tue, 25 Feb 2003 111530 0800 (HKT)
• From Nick Urbanik ltnicku_at_vtc.edu.hkgt
• Message-id lt200302250316.AFF21826_at_pandora.vtc.edu
  .hkgt
• My message body.
• .
• dele 1
• OK message deleted
• quit

45
pop3 commands retrieving mail

• See RFC 1939 for easy-to-read details
• First, must authenticate
• user username
• pass password
• stat shows number of messages and total size in
  bytes
• list list all the message numbers and size in
  bytes of each message
• retr messagenum retrieve the message with
  number messagenum
• dele messagenum delete the message with message
  number messagenum
• quit

46
telnet Testing Other Applications

• Many network protocols are text. telnet can be
  helpful in checking
• IMAP servers
• telnet hostname 143
• Web servers
• telnet hostname 80
• Ftp servers
• telnet hostname 21
• Even ssh (can check version, if responding)
• telnet hostname 22

47
Conclusion

• Check the simple things first
• Document what you do
• Become familiar with common tools
• Use the tools to become familiar with your
  network before troubles strike
• Know what is normal
