Canonical Skeletons for Shape Matching

1

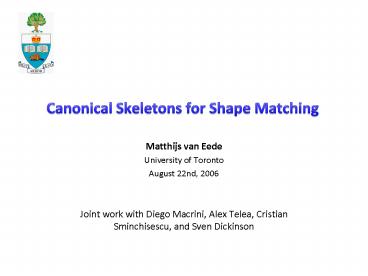

Canonical Skeletons for Shape Matching

• Matthijs van Eede
• University of Toronto
• August 22nd, 2006
• Joint work with Diego Macrini, Alex Telea,
  Cristian Sminchisescu, and Sven Dickinson

2
Skeleton Definition
The skeleton of a shape yields a symmetry-based
parts decomposition (e.g., a shock graph) which
can support effective object indexing and
recognition, e.g., Siddiqi et al. (1999),
Sebastian et al. (2004). But, they suffer from
two forms of instability
3
Skeletal Instabilities Type 1
4
Skeletal Instabilities Type 1
5
Skeletal Instabilities Type 2
Ligature segment
Ligature branch
Blum (1973)
6
Goal

• Smooth these structural instabilities while
  retaining the objects salient shape structure.
• Two exemplar shapes drawn from the same category
  should therefore yield two graphs with the same
  structure.

7
Approach

• Prune skeletal branches that dont contribute to
  the salient shape structure of the object.
• Simpler graphs with fewer unstable nodes lead to
  more efficient and more effective indexing and
  matching.
• But how do we measure branch saliency and when do
  we stop pruning?

8
Skeletal Simplification as Optimization
Reconstruction error
9
External Branch Pruning
Saliency favors elongated and thick parts
External branches rank-ordered by saliency
7
4
8
2
5
1
3
6
9
12
10
11
10
External Branch Pruning
The cost of external branch smoothing increased
reconstruction error
11
Internal Branch Pruning

• Intuitively create similar topologies in the
  skeletons by pruning short (low
  saliency) ligature segments and branches

Ligature branch
Ligature segment
12
Internal Branch Simplification
13
Ligature Detection
14
Internal Branch Pruning
Fit piecewise linear skeleton fragments subject
to endpoint and tangent constraints
15
Internal Branch Smoothing
The cost of internal branch smoothing altering
the shapes appearance
16
Cost Function

• Fact ? the medial axis transform of a shape is
  unique skeleton changes introduce reconstruction
  error
• Goal ? minimize a cost function that promotes
  simpler skeletons with low reconstruction error

branches
Reconstruction error
R(sp)
sp
p
17
Final Algorithm

• Rank-order external branches by saliency
• Iteratively prune low-saliency external branches
  until cost function is minimized
• For internal branches, identify the ligature
  branches as candidates for pruning, and
  rank-order them by saliency
• Iteratively prune low-saliency candidate internal
  branches until cost function is minimized

18
Canonical Skeleton
19
Object Recognition Using Shock Graphs
Siddiqi, Shokoufandeh, Dickinson and Zucker, IJCV
1999
Type 1
Type 2
Type 3
Type 4
20
Shock Graphs
Siddiqi et al. (1999)
LabelsType-ID
21
Object Recognition Experiments

• Shock graphs are computed for 15 views of 8 three
  dimensional CAD models. A total of 120 shapes in
  the database.
• Each object view is removed from the database and
  used as a query
• Successful object recognition ? best ranked view
  belongs to the same object as query view
• Successful pose estimation ? neighbouring view of
  query is among top ranked views
• Noise is simulated by adding random bumps and
  notches to the query.

22
Parameter Estimation on Database Without Noise
23
Results of Experiments with Noise

• Object recognition performance increased up to
  16
• Pose estimation performance increased up to 20
• (r5) having a radius of 5 pixels

24
Conclusions

• Skeletal descriptions of a shape offer a powerful
  shape representation for object recognition, yet
  their structural instability has long been an
  obstacle to their widespread use.
• Our structural simplification framework isolates
  this instability at both external and internal
  branches, and removes non-salient branches.
• The removal of internal branches requires a
  proper smoothing of neighboring branches so that
  the resulting skeleton is a MAT and
  reconstruction error is minimized.
• Results on a shock graph recognition experiment
  indicate a significant improvement in recognition
  and pose estimation performance when both query
  and database are structurally simplified prior to
  recognition.
