OneSAF MSDE

1

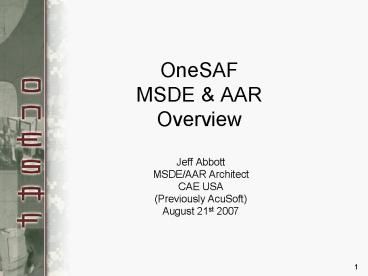

OneSAFMSDE AAROverview

• Jeff Abbott
• MSDE/AAR Architect
• CAE USA
• (Previously AcuSoft)
• August 21st 2007

2
MSDE and AAR Overview

• MSDE
• Version 1.5
• Terrain Importer
• Unit Database/Composition Importer
• MSDL Extensions
• Version 2.0
• Large Terrain Support
• AAR
• Version 1.5
• Replay Book marking
• Performance Enhancements (15k to 32k entities)
• Version 2.0
• Replay Performance

3
MSDE v1.5 New Capabilities

• Terrain importer
• Performance improvements
• Increased usability and ASDB file auto-generation
  capabilities
• Unit Database (Composition) Importer
• Increased usability
• Support added for new FCS units and entities

4
MSDE v1.5 New Capabilities

• MSDL Extensions
• Weapon control status
• Free, Tight, Hold
• MOPP level
• Level 0 through 5
• BOS support for Support Relations
• Fires, Intelligence, Engineer, Chemical, and Not
  Specified.
• Updated MSDE to run with out OneSAF and Java

5
MSDL Extensions
Weapon Control Status
MOPP Status
BOS support for Support Relations
6
MSDE v2.0 New Capabilities

• Support for Large Terrains
• MSDE to support UTM map projections across two
  UTM zones
• MSDE provides the ability to select the map area
  from a GDC (lat, lon) Platt-Carree Projection.

7
Large Terrain Support
8
AAR v1.5 New Capabilities

• Replay Book marking
• Enables the user to mark specific events from
  which to replay.
• User can enter comments.
• Bookmarks remember replay settings, eye point and
  tether options.

9
AAR v1.5 New Capabilities

• Performance enhancements to support 15k to 32k
  entity exercises
• Managed queries (views) are created when the
  database is created.
• Replay performance enhancements.
• Query performance was improved.
• Upgraded to .Net 2.0 Framework.
• Upgraded to PostgreSQL 8.2.
• Upgraded replay to be able to replay from Unit
  level data only.

10
AAR v2.0 New Capabilities

• Additional data collection performance
  enhancements.
• Ability to optionally replay from snapshot data.
• Enables replay to scale to exercises with large
  entity counts and\or long execution times.
• Replay is conducted at the rate of one snapshot
  each second.
• The snapshot interval set when the data was
  collected establishes the rate.

11
Bookmarking and Replay
12
Manage Bookmarks

• Users can add, edit, and delete bookmarks from
  the recorded AAR database.

13
Edit/Specify a Bookmark

• Users can specify bookmark
• Time
• Duration
• Comments

14
Bookmarking and Replay
