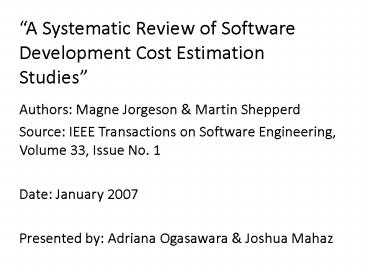

A Systematic Review of Software Development Cost Estimation Studies

1
A Systematic Review of Software Development Cost
Estimation Studies

• Authors Magne Jorgeson Martin Shepperd
• Source IEEE Transactions on Software
  Engineering, Volume 33, Issue No. 1
• Date January 2007
• Presented by Adriana Ogasawara Joshua Mahaz

2
Introduction

• Purpose of this study was to improve software
  estimation research through the examination of
  previous cost estimation studies
• In short, the authors examined 304 journal papers
  by hand
• Classified them according to a set of criteria
  they devised based on estimation topics,
  estimation approach, research approach, study
  context, and data set
• Observed trends in the data
• And based on this, they made suggestions on how
  software cost estimation might be improved

3
Introduction

• According to the authors, this paper
  distinguishes itself from others in that
• Aim is to direct future research, not discuss
  specific estimation models
• More comprehensive and systematic review
• Classification of studies used is unique to this
  study

4
Research Questions
5
Inclusion Identification of Papers

• Systematic search for papers by hand
• Issue by issue starting with Volume 1
• Read titles and abstracts of all published papers
  from over 100 potentially relevant, peer reviewed
  journals published in English
• Ended up with 304 papers from 76 journals
• Journals were found through
• Reading reference lists on cost estimation papers
• Internet searches
• Authors prior experience

6
Classification of Papers

• To facilitate answering the 8 research questions,
  papers were classified according to the
  following
• Research topic (estimation method, calibration of
  models, etc)
• Estimation approach (regression, analogy, etc)
• Research approach (theory, survey, etc)
• Study context (student projects, professional
  projects, etc)
• Data sets

7
Classification of Papers

• Initial classification was performed by one
  author
• Robustness of the classification was performed by
  second author
• Tested a random sample of 30 papers (10)
• Results of the classification testing showed the
  initial categories were too vague
• Disagreements on 39 of the classifications

8
Classification of Papers

• Most of the disagreements were due to different
  interpretations of the classification categories
• Only approx. 3 of the papers were blatantly
  misclassified
• Authors agreed the classification categories were
  accurate enough as long as
• They clarified the descriptions of the vague
  categories (12 total)
• Reclassified the papers that fell into the vague
  categories
• Out of the 109 papers that were reread, only 21
  were reclassified

9
Results
10
RQ1 Which and how many journals include papers
on software cost estimation?Method Determine
which journals are the 10 most relevant by the
proportion of cost estimation papers they
containSupport cost estimation researchers with
a list of journals with potentially relevant
papers.
Research Questions
11
RQ1 (contd)

• Found 76 journals with SW cost estimation papers
• The top 10 journals still only included 2/3 of
  all the identified papers used in this study

12
Research Question

• RQ2 To what extent are researchers aware of the
  breadth of potential estimation study sources?
• Method Reference lists from 30 randomly selected
  cost estimation journal papers were analyzed.
• Identify possible shortcomings of cost estimation
  researchers searchers for related work.

13
RQ2 (contd)
Out of the top 10 most important software cost
estimation journals, on average, only three are
referenced in a typical paper. And 7 out of the
10 were referenced in 3 or less of papers.
14
RQ2 (contd)
15
RQ2 (contd)
Arrows define information flow
16
RQ2 (contd)
Journals outside the software engineering field,
though with highly relevant cost estimation data,
were practically ignored.
Intl Journal of Forecasting
Intl Journal of Project Management
Statistics
17
Research Question

• RQ3 Which journal is the dominant SW cost
  estimation journal? To what extent does this
  journal have research topic biases?
• Method Identify which journal contains
• A) the most cost estimation papers
• B) the most references
• Dominant journals have the potential to
  introduce publication biases wherein a
  researchers focus may be directed towards topics
  favored by the journal

18
RQ3 (contd)
19
RQ3 (contd)

• After comparing the distribution of topics within
  IEEE TSE with the total set of estimation papers
• From a high level, IEEE TSE cost estimation
  papers reflect the total set of estimation papers
  quite well
• However the authors have no information on papers
  rejected by IEEE TSE so publication biases
  might still exist that arent readily apparent

20
Research Question

• RQ4 How easy is it to identify relevant software
  cost estimation journal papers? (Using digital
  libraries.)
• Method Identify the recall rate of cost
  estimation papers in Google Scholars and Inspec
  using search terms
• software cost estimation OR software effort
  estimation
• software AND (cost OR effort)
• A manual issue-by-issue search of papers is
  accurate, but very time consuming and should be
  replaced with an automated tool.

21
RQ4 (contd)
22
RQ4 (contd)

• However, the most typical reason for the missing
  papers was due to use of more specific search
  terms or substituting synonyms for estimation
  and software
• Need for standardized use of search keywords
• Authors suggest that a sufficiently wide search
  for cost estimation papers with digital libraries
  can result in a greater workload than a manual
  search
• software AND (cost OR effort) resulted in
  278,000 records in Google Scholar

23
The Bigger Picture of RQs 1-4

• Researchers need to increase the breadth of their
  search for relevant studies
• Not sufficient to conduct searches in digital
  libraries or manual searches of the most
  important journals
• Where completeness is essential to research,
  manually search for papers in a selected set of
  journals
• Where completeness is not essential, combine
  manual searches and digital libraries

24
RQ5 How many researchers are there who have a
long term interest in software cost estimation?
To what extent do the interests of these
researchers affect the distribution of research
topics?Method Gather data on the authors of
the different journal papers including papers
published, recent activity, and topics
covered.Assess the vulnerability of software
cost estimation research.
Research Questions
25
RQ5 (contd)

• Only 13 researchers with more then 5 journal
  papers published.
• 9 out of 13 are still active with publications
  between 2000 2004.
• The ratio of research topics/estimation
  approaches to active researchers is high.
• The active researchers are generally covering a
  wide spectrum of topics.

26
RQ5 (contd)

• With so few researchers with a long-term focus,
  topics requiring wide breadths of experience are
  at risk.
• Measures of estimation performance
• Data set properties
• Both require long-term experience but are also
  essential for creating methods for meaningful
  analysis and evaluation of cost estimation
  techniques.

27
Research Question

• RQ6 What are the most investigated software cost
  estimation research topics and how has this
  changed over time?
• Method Separate papers by those published in
  1989 and earlier, 1990-1999, 2000-2004 and sort
  them by research topic (ex. Estimation method,
  organizational issue, measure of performance)
• Identify trends in papers and any shortcomings in
  research topic focus

28
RQ6 (contd)
29
RQ6 (contd)
30
Research Question

• RQ7 What are the most investigated estimation
  methods and how has this changed over time?
• Method Separate papers by those published in
  1989 and earlier, 1990-1999, 2000-2004 and sort
  them by estimation topic (ex. Regression,
  analogy, expert judgement)
• Identify trends in papers and any shortcomings in
  research topic focus

31
RQ7 (contd)
32
RQ7 (contd)
33
Research Question

• RQ8What are the most frequently applied research
  methods, and in what study context? How has this
  changed over time?
• Method Examine papers that proposed a new
  estimation method or evaluated an existing
  approach.
• Identify trends and shortcomings in research
  topic focus.

34
RQ8 (contd)
35
RQ8 (contd)

• Historical data does not contain the same
  realism as industry data
• Evaluation of historical data depends on the
  availability of the data since not all companies
  keep this information
• The lack of inclusion of conference papers from
  professionals and professional projects is an
  important shortcoming in cost estimation research

36
Pros Of This Study

• Eight research questions used to root out the key
  underlying trends in software development cost
  estimation are the greatest strength of this
  paper
• Uploading all the papers reviewed for the study
  into a freely available database providing a
  dense source of relevant information
• Use of the authors cost estimation database to
  help younger researchers leap frog into more
  complex topics sooner

37
Cons Of This Study

• The extent of the material excluded from the
  study was the papers resounding technical
  weakness
• Final system of classification lead to an
  accuracy sufficiently high only one authors
  results from reclassification were provided . . .
  leaving one to wonder what the percentage change
  was between the first and second review
• Exclusion of papers published by industry
  conferences, which would include past
  experiences, results, and real-life data from the
  software industry itself
• Papers from other fields focusing on cost
  estimation were not used, which would have
  provided a great opportunity to apply analogical
  reasoning to the topic

38
Thoughts

• We think software cost estimation research would
  be better improved by striving for more
  collaboration with software industry
• Researchers need to move away from the more
  redundant research elements and into lesser
  studied topics such as those in the software
  industry
• The authors themselves mention the idea numerous
  times but the lack of conformance on their own
  parts hurts their argument
• Collaboration with the software industry would
  provide real-world data sets tenfold more
  relevant and accurate than the historical data
  sets that are so commonly referenced in papers on
  the subject matter
