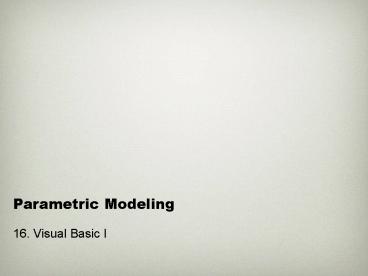

Parametric Modeling

1
Parametric Modeling

• 16. Visual Basic I

2
Recording Macros
3
(No Transcript)
4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
Recorded Macros in VBA IDE
12
Sub CATMain() Dim documents1 As Documents Set
documents1 CATIA.Documents Dim partDocument1
As PartDocument Set partDocument1
documents1.Add("Part") Dim part1 As Part Set
part1 partDocument1.Part Dim
hybridShapeFactory1 As HybridShapeFactory Set
hybridShapeFactory1 part1.HybridShapeFactory Di
m hybridShapePointCoord1 As HybridShapePointCoord
Set hybridShapePointCoord1 hybridShapeFactory1.A
ddNewPointCoord(100, 100, 100)
13
Dim axisSystems1 As AxisSystems Set axisSystems1
part1.AxisSystems Dim axisSystem1 As
AxisSystem Set axisSystem1 axisSystems1.Item("Ab
solute Axis System") Dim reference1 As
Reference Set reference1 part1.CreateReferenceFr
omObject(axisSystem1) hybridShapePointCoord1.RefA
xisSystem reference1 Dim hybridBodies1 As
HybridBodies Set hybridBodies1
part1.HybridBodies Dim hybridBody1 As
HybridBody Set hybridBody1 hybridBodies1.Item("G
eometrical Set.1") hybridBody1.AppendHybridShape
hybridShapePointCoord1 part1.InWorkObject
hybridShapePointCoord1 part1.Update
14
Dim reference2 As Reference Set reference2
part1.CreateReferenceFromObject(hybridShapePointCo
ord1) Dim hybridShapeDirection1 As
HybridShapeDirection Set hybridShapeDirection1
hybridShapeFactory1.AddNewDirectionByCoord(0,
1, 0) Dim hybridShapeLinePtDir1 As
HybridShapeLinePtDir Set hybridShapeLinePtDir1
hybridShapeFactory1.AddNewLinePtDir(reference2,
hybridShapeDirection1, 0, 20,
False) hybridBody1.AppendHybridShape
hybridShapeLinePtDir1 part1.InWorkObject
hybridShapeLinePtDir1 part1.Update End Sub
15
(No Transcript)
16
Sub CATMain()

• Main Subroutine in VBA for DP
• Functions and Procedures
• Subroutine
• maintain and write programs by segregating
  related code into smaller, manageable sections
• reduce the number of lines of code
• Sub . . . End Sub Construct
• Function . . . End Function

17
Sub . . . End Sub

• construct is used to define a subroutine that
  is, a procedure that performs some operation but
  does not return a value to its calling program.

Sub cmdButton1_OnClick MsgBox(Hello) End Sub
18
Subroutine names

• The name can contain any alphabetical or numeric
  characters and the underscore character.
• The name must start with a letter, not a numeric
  character or underscore, and it cannot contain
  embedded spaces.
• The name cannot contain any spaces. Use the
  underscore character to separate words to make
  them easier to read.
• The name cannot be a VBScript reserved word, such
  as a VBScript statement.
• Examples
• Sub 123MySub( ) ' Illegal
• Sub My Sub Routine( ) ' Illegal
• Sub MySub123( ) ' Legal
• Sub MySubRoutine( ) ' Legal

19
Function . . . End

• construct is used to define a subroutine that
  is, a procedure that performs some operation and
  return a value to its calling program.

Function CubeIt(x) CubeIt x3 End Function
20
Sub and Function

• To pass arguments to a Sub with Visual Basic
  Script, do not use parentheses as follows
• Object.Sub arg1, arg2, arg3
• But use parentheses with a Function
• Dim ReturnedObject As AnyObject
• Set ReturnedObject
• Object.Function (arg1, arg2, arg3)

21
Declaring Variable and Constants

• VBA allows the implicit declaration of variables
• Recommends to use Dim
• Dim Variable_Name As Datatype

22
Data Types in VBA

• Boolean
• Byte
• Integer
• Long
• Single
• Double
• Date/Time
• Currency
• String
• Object
• User Defined type
• Variant

23
Set Statement

• Assigns an object reference to a variable or
  property.

Set documents1 CATIA.Documents
24
Set Statement

• You must use Set only if the returned value is an
  object, but not if it is a character string or a
  number. Nevertheless, character string and number
  defined as CATIA literals are objects and Set
  must be used if a Function returns a literal
  object.
• Finally, you don't have to use Set if you store
  your return value in a Property
• myObject.aggregatedObject Object.Function
  (arg1, arg2, arg3)
• because there is no actual aggregatedObject
  variable, a property is a syntactical shortcut
  for accessor methods, here get_aggregatedObject
  and set_aggregatedObject, allowing to present
  those methods as an attribute of the object. The
  previous syntax is so equivalent to
• myObject.set_aggregatedObject( Object.Function
  (arg1, arg2, arg3) )
• and no Set is required.

25
Class

• Template for an object.
• Class...End Class construct
• Variable
• Properties
• Method
• Event

26
Object Oriented Programming

• OOP is all about programming using something
  called an object
• OOP consists of designing a bunch of classes most
  of which will be used as templates to make
  objects
• The objects will be used to hold data and will be
  initialized with constructors and perform useful
  functions by being asked to run their methods

From CS1322 lecture slide
27
What is an object?

• A chunk of memory which contains some data and
  methods which can operate on the data.
• Something that when created may have had special
  code run to initialize it.
• Something which has additional behavior defined
  by methods which can
• Be passed data via parameters
• Perform calculations/operations which may
• Change some of its data
• Perform some desired operation
• Return the value of some of its data
• Return the results of calculations using both
  data passed in and data contained in the object

From CS1322 lecture slide
28
How do we define different types of objects?

• For each different type of object we write a
  class.
• New classes may be based on existing classes to
  allow code reuse
• A class serves as a blueprint or template
  defining how all objects made from this class
  operate and what data they hold.
• One class may be used to make one or many objects

From CS1322 lecture slide
29
Classes and Objects
Class It describes the form of an object. It is
a template or blueprint. It specifies data
representation, behavior, and inheritance (via
variables, methods and parents)
Object It is an instance of a class. It has a
unique copy of every non-static variable.
(i.e., the instance variables but not
the class variables (those labeled with
static).
Difference between a class and an object of
that class is analogous to the difference
between a type and a variable of that type.
Naming Conventions Classes Identifiers begin
with cap letters for each word in
the identifier, e.g., class GraduateStudent Objec
ts Identifiers begins with lower case letter,
then caps for other words in
identifier, e.g.,
graduateStudentPresident
From CS1322 lecture slide
30
3 key features

• Abstract data types
• Encapsulation of data and behavior
• Classes as templates used to produce 1 or more
  instances or objects
• Inheritance
• Provides for code-reuse
• Polymorphism/Dynamic Binding
• Different objects in the same family may have
  identically named methods
• The language takes care of sorting out the
  correct method to invoke for us

From CS1322 lecture slide
31
Class Construct

• Class...End Class
• Class classname
• Class definition
• End Class
• Instantiation an object of a class
• Set objc new classname

32
Class Variables

• Class has variables
• Dim varName1 , varName2...
• Private varName1 , varName2...
• Public varName1 , varName2...
• Dim, Public
• Open to outside
• Private
• Closed to outside

33
Class Properties

• Access wrapper for private variables
• Property Get
• Property Let value
• Property Set reference

34
Class Properties

• Class Computer
• Private modStrType
• Private oOS
• Public Property Let ComputerType(strType)
• modStrType strType
• End Property
• Public Property Get ComputerType( )
• ComputerType modStrType
• End Property
• Public Property Set OperatingSystem(oObj)
• Set oOS oObj
• End Property
• Public Property Get OperatingSystem( )
• Set OperatingSystem oOS
• End Property
• End Class

35
Class Method

• Functions or subroutines in a class
• Class LaptopComputer
• Private modOwner
• Public Property Let CompOwner(strOwner)
• modOwner strOwner
• End Property
• Public Property Get CompOwner( )
• CompOwner modOwner
• End Property
• Public Function GetOwner( )
• GetOwner modOwner
• End Function
• End Class

36
Class Event

• Two events are automatically associated with
  every class you create
• Class_Initialize
• is fired whenever you instantiate an object based
  on this class
• Class_Terminate
• is called when the script engine determines that
  there are no remaining references on an object

37
Classes in the code
Property
Dim documents1 As Documents Set documents1
CATIA.Documents Dim partDocument1 As
PartDocument Set partDocument1
documents1.Add("Part")
Method
38
(No Transcript)
39
Digital Project Classes

• Application
• Documents
• PartDocuments
• Part
• HybridShapeFactory
• HybridBodies
• HybridBody
• Referecence
• ..
• And more

40
Sub CATMain() Dim documents1 As Documents Set
documents1 CATIA.Documents Dim partDocument1
As PartDocument Set partDocument1
documents1.Add("Part") Dim part1 As Part Set
part1 partDocument1.Part Dim
hybridShapeFactory1 As HybridShapeFactory Set
hybridShapeFactory1 part1.HybridShapeFactory Di
m hybridShapePointCoord1 As HybridShapePointCoord
Set hybridShapePointCoord1 hybridShapeFactory1.A
ddNewPointCoord(100, 100, 100)
41
Application

• The root object for all CATIA macros is
  Application . This corresponds to the CATIA frame
  window. The CATIA application is always named
  CATIA for in-process access, and you should only
  refer to it since it already exists when you run
  an in-process macro.

Dim documents1 As Documents Set documents1
CATIA.Documents
42
Documents Object

• A Collection of Document objects.

Dim documents1 As Documents Set documents1
CATIA.Documents
43
PartDocument

• Role When a PartDocument object is created, a
  Part object is also created. This Part object is
  the root object of the Part structure. A
  reference Product object is also created in each
  PartDocument. It is used to access Publications,
  PartNumber.

Dim partDocument1 As PartDocument Set
partDocument1 documents1.Add("Part")
44
Part

• The root level object inside a PartDocument
  object.Role It aggregates all the objects
  making up the part document. It provides many
  factories and collections. The collections list
  only the direct children of the part.
  Selection.Search allows to get all objects of one
  type.

Dim part1 As Part Set part1 partDocument1.Part
45
HybridShapeFactory

• Interface to create all kinds of HybridShape
  objects that may be needed in wireframe and
  surface design.

Dim hybridShapeFactory1 As HybridShapeFactory Set
hybridShapeFactory1 part1.HybridShapeFactory
46
HybridShapePointCoord

• Point defined by coordinates.Role To access
  data of the point feature created with its
  cartesian coordinates.

Dim hybridShapePointCoord1 As HybridShapePointCoor
d Set hybridShapePointCoord1 hybridShapeFactory1
.AddNewPointCoord(100, 100, 100)
47
AxisSystems

• A collection of all the AxisSystem objects
  contained in the part.

Dim axisSystems1 As AxisSystems Set axisSystems1
part1.AxisSystems
48
AxisSystem

• The object Axis System
• A axis system has got one origin point and three
  orthogonal axes, crossing at the origin point.

Dim axisSystem1 As AxisSystem Set axisSystem1
axisSystems1.Item("Absolute Axis System")
49
Reference

• Represents an object pointing to another object.
• This other object can be either a wireframe
  GeometricElement object such as a plane or a
  line, or a boundary representation object such as
  a face, a vertex or an edge. It may be, in
  particular, a Boundary object. References are
  created using appropriate methods for parts. They
  are then passed to an object to enable
  associativity with the referenced object.

Dim reference1 As Reference Set reference1
part1.CreateReferenceFromObject(axisSystem1)
Dim reference2 As Reference Set reference2
part1.CreateReferenceFromObject(hybridShapePointCo
ord1)
50
HybridBodies

• A collection of the HybridBody objects.

Dim hybridBodies1 As HybridBodies Set
hybridBodies1 part1.HybridBodies
51
HybridBody

• The object is a hybrid body.
• The hybrid body manages a set of geometric
  elements, a set of hybrid shapes, a set of bodies
  and a set of hybrid bodies. It belongs to the
  HybridBodies collection of a Part or _at_ref
  CATIABody or HybridBody object.

Dim hybridBody1 As HybridBody Set hybridBody1
hybridBodies1.Item("Geometrical Set.1")
52
HybridBody.AppendHybridShape

• Appends a hybrid shape to the hybrid body.
• Parameters
• iHybriShape
• The hybrid shape to append.
• Example
• This example appends the hybrid shape hybridShape
  to the hybrid body hybridBody hybridBody.AppendHy
  bridShape hybridShape

hybridBody1.AppendHybridShape hybridShapePointCoor
d1
hybridBody1.AppendHybridShape hybridShapeLinePtDir
1
53
Debugging
54
Statement

• A statement in a program is a basic sentence that
  expresses a simple ideaits purpose is to give
  the computer a basic instruction. Statements
  define the types of data allowed, how data are to
  be manipulated, and the ways that procedures and
  functions work.

55
IF Then Else Statement

• If condition Then statements Else elsestatements

• ' Or, you can use the block form syntax
• If condition Then
• statements
• ElseIf condition-n Then
• elseifstatements . . .
• Else    elsestatements
• End If
• If A gt 10 Then A A 1 B B A C C B
• If A gt 10 Then
• A A 1
• B B A
• C C B
• End If

56
Select Case Statement

• Select Case testexpression
• Case expressionlist-n
• statements-n . . .
• Case Else
• elsestatements-n
• End Select
• Dim Color, MyVar
• Sub ChangeBackground (Color)
• MyVar lcase (Color)
• Select Case MyVar
• Case "red" document.bgColor "red"
• Case "green" document.bgColor "green"
• Case "blue" document.bgColor "blue"
• Case Else MsgBox "pick another color"
• End Select
• End Sub

57
For...Next Statement

• For counter start To end Step step
•  statements
• Exit For
•  statements Next
• For I 1 To 10
• For J 1 To 10
• For K 1 To 10
• . . .
• Next
• Next
• Next

58
Do...Loop Statement

• Do While Until condition
•    statements
•    Exit Do
•    statements
• Loop
• Do    statements
• Exit Do
• statements
• Loop While Until condition

59
Do...Loop Statement

• Do Until DefResp vbNo
• MyNum Int (6 Rnd 1)
• ' Generate a random integer between 1 and 6.
• DefResp MsgBox (MyNum " Do you want
  another number?", vbYesNo)
• Loop
• Dim Check, Counter
• Check True Counter 0 ' Initialize
  variables.
• Do ' Outer loop.
• Do While Counter lt 20 ' Inner loop.
• Counter Counter 1 ' Increment
  Counter.
• If Counter 10 Then ' If condition is
  True...
• Check False ' set value of flag
  to False.
• Exit Do ' Exit inner loop.
• End If
• Loop
• Loop Until Check False ' Exit outer loop
  immediately.
