Spoken Dialogue Systems

1

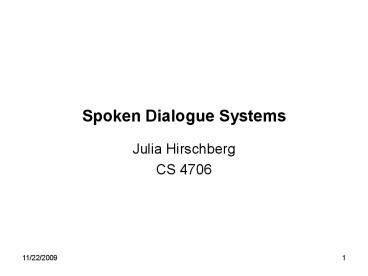

Spoken Dialogue Systems

• Julia Hirschberg
• CS 4706

2
Issues

• Error avoidance
• Error detection
• From the system side how likely is it the
  system made an error?
• From the user side what cues does the user
  provide to indicate an error?
• Error handling what can the system do when it
  thinks an error has occurred?
• Evaluation how do you know what needs fixing
  most?

3
Avoiding misunderstandings

• By imitating human performance
• Timing and grounding (Clark 03)

4
Recognizing Problematic Dialogues

• Hastie et al, Whats the Trouble? ACL 2002.

5
Recognizing Problematic Utterances (Hirschberg et
al 99--)

• Collect corpus from interactive voice response
  system
• Identify speaker turns
• incorrectly recognized
• where speakers first aware of error
• that correct misrecognitions
• Identify prosodic features of turns in each
  category and compare to other turns
• Use Machine Learning techniques to train a
  classifier to make these distinctions
  automatically

6
Turn Types
TOOT Hi. This is ATT Amtrak Schedule System.
This is TOOT. How may I help you? User Hello.
I would like trains from Philadelphia to New York
leaving on Sunday at ten thirty in the evening.
TOOT Which city do you want to go to? User
New York.
misrecognition
correction
aware site
7
Results

• Reduced error in predicting misrecognized turns
  to 8.64
• Error in predicting awares (12)
• Error in predicting corrections (18-21)

8
Evidence from Human Performance

• Users provide explicit positive and negative
  feedback
• Corpus-based vs. laboratory experiments do
  these tell us different things?
• Bell Gustafson 00
• What do we learn from this?
• What functions does feedback serve?
• Krahmer et al
• go on and go back signals in grounding
  situations (implicit/explicit verification)

9

• Pos short turns, unmarked word order,
  confirmation, answers, no corrections or
  repetitions, new info
• Neg long turns, marked word order,
  disconfirmation, no answer, corrections,
  repetitions, no new info
• Hypotheses supported but
• Can these cues be identified automatically?
• How might they affect the design of SDS?

10
Error Handling Strategies

• Goldberg et al 03 how should systems best
  inform the user that they dont understand?
• System rephrasing vs. repetitions vs. statement
  of not understanding
• Apologies
• What behaviors might these produce?
• Hyperarticulation
• User frustration
• User repetition or rephrasing

11

• What lessons do we learn?
• What produces least frustration?
• Best recognized input?

12
Evaluating Dialogue Systems

• PARADISE framework (Walker et al 00)
• Performance of a dialogue system is affected
  both by what gets accomplished by the user and
  the dialogue agent and how it gets accomplished

Maximize Task Success
Minimize Costs
Efficiency Measures
Qualitative Measures
13
Task Success

• Task goals seen as Attribute-Value Matrix
• ELVIS e-mail retrieval task (Walker et al 97)
• Find the time and place of your meeting with
  Kim.

Attribute Value Selection Criterion Kim or
Meeting Time 1030 a.m. Place 2D516

• Task success defined by match between AVM values
  at end of with true values for AVM

14
Metrics

• Efficiency of the InteractionUser Turns, System
  Turns, Elapsed Time
• Quality of the Interaction ASR rejections, Time
  Out Prompts, Help Requests, Barge-Ins, Mean
  Recognition Score (concept accuracy),
  Cancellation Requests
• User Satisfaction
• Task Success perceived completion, information
  extracted

15
Experimental Procedures

• Subjects given specified tasks
• Spoken dialogues recorded
• Cost factors, states, dialog acts automatically
  logged ASR accuracy,barge-in hand-labeled
• Users specify task solution via web page
• Users complete User Satisfaction surveys
• Use multiple linear regression to model User
  Satisfaction as a function of Task Success and
  Costs test for significant predictive factors

16
User SatisfactionSum of Many Measures

• Was Annie easy to understand in this
  conversation? (TTS Performance)
• In this conversation, did Annie understand what
  you said? (ASR Performance)
• In this conversation, was it easy to find the
  message you wanted? (Task Ease)
• Was the pace of interaction with Annie
  appropriate in this conversation? (Interaction
  Pace)
• In this conversation, did you know what you could
  say at each point of the dialog?

• (User Expertise)
• How often was Annie sluggish and slow to reply to
  you in this conversation? (System Response)
• Did Annie work the way you expected her to in
  this conversation? (Expected Behavior)
• From your current experience with using Annie to
  get your email, do you think you'd use Annie
  regularly to access your mail when you are away
  from your desk? (Future Use)

17
Performance Functions from Three Systems

• ELVIS User Sat. .21 COMP .47 MRS - .15 ET
• TOOT User Sat. .35 COMP .45 MRS - .14ET
• ANNIE User Sat. .33COMP .25 MRS .33 Help
• COMP User perception of task completion (task
  success)
• MRS Mean recognition accuracy (cost)
• ET Elapsed time (cost)
• Help Help requests (cost)

18
Performance Model

• Perceived task completion and mean recognition
  score are consistently significant predictors of
  User Satisfaction
• Performance model useful for system development
• Making predictions about system modifications
• Distinguishing good dialogues from bad
  dialogues
• But can we also tell on-line when a dialogue is
  going wrong

19
Next Week

• Speech summarization and data mining
