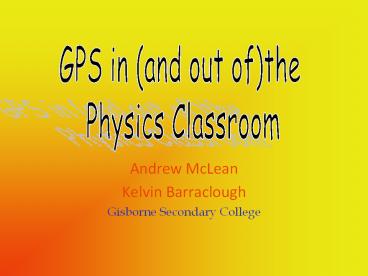

GPS in (and out of)the Physics Classroom

• Andrew McLean
• Kelvin Barraclough
• Gisborne Secondary College

2
What is GPS?

• 24 satellites

3
What is GPS?

• 24 satellites
• Several ground stations

4
What is GPS?

• 24 satellites
• Several ground stations
• GPS receiver

5
Satellites

• Altitude 20200 km

6
Satellites

• Altitude 20200 km
• Period 12 hours

7
Satellites

• Altitude 20200 km
• Period 12 hours
• At least 4 visible everywhere

8
Satellites

• Altitude 20200 km
• Period 12 hours
• At least 4 visible everywhere
• Solar powered, 50 W transmitter

9
Satellites

• Altitude 20200 km
• Period 12 hours
• At least 4 visible everywhere
• Solar powered, 50 W transmitter
• Transmit on 1575.42 MHz

10
Satellites

• Altitude 20200 km
• Period 12 hours
• At least 4 visible everywhere
• Solar powered, 50 W transmitter
• Transmit on 1575.42 MHz
• Fitted with atomic clocks

11
Satellites

• Altitude 20200 km
• Period 12 hours
• At least 4 visible everywhere
• Solar powered, 50 W transmitter
• Transmit on 1575.42 MHz
• Fitted with atomic clocks
• Lifespan 10 years

12
Ground Stations

• I master station, four remote

13
Ground Stations

• I master station, four remote
• Monitor satellites and send back accurate orbital
  and time data

14
The Signal

• The almanac. Approximate position of all
  satellites, transmitted and stored in the GPS.

15
The Signal

• The almanac. Approximate position of all
  satellites, transmitted and stored in the GPS.
• The ephemeris. Accurate data of individual
  satellite position.

16
The Signal

• The almanac. Approximate position of all
  satellites, transmitted and stored in the GPS.
• The ephemeris. Accurate data of individual
  satellite position.
• The pseudo random code. Effectively, an
  accurate time signal

17
The Signal

• The almanac. Approximate position of all
  satellites, transmitted and stored in the GPS.
• The ephemeris. Accurate data of individual
  satellite position.
• The pseudo random code. Effectively, an
  accurate time signal
• Turned off while satellite orbit is adjusted

18
Satellite positions
27400 km
20200 km
19
Signal times
0.091 s
0.067 s
20
Establishing position


21
Establishing position


22
Establishing position

• If receiver had a good enough clock
• Two satellites somewhere on a circle

23
Establishing position

• If receiver had a good enough clock
• Two satellites somewhere on a circle
• 3rd satellite cuts this circle twice, but
  usually one solution is obvious

24
Establishing position

• If receiver had a good enough clock
• Two satellites somewhere on a circle
• 3rd satellite cuts this circle twice, but
  usually one solution is obvious
• 4th satellite removes ambiguity

25
Establishing position

• With a small, cheap clock -

26
Establishing position

• With a small, cheap clock
• 3 satellites give 2D fix

27
Establishing position

• With a small, cheap clock
• 3 satellites give 2D fix
• 4 satellites give 3D fix

28
Accuracy

• Given clear view of sky typically 5 10 m

29
(No Transcript)
30
(No Transcript)
31
Receivers

• Arent equal

32
Receivers

• Arent equal
• Need good view of sky

33
Possible information

• Position

34
Possible information

• Position
• Distance travelled

35
Possible information

• Position
• Distance travelled
• Speed

36
Possible information

• Position
• Distance travelled
• Speed
• Direction

37
Possible information

• Position
• Distance travelled
• Speed
• Direction
• Altitude

38
Gathering data low tech
39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
Gathering data hi tech

• Almost all GPS receivers can be connected to a
  computer to transfer data

43
Suitable software (1)

• OziExplorer

44
Suitable software (1)

• OziExplorer
• 130

45
Suitable software (1)

• OziExplorer
• 130
• Uses raster mapping

46
Suitable software (1)

• OziExplorer
• 130
• Uses raster mapping
• Suitable for all brands of GPS

47
Suitable software (1)

• OziExplorer
• 130
• Uses raster mapping
• Suitable for all brands of GPS
• Transferring data from Ozi is awkward

48
Suitable software (2)

• Garmin Mapsource

49
Suitable software (2)

• Garmin Mapsource
• Free with Garmin GPS

50
Suitable software (2)

• Garmin Mapsource
• Free with Garmin GPS
• Uses Vector mapping

51
Suitable software (2)

• Garmin Mapsource
• Free with Garmin GPS
• Uses Vector mapping
• Allows easy transfer of data to other programs
  (eg Excel)

52
(No Transcript)
53
(No Transcript)
54
Some possibilities

• Real aircraft - loop the loop
• Model aircraft
• Racing cars, dragsters, motorbikes
• Skydivers, bungee jumpers
• Yacht racing
• Theme park rides
• Relative motion on moving ship

55
Cost?

• Cheap GPS 100
• Garmin GPS Map 60 CSx 470
• OziExplorer 130
• Oztopo maps for Garmin (all of Australia) 229
