Title: Global Positioning Systems Wing

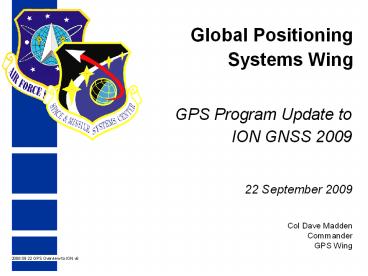

1
Global Positioning Systems Wing
GPS Program Update to ION GNSS 2009
22 September 2009
Col Dave Madden Commander GPS Wing
2008 09 22 GPS Overview to ION v6
2
Global Positioning Systems Wing
Mission Acquire and sustain survivable,
effective, and affordable globalpositioning
timing servicesfor our military and civil users
Col Dave Madden
Deliver and Sustain Global Navigation and Timing
Service
3
Preeminence in PNT is a National Objective
  • For the warfighter
  • Global PNT has revolutionized military operations
  • Reduced collateral damage (people,
    infrastructure)
  • Limits friendly fire vulnerability
  • Higher accuracy munitions
  • Fewer sorties to accomplish mission needs
    (reduces exposure)
  • Aircraft standoff capability minimizes exposure
    to highlydefended environments
  • Enhanced warfighter situational awareness Blue
    Force tracking
  • For the Nation and the World
  • Global PNT has also significantly enhanced
    civilian life
  • Air traffic control
  • Commercial navigation
  • Enable cellular communication
  • Demand will continue to grow well beyond next
    decade

Saves Warfighter Lives
  • Timing of critical financial transactions
  • Wildland fire management
  • Precision agriculture

GPS is essential for the conduct of any war and
an integral part of day-to-day life
4
GPS Constellation
  • Very robust constellation
  • 30 space vehicles currently set healthy
  • 11 GPS IIA
  • 12 GPS IIR
  • 7 GPS IIR-M
  • 1 GPS IIR-M waiting to be set healthy
  • 3 additional satellites in residual status
  • Global GPS civil service performancecommitment
    met continuouslysince December 1993

5
Recent Successes
  • Space Segment
  • SVN 49 launched in March 09
  • L5 demo payload secured frequency filing
  • Signal distortion investigation still underway
  • IONpanel session Wednesday on SVN-49
  • SVN 50 launched in August 09
  • Set healthy
  • Completed GPS Delta II launches
  • GPS IIF completed Pathfinder testing
  • GPS IIIA completed Preliminary Design Reviews
  • Developed L2C message Type 0 capability for GPS
    IIRM to support testing of civil UE testing
  • Loaded to SV and currently in check out

6
Recent Successes (Contd)
  • Ground Segment
  • Delivered new version of OCS (AEP 5.5) to final
    regression testing with SAASM capability
  • Completed successful OCX, SDR,Modernized
    Capability Demo and RFP release
  • User Segment
  • Demonstrated successful tracking of pseudo M-Code
    from live satellites byMGUE Phase A ASIC
  • Collaborating with user community to finalize
    MGUE acquisition strategy

7
Modernization
Satellites
  • Legacy (Block IIA/IIR)
  • Basic GPS
  • C/A civil signal (L1C/A)
  • Std Pos. Service
  • Precise Pos. Service
  • L1 L2 P(Y) nav
  • NDS
  • (Block IIR-M)
  • 2nd civil signal (L2C)
  • M-Code signals (L1M, L2M)
  • Flex A/J power (7dB)
  • (Block IIF)
  • 3rd civil signal (L5)
  • GPS III (Block III)
  • Increased accuracy
  • Increased A/J power(up to 20 dB)
  • Signal integrity
  • Search and Rescue
  • Common GalileoOS GPS (L1C)

Control Systems
  • Legacy
  • TTC
  • L1 L2 monitoring
  • OCX Blk 2
  • LADO ops for all SVs
  • All new signals (including L1C)
  • OCX Blk 1 (Modernized)
  • Flexible Architecture
  • Mission Ops for all SVs
  • Control 1 new signal
  • (L2C, L5, or M-Code)
  • Control Flex Power
  • Signal Integrity Monitoring
  • Upgraded (AEP)
  • GPS IIF TTC
  • SAASM
  • OCX Blk 34 (GPS III B/C)
  • Manage Spot Beam
  • NAVWAR, GNOC
  • Mission Planning
  • Effects-Based Ops

User Equipment
  • Legacy
  • Man Pack
  • MAGR, PLGR
  • RCVR-3A, 3S
  • OH, UH
  • FRPA, CRPA
  • Upgraded
  • DAGR
  • CSEL
  • MGUE (Modernized)
  • Anti-Jam, Anti-Spoof
  • Military exclusivity
  • Handheld / Anti-Tamper
  • Gnd Avionics embed
  • Auto OTA Rekeying
  • GAS-1
  • MAGR2K
  • GB-GRAM

Cornerstones to the Future GPS are GPS III, OCX,
MGUE
8
GPS Modernization New Civil Signals
  • Second civil signal L2C
  • Designed to meet commercial needs
  • Higher accuracy through ionospheric correction
  • Available since 2005 without data message
  • Phased roll-out CNAV message starting Sep 2009
  • Full capability 24 satellites and full CNAV
    2016

Benefits existing professional receivers
  • Third civil signal L5
  • Designed to meet demanding requirementsfor
    transportation safety-of-life
  • Uses highly protected Aeronautical Radio
    Navigation Service (ARNS) band
  • 1st launch 2009 24 satellites and full CNAV
    2018

9
Fourth Civil Signal (L1C)
  • Designed with international partnersfor
    interoperability
  • Modernized civil signal at L1 frequency
  • More robust navigation across a broad rangeof
    user applications
  • Improved performance in challengedtracking
    environments
  • Original signal retained for backward
    compatibility
  • Specification developed in cooperationwith
    industry recently completed
  • Launches with GPS III in 2014
  • On 24 satellites by 2021

Under Trees
Urban Canyons
10
IIF Satellites
  • Delivers all legacy signals, plus new
    capabilities (L5) and capability improvements
    (new clocks for better accuracy)
  • Primary focus remains on Mission Success
    activities
  • Integrated readiness reviews with Boeing, GPSW,
    and SMC technical staffs
  • Executive reviews with Boeing VPs, GPSW/CC,
    SMC/CC and former GPS Directors
  • Several components redesigned or reworked to
    ensure success
  • IIF-1 L2, L3, L5 units replaced and retested
    successfully
  • Extensive testing conducted to ensure IIF mission
    success
  • Tailored MIL-STD tests in factory
  • Pathfinder launch site testing
  • Consolidated System Testing
  • AEP 5.5 Transition Exercises
  • LADO IIF rehearsals
  • Completing development of On-orbit test plans

11
GPS IIF Performance
Tech Performance Measure Requirement Requirement Current Status
L1 C/A User Rec. Pwr. gt -158.5 dBW -156.9
L1 P(Y) User Rec. Pwr. gt -161.5 dBW -159.9
L1 M User Rec. Pwr. gt -158 dBW -156.3
L2 C/A User Rec. Pwr. gt -160 dBW -159.60
L2 P(Y) User Rec. Pwr. gt -161.5 dBW -160.96
L2 M User Rec. Pwr. gt -161 dBW -160.56
L5 User Rec. Pwr. gt -154.9 dBW -154.1
Mean Mission Duration gt 9.9 years 10.86
SV Reliability gt 0.61 0.76090
GPS IIF is meeting or exceeding all specified
requirements
12
IIF Pathfinder (May Sep 2009)
  • IIF-2 shipped to Cape for risk mitigation
  • All transport procedures proven successful
  • All mechanical activities performed to planand
    facility interfaces verified
  • Consolidated System Testing checked all
    interfaces to OCS AEP and LADO
  • Cut IIF-1 critical path to launch by 2 months and
    reduced schedule risk
  • Best Practice for future GPS programs

13
GPS IIF Summary
  • GPS IIF available for launch in Nov 2009
  • Will provide new/improved capabilities for civil
    and military users
  • Basis for reliable sustainment ofGPS
    constellation in years ahead
  • Partnership between GPSW Boeing continues to
    focus on mission success

14
Military GPS User Equipment (MGUE) provides
M-Code to the Warfighter
15
Military User Equipment Paradigm ShiftThe
Common GPS Module (CGM)
  • Commercial Paradigm
  • (GPS engines enable multiple applications)





Enablers Build Engines
Integrators Build Applications
Global GPS Use
  • Proposed MGUE Paradigm
  • (Emulate commercial, Build the engine!)

Common GPS Module (CGM)


GPSW Builds Enabling Engines
Integrators Build Applications
Global Military GPS Use
16
Enabling Modernization with the CGM

Initial contracts deliver CGM
CGM-based Ground-Embedded card
CGM
Hundreds of mission-unique applications
CGM
Full function Lead Platform Form Factors
Complete Card for Ground Platform Over 70,000
Ground Embedded Platforms
CGM Form Factor for, Air, Maritime Lead
Platforms
17
Keys to the Global Success of GPS
  • Program Stability and Performance
  • Civil service performance commitment met
    continuously since 1993
  • Continuous improvements in accuracy,
    availability, etc.
  • Continuity of constellation and signals ensured
    throughAir Force operation and acquisition
  • Funding through U.S. taxpayers
  • Policy Stability and Transparency
  • Open access to civil GPS signals, free of direct
    user fees
  • Open, free, and stable technical documentation
  • Market-based competition worldwide
  • National-level policy coordination including
    civil and military leaders
  • Commercial Entrepreneurship and Investment

18
Summary
  • GPS has continuously met is commitments toall
    users since FOC
  • GPS has had multiple operational and acquisition
    successes in the past year
  • Modernization of all GPS Segments is on track

Maintaining And Improving GPS Services For All
Users Is Job 1
