Title: Probabilistic Horn abduction and Bayesian Networks

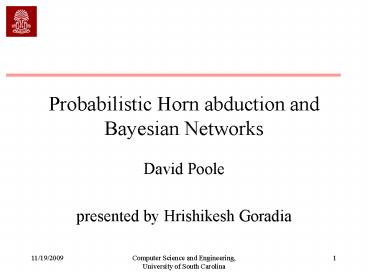

1Probabilistic Horn abduction and Bayesian Networks
- David Poole
- presented by Hrishikesh Goradia
2Introduction
- Logic-based systems for diagnostic problems
- Too many logical possibilities to handle
- Many of the diagnoses not worth considering
- Bayesian networks
- Probabilistic analysis
- Probabilistic Horn Abduction
- Framework for logic-based abduction that
incorporates probabilities with assumptions - Extends pure Prolog in a simple way to include
probabilities
3Motivating Example
4Motivating Example
5Probabilistic Horn Abduction Theory
6Probabilistic Horn Abduction Theory
7Assumptions and Constraints
- Identical hypotheses cannot appear in multiple
disjoint declarations. - All atoms in disjoint declarations share the same
variables. - Hypotheses cannot form the head of rules.
- No cycles in the knowledge base.
- Knowledge base is both covering and disjoint.
8Bayesian Networks to Probabilistic Horn
Abduction Theory
- A discrete Bayesian network is represented by
Probabilistic Horn abduction rules that relates
a random variable ai with its parents ai1, ,
ain - The conditional probabilities for the random
variable are translated into assertions
9Bayesian Networks to Probabilistic Horn
Abduction Theory
10Bayesian Networks to Probabilistic Horn
Abduction Theory
11 Probabilistic Horn Abduction Theory to Bayesian
Networks
- Each disjoint declaration maps to a random
variable. - Each atom defined by rules also corresponds to a
random variable. - Arcs go from the body RV(s) to the head RV in
each rule. - Probabilities in the disjoint declarations map
directly to the conditional probabilities for the
RVs - Additional optimizations possible.
12Discussion Independence and Dependence
- Can the world be represented such that all of the
hypotheses are independent?
13Discussion Independence and Dependence
- Can the world be represented such that all of the
hypotheses are independent? - Author claims that it is possible.
- Reichenbachs principle of the common cause If
coincidences of two events A and B occur more
frequently than their independent occurrence,
then there exists a common cause for these events
14Discussion Abduction and Prediction
- Is abducing to causes and making assumptions as
to what to predict from those assumptions the
right logical analogue of the independence in
Bayesian networks?
15Discussion Abduction and Prediction
- Is abducing to causes and making assumptions as
to what to predict from those assumptions the
right logical analogue of the independence in
Bayesian networks? - Author claims that it is true.
- Approach is analogous to Pearls network
propagation scheme for computing conditional
probabilities.
16Discussion Causation
- Common problem associated with logical
formulation of causation If c1is a cause for a
and c2 is a cause for a, then from c1 we can
infer c2. Does the probabilistic Horn abduction
theory overcome this?
17Discussion Causation
- Common problem associated with logical
formulation of causation If c1is a cause for a
and c2 is a cause for a, then from c1 we can
infer c2. Does the probabilistic Horn abduction
theory overcome this? - Author claims that it does.
- The Bayesian network represented by the theory
will have c1 and c2 as disjoint RVs.
18Summary
- Presents a simple framework for Horn clause
abduction, with probabilities associated with
hypotheses. - Finds a relationship between logical and
probabilistic notions of evidential reasoning. - Presents a useful representation language that
provides a compromise between heuristic and
epistemic adequacy.
