Finding Narrow Passages with Probabilistic Roadmaps: The SmallStep Retraction Method

1

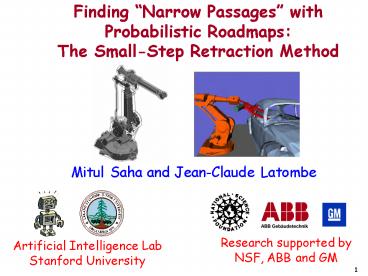

Finding Narrow Passages withProbabilistic
Roadmaps The Small-Step Retraction Method
Mitul Saha and Jean-Claude Latombe
Research supported by NSF, ABB and GM
Artificial Intelligence Lab Stanford University
2
Probabilistic Roadmaps (PRM)
goal configuration
start configuration
free-space
c-obstacle
Configuration-space components
Kavraki, Svetska, Latombe, Overmars, 1996
3
PRM planners solve complicated problems
Complex geometries obstacles 43530
polygons Robot 4053 polygons
High dimensional
4
Main Issue Narrow Passages
narrow passage
free samples
colliding local path
colliding samples
The efficiency of PRM planners drops
dramatically in spaces with narrow passages
5
Main Issue Narrow Passages

• Problems with narrow passages are commonly
  encountered

6
Main Issue Narrow Passages

• Proposed strategies
• Filtering strategies,
• e.g., Gaussian sampling Boor et al. 99
• and bridge test Hsu et al. 03
• ? rely heavily on rejection sampling
• Retraction strategies,
• e.g., Wilmart et al. 99Lien et al. 03
• ? waste time moving many
  configurations out of collision

7
Motivating Observation
planning time
decreasing width of the narrow passage
8
Small-Step Retraction Method
Roadmap construction and repair
(2 3)
(1)

• Slightly fatten the robots free space
• Construct a roadmap in fattened free space
• Repair the roadmap into original free space

9
Small-Step Retraction Method
Roadmap construction and repair
Fattening
widened passage
fattened free space

• Free space can be indirectly fattened by
• reducing the scale of the geometries (usually of

• the robot) in the 3D workcell with respect to
• their medial axis
• -This can be pushed into the pre-processing
• phase

10
Small-Step Retraction Method
Roadmap construction and repair
Fattening
start
Repair during construction
Pessimist Strategy
Optimist Strategy
Repair after construction
goal
fattened free space
11
Small-Step Retraction Method
Roadmap construction and repair
Fattening
start
Repair during construction
Pessimist Strategy
Optimist Strategy
Repair after construction
goal
fattened free space
12
Small-Step Retraction Method
Roadmap construction and repair
Fattening
start
Pessimist Strategy
Repair during construction
?Integrated planner 1. Try Optimist for N
time. 2. If Optimist fails, then run
Pessimist
Optimist Strategy
Repair after construction
goal
fattened free space
13
Quantitative Results

• Fattening preserves topology/ connectivity of
  the free space

• Fattening alters the topology/ connectivity of
  the free space

(c)
(a)
(b)
Alpha 1.1
(g)
Alpha 1.0
(f)
(d)
(e)
Upto 3 orders of magnitude improvement in the
planning time was observed
14
Quantitative Results

• Test environments without narrow passages
• SSRP and SBL have similar performance

(i)
(j)
15
Conclusion

• SSRP is very efficient at finding narrow passages
  and still works well when there is none
• The main drawback is that there is an additional
  pre-computation step

16
