AUTEC Minefield

1

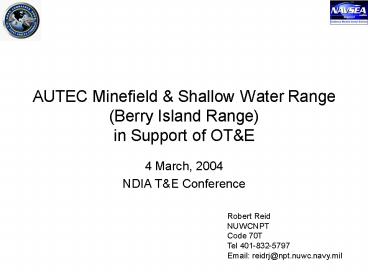

AUTEC Minefield Shallow Water Range (Berry
Island Range)in Support of OTE

• 4 March, 2004
• NDIA TE Conference

Robert Reid NUWCNPT Code 70T Tel
401-832-5797 Email reidrj_at_npt.nuwc.navy.mil
2
AUTEC Minefield Shallow Water Range
Satellite
Data To AUTEC Site 1
AUTEC Real-time Display Tracking Center
AMSWR Cable Termination Site Berry Island
Tethered Shapes
Hydrophones Array
Bottom Shapes
J-Box
3
AMSWR

• Purpose Exercise Support
• Support the COMSULANT Immediate Need to Conduct
  Mine Detection Avoidance Littoral ASW
  Operations At the Berry Islands
• Support All Platform Organic Mine Counter
  Measures (MCM)
• Support TE Events and Tactics Experimentation
  and Development
• Provide Effective and Efficient All-platform Mine
  Detection Avoidance Training
• Realistic Environment
• Realistic Targets
• Real-time Exercise Data Collection, Display and
  Analysis
• Affordable Operation and Maintenance
• Support Future Organic MCM Systems Test and
  Evaluation

4
AMSWR

• Current Needed Capabilities
• Environmentally Realistic Area Including Water
  Depth, Bottom Composition, and Acoustics
• Realistic Targets (Mine Shapes) Representing
  Commonly Expected Mine Threats
• Exercise Reconstruction, Analysis, and Feedback
• Underwater Tracking
• Above Surface Tracking and Communications
• Operational Considerations
• Affordable Operational Cost
• Post IOC MO Costs TBD
• Low Operational Risk
• Shore Based Much Less Weather Constrained Than
  Shipboard Operations
• Trunk Cable And Exposed Systems Protected From
  Fishing
• Remote Diagnostics Provide State of the System
  Status
• Provide Capability for Exercise Conduct, Safety,
  and Debrief

5
AMSWR

• OPTEMPO
• Submarines From Day of IOC
• 23-25 SSNs every 12-15 mos. _at_ 8-10 hrs. each
• Occasional TACDEVEXs (estimate 2/year _at_ 5 days/24
  hrs each)
• Assumes PCO Exercises 2/year
• BG deployers (2 SSNs/BG, 2 1/2 BGs/year, 8-10
  hrs/SSN)
• OTE Events
• A-RCI HF Phase IV sonar APB
• Advanced Mine Simulation System (AMISS)
• Foreign Mine Surrogate Targets (FORTS)

6
Little Stirrup Cay Location
7
Aerial View Of Little Stirrup Cay
GSC
N
2 NMI
AMSWR (6 NMI)
8
Aerial View of Little Stirrup Cay
Reef Cut
Helo Pad Cable Termination Facility Area
Tourist Area
9
In Water/Onshore Approach(-LSC-)
H
CTF
Data Cable
Shore J-Box
Seashore Interface
Cathode Cable
Undersea Trunk Cable
PTS
J-Box
Termination
Pigtails
Connectors
PTS Cable
10
Advanced Mine Simulation System (AMISS)
Shore-based Monitoringand Analysis Station (SMAS)

• Platform signatures received at AMISS Deployed
  Body
• Signature data processed and filtered on-board
  ADB
• Data transferred to topside via HTS.
• SMAS receives data

Rack-Mounted Portable Complete Package Near RT
Emulation Execution Signature Data
Collection Data Archiving Communications Data
Displays Post-Processing Functions

• SMAS
• Runs emulations, near real time
• Displays analysis data
• Collects and stores signature data
• Archives data to DVD/CD-ROM
• SMAS may be located on-board surface support
  craft vice shore-based

Hardwire TetherSystem (HTS)
AMISS Deployed Body (ADB)
11
In Water/Onshore Approach(-LSC-)
H
CTF
Data Cable
Shore J-Box
Seashore Interface
Cathode Cable
Undersea Trunk Cable
PTS
AMISS
J-Box
Termination
Pigtails
Connectors
PTS Cable
12
Minefield Hydrophone Locations
5000 YDS 900 Water Depth
AMISS
Mooring JBox
13
Onshore J-Box Ocean Cable
14
AMSWR Off-Shore J-BOX
15
AMSWR Pigtail Termination Assembly
16
LSC Shore Facility
17
Planned Construction On LSC
Helo Pad
Trunk Cable
Cable Termination Facility
18
(No Transcript)
19
(No Transcript)
20
AMSWR Schedule Highlights

• SW Build II Debugged (1/04)
• Cable Install Contract (3/04)
• Cable J-Box Installation (6-7/04)
• LSC Building Fabrication (5-11/04)
• Final System Integration Test (12/04)
• IOC (1/05)

21
AUTEC Minefield Shallow Water Range - Future
Concepts -
Satellite
Data To AUTEC Site 1
AUTEC Real-time Display Tracking Center
ASWRM Cable Termination Site Berry Island

• Deep Array
• (1200)
• U/W Winch
• CTD Sensor
• U/W Comms
• Omniphone
• Other Sensors

• Shallow Array
• (100)
• Temp Sensors
• U/W Comms
• Other Sensors

BiDi Nodes
Smart Mine Array
Tethered Shapes
Hydrophones Array
Bottom Shapes
J-Box
