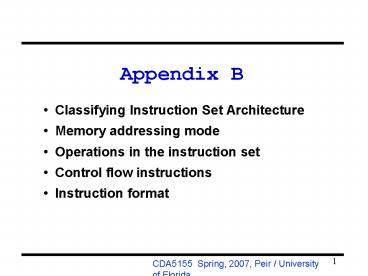

CDA5155 Spring 2007 Peir / University of Florida 2 Classifying Architectures
One important classification scheme is by the type of addressing modes supported.
Stack architecture Operands implicitly on top of a stack. (Early machines Intel floating-point.)
Accumulator architecture One operand is implicitly an accumulator (a special register). (Early machs.)
General-purpose register architecture Operands may be any of a large (typically 10s-100s) of registers.
Register-memory architectures One op may be memory.
Load-store architectures All ops are registers except in special load and store instructions.
3 Four Architecture Classes Assembly for CAB 4 Number of Operands
A further classification is by the maximum number of operands and that can be memory e.g.
2-operand (e.g. a b)
src/dest(reg) src(mem) IBM 360 x86 68k
src/dest(mem) src(mem) VAX
3-operand (e.g. a bc)
dest(reg) src1(reg) src2(reg) MIPS PPC SPARC c.
dest(reg) src1(reg) src2(mem) IBM 370
dest(mem) src1(mem) src2(mem) IBM 370 VAX
5 Endians Alignment Increasing byteaddress 0 1 2 3 4 5 6 7 4 Word-aligned word at byte address 4. 2 Halfword-aligned word at byte address 2. 1 Byte-aligned (non-aligned) word at byte address 1. word Little-endian byte order (least-significant byte first). 0 (LSB) 1 2 3 (MSB) word Big-endian byte order (most-significant byte first). 3 (MSB) 2 1 0 (LSB) 6 Addressing Modes
In example assembly syntax in middle column ( ) indicates memory access. (A typical syntax.)
In RTL syntax on right denotes accessing a member of an array Register or Memory.
7 Addressing Mode Usage 3 SPEC89 on VAX 8 Displacement Distribution Sign bit is not counted SPEC CPU2000 on Alpha 9 Use of Immediate Operand SPEC CPU2000 on Alpha 10 Distribution of Immediate SPEC CPU2000 on Alpha Sign bit is not counted 11 Instruction Type (Same as B.12 in the 4th Edition) 12 Instruction Distribution (Same as Fig. 2.16) (5 SPECint92) 13 Control Flow Instructions
Four basic types
Control flow addressing modes
Often PC-relative (PC displacement). Relocatable.
Also useful register indirect jumps (reg. has addr.). Uses
Case / switch statements
Virtual functions / methods (abstract class method calls)
High-order functions / function pointers
Dynamically shared libraries
14 Conditional Branch Options
Condition Code (CC) Register
E.g. X86 ARM PPC SPARC
ALU ops set condition code flags in the CCR
Branch just checks the flag
E.g. Alpha MIPS
Comparison instruction puts result in a GPR
Branch instruction checks the register
E.g. PA-RISC VAX
Compare branch in 1 instruction.
15 Procedure Calling Conventions
Two major calling conventions
Before the call procedure caller saves registers that will be needed later even if callee did not use them
Inside the call called procedure saves registers that it will overwrite
Can be more efficient if many small procedures
Many architectures use a combination of schemes
E.g. MIPS Some registers caller-saves some callee-saves
16 Three Classes of Control Instructions SPEC CPU2000 on Alpha 17 Branch Distance Distribution SPEC CPU2000 on Alpha 18 Branch Comparison Types SPEC CPU2000 on Alpha 19 Encoding An Instruction Set 20 MIPS Architecture
RISC load-store architecture simple address
32-bit instructions fixed format
32 64-bit GPRs R0-R31.
Really only 31 R0 is just a constant 0.
32 64-bit FPRs F0-F31
Can hold 32-bit floats also (with other ½ unused).
22 Inst. Format I-type Instructions 23 Inst. Format R-type Instructions 24 Inst. Format J-type Instructions 25 MIPS Instruction Set
Go through Figures B.23-26 in textbook
Branch and Jump Addresses
Branch target address (PC4) (Displacement 00) Note instead of PC (PC4) for hardware convenience and the two zeros is added due to word displacement.
Jump (limited to 256MB range)
(Upper 4 bits of Current PC) (26-bits address in Jump) (00)
Jump register save 32-bit target address in register
