Chapter 5: The water we drink

1

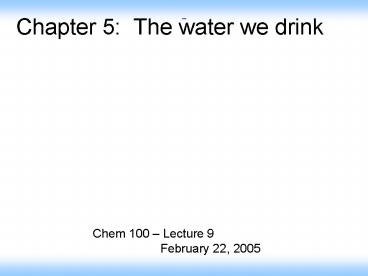

Chapter 5 The water we drink
Chem 100 Lecture 9 February
22, 2005
2
Reaction of Na and Cl
http//www.visionlearning.com/library/module_viewe
r.php?mid55
3
Covalent bonding

• In covalent bonds, the electrons are shared.

4
Polyatomic Ions

• Polyatomic ions are ions made up of more than one
  atom or element.
• The atoms making up the ion are covalently
  bonded, but the ion itself is involved in the
  ionic bond
• Example Sulfate, SO4
• 6 4x(6) 2 32
• S O charge octet
•
  rule
•
  satisfied

5
Some Common Polyatomic Ions
Another polyatomic ion chlorate, ClO3-
6

• EXAMPLES OF FORMULAS FOR IONIC COMPOUNDS
  CONTAINING POLYATOMIC IONS
• Compound containing K and ClO3- KClO3
• Compound containing Ca2 and ClO3- Ca(ClO3)2
• Compound containing Ca2 and PO43- Ca3(PO4)2
• NAMING IONIC COMPOUNDS THAT CONTAIN A POLYATOMIC
  ION
• The names of ionic compounds that contain a
  polyatomic ion are obtained using the following
  pattern name name of metal name of
  polyatomic ion
• Examples KClO3 is named potassium chlorate
• Ca(ClO3)2 is named calcium chlorate Ca3(PO4)2 is
  named calcium phosphate CaHPO4 is named calcium
  hydrogen phosphate.

7
Most ionic compounds are soluble in water

• Why?
• Because to be soluble, the attractive forces
  between the solvent and the ions must be greater
  than the attractive forces of the ionic bonds

8
Water solutions of ionic compounds

• Recall that water molecules are polar

• The partial negatively charged O is attracted to
  the cations and the partially positively charged
  H is attracted to the anions

Dissolution of NaCl animation
9

• Reaction for dissolution of NaCl in water
• NaCl (s) H2O(l) ? Na(aq) Cl-(aq)
• When compounds containing polyatomic ions
  dissolve in water, the polyatomic ions remain
  intact. Example
• Na2SO4(s) H2O(l) ? 2Na(aq) SO42-(aq)

10
(No Transcript)
11
Sucrose dissolves, but it doesnt conduct
electricitywhy?

• It doesnt form ions
• Sucrose C12H22O11
• There are no atoms at the extreme ends of the
  periodic table (not likely to form ions)
• This molecule consists solely of COVALENT BONDS

12
Why does sucrose dissolve at all?

• There must be strong forces between the H2O
  molecules and the sucrose
• Sucrose has many OH groups these can form
  Hydrogen bonds with H2O molecules.

The attraction between sucrose and many H2Os will
be greater than between sucrose molecules
13
Solubility of covalent compounds

• Not usually as soluble as ionic compounds
• Covalent compounds that do dissolve well are
  those with the ability to hydrogen bond with
  water
• Examples

Sucrose (sugar)
Antifreeze
14
Simple solubility rule

• In general, Like dissolves like
• Polar compounds dissolve polar compounds
• But polar and nonpolar compounds do not dissolve
  in each other
• Oil and water dont mix!

15
Why isnt oil soluble?

• Oil is made up of hydrocarbons
• There is only a small electronegativity
  difference H 2.1 C 2.5 Difference 0.4
• Bonds are not very polar at all
• Because it is effectively non-polar, it does not
  dissolve in water

16
Protecting drinking water

• Maximum Contaminant Level Goal (MCLG) The level
  at which a person weighing 70 kg (154 lb) could
  drink 2 L of water containing the contaminant
  every day for 70 years with no ill effect
• Not a legal limit
• All known carcinogens have an MCLG of 0
• Maximum Contaminant Level (MCL)
• The legal concentration limit allowed for a
  contaminant

17
Table of MCLGs and MCL
18
How is drinking water treated?
You want to remove bacteria, organic matter,
suspended solids, etc.
19
Screening
http//www.chemistry.wustl.edu/edudev/LabTutorial
s/Water/PublicWaterSupply/PublicWaterSupply.html
20
Sedimentation
21
Coagulation
The water is then filtered and disinfected
22
Disinfection

• Disinfectants kill bacteria that can cause
  disease in humans
• Cryptosporidium, Giardia, fecal colifrom
• Chlorine most common disinfectant in U.S.
• Taste, odor
• Chlorination has the potential to form
  undesirable by-products
• Trihalomethanes (THMs) such as Chloroform,
  (CHCl3)
• Ozone More powerful disinfectant than chlorine
  so less is needed
• More expensive
• Decomposes quickly
• Also forms byproducts

23
Hard water

• Hard water is water that contains certain ions
  from dissolved minerals
• Ca2 , Mg2 , CO32- , HCO3-, SO42-
• Soft water contains few of these ions
• Measure of hardness is ppm CaCO3
• This is NOT to say that a sample actually
  contains this amount of solid CaCO3
• Rather, this specifies the amount of CaCO3 that
  could be formed from the Ca2 provided there is
  also enough CO32- present.
• Ca2 (aq) CO32- (aq) ? CaCO3 (s)
• Why is hardness measured this way? Ca2 is
  largest contributor

24
Source

• Source of hard water is limestone rock
• Composed of CaCO3 and MgCO3
• When water flows over limestone, these minerals
  dissolve
• In US, water hardness varies from nearly 0 ppm to
  over 400 ppm in Midwest

25
How soap works

• Soap

• Because of polar end, soap dissolves in water
• Greases, oil, and dirt are nonpolar, so are not
  soluble in water

• Dirt, grease etc. will dissolve in the non-polar
  part of of the soap ion. Many soap ions surround
  the dirt particle, with their polar ends facing
  water.
• The negatively charged grease molecule can now
  be dissolved in water.

animation
26
Soap and hard water
Ca2 , Mg2 , etc ions form ionic compounds with
soap that are less soluble than the ionic
compound containing Na

• Consequences of this lower solubility
• It precipitates out of solution (soap scum!)
• More soap is required to get the same amount of
  cleaning power

27
What to do about hard water

• Soften it! (Remove the Ca2 and Mg2)
• How?
• Add Na2CO3
• Ion exchange column

28
Na2CO3

• Na2CO3 (s)?2 Na (aq) CO32- (aq)
• Ca2 (aq) CO32- (aq) ? CaCO3 (s)
• The CaCO3 is an insoluble mineral that can be
  rinsed away.

29
2) Ion exchange

• Typically contains zeolite claylike mineral
  made up of Al, Si, O
• Surface is negatively charged
• Normally balanced by Na ions

-- Ions with greater charge will be more
strongly bound to the zeolite surface, and will
replace the Na ions
30
Regeneration of ion exchangers

• Eventually the zeolite gets full of Ca2, Mg2,
  ions.
• Can add salt (NaCl) to regenerate the zeolite
  back so it is bonded to Na ions instead

31
Desalination

• Desalination- A broad term describing any process
  that removes ions from salty water
• Ways to desalinate water
• Distillation
• Reverse osmosis

32
Distillation

• DistillationA liquid is evaporated and then
  condensed
• Based on the fact that as the water vaporizes, it
  leaves behind most of the dissolved impurities
• Passes through a condenser where it cools and
  reverts back to a liquidimpurity free!
• Distilled water is produced by this process

33
Energy involved in distillation

• Remember that water has a high boiling point and
  high specific heat
• This means that it requires a large amount of
  energy to get the liquid into the gas phase.
• This process will only be cost effective for
  countries with abundant and cheap energy

34
Osmosis

• Osmosis The natural tendency for a solvent to
  move through a membrane from a region of higher
  solvent concentration to a region of lower
  solvent concentration.
• animation

35
Reverse Osmosis

• Reverse osmosis
• Can reverse this process if you provide enough
  pressure to the salt water side
