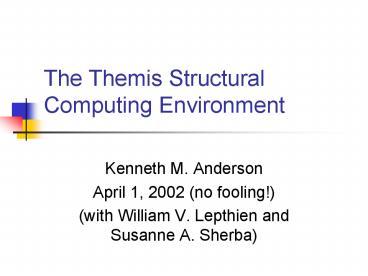

The Themis Structural Computing Environment

1
The Themis Structural Computing Environment

• Kenneth M. Anderson
• April 1, 2002 (no fooling!)
• (with William V. Lepthien and Susanne A. Sherba)

2
Overview

• History of Structural Computing
• Themis Structural Computing Environment
• Structure Templates
• Structure Transformations
• InfiniTe Prototype, Take 2
• Current Status and Future Work

3
History of Structural Computing

• 1988 Keynote Speech by Norman Meyrowitz The
  Missing Link Why Were All Doing Hypertext
  Wrong
• Bemoaned incompatible hypertext systems
• 1989 Open Hypermedia Research Begins
• Amy Pearl publishes Suns Link Service
• 1990s Open Hypermedia Systems flourish
• DHM, Microcosm, HOSS, Hyperform, Chimera
• 1997 As We Should Have Thought
• call to arms for structural computing by
  Nürnberg
• 1999 First International Workshop on Structural
  Computing
• in Darmstadt, Germany
• 2000 and 2001 workshops also held

4
In a Nutshell (Set-Up)

• Open hypermedia developed sophisticated
  technology to manage
• navigational hypermedia structures
• composite, node, anchor, link
• that made it easy for these structures to be
• persistent, distributed, scalable,
  collaboratively (both asynchronously and
  synchronously) accessible
• in an open framework that enabled integration
  into multiple applications

5
In a Nutshell (Punch Line)

• Structural Computing will develop sophisticated
  technology to manage
• structures for domain X, domain Y, domain Z,
• that made it easy for these structures to be
• persistent, distributed, scalable,
  collaboratively (both asynchronously and
  synchronously) accessible
• in an open framework that enables integration
  into multiple applications
• and also allows integration of structures across
  domains
• and the specification of services that are
  structure aware
• and advanced services for developing structures
• and

6
Architectural Perspective on Structural Computing
UI
HyperTies,HyperCard, etc.
Applications
Applications
Structures/Services

HyperBase
Database
Database
1980s Monolithic Hypermedia Systems
late1980s HyperBase Systems
1990s Open Hypermedia Systems
late 1990s Component-Based Open Hypermedia Systems
7
Structural Computing Research

• Understanding of Domains
• Software Engineering Anderson99, Anderson00
• Examples of Structural Computing
• Structure Servers
• Construct Component-Based OHS
• work by Nürnberg, Wiil, and Hicks
• Support for multiple hypermedia domains
• Tools to automatically generate new structure
  servers -gt UML Class Diagrams as input

8
Themis SC Environment

• Structural computing environment focused on
  structure templates and structure transformation
• will focus on services in Themis 2.0
• Extend vs. Generate
• spec. -gt structure server (Construct)
• structure server -gt customized structure server
  (Themis)
• start with generic structure server and make it
  easy to define new structures provide basic
  services help automate structure transformation

9
Themis Framework
Framework consists of only 5 conceptual
entities Atoms are containers of domain-specific
data (this data is opaque to Themis) Collections
can contain zero or more Atoms Both atoms and
collections have sets of attributes attribute
values can be standard primitive types or other
Elements
10
Themis Structure Server

• Provides persistence, distribution, and naming
  services over Themis Framework
• Implementation adds Repository, Id, and Set
  classes to Framework
• Repository class provides search and query API,
  extension mechanism API, and ability to create
  multiple repositories of Elements and Attributes
  in a single Themis structure server
• Id provides global identifier for each Element
• Set provides means for returning results of
  queries
• Find me all Atoms whose attribtue type equals
  Context
• Set implements find as well, so queries can be
  refined

11
More on Find

• Find is implemented by searching on attribute
  values
• query is a set of attributes
• if attribute has name, but no value, then all
  elements with an attribute that matches the
  specified name are returned
• give me all atoms which have a size attribute
• otherwise, if attribute has name and value, then
  elements with named attributes whose value
  equals the query value are returned
• give me all atoms whose size attribute equals
  10
• if equals returns false, Java reflection
  mechanism is used to determine if attribute value
  supports a Themis-defined match operation
• if so, then all elements with named attributes
  whose value matches the query value are
  returned
• Themis will provide regular expression matching
  of Strings and relational matching of Integers
  with this mechamism

12
Extension Mechanism API

• To enable an open set of extensibility mechanisms
  in Themis, APIs for extensibility mechanisms are
  dynamically loaded
• Example
• templates tAPI (templates)Repository.getAPI(
  edu.colorado.cs.serl.themis.templates)
• Collection c (Collection)tAPI.newInstance(
  myTemplate)
• First two extensibility mechanisms
• structure templates
• structure transformation

13
Structure Templates

• Template API allows common arrangements of atoms,
  collections, and attributes to be named and
  instantiated on demand
• reduces need for data structure creation code
• simply define template once and instantiate as
  needed
• Template API uses template by example approach
• call beginTemplate create structure call
  endTemplate
• newInstance creates a new instance of the named
  template with all atoms, collections, and
  attributes specified in the template created with
  default values
• if newInstance is called within
  beginTemplate/endTemplate pair, then it adds a
  reference to the template in the structure being
  defined allows templates to build on other
  templates

14
Creating a Structure without Templates

• Shipment createShipment(
• int src, int dest,
• Products prods, Date shipDate)
• Attribute sd new Attribute(shipDate,
  shipDate)
• Attribute ad new Attribute(arrivalDate,
  null)
• Attribute sn new Attribute(name,
  sourceWarehouse)
• Attribute dn new Attribute(name,
  destinationWarehouse)
• Atom sw (Atom)new AtomId() Atom dw
  (Atom)new AtomId()
• sw.addAttribute(sn) sw.setObject(new
  Integer(src))
• dw.addAttribute(dn) dw.setObject(new
  Integer(dest))
• Collection shipment (Collection)new
  CollectionId()
• shipment.addAttribute(sd) shipment.addAttribute(
  ad)
• shipment.add(sw) shipment.add(dw)
  shipment.add(prods)
• return (Shipment)shipment

15
Define Template

• create a one shot program that
• connects to Themis structure server
• beginTemplate(shipment)
• executes code from previous slide with following
  changes
• substitute null for all attribute values that
  depend on parameters
• remove calls to set objects of each atom
• remove call to add Products collection
• end template(passing shipment Collection)
• disconnects from Themis

16
Creating Structure with Templates

• Shipment createShipment(
• int src, int dest,
• Products prods, Date shipDate)
• Collection shipment (Collection)templateAPI.newI
  nstance(shipment)
• shipment.setAttributeValue(shipDate, sd)
• ((Atom)shipment.getMemberAtIndex(1)).setObject(new
  Integer(src))
• ((Atom)shipment.getMemberAtIndex(2)).setObject(new
  Integer(dest))
• shipment.add(prods)
• return (Shipment)shipment

17
Structure Transformation

• Provide extensiblity mechanism that makes it
  possible to convert an instance of one template
  into an instance of another template
• Supported via plug-in mechanism
• Plug-ins must implement ThemisTransformation
  interface
• String fromTemplate() returns source template
• String toTemplate() returns destination template
• Element transform(Element) - contains code to do
  transformation
• transformationAPI then provides the following
  operation
• Element transform(String from, String to, Element
  root)

18
Themis Architecture
Client 1
Client 2
Client 3
Client Interface
Client Interface
Client Interface
Connection to Repository C
Connection to Repository A
Connection to Repository B
Themis Server
Server Interface
Atom
Collection
Object
Repository
Database Interface
DBMS
Repository C
Repository B
Repository A
19
InfiniTe Prototype, Take 2

• We are redesigning InfiniTe (our information
  integration environment) to make use of Themis
• abandoning the XML-based repository used in the
  first InfiniTe prototype
• Why?
• Code of integrators and translators too closely
  tied to structure of XML documents
• if structure changes, so do integrators and
  translators

20
Initial Results

• Structure-based approach to repository is leading
  to code savings in InfiniTe
• In XML-based prototype
• Keyword Integrator (146 lines of code)
• Text Translator (74 lines of code)
• In Themis-based prototype
• Keyword Integrator (97 lines of code, 34
  savings)
• Text Translator (54 lines of code, 27 savings)
• Examples

21
Current Status / Future Work

• Current Status
• Prototype Implementation has begun
• Structure server implemented on top of relational
  database (using JDBC) support for transactions
  included
• Themis Atom and Atom Objects implemented
• Atom objects are serialized, stored as blobs
• Collections, Attributes, Sets, and Find operation
  are next
• Apaches XML-RPC being used as network protocol
• Future Work
• Structure-Aware Services
• Generation of Themis servers configured for
  particular types of non-functional requirements
