SPINS: Security Protocols in Sensor Networks

1

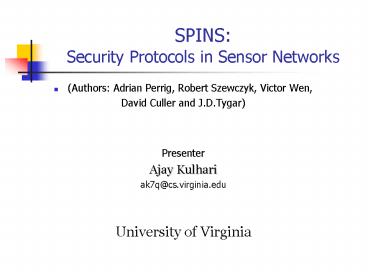

SPINS Security Protocols in Sensor Networks

• (Authors Adrian Perrig, Robert Szewczyk, Victor
  Wen,
• David Culler and J.D.Tygar)
• Presenter
• Ajay Kulhari
• ak7q_at_cs.virginia.edu
• University of Virginia

2
Outline

• Overview
• Contribution
• SPINS security building blocks
• Applications
• Comparison with other papers
• Evaluation
• Discussion Conclusion

3
Overview Security in WSNs

• What and Whys
• Confidentiality
• Authentication
• Integrity
• Fairness
• Challenges
• Limited resources
• Every node can be a target
• No trusted peer
• Decentralized and cooperative participation of
  all nodes

4
Communication scenario

• Confidentiality

Node2
Base Station
Msg
Node1
Adversary
5
Communication Scenario

• Integrity

Base Station
Msg1
Msg1
Node1
Adversary
6
Communication Scenario

• Authenticity

I am the Base Station, Change these parameters
Node 1
Base Station
Node 2
Adversary
Node 3
Node 4
7
Overview Security in WSNs

• What and Whys
• Confidentiality
• Authentication
• Integrity
• Fairness
• Challenges
• Limited resources
• Every node can be a target
• No trusted peer
• Decentralized and cooperative participation of
  all nodes

8
Overview

• Trust Assumptions
• No trust assumption on communication
  infrastructure
• No hardware security assumptions
• Nodes are un-trusted
• Nodes trust the Base Station
• Secret master key is shared
• Nodes trust themselves (clock, sensors)
• Threat Model
• False Identity
• Eavesdropping
• Replay

9
Overview

• Security Goals
• Data Confidentiality
• Two Party data authentication Integrity
• Data Freshness
• Efficient broadcast authentication
• Energy efficiency by minimizing communication

10
Novelty Contribution

• Novelty in showing that security can be
  incorporated in sensor networks with proper
  choice of crypto and protocol design.
• Designed the first set of security protocols
  satisfying most of the WSNs constrained nature.
• The protocols will serve as base protocols for
  more sophisticated security services

11
System Assumptions

• Communication patterns
• Frequent node-base station exchanges
• Frequent network flooding from base
• Node-node interactions infrequent
• Base station
• Sufficient memory, power
• Shares secret key with each node
• Node
• Limited resources, limited trust

12
SPINS Building Blocks

• SNEP
• Sensor-Network Encryption Protocol
• Secures point-to-point communication
• ?TESLA
• Micro Timed Efficient Stream Loss-tolerant
  Authentication
• Provides broadcast authentication

13
First Protocol SNEP

• Use simple symmetric encryption function (RC5)
  provides
• Encryption Decryption
• Message Authentication Code
• Pseudorandom number generation
• Hash Function
• Secrecy and Confidentiality
• Semantic security against chosen ciphertext
  attack (strongest security notion for encryption)
• Authentication
• Replay protection

14
Block Cipher RC5

• Main Feature Data dependent Rotation
• Parameterized for word size, number of rounds,
  length of the key
• Low memory requirements
• Subset of RC5 with 40 reduction in code size
• Reused to save memory

Plaintext
1100 1100
RC5 block cipher
Ciphertext
Key
10001101
11010010
15
Key Generation/Setup

• Nodes and base station share a master key
  pre-deployment
• Other keys are bootstrapped from the master key
• Encryption key
• Message Authentication code key
• Random number generator key

Counter
KeyEncryption
RC5 Block Cipher
KeyMAC
Key Master
Keyrandom
16
SNEP Encryption (CTR Mode)
Counter1
Counter1

• E DltKeyencryption, countergt
• Counter is shared state
• RC5 generates random data to XOR with message
• Weak freshness guaranteed
• Try different counter if messages are lost
• Last resort explicit resynchronization of
  counter
• Decryption is identical

RC5 Block Cipher
RC5 Block Cipher
KeyEncryption
Keydecryption

Pj1
Cj1

Pj1
17
SNEP MAC (CBC Mode)

• Message Authentication Code MAC(KMAC, X)
• MAC uses Cipher Block Chaining (CBC)
• Every block of input affects output

X1
X2
XN


RC5
RC5
RC5
KMAC
KMAC
KMAC
MAC
18
Authentication, Confidentiality

• Without encryption, can have authentication only
• For encrypted messages, the counter is included
  in the MAC
• Base station keeps current counter for every node

Node B
Node A
Msg, MAC(KMAC, Msg)
MsgltKencryption, Counter), MAC(KMAC, Counter
MsgltKencryption, Countergt)
19
Strong Freshness

• Nonce generated randomly
• Sender includes Nonce with request
• Responder include nonce in MAC, but not in reply

Node B
Node A
Request, Nonce
ResponseltKencryption, Counter), MAC(KMAC,
Nonce Counter ResponseltKencryption,
Countergt)
20
Counter Exchange Protocol

• Bootstrapping counter values
• To synchronize
• A ?B NA
• B ?A CB, MAC(KBA,NA CB).

Node B
Node A
CA
CB, MAC(KBA, CACB)
MAC(KAB, CACB)
21
?TESLA (micro TESLA)

• TESLA efficient source authentication in
  multicast for wired networks.
• µTESLA authentication in broadcast for WSNs.
• µTESLA removes or adapts the expensive features
  of TESLA
• Asymmetric digital signature is replaced by
  symmetric key
• Frequency of key disclosure is greatly lessened.
• Only the Base Station stores the key chain.
• Inter-node communication is made possible by the
  Base Station

22
Broadcast Authentication

• Broadcast is basic communication mechanism
• Sender broadcasts data
• Each receiver verifies data origin

Sender
R3
R2
M
M
M
M
R1
R4
23
Simple MAC Insecure for Broadcast
K
Sender
M, MAC(K,M)
M, MAC(K,M)
R1
R4
K
K
M, MAC(K,M)
24
?TESLA Authenticated Broadcast

• Uses purely symmetric primitives
• Asymmetry from delayed key disclosure
• Self-authenticating keys
• Requires loose time synchronization
• Use SNEP with strong freshness

25
Key Setup

• Main idea One-way key chains
• K0 is initial commitment to chain
• Base station gives K0 to all nodes

F(Kn)
F(K1)
F(K2)
Kn
Kn-1
K1
K0
.
X
26
Broadcast

• Divide time into intervals
• Associate Ki with interval i
• Messages sent in interval i use Ki in MAC
• Ki is revealed at time i ?
• Nodes authenticate Ki and messages using Ki

K0
K1
K2
K3

0 1 2
3 4 time
27
Bootstrapping new receiver

• Node sends random Nonce to base station
• Base station responds with bootstrap
• Tnow Time at base station
• Ki Previously disclosed key
• Ti Starting time of interval i
• Tint Interval duration
• ? Disclosure delay

Node A
Base Station
28
Broadcasting Authenticated Packets

• In interval j, base station broadcasts Msg
• Node verifies that key Kj has not been disclosed
  yet
• Node stores Msg

Node A
Base Station
Nonce
Tnow, Ki, Ti, Tint, ?, MAC(Kmaster, Nonce Tnow
)
29
Node authenticating packets

• After disclosure interval ?, base station
  broadcasts Kj
• Node verifies that F(Kj) Kj-1, or F(F(Kj))
  Kj-2, etc.
• Node verifies MAC of Msg
• Node delivers Msg

Node A
Base Station
Nonce
Tnow, Ki, Ti, Tint, ?, MAC(Kmaster, Nonce Tnow
)
Msg, MAC(Kj, Msg)
30
Perfect robustness to packet loss
K2
K3
K4
K5
K1
t
Time 2
Time 3
Time 4
Time 5
31
Node Broadcast

• By request
• Node requests key from base station
• Node broadcasts using key
• Base station or Node reveal key later
• By proxy
• Node sends message to base station
• Base station broadcasts on nodes behalf

32
?TESLA Issues

• Important parameters time interval, disclosure
  delay
• Delay must be greater than RTT to ensure
  integrity
• Parameters define maximum delay until messages
  can be processed
• Nodes must buffer broadcasts until key is
  disclosed
• Requires loose time synchronization in network
• Base station commits to maximum number of
  broadcasts when forming chain
• When current chain is exhausted, all nodes must
  be bootstrapped with a new one

33
Authenticated Routing

• Simple Breadth-first search routing algorithm
• Routing scheme assumes bidirectional
  communication
• Base station periodically broadcasts beacon

BS
34
Authenticated Routing

• First reception of authenticated beacon during
  current routing interval defines parent
• At reception of a beacon, if its fresh then
  accept sender as its parent in the route and
  broadcast another beacon with the nodes id as
  sender id

BS
35
Authenticated Routing

• Messages are routed through parent towards base
  station
• Attacker cannot re-route arbitrary links

BS
36
Authenticated Routing

• How to ensure that routing request is from BS?
• Use ?TESLA key disclosure packet as routing
  beacon
• Reception of ?TESLA packet guarantees that its
  from BS and its fresh
• At each time interval, accept first node sending
  authenticated packet as parent

BS
37
Node to Node Key Agreement
Node A
Base Station
Node B
Random Nonce
Make random KAB
Lots of Communication
38
Comparison with other papers

• Routing
• Trajectory based Forwarding
• SPEED
• Localization
• DV-Hop
• Needed Node to Node broadcast authentication
• Secure verification of local claims

39
Trajectory Based Forwarding

• Adversary can play with integrity of the curve
  function.

Forbidden Zone
Intermediate Destination
Destination
Straightforward Path
Source
40
SPEED

• Authenticate node before using its table for
  routing.

Strong Back-Pressure (Congestion)
Uniform Back-Pressure
41
DV-hop Propagation Method

• Lot of trust has been placed on seed nodes.
• uTESLA protocol can be used for node to node
  authentication.

Actual position
x1,y1,0
seed
x1,y1,4
x2,y2,2
seed
x2,y2,0
Actual position
42
Comparison with other papers

• Power Control
• Differentiated Surveillance
• Change parameters on authentication
• Use uTESLA authenticated broadcast
• SPAN
• Uses broadcast messages to discover and react to
  change in topology
• Messages need to be authentic for proper power
  saving

43
SPAN

• Uses broadcast messages to discover and react to
  change in topology

4
1
5
2
2
6
7
1
3
3
7
5
6
Coordinator
4
Node
44
Comparison with security Papers

• Security
• Efficient Distribution of key chain commitments
• Removes the requirement of unicast-based
  initialization with sensor nodes
• Random key pre-distribution schemes
• Efficient node to node authentication without
  involving base station

45
Evaluation (Energy cost)

• Highest overhead is from transmission of 8-byte
  MAC per packet

46
Evaluation
47
SPINS Summary

• Rigid communication patterns
• Unique ID required
• Time synchronized network
• Pre-loaded master keys
• Memory Usage master keys counters, broadcast
  key chain
• Power Usage all nodes communicate with it, or
  use it to setup keys

48
Discussion Drawbacks

• The ?TESLA protocol lacks scalability
• require initial key commitment with each nodes,
  which is very communication intensive
• SPINS uses source routing, so vulnerable to
  traffic analysis
• No mechanism to determine and deal with
  compromised nodes.

49
Discussion Risks Un-addressed

• Information leakage through covert channels
• Denial of service attacks
• Speeding up / delaying packets does not help
• No Non-repudiation
• As there is no digital signature
• accuracy of sensor data
• truthfulness of data is completely separate from
  the authentication, confidentiality, and
  freshness
• addressed by data analysis techniques

50
Conclusion

• Interesting security protocols feasible in sensor
  networks
• Broadcast authentication in resource-constrained
  environments
• Minimal security overheads
• Computation, memory, communication
• Relevance to future sensor networks
• Energy limitations persist
• Tendency to use minimal hardware
• Applicable to other communication systems

51
Future work

• Security architecture for peer-to-peer
  communication
• Interaction between encryption and data coding
  protocols
• Interaction between authentication and
  aggregation within the sensor network
