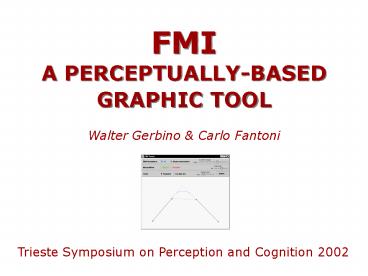

FMI A PERCEPTUALLY-BASED GRAPHIC TOOL
Walter Gerbino Carlo Fantoni
Trieste Symposium on Perception and Cognition 2002
2
MODELING MISSING CONTOURS
BY A PERCEPTUAL ALGORITHM
3
THE INTERPOLATION REGION
THE INTERPOLATION REGION
4
THE INTERPOLATION REGION
Opposite GC-MP angles
5
THE INTERPOLATION REGION
THE INTERPOLATION REGION
Alternate GC-MP angles
6
VISUAL INTERPOLATION
7
VISUAL INTERPOLATION
VISUAL INTERPOLATION
VI can be modeled as a compromise between
8
VISUAL INTERPOLATION
VISUAL INTERPOLATION
VI can be modeled as a compromise between Good
Continuation (GC)
9
VISUAL INTERPOLATION
VISUAL INTERPOLATION
VI can be modeled as a compromise between Good
Continuation (GC) and Minimal Path (MP)
10
THE ROTATING FAN ILLUSION
Fantoni Gerbino (under review)
11
Good Continuation Minimal Path
12
AN EVIDENCE
The interpolated compromise
13
INTERPOLATION TRAJECTORIES
Results from the chaining of vector sums of GC-
and MP-fields
14
CONTEXT SENSITIVITY
GCMP
15
CONTEXT SENSITIVITY
GCMP -1.00
16
CONTEXT SENSITIVENESS
CONTEXT SENSITIVITY
GCMP -0.91
17
CONTEXT SENSITIVENESS
CONTEXT SENSITIVITY
GCMP 0.51
18
CONTEXT SENSITIVENESS
CONTEXT SENSITIVITY
GCMP 0.91
19
CONTEXT SENSITIVENESS
CONTEXT SENSITIVITY
GCMP 1.00
20
THE FMI PROTOTYPE
21
User input Dots 1 2 (fragment 1) Dots 3 4
(fragment 2) Endpoints Dots 2 3
22
GC_MP contrast variation
23
Gap size variation
24
Asymmetry variation
25
Critical asymmetry case
The IR goes to zero
26
Interpolation angle variation
27
Critical case of interpolation angle
The IR diverge
28
Alternate GC-MP angles
29
Critical case
30
