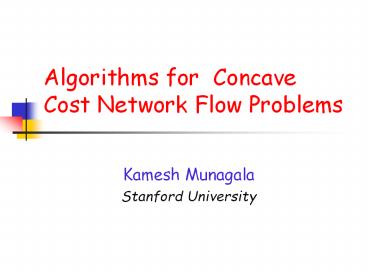

Algorithms for Concave Cost Network Flow Problems

1
Algorithms for Concave Cost Network Flow Problems

• Kamesh Munagala
• Stanford University

2
Talk Outline

• Motivation via simple example
• Concave cost flow problem
• Formal problem statement
• Simple Randomized Algorithm
• Special Cases
• Motivation from networking problems
• Our results
• The buy-at-bulk algorithm

3
Cost Structures in Network Design

4
Warehouse Location
5
Decision Problem

• Costs
• Opening and operating warehouse
• Shipping demand
• Tradeoff Lots of warehouses implies low shipping
  cost
• Optimize Linear combination of costs
• Decisions
• How many warehouses to open
• Where to open warehouses
• How to ship to outlets

6
Warehouse Cost

• Minimum fixed cost for operating warehouse
• Additional cost depending on storage capacity
  needed
• Typically reduces as capacity increases
• Example Staff does not double with doubling
  capacity

7
Transportation Cost

• Linear in distance to outlet
• Linear in load transported to outlet
• Minimum fixed cost for one truck

8
Features of Cost Structure

• Economies of Scale
• More capacity cheaper per unit demand
• Applies to warehouse costs
• Discreteness in quantity
• Cannot purchase arbitrarily small capacity
• Applies to warehouse and transportation costs
• General phenomena in network design
• Costs of caches, routers and cables obey these
  properties

9
Modeling Allocation Costs
Cost

• Cost is
• non-decreasing
• concave
• function of demand serviced

0
Demand
10
Concave Cost Flow Problem

11
Concave Cost Flow Problem

• Given
• Undirected network
• Cost on edges
• Concave function of demand
• Many demand nodes
• Distinguished sink node
• Compute
• Minimum cost flow

Sink
Sources
12
Facility Location
Warehouse cost f(i)
Warehouse i
Transportation Cost c(i,j)
Outlet j Demand d(j)
Optimize ? c(i,j) d(j) ? f(i)
13
Modeling Facility Location
Sink
f(i)
i
c(i,j)
d(j)
Optimize ? c(i,j) d(j) ? f(i)
14
Solution
Sink
15
Other Special Cases

• Steiner Trees
• Probabilistic Steiner Trees KM00
• Multilevel Facility Location
• Buy at Bulk Network Design SCRS97
• Applications in network design
• Multicast tree design
• Hierarchical placement of caches and routers
• Placement of web content in caches
• Buying cables to provision bandwidth

16
Hardness of the Flow Problem

• Facility location is NP-Hard
• Steiner Tree Problem
• Fixed cost for using edge
• NP-Hard Karp. 1972
• Approximation algorithms
• Provably close to optimal solution on all
  instances
• Example Cost ? 5 OPT
• Polynomial running time

Cost
1
0
Flow
Sink
3
1
2
Flow 1
1
Cost 5
17
Previous Results

• Operations Research
• Uncapacitated Fixed Charge Problem
• Magnanti, Mireault, Wong. 1986
• Hochbaum, Segev. 1989
• Ortega, Wolsey. 2000
• No approximation algorithms known for this problem

18
Our Result

• Logarithmic approximation
• Meyerson, Munagala, Plotkin. 2000
• Properties of our algorithm
• Simple to implement
• Uses shortest path and greedy matching
  computations
• Efficient in practice
• Approximation ratio much better on real data
• Subsequent Results
• Best approximation result till date
• De-randomization Chekuri, Khanna, Naor.
  2001
• Best hardness 1.47 Guha, Khuller. 1998

19
Basic Algorithm

• Merging demand reduces cost
• For every pair (u,v) compute min cost path in
  graph to send demand from u to v or vice versa
• Let this be cost of (u,v) edge
• Compute min cost matching in this complete graph
• Pair demands using this matching
• Choose one node in pair as center and send demand
  to it
• Number of demand nodes halves
• Repeat logarithmic times

20
Proof Idea

• The optimal solution encodes a matching of nodes
• Implies cost of matching at most cost of optimal
  solution
• Marathe et al 1998

Matching in OPTs solution
21
Problem too hard?

• Which node is cheaper to route to depends on
  demand being routed
• Hard to make decisions about merging a whole
  group of nodes
• Not enough structure in solution
• Except for the fact that it encodes a matching
• Best hardness result known is only 1.47
• Guha, Khuller. 1998

22
Special Cases of Concave Cost Flow

23
Facility Location
Warehouse cost f(i)
Warehouse i
Transportation Cost c(i,j)
Outlet j Demand d(j)
Optimize ? c(i,j) d(j) ? f(i)
24
Previous Results

• Operations Research
• Kuehn, Hamburger. 1963
• Cornuejols, Fisher, Nemhauser. 1977
• Approximation Algorithms
• Guha, Khuller. 1998 (Lower bound
  1.47)
• Mahdian, Ye, Zhang. 2002 (1.52 approx)
• Fast combinatorial algorithms known
  CG99,JV99,AGKMMP01
• Applications
• Centroid based clustering
• Placement of caches and replicated data objects
• Minimize latency of user access

25
Our Result

• Novel variant of facility location
• Each facility needs to satisfy minimum amount of
  demand
• Load Balanced facility location
• Constant factor approximation algorithm
  KM00,GMM00
• Reduction to classical facility location
• Applications
• Subroutine in concave cost flow algorithms
• Solving clustering variants GM02
• Favor either large or small cluster sizes

26
Multilevel Facility Location
Production Units
g(k)
c(k,i)
Warehouses
f(i)
c(i,j)
Outlets
d(j)
2-level Warehouse Location
27
Previous Results

• Problem formulation
• Kaufman, vanden Eede. Hansen, 1977
• Factor 3 approximation
• Aardal, Chudak, Shmoys. 1999
• Exponential size linear program
• Can be solved using Ellipsoid algorithm
• Very inefficient in practice
• Application in networks
• Hierarchical placement of caches, switches and
  routers

28
Modeling as a Flow Problem
Two copies of the network
Outlets
f(i)
i
i
g(k)
Sink
k
c(i,j)
c(i,j)
Route flow from outlets to the sink node
29
Our Results

• Simple combinatorial algorithm
• 9 approximation GMM00
• Reduce to classical facility location
• Can now use very efficient algorithms
• Subsequent results
• 3.27 approximation
• Ageev, Ye, Zhang. 2002
• Combinatorial algorithm

30
Buy-at-bulk Network Design

• Provisioning cables to route data to core network
• Bandwidth cost obey economies of scale
• Cable types
• T1 1.5 Mbps 30/mile 20/Mbps/mile

• T3 44 Mbps 440/mile 10/Mbps/mile
• Cost of cables is a concave function
• Metrical special case
• Cost of bandwidth same per unit length everywhere
• Concave function same per unit length on all
  edges
• Salman, Cheriyan, Ravi, Subramanian. 1997

31
Why is this problem simpler?

• Notion of close-by
• If dist(a,b) lt dist(a,c)
• Cheaper to transport demand from a to b than to c
• Independent of demand transported
• Natural algorithm
• Merge close-by demands together
• Cheaper to transport this merged demand to a far
  away place
• General concave cost flow
• Closeness is a function of demand transported

32
Recursive Metric Partitioning

• Just focus on the metric space
• Ignore the cost function completely
• Recursively partition graph based on closeness
  (randomized)
• Partitions have smaller diameter than original
  graph
• Bartal96, Bartal98, CCGG98, CCGGP98
• Nodes in different partitions far away from each
  other w.h.p.
• For each partition, have a center node
• Collect all demand within a partition at center
  node
• Send this demand to the center of the parent of
  this partition
• Awerbuch, Azar. 1997

33
Partitioning
Diameter of Graph D
Diameter lt D/2
w.h.p. Distances gt D/log n
34
Routing
Route from centers of children to center of parent
35
Discussion

• Paradigm of aggregation
• Group together close-by demand nodes
• Reduce cost of transportation
• Problems with approach
• Same partition for all cost functions
• Some close-by nodes bound to end up in different
  partitions
• Problem even if graph is just a cycle
• Worst case logarithmic performance expected in
  practice

36
Other Approaches

• Linear Programming
• Andrews and Zhang. 1998
• Improve the logarithmic ratio for special cases
• Usually produces optimal integer solutions in
  practice
• The size of the program is huge
• N3 variables
• Inefficient in practice
• Simple algorithms known for very special cases
• Salman, Cheriyan, Ravi, Subramanian. 1997

37
Our Solution Idea

• Use cost function to construct the partitioning
• Say we have T1 and T3 lines
• Say cheaper to use T3 line if bandwidth gt 10Mbps
• Then, we should find
• Min cost way of aggregating demands using T1
  lines
• Each aggregated node receives 10Mbps bandwidth
• Min cost way of connecting aggregated nodes to
  sink node
• Construct partitioning bottom-up instead of
  top-down
• Properties of partition
• Close-by demands still grouped together
• The cost function decides group boundaries

38
First Aggregation Step
Partition assuming T3 line becomes cheaper at 10
Mbps bandwidth
Aggregation point
Groups with 10 Mbps total bandwidth
T1 lines
39
Complete Solution
T3 lines
40
Constructing the Partitions

• Given
• A set of demand nodes
• Length metric on edges
• Select Set of aggregation points
• Send at least U demand per point
• Route along shortest paths
• Minimize total routing cost
• Load Balanced Facility Location
• O(1) approximation KM00,GMM00
• Iteratively construct larger partitions

Demand gt U
41
One Issue

• Routing with a cable type need not be along
  shortest paths

Capacity 1 Cost/Length 1
1
1
0.5
Case 1 Cost 1.5 Cost 2
Demand 0.5 Case 2 Cost 2.5
Cost 2 Demand 1.0
42
Another Issue

• We are constructing partition bottom-up
• Optimal partition could look different
• If we make error in first grouping, error
  propagates upward
• How do we bound cost against optimal cost
• Scaling technique
• Observation Error propagates only if similar
  cable types exist
• Eliminate all cable types that look similar
  except one
• Partitioning at every stage close to optimal
  partitioning
• Constant factor approximation GMM00,GMM01

43
Properties of Algorithm

• Simple to implement
• Uses facility location and Steiner trees as
  subroutines
• Very efficient in practice
• Preliminary experimental results
• Real ISP and geographic data
• Real cable types and costs
• At most 10 away from optimal solution
• Subsequent work
• Talwar. 2002
  (213 approx)
• Gupta, Kumar, Roughgarden. 2003
  (72 approx)
• Based on the ideas in our algorithm

44
Open Problems

• Better approximation ratios
• Buy-at-bulk 72 GKR03
• Concave cost flow Logarithmic approximation
  MMP00
• Multiple sink concave cost flow
• Aggregation paradigm fails!
• Buy-at-bulk problem
• Logarithmic approximation AA97
• Aggregation paradigm applicable to other problems?

45
Acknowledgements

• Research collaborators
• Serge Plotkin, Stanford University
• Abhiram Ranade, IIT Bombay
• Sudipto Guha and Adam Meyerson
• Matthew Andrews, Bell Laboratories
• Pat Brown, Stanford University School of Medicine
• Ramesh Hariharan, Strand Genomics Pvt. Ltd.
• Zoe Abrams, Ashish Goel, Baruch Schieber, Debasis
  Mitra, Devavrat Shah, Jochen Konemann, Maxim
  Sviridenko, Rina Panigrahy, Rob Tibshirani,
  Shankar Krishnan, Suresh Venkat and Tracy Kimbrel

46
Acknowledgements

• Theory wing
• Mayur Datar, Aris Gionis, Gagan Aggarwal, Keyvan
  Mohajer, Liadan OCallaghan, Majid Emami, Moses
  Charikar and Piotr Indyk
• Friends
• Dhananjay Gore, Rohit Nabar, Aditi Nabar, Kumar
  Muthuraman, Mohan Lakhamraju, Nandan Das,
  Prashanth Hande and Sameer Siruguri
• Parents and Roopa
