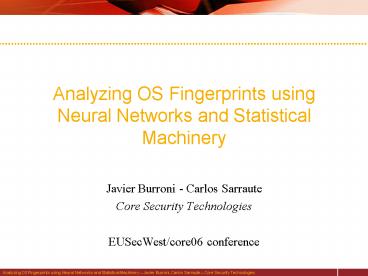

Analyzing OS Fingerprints using Neural Networks
and Statistical Machinery

• Javier Burroni - Carlos Sarraute
• Core Security Technologies
• EUSecWest/core06 conference

2
1. Introduction2. DCE-RPC Endpoint mapper3.
OS Detection based on Nmap signatures4.
Dimension reduction and training
OUTLINE
3
1. Introduction2. DCE-RPC Endpoint mapper3.
OS Detection based on Nmap signatures4.
Dimension reduction and training
4
OS Identification

• OS Identification OS Detection OS
  Fingerprinting
• Crucial step of the penetration testing process
• actively send test packets and study host
  response
• First generation analysis of differences between
  TCP/IP stack implementations
• Next generation analysis of application layer
  data (DCE RPC endpoints)
• to refine detection of Windows versions /
  editions / service packs

5
Limitations of OS Fingerprinting tools

• Some variation of best fit algorithm is used to
  analyze the information
• will not work in non standard situations
• inability to extract key elements
• Our proposal
• focus on the technique used to analyze the data
• we have developed tools using neural networks
• successfully integrated into commercial software

6
1. Introduction2. DCE-RPC Endpoint mapper3.
OS Detection based on Nmap signatures4.
Dimension reduction and training
7
Windows DCE-RPC service

• By sending an RPC query to a hosts port 135
• you can determine which services or programs are
  registered
• Response includes
• UUID universal unique identifier for each
  program
• Annotated name
• Protocol that each program uses
• Network address that the program is bound to
• Programs endpoint

8
Endpoints for a Windows 2000 Professional edition
service pack 0

• uuid"5A7B91F8-FF00-11D0-A9B2-00C04FB6E6FC"
• annotation"Messenger Service"
• protocol"ncalrpc" endpoint"ntsvcs"
  id"msgsvc.1"
• protocol"ncacn_np" endpoint"\PIPE\ntsvcs"
  id"msgsvc.2"
• protocol"ncacn_np" endpoint"\PIPE\scerpc"
  id"msgsvc.3"
• protocol"ncadg_ip_udp"
  id"msgsvc.4"
• uuid"1FF70682-0A51-30E8-076D-740BE8CEE98B"
• protocol"ncalrpc" endpoint"LRPC"
  id"mstask.1"
• protocol"ncacn_ip_tcp"
  id"mstask.2"
• uuid"378E52B0-C0A9-11CF-822D-00AA0051E40F"
• protocol"ncalrpc" endpoint"LRPC"
  id"mstask.3"
• protocol"ncacn_ip_tcp"
  id"mstask.4"

9
Neural networks come into play

• Its possible to distinguish Windows versions,
  editions and service packs based on the
  combination of endpoints provided by DCE-RPC
  service
• Idea model the function which maps endpoints
  combinations to OS versions with a multilayer
  perceptron neural network
• Several questions arise
• what kind of neural network do we use?
• how are the neurons organized?
• how do we map endpoints combinations to neural
  network inputs?
• how do we train the network?

10
Multilayer Perceptron Neural Network
413 neurons
42 neurons
25 neurons
11
3 layers topology

• Input layer 413 neurons
• one neuron for each UUID
• one neuron for each endpoint corresponding to the
  UUID
• handle with flexibility the appearance of an
  unknown endpoint
• Hidden neuron layer 42 neurons
• each neuron represents combinations of inputs
• Output layer 25 neurons
• one neuron for each Windows version and edition
• Windows 2000 professional edition
• one neuron for each Windows version and service
  pack
• Windows 2000 service pack 2
• errors in one dimension do not affect the other

12
What is a perceptron?

• x1 xn are the inputs of the neuron
• wi,j,0 wi,j,n are the weights
• f is a non linear activation function
• we use hyperbolic tangent tanh
• vi,j is the output of the neuron

Training of the network finding the weights for
each neuron
13
Back propagation

• Training by back-propagation
• for the output layer
• given an expected output y1 ym
• calculate an estimation of the error
• this is propagated to the previous layers as

14
New weights

• The new weights, at time t1, are
• where

learning rate
momentum
15
Supervised training

• We have a dataset with inputs and expected
  outputs
• One generation recalculate weights for each
  input / output pair
• Complete training 10350 generations
• it takes 14 hours to train network (python code)
• For each generation of the training process,
  inputs are reordered randomly (so the order does
  not affect training)

16
Sample result of the Impact module

• Neural Network Output (close to 1 is better)
• Windows NT4 4.87480503763e-005
• Editions
• Enterprise Server 0.00972694324639
• Server -0.00963500026763
• Service Packs
• 6 0.00559659167371
• 6a -0.00846224120952
• Windows 2000 0.996048928128
• Editions
• Server 0.977780526016
• Professional 0.00868998746624
• Advanced Server -0.00564873813703
• Service Packs
• 4 -0.00505441088081
• 2 -0.00285674134367
• 3 -0.0093665583402
• 0 -0.00320117552666
• 1 0.921351036343

17
Sample result (cont.)

• Windows 2003 0.00302898647853
• Editions
• Web Edition 0.00128127138728
• Enterprise Edition 0.00771786077082
• Standard Edition -0.0077145024893
• Service Packs
• 0 0.000853988551952
• Windows XP 0.00605168045887
• Editions
• Professional 0.00115635710749
• Home 0.000408057333416
• Service Packs
• 2 -0.00160404945542
• 0 0.00216065240615
• 1 0.000759109188052
• Setting OS to Windows 2000 Server sp1
• Setting architecture i386

18
Result comparison

• Results of our laboratory

19
Introduction2. DCE-RPC Endpoint mapper3. OS
Detection based onNmap signatures4. Dimension
reduction and training
20
Nmap tests

• Nmap is a network exploration tool and security
  scanner
• includes OS detection based on the response of a
  host to 9 tests

21
Nmap signature database

• Our method is based on the Nmap signature
  database
• A signature is a set of rules describing how a
  specific version / edition of an OS responds to
  the tests. Example
• Linux 2.6.0-test5 x86
• Fingerprint Linux 2.6.0-test5 x86
• Class Linux Linux 2.6.X general purpose
• TSeq(ClassRIgcd73C6BIPIDZTS
  1000HZ)
• T1(DFYW16A0ACKSFlagsASOpsMNNTNW)
• T2(RespYDFYW0ACKSFlagsAROps)
• T3(RespYDFYW16A0ACKSFlagsASOpsMNNTNW)

• T4(DFYW0ACKOFlagsROps)
• T5(DFYW0ACKSFlagsAROps)
• T6(DFYW0ACKOFlagsROps)
• T7(DFYW0ACKSFlagsAROps)
• PU(DFNTOSC0IPLEN164RIPTL148RIDERIPCKEU
  CKEULEN134DATE)

22
Wealth and weakness of Nmap

• Nmap database contains 1684 signatures
• Nmap works by comparing a host response to each
  signature in the database
• a score is assigned to each signature
• score number of matching rules / number of
  considered rules
• best fit based on Hamming distance
• Problem improbable operating systems
• generate less responses to the tests
• and get a better score!
• e.g. a Windows 2000 version detected as Atari
  2600 or HPUX

23
Symbolic representation of the OS space

• The space of host responses has 560 dimensions
• Colors represents different OS families

24
Picture after filtering irrelevant OS

• OS detection is a step of the penetration test
  process
• we only want to detect Windows, Linux, Solaris,
  OpenBSD, FreeBSD, NetBSD

25
Picture after separating the OS families
26
Distinguish versions within each OS family

• The analysis to distinguish different versions is
  done after we know the family
• for example, we know that the host is running
  OpenBSD and want to know the version

27
Hierarchical Network Structure

• Analyze the responses with different neural
  networks
• Each analysis is conditionned by the results of
  the previous analysis

Windows
DCE-RPC endpoint
Linux
kernel version
relevant
Solaris
version
OpenBSD
version
not relevant
FreeBSD
version
NetBSD
version
28
So we have 5 neural networks

• One neural network to decide if the OS is
  relevant / not relevant
• One neural network to decide the OS family
• Windows, Linux, Solaris, OpenBSD, FreeBSD, NetBSD
• One neural network to decide Linux version
• One neural network to decide Solaris version
• One neural network to decide OpenBSD version
• Each neural network requires special topology
  design and training!
• OpenBSD version network is trained with a dataset
  containing only OpenBSD host responses

29
Neural Network inputs

• Assign a set of inputs neurons for each test
• Details for tests T1 T7
• one neuron for ACK flag
• one neuron for each response S, S, O
• one neuron for DF flag
• one neuron for response yes/no
• one neuron for Flags field
• one neuron for each flag ECE, URG, ACK, PSH,
  RST, SYN, FIN
• 10 groups of 6 neurons for Options field
• we activate one neuron in each group according to
  the option
• EOL, MAXSEG, NOP, TIMESTAMP, WINDOW, ECHOED
• one neuron for W field (window size)

30
Example of neural network inputs

• For flags or options input is 1 or -1 (present
  or absent)
• Others have numerical input
• the W field (window size)
• the GCD (greatest common divisor of initial
  sequence numbers)
• Example of Linux 2.6.0 response
• T3(RespYDFYW16A0ACKSFlagsASOpsMNNTNW
  )
• maps to

31
Neural network topology

• Input layer of 560 dimensions
• lots of redundancy
• gives flexibility when faced to unknown responses
• but raises performance issues!
• dimension reduction is necessary
• 3 layers neural network , for example the first
  neural network (relevant / not relevant filter)
  has

input layer 96 neurons
hidden layer 20 neurons
output layer 1 neuron
32
Dataset generation

• To train the neural network we need
• inputs (host responses)
• with corresponding outputs (host OS)
• Signature database contains 1684 rules
• a population of 15000 machines needed to train
  the network!
• we dont have access to such population
• scanning the Internet is not an option!
• Generate inputs by Monte Carlo simulation
• for each rule, generate inputs matching that rule
• number of inputs depends on empirical
  distribution of OS
• based on statistical surveys
• when the rule specifies options or range of
  values
• chose a value following uniform distribution

33
1. Introduction2. DCE-RPC Endpoint mapper3.
OS Detection based on Nmap signatures4.
Dimension reduction and training
34
Inputs as random variables

• We have been generous with the input
• 560 dimensions, with redundancy
• inputs dataset is very big
• the training convergence is slow
• Consider each input dimension as a random
  variable Xi
• input dimensions have different orders of
  magnitude
• flags take 1/-1 values
• the ISN (initial sequence number) is an integer
• normalize the random variables

expected value
standard deviation
35
Correlation matrix

• We compute the correlation matrix R
• After normalization this is simply
• The correlation is a dimensionless measure of
  statistical dependence
• closer to 1 or -1 indicates higher dependence
• linear dependent columns of R indicate dependent
  variables
• we keep one and eliminate the others
• constants have zero variance and are also
  eliminated

expected value
36
Example of OpenBSD fingerprints

• Fingerprint OpenBSD 3.6 (i386)
• Class OpenBSD OpenBSD 3.X general purpose
• T1(DFNW4000ACKSFlagsASOpsMNWNNT)
• T2(RespN)
• T3(RespN)
• T4(DFNW0ACKOFlagsROps)
• T5(DFNW0ACKSFlagsAROps)
• Fingerprint OpenBSD 2.2 - 2.3
• Class OpenBSD OpenBSD 2.X general purpose
• T1(DFNW402EACKSFlagsASOpsMNWNNT)
• T2(RespN)
• T3(RespYDFNW402EACKSFlagsASOpsMNWNNT)

• T4(DFNW4000ACKOFlagsROps)
• T5(DFNW0ACKSFlagsAROps)

37
Relevant fields to distinguish OpenBSD versions
38
Relevant fields to distinguish OpenBSD versions
(cont.)
39
Principal Component Analysis (PCA)

• Further reduction involves Principal Component
  Analysis (PCA)
• Idea compute a new basis (coordinates system) of
  the input space
• the greatest variance of any projection of the
  dataset in a subspace of k dimensions
• comes by projecting to the first k basis
  vectors
• PCA algorithm
• compute eigenvectors and eigenvalues of R
• sort by decreasing eigenvalue
• keep first k vectors to project the data
• parameter k chosen to keep 98 of total variance

40
Idea of Principal Component Analysis

• Keep the dimensions which have higher variance
• higher eigenvalues of the Correlation Matrix

41
Resulting neural network topology

• After performing these reductions we obtain the
  following neural network topologies (original
  input size was 560 in all cases)

42
Adaptive learning rate

• Strategy to speed up training convergence
• Calculate the quadratic error estimation
• ( yi are the expected outputs, vi are the
  actual outputs)
• Between generations (after processing all dataset
  input/output pairs)
• if error is smaller then increase learning rate
• if error is bigger then decrease learning rate
• Idea move faster if we are in the correct
  direction

43
Error evolution (fixed learning rate)
error
number of generations
44
Error evolution (adaptive learning rate)
error
number of generations
45
Subset training

• Another strategy to speed up training convergence
• Train the network with several smaller datasets
  (subsets)
• To estimate the error, we calculate a goodness of
  fit G
• if the output is 0/1
• G 1 ( Prfalse positive Prfalse
  negative )
• other outputs
• G 1 number of errors / number of outputs
• Adaptive learning rate
• if goodness of fit G is higher, then increase the
  initial learning rate

46
Sample result (host running Solaris 8)

• Relevant / not relevant analysis
• 0.99999999999999789 relevant
• Operating System analysis    -0.99999999999999434
  Linux     0.99999999921394744 Solaris
      -0.99999999999998057 OpenBSD
•     -0.99999964651426454 FreeBSD
      -1.0000000000000000 NetBSD
•     -1.0000000000000000 Windows
• Solaris version analysis
•     0.98172780325074482 Solaris 8
      -0.99281382458335776 Solaris 9
      -0.99357586906143880 Solaris 7
      -0.99988378968003799 Solaris 2.X
      -0.99999999977837983 Solaris 2.5.X

47
Ideas for future work 1

• Analyze the key elements of the Nmap tests
• given by the analysis of the final weights
• given by Correlation matrix reduction
• given by Principal Component Analysis
• Optimize Nmap to generate less traffic
• Add noise and firewall filtering
• detect firewall presence
• identify different firewalls
• make more robust tests

48
Ideas for future work 2

• This analysis could be applied to other detection
  methods
• xprobe2 Ofir Arkin, Fyodor Meder Kydyraliev
• detection by ICMP, SMB, SNMP
• p0f (Passive OS Identification) Michal Zalewski
• OS detect by SUN RPC / Portmapper
• Sun / Linux / other System V versions
• MUA (Outlook / Thunderbird / etc) detection using
  Mail Headers

49
Thank you!

• For more information about this project
• http//www.coresecurity.com/corelabs/projects/
• Contact us if you have questions, comments or if
  you want to look at the source code of the tools
  we wrote for this research
• Javier.Burroni at coresecurity com
• Carlos.Sarraute at coresecurity com
