Synthetic Methanol as a Sustainable Transport Fuel

1

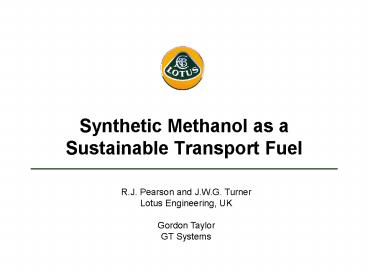

Synthetic Methanol as a Sustainable Transport
Fuel
R.J. Pearson and J.W.G. Turner Lotus
Engineering, UK Gordon Taylor GT Systems
2
Motivating Factors Depletion of Resources

• Fossil fuels are a finite resource
• they are renewable but not on a usable human
  timescale.
• we are using in a few decades a resource which
  took millions of years to create.
• they are effectively depletables.
• Population and energy consumption per capita are
  rising

4 times as many
Only twice as much
Source The Sustainable Mobility Project 2004.
WBCSD
Source The Sustainable Mobility Project 2004.
WBCSD
3
Motivating Factors - Depletion of Resources
4
Motivating Factors Energy Security
Oil
Gas
Coal
Source www.worldenergy.org
Source Based on data from BP Statistical Review
of Energy 2006
5
Motivating Factors Energy Security
6
The Price of Oil
7
Motivating Factors Climate Change

• Proposal to put a cost on CO2 of 100 per tonne
  for all OECD markets by 2015.
• Climate change is on the transport agenda now.
• Transport is one of the fastest growing sectors.
• The EU are about to enact fiscal measures which
  will be severe at a time when the vehicle
  industry is struggling to be profitable.
• up to 95x106 per tonne of CO2 by 2015.
• Similar legislation is being considered
  world-wide.
• Fiscal measures are good instruments to achieve
  change but they must be targetted equitably and
  effectively

8
What are the Options?

• Reduce Energy Consumption
• Reducing CO2 emissions is harder than reducing
  primary pollutants (HC,CO,NOx)
• Engine / transmission technology (including
  hybridisation).
• Vehicle technology (low mass, low rolling
  resistance/drag).
• Changes in vehicle usage patterns, including
  adaptive driving.
• Use of vehicles optimized for local mobility
  not family vacations.
• Improvements in efficiency will not off-set
  growth in demand.
• Change the Fuel
• This is complementary to changes in engine /
  transmission technology.

9
Changing the Fuel

• The ideal energy carrier should
• be easy to manufacture from abundant resources
• provide high energy density
• be capable of being handled, stored , and
  distributed cheaply and safely
• be compatible with a wide variety of
  applications.
• Gasoline and diesel are excellent examples
  because of their physical properties.

• Unfortunately their continued use will impact the
  climate heavily.

10
Hydrogen and Electricity

• The options thought of as providing all or part
  of the solution to de-carbonizing transport are
• Conversion to a Hydrogen Economy
• Electrification of the vehicle fleet.
• BioFuels
• All truly sustainable options ultimately require
  large amounts of renewable upstream energy
• and therefore large amounts of investment
• NOW!

11
BEVs

• This option would require the smallest investment
  in upstream energy
• because of the high tank-to-wheel (TTW)
  efficiency of electric vehicles.
• But
• Current batteries required to give a range which
  does not imply dedicated vehicles are very
  expensive
• 25,000 (40,000)
• This makes BEVs very expensive for mass take up.
• Gravimetric and volumetric energy densities are
  very low.
• 50 kWh Li-Ion battery may weigh 450 kg and is
  very large.
• Contains same energy as 5.7 litres of gasoline
  which weighs 4.2 kg.
• Even with 4-5 times greater TTW efficiency for an
  EV this increases the gasoline equivalent mass to
  only about 20 kg.
• EVs will never re-charge in minutes without
  swapping batteries energy flux through a
  gasoline nozzle is over 10 MW.
• More potential from plug-in hybrids with ICE
  range extenders
• but Chevy Volt now projected to cost 35,000
  (AutoCar 24/09/08)

12
Hydrogen?

• Molecular hydrogen proposed as the basis of the
  future global energy economy
• its combustion generates no CO2 if it is
  produced renewably.
• It can be burned in internal combustion engines
  and gas turbines -
• with high thermal efficiency - requires
  relatively small engine modifications
• also required for fuel cells (seen as long-term
  powertrain replacement).
• But ...
• Must consider well-to-wheel GHG analysis.
• Needs to be extracted from hydrogenated
  compounds
• via steam reforming from natural gas - generates
  5.5 kg CO2 / kg H2
• water via electrolysis - needs renewable source
  of electricity.
• If H2 is produced from NG (largest current
  source) WTW GHG impact is worse when NG burned in
  an IC engine
• savings are only possible if used in a fuel cell.
• Incompatibility with gasoline requires two
  separate fuel systems on a vehicle during the
  transition period - and dual infrastructure.

13
Hydrogen?

• Hydrogen is an inconvenient energy storage
  medium
• The least dense element at NTP methane is 10 x
  more dense!
• At 700bar energy density gasoline / hydrogen
  4.7
• Compression to 800 bar (for 700 bar system)
  requires 10 of fuel energy.
• Can also store as a liquid in a cryogenic tank
• Stored at -253oC density is still only 70 kg/m3
• Liquefaction requires 25-35 of fuel energy.
• Boil-off losses can be high.
• Fuel tanks are heavy and expensive.
• Cryogenic tank to store lt10kg fuel (energy of
  38l gasoline) is 170 kg.
• High-pressure tanks and hydride storage systems
  similar.
• For transport applications on-board reformers
  have been considered but have efficiency impact
• give no WTW benefit cf. advanced IC engines /
  hybrids at high cost.
• Distribution losses / energy inputs are high.

14
Distribution Losses

• Bossel et al. estimate that over 4 times as many
  trucks would be needed to distribute liquid
  hydrogen.
• This factor rises to 22 for pressurized hydrogen!

Bossel et al. (2003), The Future of the Hydrogen
Economy Bright or Bleak?
15
On-board Storage Density
16
Fuel System and Powertrain Costs

• Low-temperature fuel cells use a lot of platinum.
• At current use levels only enough for 200,000
  vehicles per annum.
• 70 million vehicles per annum are produced
  worldwide.
• Using scarce / expensive materials does not give
  volume benefits.

17
Infrastructure Costs

• Change to gaseous fuels requires huge
  infrastructure changes and costs
• distribution, transportation, storage
• Dual infrastructure required during transition
  period.
• New infrastructure is estimated to be very
  expensive (est. 1x1012)

James Woolsey, Chairman of the Advisory Board of
the US Clean Fuels Foundation, 27th November 2007
18
Projected Growth in Transport

• The number of vehicles on the road is expected to
  increase by a factor of 4 by 2050.
• The increase will be driven by increasing
  prosperity in the developing world and by the
  production of ultra-cheap cars such as the 2500
  Tata Nano
• These cars will use cheap powertrains and cheap
  fuel systems

Tata Nano
19
Affordable Vehicles
Low carbon vehicles that are not affordable wont
save any CO2
20
Keep IC Engines

• They are cheap to produce and therefore
  affordable
• are easy to manufacture
• contain few scarce materials
• have low embedded energy cost.
• They are capable of burning a vast array of fuels
  from a wide variety of sources with simple
  modifications.
• so using other fuels wont leave stranded assets
  in expensive production facilities.
• They have high power densities and considerable
  potential for further efficiency improvements
• especially using alcohol fuels in down-sized
  engines

21
High Efficiency on Alcohols

• Due their combustion properties, spark-ignited
  alcohols can give higher thermal efficiency than
  diesel engines

Brusstar et al., SAE 2002-01-2743
22
Comparison of Performance E85 v 95 RON ULG
10-15 improvement in full-load thermal efficiency
30 PCI operation
On E85 this engine gave 197.1 kW (264 bhp) at
8000 rpm (14) and 246 Nm at 5500 rpm (10)
23
Operation on Alcohol Green and Mean
Bergstrom et al., Vienna Motor Symposium 2007
Power on E85 10 Torque on E85 15
24
Green and Mean Flex-Fuel Lotus Exige 265E
25
Keep Liquid Fuels

• They can be provided renewably as CHO liquids,
  i.e. carbohydrates
• In the form of low carbon number alcohols
  (methanol and ethanol)
• they are easily produced from a wide variety of
  biomass feedstocks
• they can be synthesized.
• They are liquids which provide the engine with
  cheap fuel systems.
• They have high on-board energy densities and are
  easily packaged.
• In the form of alcohols they are miscible with
  gasoline.
• The vehicles can be provided by cheap
  distribution infrastructure with low energy /
  mass losses
• can be dispensed with self-service
• essentially similar to what we have now
• enable evolution rather than revolution.

26
A Complete Solution

• Carbohydrate liquid fuels and their derivatives
  can supply all types of vehicle.
• Surface transport using alcohol fuels in SI and
  diesel engines
• cars / vans trucks / buses
• trains
• Air transport (gas turbines) and long range
  surface applications (ships) using FT versions
• a further synthesis step can produce synthetic
  kerosene or diesel
• at a process energy / cost penalty.
• They can be supplied in full amounts beyond
  the BioMass Limit.

27
Where Do We Get Them From?

• Up to the BioMass Limit (different for each
  country) from BioMass
• using carbon collected and re-cycled by the
  biosphere (plants)
• producing ethanol and methanol where properly
  sustainable.
• Beyond the Biomass Limit via synthesis using
  feedstocks from the atmosphere and the ocean
• using carbon collected and re-cycled artificially
  together with renewable hydrogen
• producing sustainable synthetic methanol
  CO23H2?CH3OHH2O
• this can be thought of as chemically liquefying
  hydrogen using CO2
• the pragmatic implementation of the hydrogen
  economy.

28
Biofuels - GHG Savings
Source Gallagher Review
29
Biofuels Carbon Payback Time
Source Gallagher Review
30
Biofuels and Land Area
Source Bossel
31
Biofuels and Land Area
Percentage of UK arable land needed to supply 5
of transport energy demand (in 2001) on an energy
content basis. Source Royal Society (based on
Woods and Bauen 2003)
32
In most countries biofuels cannot guarantee fuel
security - there isnt enough land
Bio-Fuels and Land Area
Source OECD Report AGRICULTURAL MARKET IMPACTS
OF FUTURE GROWTH IN THE PRODUCTION OF
BIOFUELS Working Party on Agricultural Policies
and Markets, AGR/CA/APM(2005)24/FINAL 01-Feb-2006
33
Beyond the Biomass Limit Sustainable Methanol
Adapted from Olah et al., The Methanol Economy
34
Alcohol Flex-Fuel Vehicles A Mature Technology

• Many forms of internal combustion engine have
  been produced which are capable of burning
  alcohol fuels since the early 1900s
• The Model-T Ford was originally intended to run
  on ethanol.
• A kit was available to modify it.
• Ethanol was considered as an octane enhancer in
  the 1920s.
• Methanol was first used as a vehicle fuel in the
  1930s.
• Motorsport in the US adopted methanol in the
  1960s as a safety measure
• only recently replaced by ethanol in Indy Car to
  mirror automotive.
• In the 1980s/1990s 15,000 of methanol/gasoline
  Flex-Fuel vehicles were manufactured and used in
  trials over a 15 year period in California
• supported by an extensive re-fuelling network.
• Hundreds of heavy-duty dedicated methanol
  vehicles were in service.
• There are 6 million of E85/gasoline Flex-Fuel
  vehicles on the road today.

35
1980s/90s Vehicle Fleets
From Dolan, G., Methanol transportation fuels a
look back and look forward. Int. Symp. On Alcohol
Fuels, San Diego, 2005.

• Automotive M85 FFVs made by GM, Ford, Chrysler,
  Mercedes, VW, Saab, Volvo, Toyota, Honda, Mazda,
  Mitsubishi, Subaru, Hyundai
• 93 MY Taurus sold 2800 units in CA - sold for
  345 less than gasoline car.
• Incremental costs 150-300 car

• Dedicated Heavy Duty engines running on methanol
  made by MAN, Ford, Navistar, Caterpillar,
  Cummins, Detroit Diesel, Mitsubishi
• In a wide variety of applications.
• Over 100 fuelling stations in CA

36
Vehicle Transition
Source Jones, C., SAE BioFuels Symposium, Paris,
July 7-9, 2008.
GM have pledged that half their model range will
be Flex-Fuel capable by 2012.
37
Vehicle Transition Tri-Flex-Fuel Vehicle
Development
38
Vehicle Transition Tri-Flex-Fuel Vehicle
Development

• Lotus Tri-Flex-Fuel vehicle was developed from an
  existing ethanol FFV, the Exige 265E
• Small step to Tri-Flex Fuel technology
• Essentially software changes.
• Alcohol sensor was a input to the control system
• it has a different response to methanol and
  ethanol
• Wide-range lambda sensor used as secondary input
• New algorithms developed to allow operation on
  any mixture of gasoline, ethanol and methanol

39
Lotus Exige 270E Tri-Flex-Fuel Development CO2
E11/M31
E0/M0
E25/M29
M28
E43/M21
E70
M53
M70
M88
Met primary pollutant targets with minimal
adjustment.
40
Fuel Transition - CO2 Capture

• Some form of CO2 capture will be required to
  off-set increasing emissions levels especially
  with growth of coal usage for power generation.
• On-site capture is the most sensible approach for
  large concentrated sources of CO2 .
• On-board storage is not feasible for dispersed,
  mobile sources, such as vehicles
• 1 litre (0.75 kg) gasoline gives 2.3 kg CO2 60
  litre tank makes 138 kg CO2, or 78 m3 of gas at
  NTP
• Mass of substrate / absorber would at least
  double mass of stored material.
• Its happening now
• Statoil sequestration
• Exxon-Mobil enhanced oil recovery.
• But why lock the carbon away when we can use it
  as a feedstock?

41
CO2 from the Atmosphere Theoretical Energy
Based on Lackner
42
Lackner / Zeman Columbia University / GRT

• Mixing times are fast
• weeks to months, homogenising feedstock
  distribution.
• 60m x 50m collector
• 3 kg CO2 / sec.
• 80,000 tonnes / year
• equivalent to the fossil CO2 produced by 4000
  people or 15,000 cars
• 250,000 units would process all anthropogenic CO2
  emissions

Source Broecker, W.S.,Global warming take
action or wait?. Chinese Science Bulletin, 2006,
vol. 51, no. 9, 1018-1029.
43
Upstream Energy Analysis
80 electrolyser effy. 250 kJ/kmol CO2 extraction
HHV WTT46 Using technologies that can be
delivered now.
44
Fuel and Vehicle Transitions
45
Fuel Transition
46
Sustainable Alcohols for Mobility

• A future transport fuel economy based on
  synthetic alcohols is a realistic prospect
• due to the possibility of a soft-start
  afforded by the miscibility of gasoline, ethanol,
  and methanol,
• and the relatively low cost of vehicles with
  compatible fuel systems.
• Can be expedited by legislation requiring all
  vehicles to by gasoline/ethanol flex-fuel
  compliant by 2012
• this will give significant market incentives to
  renewable fuels and the development of 2nd
  generation biofuels ethanol and methanol.
• Methanol usage could be supported by software
  changes.
• High efficiency alcohol engines using Otto and
  Diesel cycles are easily made.
• Atmospheric CO2 extraction could lead ramp-up in
  renewable power generation.
• This allows us to carry on exploiting fossil fuel
  resources whilst we develop sustainable energy
  sources.

2012 Ethanol/Gasoline Flex-fuel mandatory
2030 Closed-cycle Methanol production
2060 Phase out fossil fuels for transport
2015 Methanol 2nd Generation Ethanol available
47
Leveraging the Stakeholder Capital

• Put the burden of producing affordable efficient
  vehicles on the vehicle manufacturers.
• Put the burden of de-carbonizing transport fuel
  on the upstream production and supply companies
• this will always be profitable as demand is
  ever-present and growing
• 2.25 trillion spent on oil world-wide in 2007.
• if the average oil price over 2008 is 100, the
  additional annual cost of oil world wide in one
  year will be about 0.86 trillion.
• Cars are used 5 of their lifetime.
• Customers can defer new vehicle purchase.
• They cannot defer the purchase of the fuel!

48
Early Thoughts on Sustainability
A quotation from the first paragraph of a 1907
SAE paper Gasoline is the by-product of a
geographically limited monopolistically
controlled industry, and there are reasons to
believe that the available supply is more than
mortgaged by world-wide and growing
demand White, T.L., Alcohol as a fuel for the
automobile motor. SAE paper number 070002, 1907.
49
Time to Re-Think the Treatment
50
Thank You for Listening
