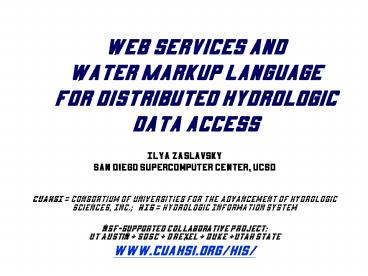

Web Services and Water Markup Language for
Distributed Hydrologic Data Access

• Ilya Zaslavsky
• San Diego Supercomputer Center, UCSD
• CUAHSI Consortium of Universities for the
  Advancement of Hydrologic Sciences, Inc. HIS
  Hydrologic Information System
• NSF-supported Collaborative Project UT Austin
  SDSC Drexel Duke Utah State
• www.cuahsi.org/his/

2
The Grid is becoming the backbone for
collaborative science and data sharing
CI is about RE-USING data and research resources
!!
3
Cyberinfrastructure for hydrology (in the U.S.)

• Hydrologic observations
• Reliance on federally-organized data collection
  (NWIS, STORET, NCDC, etc.) with huge and complex
  nomenclatures
• ? simplifying access to federal repositories
• ? relatively lower emphasis on data ownership
• Handling time in both UTC and local
• Various spatial offsets
• Multiple data types time series, fields, spatial
  data
• Integrative discipline
• Interoperation with atmospheric, ocean, soils,
  geomorphology, social datasets and services
• Community
• Organized by natural boundaries
• ? networks of relatively autonomous self-managed
  data nodes
• Partnership with public sector water management
• 96 use Windows for research Excel, ArcGIS,
  Matlab most popular
• Mix of standards, software licensing models,
  vocabularies leveraging tools developed in other
  CI projects.

4
Hydrologic Information System Service Oriented
Architecture
Downloads
Uploads
HTML -XML
Data access through web services
WaterOneFlow Web Services
WSDL - SOAP
Data storage through web services
5
The CUAHSI Community, HIS and WATERS
Government USGS, EPA, NCDC, USDA
Industry ESRI, Kisters, OpenMI
CUAHSI HIS
WATERS Network Information System
HIS Team
WATERS Testbed
Super computer Centers NCSA, TACC
Domain Sciences Unidata, NCAR LTER, GEON
HIS Team Texas, SDSC, Utah, Drexel, Duke
CUAHSI 116 Universities (Nov. 2006)
6
CUAHSI HIS as a mediator across multiple agency
and PI data

• Keeps identifiers for sites, variables, etc.
  across observation networks
• Manages and publishes controlled vocabularies,
  and provides vocabulary/ontology management and
  update tools
• Provides common structural definitions for data
  interchange
• Provides a sample protocol implementation
• Governance framework a consortium of
  universities, MOUs with federal agencies,
  collaboration with key commercial partners, led
  by renowned hydrologists, and NSF support for
  core development and test beds

7
Main Components

• Hydrologic Observations Data Model, ODM
  databases and site catalogs
• Web services for accessing hydrologic
  repositories and data in ODMs
• Clients Online Data Access System multiple
  desktopapplication add-ons
• Network of CUAHSI HIS servers, deployed at
  hydrologic observatories and integrated with
  other observing systems and sensor data collection

8
Point Observations Information Model

• A data source operates an observation network
• A network is a set of observation sites
• A site is a point location where one or more
  variables are measured
• A variable is a property describing the flow or
  quality of water
• An observation series is an array of
  observations at a given site, for a given
  variable, with start time and end time
• A value is an observation of a variable at a
  particular time
• A qualifier is a symbol that provides
  additional information about the value

9
Challenges (1/2)

• Sites
• STORET has stations, and measurement points, at
  various offsets
• Site metadata lacking and inconsistent (e.g. 2/3
  no HUC info, 1/3 no state/county info) agency
  site files need to be upgraded to ODM
• A groundwater site is different than a stream
  gauge
• Censored values
• Values have qualifiers, such as less than,
  censored, etc. per value. Sometimes mixed
  data types..
• Units
• There are multiple renditions of the same units,
  even within one repository
• There may be several units for the same parameter
  code (STORET)
• If no value recorded there are no units??
• Unit multipliers
• E.g. NCDC ASOS keeps measurements as integers,
  and provides a multiplier for each variable
• Sources
• STORET requires organization IDs (which collected
  data for STORET) in addition to site IDs
• Time stamps ISO 8601
• A service to determine UTC offsets given lat/lon
  and date??

10
Challenges (2/2)

• Values retrieval
• USGS by site, variable, time range
• EPA by organization-site, variable, medium,
  units, time range
• NCDC fewer variables, period of record applies
  to site, not to seriesCatalog
• Variable semantics
• Variable names and measurement methods dont
  match
• E.g. NWIS parameter 625 is labeled ammonia
  organic nitrogen, Kjeldahl method is used for
  determination but not mentioned in parameter
  description. In STORET this parameter is referred
  to as Kjeldahl Nitrogen.
• One-to-one mapping not always possible
• E.g. NWIS bed sediment and suspended
  sediment medium types vs. STORETs sediment.
• Ontology tagging, semantic mediation

11
NWIS Daily Values (discharge), NWIS Ground Water,
NWIS Unit Values (real time), NWIS Instantaneous
Irregular Data, EPA STORET, NCDC ASOS, DAYMET,
MODIS, NAM12K, ODM

• - From different database structures, data
  collection procedures, quality control,
  access mechanisms ? to uniform signatures
  Water Markup Language
• - Tested in different environments
• - Standards-based
• - Can support advanced interfaces via harvested
  catalogs
• - Accessible to community
• - Templates for development of new services
• Optimized, error handling, memory management,
  versioning, run from fast servers
• Working with agencies on setting up services and
  updating site files

12
WaterOneFlow API, v. 1.0

• GetValues
• Returns a TimeSeries
• GetSiteInfo
• Station Information, including a period of record
• GetVariableInfo
• Returns variable/parameter information
• Also GetSites, GetVariables
• Object and string output

13
WaterML design principles

• Driven largely by hydrologists the goal is to
  capture semantics of hydrologic observations
  discovery and retrieval
• Relies to a large extent on the information model
  as in ODM (Observations Data Model), and terms
  are aligned as much as possible
• Several community reviews since 2005
• Driven by data served by USGS NWIS, EPA STORET,
  multiple individual PI-collected observations
• Is no more than an exchange schema for CUAHSI web
  services
• The least barrier for adoption by hydrologists
• A fairly simple and rigid schema tuned to the
  current implementation
• Conformance with OGC specs not in the initial
  scope

14
WaterML key elements

• Response Types
• SiteInfo
• Variables
• TimeSeries

• Key Elements
• site
• sourceInfo
• seriesCatalog
• variable
• timeSeries
• values
• queryInfo

GetSiteInfo
GetVariableInfo
GetValues
15
Structure of responses

sitesResponse

site

queryInfo

criteria

seriesCatalog

siteInfo

1

queryURL

many

series

variable

variableTimeInterval

16
SiteInfo response
TimePeriodType
17
TimeSeries response
queryInfo
location
variable
values
18
Clients

• Tested with .Net and Java
• Desktop clients Excel, Matlab, ArcGIS,
  VB.NET,more beingwritten
• Web client DASH (Data Access System for
  Hydrology) http//river.sdsc.edu/DASH (beta)

19
Current Deployment Architecture
VS 2005
DASH
ODM
GIS Data
Mxd Service
WaterOneFlow Web Services
ODM Loader
ODM tools
AGS Server
SQL Server
IIS
ArcGIS 9.2
Windows 2003 Server 4 GB Ram 1 TB Disk Quad Core
CPU
20
WORKGROUP HIS SERVER ORGANIZATION
STEPS FOR REGISTERING OBSERVATION DATA
DASH Web Application
Web Configuration file Stores information about
registered networks
MXD Stores information about layers
Layer info,symbology, etc.
WSDLs, web service URLs
Connectionstrings
Spatial store
WOF services
NWIS-IID points
NWIS-IID WS
USGS
SQL Server
NWIS-DV points
NWIS-DV WS
NWIS-IID
NCDC
ASOS points
ASOS WS
NWIS-DV
STORET points
STORET WS
ASOS
EPA
TCEQ points
TCEQ WS
STORET
BearRiver points
BearRiver WS
TCEQ
TCEQ
. . .
. . .
More WS fromODM-WS template
More synced layers
BearRiver
My new points
My new WS
. . .
More databases
Background layers(can be in the same or
separate spatial store)
Geodatabase or collection of shapefilesor both
Web services from a common template
My new ODM
ODMs and catalogs. All instances exposed as ODM
(i.e. have standard ODM tables or views Sites,
Variables, SeriesCatalog, etc.)
ODMDataLoader
21
HIS Scalability

• Adding
• data types and datasets processing models and
  services servers users and roles
• - shall not create unmanageable bottlenecks that
  require system re-engineering
• Designing for scalability
• Distilling a generic set of web service
  signatures resolving semantic and structural
  heterogeneities
• Using ODM as a common generic format for time
  series data, for ease of coding and uniform
  search interfaces
• DASH GUI design to abstract specifics of
  disparate repositories
• Leveraging common CI components developed in GEON
• Working with agencies to remove web service
  bottlenecks

22
Near future

• Deployment at the 11 WATERS test beds, and beyond
• And documenting experience
• Organizing HIS support
• Working with federal and state agencies on web
  services
• NCDC, USGS, EPA, state agencies (e.g. TCEQ)
• Analysis services for site catalogs and ODMs (
  ---- see next slide)
• OGC connections WaterML is OGC Discussion Paper
  (approved at April 2007 TC Meeting)
• Need to be reviewed further, based on initial
  implementation
• Internationalization (with CSIRO WRON, European
  WISE, H2OML)
• Carry CUAHSI WaterML messages over OM, as OM
  profile
• Towards WaterML and web services 1.1

23
US Map of USGS Observations
Alaska
Puerto Rico
Hawaii
Antarctica
24
US Map of USGS Observations by Mean Period of
Record
25
Different types of nutrients by decade
Available Data Total
26
Some physical properties by decade Available
Data Total
27
Same without discharge, gage height, temperature
and precipitation (the four most common, in that
order) Available Data Total
28
Near future

• Deployment at the 11 WATERS test beds, and beyond
• And documenting experience
• Organizing HIS support
• Working with federal and state agencies on web
  services
• NCDC, USGS, EPA, state agencies (e.g. TCEQ)
• Analysis services for site catalogs and ODMs (
  ---- see next slide)
• OGC connections WaterML is OGC Discussion Paper
  (approved at April 2007 TC Meeting)
• Need to be reviewed further, based on initial
  implementation
• Internationalization (with CSIRO WRON, European
  WISE, H2OML)
• Carry CUAHSI WaterML messages over OM, as OM
  profile
• Towards WaterML and web services 1.1

29
SDSC Spatial Information Systems Lab
http//scirad.sdsc.edu/datatech/si.html

• Research and system development
• Services-based spatial information integration
  infrastructure
• Mediation services for spatial data, query
  processing, map assembly services
• Long-term spatial data preservation
• Spatial data standards and technologies for
  online mapping (SVG, WMS/WFS)
• Support of spatial data projects at SDSC and
  beyond

In Geosciences (GEON, CUAHSI, CBEO,)
services
In Neurosciences (BIRN, CCDB)
In regional development (NIEHS SBRP, Katrina)
Contact zaslavsk_at_sdsc.edu
30
Links and Acknowledgments

• The CUAHSI HIS project
• http//www.cuahsi.org/his/ (main site)
• http//water.sdsc.edu (central development
  server)
• Many thanks to Microsoft Research for partly
  sponsoring this trip
