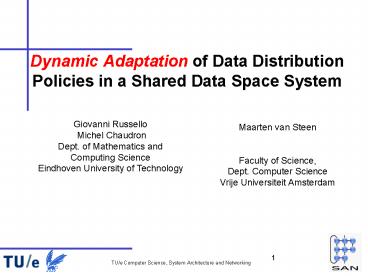

Dynamic Adaptation of Data Distribution Policies in a Shared Data Space System

1
Dynamic Adaptation of Data Distribution Policies
in a Shared Data Space System
Giovanni Russello Michel Chaudron Dept. of
Mathematics and Computing Science Eindhoven
University of Technology
Maarten van Steen Faculty of Science, Dept.
Computer Science Vrije Universiteit Amsterdam
2
Problem Context Perspectives

• Distributed System in which
• Application level software components join and
  leave a system dynamically
• ?The communication profile of applications is
  irregular / unpredictable
• Middleware designer
• How can I best cater for the communication needs
  of an assembly of components? ? optimize resource
  use
• Component designer
• Can I design my component such that it is
  independent of design choices in the
  communication mechanisms of the middleware? ?
  Hence enhancing reusability

3
Shared Data Space Model Overview
A
B
C
put read take
shared data space
tuple ordered sequence of typed fields with
specified values
ltstr name, int agegt - ltGiovanni, 28gt
template ordered sequence of typed fields with
or without a specified value
ltstr name, int agegt - ltGiovanni, int ?gt
4
Shared Data Space Model Features

• Small, yet powerful, API
• Uncoupling in time means that applications do not
  need to communicate at the same time in order to
  exchange data
• Uncoupling in space allows applications to
  cooperate even if they do not know the location
  of each other
• The computation is separated form the
  coordination

5
Advantages for Component Based Systems

• Application components are not bound to any
  specific application interface
• Support of run time dynamic (de)composition
• Absence of referential information among
  application components

6
Existing SD Implementations

• Shared data spaces typically employ a static,
  system-wide distribution scheme for distributing
  data.
• Often, the distribution scheme is dictated by
• the application characteristics
• target platform (HW)
• Examples of distribution schema
• Centralized (JavaSpaces)
• Uniform Distribution (Corradi et al.)
• Hash-based Distribution (Rowstron)

7
Problem Statement

• Generally, applications have different needs for
  the different types of data types used.
• Examples of data usage pattern in a Process Farm
  application
• Master-Workers job data
• Write-many partial-result data
• Read-most result data

How can we maintain the simple programming model
of the shared data space, yet also cater for
different quality needs?
8
A Solution Separation of Concerns

• Specify application functionality outside
  extra-functional concerns (such as data
  distribution)
• A pre-condition is that computation is separated
  from coordination
• Treat different data types using different
  distribution policies ..
• .. in order to distribute data more efficiently.

Huh, more efficiently?!?!
9
Our Approach GSpace

• Distributed Shared Data Space System
• Separation of functionality from extra-functional
  requirements
• Differentiation of distribution policy per tuple
  type
• Dynamic adaptation of distribution policy
• Extendable suite of distribution policies

10
GSpace Kernel Deployment

Node 1
Node 2
Node n
Network
11
Examples of Distribution Policies

• Store locally (SL)
• Full replication (FR)
• Caching with invalidation (CI)
• Caching with verification (CV)

12
Separating Concerns in GSpace
mapping
Implementation
Specification
Application
Computation
Layer
Distribution
Middleware
Coordination
Middleware
Policy Descriptor
Layer
downloading
NW Level
Layer
Tuple Type Ti Distribution Policy Pj
13
More Efficient, Huh?
Minimize the costs involved in data distribution
Cost Function captures the performance of a given
distribution policy during a period of time
CF (p) w1 m1,p w2 m2,p wn mn,p
? wi 1
The policy that produces the lowest CF value
represents the best policy
mi,js are performance indicators (to be measured
from the system )
14
Performance Metrics

• Read latency (rl) time spent for reading a
  tuple
• Take latency (tl) time spent for taking a tuple
• Bandwidth usage (bu) amount of bandwidth used
  for distributing tuples and synch messages
• Memory usage (mu) amount of memory used for
  storing tuples

CF (p) w1 rlp w2 tlp w3 mup w4
bup ? wi 1
15
GSpace Kernel Internal Structure
Application Level
Application requests
Middleware Level
Inter-kernel comm
Net OS Level
16
OPS Modules
Application Level
OPS
Middleware Level
GSpace Kernel
Net OS Level
17
Adaptation System Modules
For each tuple type there is one AM working in
Master mode. All the others work in Slave mode
Application Level
From Controller
AS
Adaptation Module
Logger
Cost Computation Module
To AddTable and PolTable
Middleware Level
To LocDataSpace and DPS
DPCM
Adapt-Comm
Module
GSpace Kernel
Net OS Level
18
Adaptation Mechanism Phases

• Logging
• Evaluation
• Adaptation (optional)

19
Logging Phase MSC
20
Evaluation Phase MSC
21
Adaptation Phase MSC
22
Experiment Settings
coordinator
Application Model
...
noden
node2
node1
n 2 10

• Application Usage Patterns Simulated by the
  Application Model
• Local Usage Pattern (LUP)
• Write-many Usage Pattern (WUP)
• Read-mostly Usage Pattern (RUP) (i) and (ii)

Example of a operation run p,l1r,l2r,l2
r,l2t,l1..
23
Experiment Settings
run
generate operation run
run phase3
run phase2
run phase1
coordinator

• Static settings Adaptation disabled
• Dynamic settings Adaptation enabled

24
Experiment Settings
Static settings Adaptation disabled
Operation Run
Any more distribution policy?
Select the policy with min CF value
yes
Assign the distribution policy to the tuple type
no
Execute the Operation run
Compute the CF value
25
Experiment Settings
Dynamic settings Adaptation enabled
same operation run as previous experiments
Operation Run
Any more threshold values?
yes
no
Execute the operation run for the selected
threshold
termination
Aggregate the min CF and actual CF values
During each evaluation phase store the min CF
value and the CF value of the actual policy
26
CF of Adaptive and Static Settings
wi 0,25 for all i
Run-phase length 500
27
CF of Adaptive and Static Settings
wi 0,25 for all i
Run-phase length 8000
28
Accuracy of the Cost Model
29
Adaptation Mechanism Overhead
Percentage of time spent in different modules of
a kernel
30
Conclusions Future work

• C1 Architecture and Distributed Implementation
  of a Shared Data Space
• High flexibility at small programming effort
• Adaptivity caters for changing application
  behavior
• C2 SoC enhances reusability of application
  components and distribution policies
• C3 Experimental validation
• F Extend support for other extra-functional
  concerns
• (Real-time, availability,)
