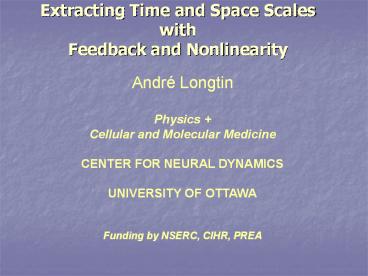

Extracting Time and Space Scales with Feedback and Nonlinearity

1
Extracting Time and Space Scales with Feedback
and Nonlinearity
André Longtin Physics Cellular and Molecular
Medicine CENTER FOR NEURAL DYNAMICS UNIVERSITY
OF OTTAWA Funding by NSERC, CIHR, PREA
2
Overview

• Processing of spatio-temporal signals
• Global Feedback common noise ?? oscillations
• Spatial scale for feedback and input
• Envelope processing for narrowband in time
• Information resonances
• Coincidence transforms for synchronous firing
• Short term Plasticity and information processing

3
Research Program

• Stochastic neural network
• driven by
• Stochastic input in space and time
• Experimental lt-gt Theoretical

4
Relevance to this group

• What nonlinearity (if any) supports patterns or
  computations ?

5
HIGHER BRAIN AREA II
HIGHER BRAIN AREA I
THALAMUS
RECEPTORS
PHYSICAL STIMULI
6
Brain Diagram by Arab philosopher Avicenna (circa
1300)Five ventricles common sense, imagination,
judging, second imagination (composing/combining
images), memory.(University Library, Cambridge)
From Da Vincis notes
7
Electrosensory lateralline lobe (ELL)
Courtesy W. Ellis (1991)
Courtesy N. Berman and L. Maler, J. Exp. Biol.,
1999
8
The electric sense
Electrosensory Input
Electrosensory Lateral Line Lobe (ELL)
Electric Organ Discharge (EOD)
Higher Brain
Amplitude Modulation (AM)
Electroreceptors
afferents
Krahe and Gabbiani (2004) Nat. Neurosci.Rev.
513-23
9
Temporal Characteristics
Spatial Characteristics
global
Harmonic
local
Broadband (noise)
- Frequency tuning is highly correlated with
spatial frequency- Tuning for harmonics or
broadband signals are qualitatively the same
Chacron, et al., Nature, 2003
10
Weakly Electric Fish main negative feedback
loop
ELL Pyramidal Cells the first stage of sensory
processing
11
Prey Stimuli
Prey (bug) excites a fraction of the
electroreceptors Local stimulation
12
Communication Stimuli
Communication calls between fish stimulate the
whole body Global Stimulation
13
Oscillation Mechanism(Doiron, Chacron, Bastian,
Longtin, Maler, Nature 2003)
14
Electrosensory Circuitry
15
Network Model Global Stimuli
Autocorrelation
Histogram
To mimic communication stimuli we apply the
external stimulus to all neurons equally.
16
Experimental VerificationDoiron, Chacron, Maler,
Longtin and Bastian, Nature 42, 539 (2003)
ISI Histogram
Autocorrelation
17
Correlated Stimuli in Experiments
Each dipole emits an intrinsic noise xi(t), and
global source, xG(t). Their relative strengths
is c, i.e. the covariance between dipoles.
18
Integrate-and-fire dynamics
y
19
Linear Response
Consider the spike train from the ith neuron in
our network, .
Assuming weak inputs, the Fourier transform of
the spike train is
(1)
A(w) intrinsic frequency response of the noisy
neuron. Xi(w) Fourier transform of input
(external feedback) to neuron i.
20
POWER SPECTRUM
21
Single Neuron Power Spectrumvspercentage of
common noise (c)

• For an infinite network

(Input-output sync) (spike-spike
sync.)
22
Fokker-Planck analysis on noisy Leaky
Integrate-and-fire Neurons Delays Spatial
InputDoiron, Lindner, Longtin, Bastian and
Maler, Phys. Rev. Lett. 93, 048101 (2004)Linear
Fluctuation Theory needs noise.
23
Input-output coherence for delayed feedback
network(global feedback)
24
Coherence function
Correlation coefficient (in the frequency domain)
between two signals, X and Y
Response spike train
Stimulus
- narrowband stimulus(linear)
- envelope of narrowbandstimulus (non-linear)
25
Network of stochastic Perfect IFs with and -
global delayed feedback
S(t) is the stimulus
Chacron, Longtin, Maler, Phys.Rev.E (2005)
26
Network of Perfect IFs with global feedback
Information theory
Coherence H(f)2 Pss/Pxx
27
INFORMATION RESONANCE(Chacron, Longtin, Maler,
PRE 2005)
Experimental DATA !!
Glt0
G0
28
Introducing

• Spatial scale for feedback
• Spatial scale for noise
• Two regimes with respect to
• gamma oscillations

29
(No Transcript)
30
In linear response, only the ratio of length
scales matters (Hutt, Sutherland, Longtin,
submitted)
31
GLOBAL IN SPACE

• NARROWBAND IN TIME
• 2 TIME SCALES

32
EOD amplitude
EOD
33
EOD amplitude
EOD
Hey guys
34
EODamplitude
EOD
Average Df in black (white) waters
Day 35.3 (54.1) HzNight 54.6 (65.8) Hz
Most probable populationsize 3-5 fish
From E. W. Tan et al, Behav.Brain Res.,
16483-92 (2005)
35
(No Transcript)
36
P-units (primary receptors)
Feed forward
- P-units respond as linear encoders
37
Pyramidal Cells

• global stimulation linear
• response to narrowband signal and its low
  frequency envelope- Envelope response is absent
  under local stimulation

38
Middleton, Longtin, Benda, Maler, PNAS (2006)
39
MECHANISM
output

• Generation of envelope signal is likely due to
  spike threshold nonlinearity
• Output spike train is phase- locked to fast
  oscillation and modulated at lower frequencies

Middleton, Harvey-Girard, Maler, Longtin, Phys.
Rev. E. (2006)
input
40
transferfunction
output signal
input signal
(rectification)
41
signals
Spectral composition
frequency
time
42
(No Transcript)
43
(No Transcript)
44

45
(No Transcript)
46
Network instead of single cell
47
(No Transcript)
48
(No Transcript)
49
Stochastic Envelope Gating(and not SR! See
Middleton et al., PRE 2006)
50
Leaky Integrate-and-Fire (LIF) neuron
Mean firing rate
where
51
(No Transcript)
52
GLOBAL SPATIAL SIGNALS

• EXTRACTING
• HIGH FREQUENCY CHIRPS
• FROM
• LOWER FREQUENCY BEATS
• SYNC-DESYNC CODE

53
Context electrocommunication

• Male-male or female-female call causes
  synchronization of receptors
• Male-female or female-male call causes
  desynchronization of receptors
• (Benda, Longtin, Maler, Neuron 2006)

54
Encoding a modulatory signal
55
(No Transcript)
56
Coincidence transforms
Middleton, Longtin, Benda, Maler (submitted)
57
Short-term Plasticity
58
(No Transcript)
59
(No Transcript)
60
(No Transcript)
61
(No Transcript)
62
(No Transcript)
63
(No Transcript)
64
Broadband Coding
Depression dominates
Facilitation dominates
65

• Gamma rhythms for global correlated inputs
• Gamma strength proportional to correlation
• Spatial feedback can assess spatial correlation
  of input
• Information resonances with delayed feedback
• Envelope generation due to spike threshold
  nonlinearity
• Envelope generation is dependent on mean bias
  and noise

66

• Intrinsic noise can gate a signal competing with
  envelope
• Plasticity paradoxical effects on coding
• Importance of spatiotemporal statistics of input

67
(No Transcript)
68
Brent Doiron
Jan Benda
Len Maler André Longtin
Joe Bastian Connie Sutherland
Maurice Chacron
Benjamin Lindner
Jason Middleton
Carlo Laing
Eric Harvey-Girard
John Lewis
Axel Hutt
