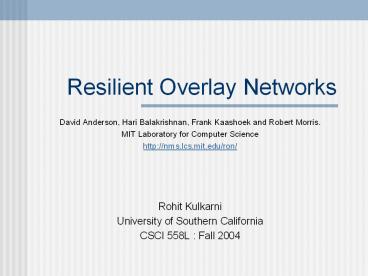

Resilient Overlay Networks

• David Anderson, Hari Balakrishnan, Frank Kaashoek
  and Robert Morris.
• MIT Laboratory for Computer Science
• http//nms.lcs.mit.edu/ron/
• Rohit Kulkarni
• University of Southern California
• CSCI 558L Fall 2004

2
Outline

• Introduction
• What is RON ?
• Design Goals
• RON design
• Evaluation
• Related Work
• Future Work
• Conclusion

3
Introduction

• Current organization of Internet
• Independently operating ASes peer together
• Detailed routing information only within an AS
• Shared routing information filtered using BGP
• BGP provides policy enforcement and scalability
• Problems with this organization
• Reduced fault-tolerance of e2e communication
• Fault recovery takes many minutes
• Vulnerable to router and link faults,
  configuration errors..

4
Introduction 2 Other studies

• Studies highlighting problems
• delayed routing convergence - inter-domain
  routers take 10s of mins to reach a consistent
  view after a fault
• e2e routing behavior - routing faults prevent
  internet host from communicating up to 3.3 of
  time avg over long period
• e2e WAN availability - 5 of all detected
  failures last more than 10,000 secs (2 hrs
  45mins)
• Studies trying to solve problems
• Multi-homing - addressing issues with active
  connections. Still no quick fault recovery
• Detour - path selection in internet sub-optimal
  w.r.t latency, loss-rate. throughput. Showed
  benefits of indirect routing
• No wide-area system that provides quick
  failure-recovery

5
What is RON ?

• Resilient - to recover readily from adversity
• Overlay Network -

an isolated virtual network deployed over an
existing physical network
Figure taken from X-bone project 2
6
What is RON ? 2

• RON is an architecture that allows distributed
  Internet applications to detect and recover from
  path outages and periods of degraded performance
  within several seconds
• An application layer overlay on top of existing
  Internet
• RON nodes monitor Internet paths among themselves
• Functioning
• Quality
• Route packets directly over internet or using
  other RON nodes

7
Design Goals

• Goal 1 Fast failure detection and Recovery
• Detection by using aggressive probing
• Recovery by using intermediate RON nodes for
  forwarding
• Goal 2 Integrate routing path selection w/
  Applications
• application specific notions of failures
• application specific metric in path selection
• Goal 3 Framework for policy routing
• Fine-grained policies aimed at users or hosts
• E.g. e2e per-user rate control, forwarding rate
  controls based on packet classification.

8
RON DesignSoftware Architecture

• RON Client
• Conduit
• RON nodes entry node, exit node
• Forwarder
• Router
• Membership manager
• Performance database

9
Design 2Routing and Path Selection

• Link-state propagation
• Link-state routing protocol
• Routing protocol is RON client with a packet type
• Path evaluation and selection
• Outage detection using active probing
• Routing metrics
• Latency-minimizer - uses EWMA of RT latency
  samples w/ parameter ? (0.9)
• Loss-minimizer - uses avg of last k (100) probe
  samples.
• TCP throughput-optimizer - combines latency and
  loss rate metrics using simplified TCP throughput
  equation
• Performance database
• Detailed performance information

10
Design 3Policy routing

• Allows users to define types of traffic allowed
  on network links
• Classification
• Data classifier module
• Incoming (via conduit) packets get policy tag
• Tag identifies set of routing tables to be used
• Routing table formation
• Policy identifies which virtual links to use
• Separate set of routing tables for each policy

11
Design 4Data forwarding
The RON packet header
The forwarding control and data paths
12
Evaluation Methodology

• wide-area RON deployed at several internet sites
• ISP, US Univs (I-2), Euro Univs, broadband home
  users, .coms
• Internet-2 (I-2) policy for more Internet like
  measurements
• Measurements using probe packets, throughput
  samples
• 2 datasets
• RON1 - 12 nodes, 132 paths
• 2.6m samples, 64hrs trace in March 2001,
• RON2 - 16 nodes, 240 paths
• 3.5m samples, 85hrs trace in May 2001,
• Time-averaged samples averaged over 30mins
  duration
• Most RON hosts were Celeron/733, 256MB RAM, 9GB
  HDD, FreeBSD.
• No host was processing bottleneck

13
Evaluation 2 Overcoming path outages
Outage data for RON1
Packet loss rate averaged over 30-min Intervals
for direct Internet paths vs. RON paths for RON1
Outage data for RON2
14
Evaluation 3Improving loss rates
CDF of improvement in loss-rate achieved by RON1.
Samples are averaged over 30 mins
15
Evaluation 4Improving latency
5-minute avg latencies over direct internet path
and over RON, as CDF
16
Evaluation 5Improving throughput
CDF of the ratio of throughput achieved via RON
to that achieved directly via the Internet
17
Evaluation 6Route Stability
Number of path changes and run-lengths of
routing persistence for different hysteresis
values

• Link-state routing table snapshots every 14
  seconds. Total 5616 snapshots
• RONs path selection algos on link-state trace
• This shows hysteresis is needed for route
  stability

18
Evaluation 7 Major results

• RON was able to successfully detect and recover
  from 100 (in RON1) and 60 (in RON2) of all
  complete outages and all periods of sustained
  high loss rates of 30 or more.
• RON takes 18 seconds, on average, to route around
  a failure can do so in face of flooding attack
• RON successfully routed around bad throughput
  failures, doubling TCP throughput in 5 of all
  samples.
• In 5 of the samples, RON reduced the loss
  probability by 0.05 or more
• Single-hop route indirection captured the
  majority of benefits in our RON deployment, for
  both outage recovery and latency optimization

19
Related Work

• X-Bone
• Generic framework for speedy deployment of
  IP-based overlay networks
• Management fns mechanisms to insert packets
  into overlay
• No fault-tolerant operation - no outage detection
• No application controlled path selection
• Detour
• Showed benefits of indirect routing
• Kernel level system - not closely tied to
  application
• Focus not on quick failure-recovery for
  preventing disruptions
• No experimental results analysis from a
  real-world deployment

20
Future Work

• Preventing misuse of established RON
• Cryptographic authentication and access control
• Mechanisms to detect misbehaving RON peers
• Just at administrative level not enough
• Scalability/Wide spread deployment
• Keep size of RON within limits (50-100)
• Have co-existence of many RONs
• Their interactions
• Routing stability

21
Conclusion

• RON can greatly improve reliability of Internet
  packet delivery by detecting and recovering from
  outages and path failures more quickly (18 secs)
  than BGP-4 (several mins)
• Can overcome performance failures, improving
  loss-rates, latency, throughput.
• Forwarding packets via at most one intermediate
  RON node is sufficient
• Claims of RON confirmed from experiments
• Good platform for resilient distributed internet
  application development

22
References

• Resilient Overlay Networks, D. Andersen, H.
  Balakrishnan, M. Kaashoek, R. Morris, Proc. 18th
  ACM SOSP, Banff, Canada, October 2001.
• Detour a Case for Informed Internet Routing and
  Transport, S. Savage, T. Anderson, A. Aggarwal,
  D. Becker, N. Cardwell, A. Collins, E. Hoffman,
  J. Snell, A. Vahdat, G. Voelker, and J. Zahorjan,
  IEEE Micro, 19(1)50-59, January 1999.
• Dynamic Internet Overlay Deployment and
  Management Using the X-Bone, J. Touch, Computer
  Networks, July 2001, pp. 117-135
• The Case for Resilient Overlay Networks, D.
  Andersen, H.i Balakrishnan, M. Kaashoek, and R.
  Morris, Proc. HotOS VIII, Schloss Elmau,
  Germany, May 2001.
• End-to-End Routing Behavior in the Internet, V.
  Paxson, In Proc. ACM SIGCOMM, (Stanford, CA, Aug.
  1996).
• Delayed Internet Routing Convergence, C.
  Labovitz, A. Ahuja, A. Bose, F. Jahanian, In
  Proc. ACM SIGCOMM (Stockholm, Sweden, September
  2000), pp. 175187.
• Modeling TCP Throughput A simple model and its
  empirical validation, J. Padhye, V. Firoiu, D.
  Towsley, J. Kurose, In Proc. ACM SIGCOMM
  (Vancouver Canada, September 1998), pp. 303-323
• End-to-End WAN service availability, B.
  Chandra, M. Dahlin, L. Gao, A. Nayate, In Proc.
  3rd USITS (San Francisco, CA, 2001), pp. 97-108
