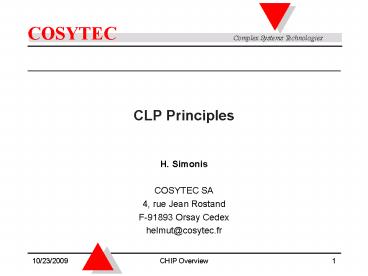

CLP Principles

1
CLP Principles

• H. Simonis
• COSYTEC SA
• 4, rue Jean Rostand
• F-91893 Orsay Cedex
• helmut_at_cosytec.fr

2
Outline

• Background on CLP
• Simple Examples
• Global Constraints
• Search

3
What is common among

• the production of Mirage 2000 fighter aircraft
• the personnel planning for the guards in all
  French jails
• the production of Belgian chocolates
• the selection of the music programme of a Pop
  music radio station
• the design of advanced signal processing chips
• the print engine controller in Xerox copiers

They all use constraint programming to solve
their problem
4
Constraint Programming - in a nutshell

• Declarative description of problems with
• Variables which range over (finite) sets of
  values
• Constraints over subsets of variables which
  restrict possible value combinations
• A solution is a value assignment which satisfies
  all constraints
• Constraint propagation/reasoning
• Removing inconsistent values for variables
• Detect failure if constraint can not be satisfied
• Interaction of constraints via shared variables
• Incomplete
• Search
• User controlled assignment of values to variables
• Each step triggers constraint propagation
• Different domains require/allow different methods

5
Techniques behind CLP
Predicate logic Unification Non-determinism
Logic Programming
Constraint propagation Consistency checking Demons
CLP tools
Operations Research
Artificial Intelligence
Simplex Linear programming Integer
programming Implicit enumeration Branch
bound Flow algorithms Scheduling methods
Graph theory Combinatorics Spatial data
structures Equation solving methods
Mathematics
6
Example Problem

• Solve the cryptarithmetic puzzle
• Each character represents a digit
• Different characters have different values
• Numbers do not start with 0

SEND MORE ------ MONEY
7
Example Model

• top-
• S, E, N, D, M, O, R, Y 0..9,
• alldifferent(S, E, N, D, M, O, R, Y),
• S \ 0, M \ 0,
• 1000 S 100E 10N D
• 1000M 100O 10R E
• 10000 M 1000O 100N 10E Y,
• labeling(S, E, N, D, M, O, R, Y).

Variable definition
Constraints between variables
Search routine
8
Constraint reasoning

• Simplification (each variable occurs once)
• 1000S in 1..9 91E in 0..9 D in 0..9
  10R in 0..9 9000M in 1..9 900O in
  0..9 90N in 0..9 Y in 0..9
• Evaluation lhs/rhs
• lhs in 1000..9918
• rhs in 9000..89919
• Merging of sides
• constraint in 9000..9918

9
Reasoning

• Consequence
• M 1
• S 9
• O in 0..1
• Propagation of alldifferent
• O 0

10
Reasoning

• Re-evaluation of equality
• 10009 91E in 2..8 D in 2..8 10R in
  2..8 90001 9000 90N in 2..8 Y in
  2..8
• lhs in 9204..9816, rhs in 9182..9728, eq in
  9204..9728
• N \ 2, E \ 8
• Re-evaluation, ...
• Continuing the process gives
• M 1, S 9, O 0, E in 4..7, N in 5..8, D in
  2..8, R in 2..8, Y in 2..8

11
Starting labeling

• First variable is E, first value is 4
• Propagation on equality gives
• 10009 914 D in 2..8 10R in 2..8
  90001 9000 90N in 5..8 Y in 2..8
• results in N 5, D 8, R 8, Y 2
• Propagation on alldifferent fails
• Backtracking to last choice

12
First alternative

• Next value for E is 5
• Propagation on equality gives
• 10009 915 D in 2..8 10R in 2..8
  90001 9000 90N in 5..8 Y in 2..8
• results in N 6, R 8
• Constraint propagation (alldifferent equality)
  gives
• D 7, Y 2

13
Points to remember

• Even small problems create complex propagation
  chains
• The same constraint can be woken several times in
  the same propagation loop
• The order in which constraints are woken has an
  influence on the speed
• Propagation continues until no further
  information is obtained
• Search (under user control) required to find
  ground solution
• Basic structure of finite domain program always
  the same
• define variables
• define constraints
• user defined search
• typical pick variable and find value

14
Example 2 The N-queens problem

• Place queens on a NxN chessboard so that they do
  not attack each other
• The classical constraints example
• Not a hard problem possible to construct generic
  solutions
• Used here show the impact of the search routine

15
Model

• run(N)-
• length(L, N),
• L 1..N,
• create_dif(L, 1, N, L1, L2),
• alldifferent(L),
• alldifferent(L1),
• alldifferent(L2),
• labeling(L).
• create_dif(, N, M, , ).
• create_dif(HT, N, M, HNR, HMS)-
• N1 is N1,
• M1 is M-1,
• create_dif(T, N1, M1, R, S).

16
Naïve search

• labeling().
• labeling(XY) -
• indomain(X),
• labeling(Y).

17
Results
first hard instance 22
18
Searchtree (N22)
19
First fail

• label().
• label(XY) -
• delete(Var,XY,Rest,0,first_fail),
• indomain(Var),
• label(Rest).

20
Results
First hard instance 80
21
Searchtree (N80)
22
Heuristic reordering

• run(N)-
• length(L, N),
• L 1..N,
• create_dif(L, 1, N, L1, L2),
• alldifferent(L),
• alldifferent(L1),
• alldifferent(L2),
• reorder(L, LL),
• label(LL).
• reorder(L, L1)-
• front_rear(L, L, , F, R),
• merge_it(F, R, L1).

• front_rear(R, , F, F, R).
• front_rear(R, _, F, F, R).
• front_rear(HT, _, _Q, F, Fend, Rear)-
• front_rear(T, Q, HF, Fend, Rear).
• merge_it(, , ).
• merge_it(, A, A).
• merge_it(AA1, BB1, A, BC1)-
• merge_it(A1, B1, C1).
• label().
• label(XY) -
• delete(Var, XY, Rest, 0, first_fail),
• indomain(Var, middle),
• label(Rest).

23
Results
Exceptional hard instances 108, 168
24
Searchtree (N108)
25
Credit based partial search

• label(L)-
• length(L,K),
• Credit is KK,
• credit(L, Credit, K, choose, choice, 5,
  part(1,2)).
• choose(Term, LTerm, RTerm)-
• delete(Term, LTerm, RTerm, 0,first_fail).
• choice(X)-
• indomain(X,middle).

26
Results
runs up to several thousand queens with less than
10 backtracking steps
27
Searchtree (N108)
28
Global Constraints
29
Need for global constraints
1
X
X in 2,3
Y
2
Y in 2,3
?
U in 1,2,3,4
Z
3
Z in 1,3
U
4
local reasoning, no action
global reasoning, detect implications by
bi-partite matching
30
Global constraints

• Work on sets of variables
• Global conditions, not local constraints
• Semantic methods
• Operations Research
• Spatial algorithms
• Graph theory
• Network flows
• Building blocks (high-level constraint
  primitives)
• Multi-purpose
• As general as possible
• Usable with other constraints
• Very strong propagation
• Acceptable algorithmic complexity

31
Constraint morphology
precedence
diffn
cumulative
sequence
cycle
case
among
alldifferent
setup
disjunctive
prod/cons
permutation
\
gt, distance
atmost, atleast
circuit
element
Different
Dependency
Tour
Resource
Order
32
The Cumulative global constraint

• Cumulative constraint
• Resource limits over periods of time
• Upper/lower limits
• Soft/hard limits
• Gradual constraint relaxation
• Application
• Resource restrictive scheduling, producer
  consumer constraints, disjunctive schedule,
  manpower constraints, overtime

33
Cumulative

• Methods
• obligatory parts
• task intervals
• available space
• many more (25000 lines of C code)
• Concepts
• one constraint may be used for different purposes

34
The Diffn global constraint

• Diffn constraint
• non overlapping areas on n-dimensional rectangles
• distances between rectangles
• limit use of areas
• relaxation
• Application
• layout, packing, resource assignment, setup,
  distribution planning, time-tabling

35
Diffn

• Methods
• obligatory parts
• region intervals
• max flow on assignment
• available space
• many others (32000 lines of C code)
• Concepts

36
The Cycle global constraint

• Cycle constraint
• Finds cycles in directed graphs with minimal cost
• Assign resources, find compatible start dates
• Applications
• Tour planning, personnel rotation, distribution
  problems, production sequencing

37
Cycle

• Methods
• connected components
• bi-partite matching
• non-oriented graph concepts
• shortest/longest paths
• micro-rules
• many others (38000 lines of C code)
• Concepts

38
The Among global constraint

• Among constraint
• How often do values occur in (sub)sequences
• based on counting arguments
• interaction between sequences
• Applications
• production sequencing, time tabling, coloring
  problems, set covering

39
The Precedence global constraint

• Precedence constraint
• Combine resource constraints and precedence
  networks
• Reasoning on latency (position in network)
• Co-operation between multiple resources
• Applications
• resource restricted scheduling, channel routing,
  frequency allocation

40
The Sequence global constraint
sequence
lt 40 hours
2 days off
after day with more than 10 hours, next day must
have less than 8 hours

• Sequence constraint
• constraints on pattern inside sequences
• combinatorial pattern matching
• counting arguments
• Applications
• Time tabling, personnel assignment,
• work rules, scheduling with daily working time
  limits

41
The power of global constraints
plan
schedule

• Multi-functional tools
• Building blocks

assign
42
Controlling Search
43
Search tree visualization

• Generation of search tree representation at
  run-time
• Shows parent child relation, failed sub-trees,
  success nodes
• In examples here
• leaf failure nodes suppressed
• failure trees not collapsed
• Interface a set of simple meta-call predicates
• Supported by work in DISCIPL Esprit project
• Declarative debugging
• Visualization of constraint programming results
• Understand behaviour of different strategies

44
Search tree tool
Menubar
Panel
Tree view
Other Views, here domain state
Info Area
45
Search strategies

• How to find values for variables
• Central to application of strategies/heuristics
• Chronological backtracking
• explores full search tree
• complete
• often stuck in one part of tree
• Partial search meta-heuristics
• different search methods
• not complete
• polynomial complexity
• used to explore different parts of search tree in
  systematic fashion
• uses normal variable and value selection criteria

46
Credit based search

• Systematic search at top of tree
• Limited amount of backtracking credit
• typical N, N2, N3
• Distribute credit to children in different ways
• preference on first child
• equal credit to all children
• If credit runs out, perform deterministic search
• Allow small amount of local search to overcome
  problems

47
Example of tree search
credit(X1..X10, 8, 10, my_delete,
my_indomain, 4, part(1,2)),
48
Credit Example
