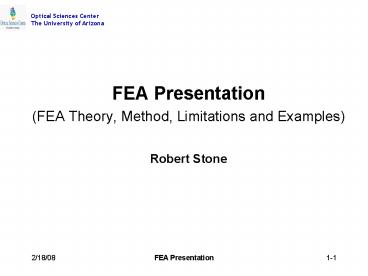

FEA Theory, Method, Limitations and Examples

1

• FEA Presentation
• (FEA Theory, Method, Limitations and Examples)
• Robert Stone

2
FEA Theory

• Finite element method approximates the physics
  - numerical procedure for solving a continuum
  mechanics problem with acceptable accuracy
• Subdivide a large problem into small elements
  connected by nodes
• Use small strain theory and classical solutions
  (i.e. partial differential equation) to determine
  element strain as a function of displacement
• Assume a simple polynomial behavior in each
  element
• Write equilibrium at nodes ? matrix equations
  ?solvefor nodal values (displacements)
• B Matrix (DOF to Strain Transformation)
  expressed in terms of the nodal coordinates
• E Matrix (Stress to Strain Transformation)
  recall s Ee
• A Matrix (Stress to Force Transformation) A
  BT
• Develop elemental stiffness matrix Kn BT E B
• Assemble into Master Stiffness Matrix
• Solve F K?

3
FEA Theory

• B Matrix (DOF to Strain Transformation)
• Each coefficient is a polynomial function that
  contains the nodal coordinates
• DOF Elemental Degrees of Freedom (typically 2
  6 depending on the element)
• 2D Bar / Spar / Truss 2 Node, 2 DOF
  (Translation)
• Spring 2 Node, 2 DOF (1 Translational 1
  Rotational)
• 3D Beam 3 Node, 6 DOF (3 Translational 3
  Rotational)
• Shell4 4 Node, 6 DOF (3 Translational 3
  Rotational)
• Solid (8 20 Node) 3 DOF (3 Translational)
• E Matrix (Stress to Strain Transformation)
• Material Properties
• Elastic Modulus (E)
• Poissons Ratio (?)

4
FEA Method

• Subdivide the structure into simple elements
• More element more nodes more DOF improved
  accuracy
• As DOF increases the solution typically converges
  to a solution.
• Most element formulations are overly stiff
  flexibility increases as the DOF increases
• As you increase the mesh density the deformation
  increase
• Deformations converge rapidly (typically a course
  model will yield good deformation results)
• Stresses converge slowly (in most cases, a fine
  mesh model is required to capture accurate
  stresses

5
FEA Method

• Linear Static (small displacement, linear
  materials)
• Nonlinear (large displacement, nonlinear material
  properties)
• Linear or nonlinear Dynamics
• Frequency analysis
• Random vibration analysis
• Buckling
• Thermal and heat transfer
• Fluid mechanics
• Electromagnetics
• Optimization

6
FEA Method

• In general odd geometries are easily handled
• An accurate FEA models may have little or no
  resemblance to the CAD model
• Simple models have many advantages
• Easy to develop and easy to change
• Fast solution time
• Easy to optimize or perform What If studies
• Complex models are time consuming to develop
• Require precise modeling and care
• Difficult to change
• May require long run times
• Engineer / Analyst determines the complexity

7
FEA Limitations

• Accurately modeling of load and boundary
  conditions is very difficult
• Complex joints are difficult
• Any form of member pre-tensioning requires a work
  around
• Symmetric problem with a mesh that lacks symmetry
  will produce asymmetric results

8
FEA Model
9
FEA Model

• COSMOS FEA Model Details
• High fidelity model
• Element Types
• 8 node solids, 3 node beams
• 4 node shells , 2 node springs
• Elements 20427
• Nodes 26105
• DOF 81035
• Materials ULE, Invar, steel
• Gravity simulates /- 8.5 from 35 zenith
• Z axis is the optical axis with origin at the
  vertex of M2

10
FEA Model

• COSMOS FEA Model Details
• Constraint equations simulate whiffle tree rocker
  motion
• Springs simulate flexures
• Flexure Stiffness 165000 lbs/in
• Equivalent thickness for pretensioned spider arms
• Stiff massless beams and springs simulate
  torsional stiffness of pretensioned spider for
  frequency analysis
• Massless beams support vertex node for each
  mirror
• FEA Weight 1234 lbs

11
FEA Model

• Spider Torsional Frequency
• Spider Vane Stiffness

• Vertex Node
• Rocker Arm Coordinate System
• Constraint Equations

12
Frequency Response
Fundamental Frequency 32.5 Hz
2nd Frequency 33.3 Hz
13
Frequency Response
4th Frequency 44.0 Hz
3rd Frequency 43.8 Hz
14
Frequency Response
5th Frequency 44.3 Hz
15
FEA Thermal Model

• COSMOS FEA Model Details
• Element Types
• 3D truss elements replace the 2 node spring
  elements
• Eliminated massless beams and springs from M4
  spider
• Materials ULE, Invar, steel, stainless steel
• Varied CTE of steel knuckles, then calculated an
  equivalent length of steel in M4 truss tubes
• Thermal simulates ?T 20C (36F)

16
M4/M5 Athermalization
Invar Truss Tubes
Steel Knuckle

• Compensates for negative CTE of Invar truss
• Model simulates 6.5 of steel from midplane of
  strongback

17
FEA Thermal Distortions

• Uniform distortion in Z direction
• Zero rotation about X axis and Y axis

18
Optical System
19
Optical Bench FEA

• Improved Fidelity
• All Optical Elements
• Bearing Stiffness
• Elements 9065
• Nodes 11692
• DOF 36910
• Element Types
• 8 Node Solids
• 3D Beams
• Thin Shells
• 2 Node Springs

20
FEA Details

• Radial Bearing 1,000,000 lbs/in
• Duplex (Radial) 850,000 lbs/in
• Duplex (Axial) 690,000 lbs/in
• SM (Axial) 108,750 lbs/in
• SM (Tangent) 435,000 lbs/in
• FM (Axial) - 108,750 lbs/in
• FM (Tangent) 435,000 lbs/in

• Tangent Flexures 125,000 lbs/in
• Axial Flexures 165,000 lbs/in

21
Optical Bench Frequency
Fundamental Frequency 34.58 Hz
Second Frequency 36.54 Hz
22
Optical Bench Frequency
Third Frequency 39.13 Hz
Fourth Frequency 41.18 Hz
23
Optical Bench/ Base FEA

• Improved Fidelity
• Elements 9559
• Nodes 12133
• DOF 39518
• Element Types
• 8 Node Solids
• 3D Beams
• Thin Shells
• 2 Node Springs
• Rigid Bars
• Translational Constraints (All Rotational DOF
  Released)

24
FEA Details

• Bench Coupled to Base
• Bearing Stiffness Included

• Bench Coupled to Base
• Lead Screw Stiffness Included

25
Optical Bench / Base FEA
Fundamental Frequency 25.00 Hz
Second Frequency 29.55 Hz
26
Optical Bench / Base FEA
Third Frequency 31.46 Hz
Fourth Frequency 32.44 Hz
27
Random Vibration Analysis

• 3 Axis Uniform Base Motion
• 1 100 Hz
• 15 Frequencies
• Modal Damping 0.01
• 40 Integration Steps Between Frequencies

28
Random Vibration Performance
29
LOS Jitter Performance
30
Preliminary Thermal FE Model

• Simple Model to Get Close, Validate Method
• Main Structural Beams
• Radiatve Coupling to Surfaces at Top and Bottom
• Shell Elements
• Proper Radiation View Factor
• Elements 2310
• Nodes 2486
• DOF 2486

31
Preliminary Thermal FE Model

• Model simulates a 2 K difference from top to
  bottom of chamber
• Shroud top (T531.0 R) radiating heat only to top
  surface of top I-beam
• Bottom surface of I-beam radiating heat only to
  bottom shroud (T527.4 R)
• e (shrouds) 0.90
• e (aluminum) 0.10
• a 0.13e-4/F
• k 0.22e-2 BTU/in-sec-F
• s .1714e-8 BTU/hr-ft2-R4
• s 3.306e-15 BTU/sec-in2-R4

32
Preliminary Model -- Steady State Temperature
(for 2 K difference from top to bottom of
shroud)
Top Surface Average 69.39 ºF
Bottom Surface Average 69.03 ºF
dT 0.36 F
33
Thermal Model for Hand Calculations

• Shroud Top
• T1 531.0 R (295K)
• A1 gt A2 (assumed as hemisphere)
• e1 0.90
• Upper I-beam Top Surface
• T2 Unknown
• A2 1248 in2
• e2 0.10
• Lower I-beam Btm Surface
• T3 Unknown
• A3 1248 in2
• e3 0.10
• Shroud Bottom
• T4 527.4 R (293K)
• A4 gt A3 (assumed as hemisphere)
• e4 0.90

For Steady State Equilibrium
34
Preliminary Thermal Results Comparison
35
Refined Thermal FE Model

• Shroud top (T531.0 R) radiating heat to top
  surface of both I-beams
• Bottom surface of both I-beam radiating heat
  to bottom shroud (T527.4 R)
• Blocking surfaces included
• e (shrouds) 0.90
• e (aluminum) 0.10
• a 0.13e-4/F
• k 0.22e-2 BTU/in-sec-F
• s 3.306e-15 BTU/sec-in2-R4

36
Refined Thermal FE Model Steady State Temperature
Top Surface Temp 69.615 ºF
Bottom Surface Temp 69.473 ºF
dT 0.142 F
37
Temperature 1ºK
Spec.
38
Primary Mirror Support

• 3-pairs of axial rods on mirror back
• Minimize rigid body movement figure change
  during 7.5 rotation
• Rods thread into 1 dia pucks bonded to back
• Each pair connected by a seesaw flexure to
  provide 3-point mounting to cell
• Differential screws at each rod end
• Equalize pre-load
• Provide fine tilt adjustment

39
Primary Mirror FEA

• FE model of mirror
• 3039 element
• 3629 nodes
• DOF 11,214
• Mirror modeled as 8-node solid elements
• Surface modeled as 4-node thin shell elements
• 1-g P-V RMS surface distortion predicted
• Zero degree position
• 7.5 position
• SigFit used to remove rigid body movement

40
Primary Mirror FEA Results

• Surface distortion determined over 22.68 CA
• Zero degree position
• P-V figure 17.7 nm (0.028 ?)
• RMS figure 3.1 nm (0.005 ?)
• 7.5 rotated position
• P-V figure 17.5 nm (0.027 ?)
• RMS figure 3.1 nm (0.005 ?)
• Weight 205 (mirror cell)
• Resonance 52 Hz
• Flexure stress
• 1g V 0.5g H (ksi) 31 (Tang) 15 (Axial)
• 4g V (ksi) 73 (Tang ) 23 (Axial)

41
PM Unit Forces Moments Analysis
Mz 1 in-lb
Fr 1 lb
42
Tangent Rods

• 3 rods spaced 120 apart
• 0.5 square X-section
• 0.030 thick cross circular flexures at each end
• 1.5 dia pucks bonded to mirror with Milbond
• Thru hole for threaded rod end
• Fixed end clamped to mount using one screw and a
  pin to prevent slippage under shock

43
Tangent Rod Analysis

• Normal Loads
• Axial stiffness 384K lb/in
• Bending stiffness (x-dir) 139 lb/in
• Bending stiffness (z-dir) 58 lb/in
• Torsional compliance 809 in-lb/rad
• Unit force moment analysis
• 0.010 displacement of rod end
• Shear force 1.39 lb 0.58 lb
• Moment 3.1 in-lb 1.29 lb
• 1 deg. displacement of rod end
• My 8.83 in- lb
• Mz 7.42 in-lb
• 0.01 radian torsion
• 8.1 in-lb moment

44
Secondary Mirror Mount

• Open frame type mount
• 3 I/F points on orthogonal axes
• 4 safety stops
• 3-flat blade flexures support mirror
• 1 dia pucks

45
SM FEA

• FE model of mirror
• 2682 element
• 3193 nodes
• DOF 10,461
• Mirror modeled as 8-node solid elements
• Surface modeled as 4-node thin shell elements
• 1-g P-V RMS surface distortion predicted
• Zero degree position
• 7.5 position
• SigFit used to remove rigid body movement

46
SM FEA Results

• Surface distortion determined over 10.50 CA
• Zero degree position
• P-V figure 5.87 nm (0.0093 ?)
• RMS figure 0.72 nm (0.0011 ?)
• 7.5º rotated position
• P-V figure 6.73 nm (0.0106 ?)
• RMS figure 1.20 nm (0.0018 ?)
• Weight 35.5
• Resonance 142 Hz
• Flexure stress
• 1g Y 0.5g H 3,163 psi
• 4g V 5,444 psi

Zero degree position
7.5º rotated position
47
Fold Mirror Mount
48
FM FEA

• FE model of mirror
• 2676 element
• 3172 nodes
• DOF 10,893
• Mirror modeled as 8-node solid elements
• Surface modeled as 4-node thin shell elements
• 1-g P-V RMS surface distortion predicted
• Zero degree position
• 7.5 position
• SigFit used to remove rigid body movement

49
FM FEA Results

• Surface distortion determined over 14.2 CA
• Zero degree position
• P-V figure 7.71 nm (0.012 ?)
• RMS figure 0.84 nm (0.001 ?)
• 7.5 rotated position
• P-V figure 11.83 nm (0.019 ?)
• RMS figure 2.33 nm (0.003 ?)
• Weight 64
• Resonance 277 Hz
• Flexure stress
• 1g Y 0.5g H 1890 psi
• 4g V 4477 psi

7.5º rotated position
50
Counterweighted Design

• Counterweighted Design is required for
  optimum performance in multiple gravity
  orientations.

51
Counterweighted Design Schematic
Horizon Pointing
Zenith Pointing

• Counterweighted Design Provides Support in Any
  Gravity Orientation

52
Assembled Mirror and Cell(Outer Skin and Bottom
Skin Removed)
53
Cell Design Details

• 24 Radial Counterweights
• Rods Aligned with CG
• 18 Axial Counterweights
• 6 _at_ Inner Radius 11.525 in.
• 12 _at_ Outer Radius 25.380 in.
• Material 6061-T6 Aluminum
• 3 Bi-Pod Supports
• Encapsulated Lead Weights
• Cell Material 6061 T6
• Bolted Construction
• Helicoil Threaded Inserts
• All Blind Holes Vented
• OAP WT Estimate 5215 lbs
• Flat WT Estimate 5500 lbs

54
Connecting Rod Design
Optimum Counterweight Design Applies An Axial
Load At The Puck With Minimum Error Forces Due To
Moments, Shear and Torsion

• EMD Flexure
• Short Compact Design
• Well Defined Axial Stiffness
• Low Flexural Stiffness
• Rotary Joint
• Needle Thrust Bearing
• Limits Torsional Loads on Puck
• Short Design
• Timkin Tapered Roller Bearings (2)
• High Radial Stiffness
• Improves Frequency Response 2-3 Hz
• Static Friction 2.7 x Running Friction

Minimum Overall Length Required To Meet Envelop
Requirements
55
OAP Finite Element Model

• ANSYS FEA Model Details
• High Fidelity Model
• EDM Flexure Stiffness Included
• Flex Pivot Stiffness Included
• Tapered Roller Bearing Stiffness Included
• Bipod Stiffness Included
• Breakaway Stiffness Included

56
OAP Finite Element Model

• ANSYS FEA Model Details
• Element Types
• 8 Node Solids
• 2 Node Beams
• 4 Node Shells
• Elements 10234
• Nodes 8324
• DOF 39525
• Supports 6 Points Vertical 3 Points X Y or
  Tangential

57
Modes 1 2
OAP Modal Performance
Mode 3
Mirror Translation (7.40 Hz)
Mirror Piston (9.46 Hz)
58
Modes 4 5
OAP Modal Performance
Mode 6
Mirror Tilt (12.40 Hz)
Cell Deformation (17.90 Hz)
59
Thermal PerformanceCTE Variations

• ANSYS FEA Model Details
• 8 Node Solid Elements
• Elements 3820
• Nodes 4565
• DOF 14211
• Supports 3 Tangential 3 Radial
• Model CTE 0.7 ?-?/C
• Temp. -0.5C to 0.5C
• PV Strain Difference 0.7 ?-?
• Assumed Spatial CTE Variations

60
Thermal Analysis Results
Normalized Strain Distribution for Power
Distributed (2p2-1) Bending Gradient.
Surface Normal Displacement for the Power
Distributed Bending Gradient
61
Thermal Analysis Results
Astigmatically Distributed Normalized Strain
Surface Normal Displacement for the
Astigmatically Distributed Bending Gradient
62
Thermal Analysis Results(Power Removed)
63
Thermal Analysis Results
64
Thermal Analysis Results
Power
Irregularity
Power ? 50 nm rms /- 10?C
Irregularity ? 25 nm rms /- 10?C
65
OptoMechanical Design Strength (Positive
Margins of Safety)

• FEA Analysis of Knife Edge Support
• 4 Node Shell Elements
• Cell Structure
• Knife Edge
• 3 Node Beam Elements
• Bolts
• 2g Gravity Load Applied as Pressure to Knife Edge

66
OptoMechanical Design Strength (Positive
Margins of Safety)
Max Disp. 0.064 in.
Max Stress 8416 psi
67
OptoMechanical Design Strength (Positive
Margins of Safety)
