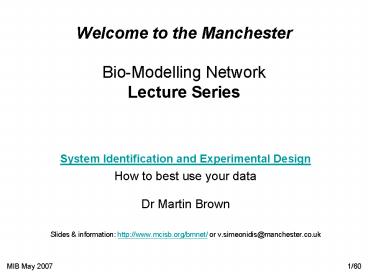

Welcome to the Manchester BioModelling Network Lecture Series

1
Welcome to the Manchester Bio-Modelling Network
Lecture Series

• System Identification and Experimental Design
• How to best use your data
• Dr Martin Brown
• Slides information http//www.mcisb.org/bmnet/
  or v.simeonidis_at_manchester.co.uk

2
Aims Objectives

• Aims
• To review how system identification and
  experimental design techniques provide tools for
  systems biology researchers
• Objectives
• Define system identification experimental
  design
• Introduce relevant statistics, optimization and
  control theory
• Demonstrate, using Matlab, how they solve systems
  biology problems
• Motivate current research topics

3
Talk Outline

• Exemplar compartmental modelling problem
• Model representation, identifiability,
  experimental design
• System biology modelling
• Modelling framework
• Cellular modelling problem
• System Identification
• Model representation
• Parameter estimation
• Parameter uncertainty
• Model selection
• Experimental design
• Common problems
• Optimization criteria
• Examples

4
0. Design Model Cycle
D
System Identification statistics, optimization,
dynamics, linear algebra
Experimental Design optimization,
statistics, linear algebra
H(E,M,q)

• Experimental design provides good quality data to
  the analysts
• Analysts inform the experimental designers about
  unknown/partially known hypotheses
• Experimental factors (disturbances) E
• Model structure M
• Parameters q
• The design lt-gt model process may be cyclic
  (sequential), or the design may be robust (valid
  over a range of hypotheses)
• Want to avoid Garbage In Garbage Out

5
1. Example Pharamcokinetics Modelling

• A drug x is injected into the blood with profile
  u(t)
• The drug moves from the central compartment C to
  the peripheral compartment P with profiles xC(t)
  and xP(t).
• Task identify the parameters in the reactions
  and use this knowledge to infer the hidden state
  responses

C
P
u(t)
xC(t)
xP(t)
y(t)
6
1. ODE Representation

• Linear ODE model (linear first order reactions)
• We can observe one noisy, transformed drug
  concentration
• The additive measurement noise (errors) is
  assumed to be i.i.d. N(0,s2)
• Inputs u(t)
• States x xC(t), xP(t)
• Parameters q KEL, KCP, KPC, 1/V, KEL, KCP,
  KPCgt0
• Observation y(t)

7
1. State Space Modelling

• In this problem, we have a linear state space
  model
• Simulation Given u(t), x0 A,B,C, calculate
  x(t) y(t) integrate up the ODEs
• Parameter estimation Given u(t), x0 and y(t),
  estimate
• A ( B, C) matrices noise model.

8
1. Observability Identifiability

• Observability Given the system A,B,C and a
  sequence of input/output measurements
  u(t),y(t), can the hidden states x(t) be
  estimated?
• Identifiability Given a sequence of input/output
  measurements u(t),y(t) can the parameters
  A,B,C be uniquely identified
• For this example, dG/dq is full rank.
• While these questions are yes/no, in practice
  sparse, noisy data means that the answer is
  graded gt experimental design

9
1 Page Matlab (Symbolic)

• Symbolic state space representation
• syms Kpc Kcp Kel V
• A -Kel-Kcp, Kpc Kcp, -Kpc
• B 1 0
• C 1/V 0
• Observability
• E C CA
• rank(E)
• Identifiability
• G CB CAB CAAB CAAAB
• dG jacobian(G, Kpc Kcp Kel V)
• rank(dG)

10
1. Experimental Design Problem

• The input profile u(t) consists of a 1 minute
  loading infusion of 75mg/min followed by a
  continuous maintenance infusion of 1.45 mg/min up
  to 720min
• The experimental design problem consists of
  selecting which discrete time measurements to use
  1ti 720
• Lets assume that only 8 points can be used
• Conventional design
• t (5, 10, 30, 60, 120, 180, 360, 720)
• D-optimal design
• t (1, 1, 10, 10, 74, 74, 720, 720)

11
1. Uncertainty in the Parameter Estimates

• For each design, 400 experiments where performed
  and the dotted lines denote the least squares
  parameter estimate histograms
• KEL0.0242

Dashed line for the (fitted) marginal density of
the conventional design Solid lie for the
(fitted) marginal density of the optimal design
The optimal design significantly reduces the
uncertainty in the identified system Similar
results for the other 3 parameters
12
1. Summary

• Today, were concentrating on systems of
  reactions that can be described by ODEs.
• Tools and techniques for the system
  identification, analysis and validation of linear
  and non-linear systems have been well developed.
• Computational tools Matlab, Mathematica, should
  be your first port of call for developing novel
  algorithms
• Important to map your problem domain model
  representation onto an appropriate framework and
  exploit the appropriate set of tools.
• Challenges in problem scale, data availability,
  insights

13
2. System Biology

• What is systems biology?
• Ask Doug Kell ?
• Quantitative study of biological systems (virus
  cell, ) aided by recent technological advances
• Biology is an experimentally driven science
  simply because evolutionary processes are not
  sufficiently well understood (first principles
  modelling).
• Reductionist approach is not appropriate as
  complex adaptive systems are inherently
  non-linear.

14
2.1 Cellular Dynamic Models

• Complexity of cellular systems resides not only
  in the sheer number of components, but also in
  the operations on multiple levels and timescales.
• Metabolic pathways are sequences of chemical
  reactions, each catalyzed by an enzymes, where
  certain product molecules are formed from other
  small substrates. Metabolites are usually small
  molecules while enzymes are proteins.
• Signal transduction pathways are networks of
  molecular interactions that provide communication
  between the cell membrane and intracellular
  end-points, leading to some change in the cell.
  Signals are transducted by modification of one
  proteins activity or location by another
  protein.
• Gene regulation pathways determine whether or not
  a particular gene is expressed at any particular
  time. Transcription factors, proteins that
  promote or repress transcription, either directly
  or indirectly bind regulatory DNA elements

15
2.2 ODE Modelling Assumptions

• It should be noted that using ODEs to model
  biochemical reactions assumes that
• The system is well-stirred in a homogeneous
  medium
• Spatial effects (such as diffusion) are
  irrelevant,
• Has a large number of molecules for each species
• If 1 /or 2 are not valid, partial differential
  equations should be used which model/represent
  spatial effects
• If 3 is not valid, a discrete, stochastic model
  will be more appropriate which represents
  individual molecular interactions, rather than
  average concentrations.
• In this talk, were primarily concerned with ODEs
  ?

16
Example 1 Michaelis Menten Pathway
ks are reaction parameters, x are metabolite
concentrations Well-stirred, significant
concentration assumptions
Kinetic Reaction Mechanisms
Substrate (S)
Enzyme (E)


x1
x2
k1/k2

x3
Pathway Dynamic Modelling via ODEs
k3

x4
Product (P)
http//en.wikipedia.org/wiki/Michaelis-Menten_kine
tics
17
1 Page Magic Matlab

• Simulation
• t, x ode45(_at_mmode, 0 10, 1 0.2 0 0)
• plot(t,x)
• ODE representation
• function dx mmode(t, x)
• k1 2
• k2 1
• k3 0.1
• dx zeros(4,1)
• dx(1) -k1x(1)x(2) k2x(3)
• dx(2) -k1x(1)x(2) k2x(3) k3x(3)
• dx(3) k1x(1)x(2) - k2x(3) - k3x(3)
• dx(4) k3x(3)

18
Example 2 IkB - NF-kB Signaling Pathway
NF-?B (nuclear factor-kappa B) is a protein
complex which is a transcription factor. NF-?B is
found in all cell types and is involved in
cellular responses to stimuli such as stress,
cytokines, free radicals, ultraviolet
irradiation, and bacterial or viral antigens.
NF-?B plays a key role in regulating the immune
response to infection
IkB-NF-kB signal pathway module
Graphical Connection Map for IkB-NF-kB Model
19
Example 2 IkB - NF-kB Signaling Pathway
NF-kB reaction mechanisms
Dynamic ODEs model
20
2. Summary

• Several common pathway models can be represented
  as bilinear state space models
• Bilinear models involve both a linear component
  and a cross product term as well and can be
  written as
• Matlab, .Copasi, . Many software tools can be
  used to simulate the systems, but for system
  identification, local sensitivity information can
  be useful.

21
3. What is System Identification?

• System identification is a general term to
  describe mathematical tools and algorithms that
  build dynamical models from measured data.
• System identification is generally done in the
  time domain, but analysis can be done frequency
  domain

22
3. The System Identification Process
Prior knowledge

• In building a model, the designer has control
  over three parts of the process
• Generating the data set D
• Selecting a (set of) model structure
• Selecting the criteria (least squares for
  instance), used to specify the optimal parameter
  estimates validate the model
• Section 3 is really about steps 23, section 4 is
  about step 1.

Experiment Design
Data
Choose Model Set
Choose Criterion of Fit
Calculate Model
Validate Model
?
?
23
3. Elements of System Identification

• Understanding system identification involves a
  mix of techniques
• 1. Statistical view of induction and inference
  because all work is relative to the finite,
  sampled, noisy data set
• 2. Optimization
• continuous parameter estimation and
• discrete model selection
• 3. Dynamics (control/state space) representation
  of the ODE/difference equation
• As well as a good knowledge of the application
  domain in order to validate the model.

24
3.1 Statistical Modelling

• An old statistical proverb is worth remembering
  whenever an engineer attempts to develop a
  grey/black model
• All models are wrong (bad), its just that
• some are more useful than others
• Typically, models are developed for two main
  reasons
• Hypothesis testing how do different model
  structures compare, when their assumptions are
  different?
• Predictive accuracy How can a model be
  constructed to offer adequate predictive
  performance in a simulation
• Parametric and non-parametric modelling are both
  widely used, but well concentrate on parametric
  modelling

25
3.1 Statistical Assumptions

• The aim of statistical induction is to try and
  deduce a general rule (model) from a finite data
  set
• The exemplar data is stochastic as it involves
  random measurement error/disturbances.
• Repeating the experiment will generate a
  different exemplar data set.
• Induction is stochastic and we can only infer a
  probability distribution on the parameters q
  p(qD)
• Any model inference is therefore also uncertain
  p(yq)

Model
Induction
Inference
Data
Prediction
Deduction
26
3.1 Statistical Induction

• Lets make 10 repeated (noisy) measurements about
  a parameter
• Inductive estimates
• Even in this simple case, its important to
  quantify the uncertainty. Experiments can then
  be designed to minimize its effect (maximize
  signal to noise ratio)
• In addition, we can quantify the amount of
  prediction uncertainty

27
3.1 Gaussian Measurement Errors?

• A frequent assumption is that the noise is iid
  (independent identically distributed), additive
  and Gaussian
• iid Noise structure may be incorrectly
  attributed to other effects. The noise should be
  identically distributed to allow us to easily
  aggregate errors
• Additive noise is added onto the true signal
• Gaussian Gaussian distributions are completely
  characterised by their mean and variance,
• A linear transformation of a Gaussian is another
  Gaussian (with known means variances)

28
3.2 Dynamic Model Framework

• What signals impact on our model?

v(t)
System q x(t)
y(t)
w(t)
u(t)

• The following signals define the model
• u(t) are external input signals that can be
  controlled (factors )
• w(t) are measurable disturbances
• v(t) are unmeasurable disturbances
• y(t) is the output signal
• x(t) are the dynamic, unobservable states of the
  model
• In addition, the (time invariant) model has a set
  of unknown parameters q

29
3.2 ODE/State Space Models

• In this talk were mainly concerned with ordinary
  differential equation (ODE) systems
• This is a generalized representation
• f() determines the dynamics of the ODE
• g() determines the structure of the observer
• Re-visiting linear state space models

30
3.2 States Mass Conservation

• A key part in understanding state space/ODE
  models is the idea of a state.
• It is a minimal signal set, which at any time,
  contains enough information to predict future
  behaviour, coupled with knowledge of external
  signals
• In pathway modelling problems, the states
  generally correspond to molecular concentrations
• NB we often have mass conserving constraints such
  as .
• These can be easily represented in the ODE so the
  state transition matrix satisfies
• This defn works in reverse on the left singular
  values of A

31
3.2 Linear State Space Responses

• Linear state space models and their dynamics are
  very well understood
• Model form
• General solution
• Both the autonomous forced dynamical behaviour
  is determined by the exponential matrix eAt
• l real positive unstable
• l real negative stable
• l imaginary - sinusoidal

Parameters A, B C
Autonomous response
Forced/convolved response
32
3.2 Non-linear State Space Models

• In reality, any non-linear function could be used
  for the state transition observer functions,
  f() g()
• Often the observer function is a simple binary
  matrix which represents which states can be
  measured
• Remember, missing states may still be observed
• There has been a lot of work by researchers
  developing and analysing new non-linear state
  transition functions
• Bilinear non-linear state space models are a
  simple/popular tool for cellular models
  (dimerization)

33
3.3 Parameter Estimation

• A key part of system identification is to assume
  that the model structure is given (and correct!)
• The goal is to estimate parameters whose values
  cannot be directly estimated or derived from
  first principles models
• As one of the system biology goals is to better
  understand first principle models and reaction
  rates are difficult to estimate, parameter
  estimation is a frequent problem in systems
  biology

34
3.3 Model Parameters

• Lets consider the case where we have an
  autonomous, bilinear state space model
• This is a linear in the parameter model, but
  non-linear in the state.
• NB Often the A1 and A2 are quite sparse
• Consider the extended state
• Then the linear dependency of the model
  parameters on the extended state is easy to see

35
3.3 Optimality Criterion

• For simplicity, lets assume that all the states
  can be directly measured
• For parameter estimation, we have the
  input-output measured, sampled data u(k), x(k)k
• Then the basic parameter estimation problem can
  be posed as
• This is least squares parameter estimation
• There are many variations on this basic
  optimality criterion a key thing is to
  recognise what assumptions they impose on problem
  domain

f(q)
q
36
3.3 Optimization for Dynamic Systems

• The optimality criterion contains the (discrete
  time) state estimates which must be obtained by
  integrating the current model estimate.
• Optimization iterates parameter estimates
• We have the following scenario

Final estimates
Sample data
Parameter iterations
u(k), x(k)
Even when dx/dt depends linearly on q, the
dynamic model means that the optimality criterion
is not quadratic (exponential)
Solve model
37
1 Page Matlab

• theta, fval, exitflag fminunc(_at_mmobj, 3 0.5
  0.2)
• function f mmobj(theta)
• dt 00.0510
• theta1 2 1 0.1
• t1, x1 ode45(_at_(t,x)mmode(t,x,theta1), dt, 1
  0.2 0 0)
• t2, x2 ode45(_at_(t,x)mmode(t,x,theta), dt, 1
  0.2 0 0)
• f sum(sum((x1-x2).2))
• function dx mmode(t, x, theta)
• dx zeros(4,1)
• dx(1) -theta(1)x(1)x(2) theta(2)x(3)
• dx(2) -theta(1)x(1)x(2) theta(2)x(3)
  theta(3)x(3)
• dx(3) theta(1)x(1)x(2) - theta(2)x(3) -
  theta(3)x(3)
• dx(4) theta(3)x(3)

38
3.3 Least Squares Assumptions

• Why is the least squares criterion so widely
  used?
• For statistical models, it corresponds to
  minimizing the variance of the measured signal
  with independent and identically distributed
  noise.
• The optimal model is the mean
• One common variation in system biology is to
  assume that the noise variance differs for each
  state

39
3.3 Gradient Estimates

• Without wanting to go over all the 1st/2nd order
  optimization theory, lets consider the very
  simple gradient descent parameter estimation
  procedure
• We can view this as
• sliding down a bowl to the
• bottom. The choice of h
• determines stability/rate
• of convergence.
• We can show

40
3.3 Local Sensitivity

• Using the least squares cost function, the
  gradient is evaluated as
• The objective gradient depends on the model
  sensitivity
• Using the model sensitivity in optimization
  algorithms (PPT), were implicitly performing
  some form of gradient descent
• Using the normalized sensitivity
• Implicitly nomalizes the cost function

41
3.3 Local Sensitivity for a Linear Model

• In gradient-based optimization, obtaining the
  sensitivity derivatives is v. important.
• It can be calculated from an ODE, just like the
  state space equations
• Solving for the sensitivity states is a joint
  ODE problem (extended ode function in Matlab)

42
1 Page Matlab

• Pseudo/untested code
• Simulation
• t, xS ode45(_at_mmode, 0 10, 1 0.2 0 0
  zeros(1,12))
• plot(t,xS)
• ODE representation
• function dx mmode(t, x)
• k1 2
• k2 1
• k3 0.1
• dx zeros(16,1)
• States
• dx(1) -k1x(1)x(2) k2x(3)
• dx(2) -k1x(1)x(2) k2x(3) k3x(3)
• dx(3) k1x(1)x(2) - k2x(3) - k3x(3)
• dx(4) k3x(3)
• Sensitivities

43
3.3 Parameter Variance/Co-variance

• A key measure of identifiability and a key link
  with experimental design is the estimated
  parameter variance/covariance matrix
• It forms part of 2nd order optimization
  procedures
• It measures the amount of uncertainty
  correlation in the parameter estimates
• For simple, static, linear systems it measures
  all the uncertainty. More generally, its a
  local approximation

44
Example S Parameter Validation

• Consider the two parameter model with uncertainty
  regions
• We can marginalise the distribution to perform
  single hypothesis testing on each parameter.
• We can compare whether a new estimate is
  statistically significant from a previous
  estimate
• In many systems biology system identification
  problems there are significant problems with
  identifiability

45
3.4 Pathway Selection

• Practical implications for the modelling tasks
  are the emphasis on network structures over exact
  values of the kinetic parameters
• A key assumption in parameter estimation is that
  we know the model structure
• Non-linear f() g()
• Linear order sparse structure of A, B and C
• This means the estimation residual corresponds to
  the stochastic noise term
• In practice, we rarely know the parametric model
  structure exactly.
• Model selection is a discrete, non-convex search
  through the space of all possible models in order
  to find one that is suitably predictive and
  suitably simple.

46
3.4 Selection Identifiability

• In practice, even though a reaction may exist,
  the corresponding parameter value may be very
  difficult to estimate.
• Problem of identifiability
• The problem is badly conditioned

47
3.4 Null Hypothesis Test

• Locally, the estimated parameter uncertainty is
  Gaussian when the measurement errors are Gaussian
• To determine whether each feature/parameter is
  significant, we can apply the null hypothesis
  test.
• This essentially determines whether there is
  enough information in the training data set to
  say that the particular parameter is
  significantly non-zero, i.e. does the parameter
  distribution contain the value 0, for a 67, 95
  or a 99.7 certainty
• Zero parameter ? no reaction
• Simple way to compare two models, differing by
  one extra parameter

p(q)
67 certainty
95 certainty
0
E(q)
99.7 certainty
48
3.4 Convex Re-formulations

• Remember, there is no correct parameter
  estimates/discrete model structure!
• Parametric model selection is a discrete
  combinatorial, and when the parameter estimation
  problem is badly conditioned, there are often
  numerous local minima
• Were looking at regularization approaches for
  parameter estimation approximate sparse model
  selection

49
3.4 Example RKIP regulated ERK signaling pathway

• 11 states
• 11 parameters
• 0.5s worth of identification data

50
Calculated Parameter Locus
Estimated parameter locus (l 0-gt8)

• Many parameters are largely conditionally
  independent however a couple of parameters
  exhibit Simpsons paradox (change sign when a new
  parameter is introduced/removed)

51
3. Summary

• Weve really just scratched the surface of
  parametric modelling techniques.
• Dont reinvent the wheel, learn how to use
  existing libraries
• Important issues not really discussed
• Model validation (this is more than just looking
  at mse)
• Non-convex optimization (v. important for
  medium-large parameter estimation problems)
• Non-linear extensions to well-founded linear
  state space models
• Hidden state estimation/filtering
• Current work is looking at
• Regularization for parameter estimation sparse
  model selection
• Non-parametric (kernel/gaussian processes)

52
4. Experimental Design

• The basic assumption here is that it is expensive
  to perform an experiment, hence the aim of
  experimental design is
• maximise the identification information while
  minimizing the number of experiments
• This is relative to the question being asked
  about the model
• How predictive is the model
• How well identified are the parameters
• How does M1 compare with M2
• If the modelling purpose is not well understood,
  the experimental design problem is ill-posed.
• Like parameter estimation, experimental design is
  an optimization problem

53
4. Why do it?

• Consider a single factor, linear, static model,
  where the measurements contain some additive,
  zero mean, iid Gaussian noise
• The inputs are constrained by
• Where should we place 2 experiments to best
  identify q?

54
4. Experimental Design Parameters

• Given a (linear) model
• there are many experimental parameters that can
  be optimized
• The initial state values x0
• Which states to observe C
• The input/excitation signal u(k)
• The sampling time/rate tkkT
• These are a mix of continuous, discrete and time
  varying variables which are problem dependent.

55
4. Experimental Design Optimality

• The basic measure of optimality is the Fisher
  information matrix
• forms a lower bound for the parameter
  variance/covariance matrix
• This produces a vector optimization problem and
  common matrix (alphabet) scalarization measures
• A-optimality - tr(Sq) (eigenvalue sum)
• D-optimality - det(Sq) (eigenvalue product)
• E-optimality - maxj l(Sq) (largest eigenvalue)
• all give (different) estimates of the amount of
  parametric uncertainty resulting from the
  experimental data.

l1,v1
l2,v2
56
4. Dynamic Experimental Design

• The basic problem with applying experimental
  design to dynamic models is that the sensitivity
  derivative which depends on the current parameter
  estimates
• Sequential experimental design
• Perform a new experimental design Dk after each
  parameter estimate
• Robust experimental design
• Calculate an experimental design which is valid
  for a range of parameter values

sensitivity
estimation
exp design
57
4. Example Observer Selection

• For the NF-kB model/experimental set-up, there
  exists a constraint that only 4 states (out of
  20) can be directly measured
• This is a discrete optimization problem and is
  often relaxed as
• Note that this assumes all observations can be
  made in order to select which are the most
  informative! An iterative, sampled approach may
  be more realistic if there are measurement
  constraints.

58
4. Example Robust Experimental Design

• Produce a design which minimizes the uncertainty
  in a space around the nominal model estimate.
• Because of the uncertainty in the parameter
  estimates, we have an associated bounded
  uncertainty in the sensitivity estimates
• Like the regularization approach to sparse model
  selection, this uses a convex re-formulation to
  the problem and we can exploit a lot of
  semi-definite programming theory.

59
4 Example Robust Experimental Design

• Increasing the uncertainty (p large) means that
  all observations are equally valid, but when the
  uncertainty is small, 4 observations larger than
  the others.

60
4. Conclusions

• Experimental design is a bran flakes-type
  technology, not necessarily very exciting, but
  very useful.
• Variety of ways of posing questions
• Better to do some analysis, even approximate,
  than none at all
• System identification and experimental design are
  mature techniques and have a lot to offer systems
  biology researchers.
• However, they do not pretend to be a complete
  theory and problems in systems biology offer
  challenges in terms of scalability, robustness
• Thanks to Fei He, George Papadopoulos, Liang Sun,
  Hong Yue, Doug Kell, Steve Wilkinson
