Superposition

1

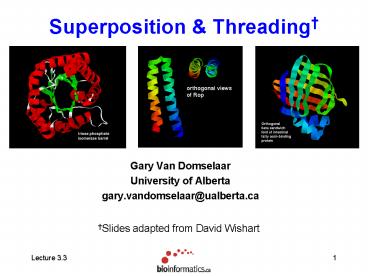

Superposition Threading

• Gary Van Domselaar
• University of Alberta
• gary.vandomselaar_at_ualberta.ca

Slides adapted from David Wishart
2
Outline

• Vectors, matrices and other geometry issues
• General Superposition concepts
• Threading and threading methods

3
Vectors Define Bonds and Atomic Positions
4
Review - Vectors
5
Review - Vectors

• Vectors can be added together
• Vectors can be subtracted
• Vectors can be multiplied (dot or cross or by a
  matrix)
• Vectors can be transformed (resized)
• Vectors can be translated
• Vectors can be rotated

6
Matrices

• A matrix is a table or array of characters
• A matrix is also called a tensor of rank 2

7
Different Types of Matrices
8
Different Types of Matrices
9
Review - Matrix Multiplication
10
Rotation
11
Rotation
12
Rotation
13
Rotation (Detail)
14
Superposition

• Objective is to match or overlay 2 or more
  similar objects
• Requires use of translation and rotation
  operators (matrices/vectors)
• Recall that very three dimensional object can be
  represented by a plane defined by 3 points

15
Superposition
16
Superposition
17
Superposition
18
Superposition
19
Superposition
20
Superposition
21
Superposition
22
Superposition
23
Superposition
24
Superposition
25
Returning to the red frame
26
Returning to the red frame

• Begin with the superimposed structures on the x-y
  plane
• Apply counterclockwise rot. By ?
• Apply counterclockwise rot. By ?
• Apply counterclockwise rot. By ?
• Apply red translation to red origin

27
Superposition - Applications

• Ideal for comparing or overlaying two or more
  protein structures
• Allows identification of structural homologues
  (CATH and SCOP)
• Allows loops to be inserted or replaced from loop
  libraries (comparative modelling)
• Allows side chains to be replaced or inserted
  with relative ease

28
Side Chain Placement
29
Amino Acid Side Chains
30
Adding a Side Chain
31
Adding a Side Chain
32
Adding a Side Chain
33
Adding a Side Chain
34
Adding a Side Chain
35
Superposition

• The concept of superposition is key to many
  aspects of protein structure generation and
  comparison
• Superposition may be used to insert side chains
  and loops (for homology models)
• Side chains require more consideration as side
  chain packing ultimately determines the 3D
  structure of proteins

36
Superposition - RMSD

• The degree of similarity between two or more
  structures is described by its average root mean
  square deviation (RMSD)

x3
x4
x2
y3
y4
y2
x5
y5
x1
x1
y1
37
Superposition Software

• Swiss PDB Viewer
• Aligns 2 homologous structures

38
Superposition Software

• CE Structure Comparison by Combinatorial
  Extension
• http//cl.sdsc.edu/ce.html
• Superposition for 2 chains and for multiple
  chains (new)

39
Superposition Software

• SuperPose
• http//wishart.biology.ualberta.ca/SuperPose/
• Superposition for 2 chains and for multiple
  chains
• Subdomain superposition
• Superposition of structures with low sequence
  identity

40
Definition

• Threading - A protein fold recognition technique
  that involves incrementally replacing the
  sequence of a known protein structure with a
  query sequence of unknown structure. The new
  model structure is evaluated using a simple
  heuristic measure of protein fold quality. The
  process is repeated against all known 3D
  structures until an optimal fit is found.

41
Why Threading?

• Secondary structure is more conserved than
  primary structure
• Tertiary structure is more conserved than
  secondary structure
• Therefore very remote relationships can be better
  detected through 2o or 3o structural homology
  instead of sequence homology

42
Visualizing Threading
43
Visualizing Threading
44
Visualizing Threading
45
Visualizing Threading
46
Visualizing Threading
47
Threading

• Database of 3D structures and sequences
• Protein Data Bank (or non-redundant subset)
• Query sequence
• Sequence lt 25 identity to known structures
• Alignment protocol
• Dynamic programming
• Evaluation protocol
• Distance-based potential or secondary structure
• Ranking protocol

48
2 Kinds of Threading

• 2D Threading or Prediction Based Methods (PBM)
• Predict secondary structure (SS) or ASA of query
• Evaluate on basis of SS and/or ASA matches
• 3D Threading or Distance Based Methods (DBM)
• Create a 3D model of the structure
• Evaluate using a distance-based hydrophobicity
  or pseudo-thermodynamic potential

49
2D Threading Algorithm

• Convert PDB to a database containing sequence, SS
  and ASA information
• Predict the SS and ASA for the query sequence
  using a high-end algorithm
• Perform a dynamic programming alignment using the
  query against the database (include sequence, SS
  ASA)
• Rank the alignments and select the most probable
  fold

50
Database Conversion
51
-
-
52
2o Structure Identification

• DSSP - Database of Secondary Structures for
  Proteins (swift.embl-heidelberg.de/dssp)
• VADAR - Volume Area Dihedral Angle Reporter
  (redpoll.pharmacy.ualberta.ca)
• PDB - Protein Data Bank (www.rcsb.org)

53
(No Transcript)
54
ASA Calculation

• DSSP - Database of Secondary Structures for
  Proteins (swift.embl-heidelberg.de/dssp)
• VADAR - Volume Area Dihedral Angle Reporter
  (www.redpoll.pharmacy.ualberta.ca/vadar/)
• GetArea - www.scsb.utmb.edu/getarea/area_form.html


55
Other ASA sites

• Connolly Molecular Surface Home Page
• http//www.biohedron.com/
• Naccess Home Page
• http//sjh.bi.umist.ac.uk/naccess.html
• ASA Parallelization
• http//cmag.cit.nih.gov/Asa.htm
• Protein Structure Database
• http//www.psc.edu/biomed/pages/research/PSdb/

56
2D Threading Algorithm

• Convert PDB to a database containing sequence, SS
  and ASA information
• Predict the SS and ASA for the query sequence
  using a high-end algorithm
• Perform a dynamic programming alignment using the
  query against the database (include sequence, SS
  ASA)
• Rank the alignments and select the most probable
  fold

57
ASA Prediction

• PredictProtein-PHDacc (58)
• http//cubic.bioc.columbia.edu/predictprotein
• PredAcc (70?)
• condor.urbb.jussieu.fr/PredAccCfg.html

58
2D Threading Algorithm

• Convert PDB to a database containing sequence, SS
  and ASA information
• Predict the SS and ASA for the query sequence
  using a high-end algorithm
• Perform a dynamic programming alignment using the
  query against the database (include sequence, SS
  ASA)
• Rank the alignments and select the most probable
  fold

59
(No Transcript)
60
Sij (Identity Matrix)
61
(No Transcript)
62
A Simple Example...
63
Lets Include 2o info ASA
Sij k1Sij k2Sij k3Sij
64
(No Transcript)
65
A Simple Example...
66
2D Threading Performance

• In test sets 2D threading methods can identify
  30-40 of proteins having very remote homologues
  (i.e. not detected by BLAST) using minimal
  non-redundant databases (lt700 proteins)
• If the database is expanded 4x the performance
  jumps to 70-75
• Performs best on true homologues as opposed to
  postulated analogues

67
2D Threading Advantages

• Algorithm is easy to implement
• Algorithm is very fast (10x faster than 3D
  threading approaches)
• The 2D database is small (lt500 kbytes) compared
  to 3D database (gt1.5 Gbytes)
• Appears to be just as accurate as DBM or other 3D
  threading approaches
• Very amenable to web servers

68
Servers - PredictProtein
69
Servers - 123D
70
Servers - GenThreader
71
More Servers - www.bronco.ualberta.ca
72
2D Threading Disadvantages

• Reliability is not 100 making most threading
  predictions suspect unless experimental evidence
  can be used to support the conclusion
• Does not produce a 3D model at the end of the
  process
• Doesnt include all aspects of 2o and 3o
  structure features in prediction process
• PSI-BLAST may be just as good (faster too!)

73
Making it Better

• Include 3D threading analysis as part of the 2D
  threading process -- offers another layer of
  information
• Include more information about the coil state
  (3-state prediction isnt good enough)
• Include other biochemical (ligands, function,
  binding partners, motifs) or phylogenetic
  (origin, species) information

74
3D Threading Servers

• Generate 3D models or coordinates of possible
  models based on input sequence
• Loopp (version 2)
• http//ser-loopp.tc.cornell.edu/loopp.html
• 3D-PSSM
• http//www.sbg.bio.ic.ac.uk/3dpssm/
• All require email addresses since the process may
  take hours to complete

75
(No Transcript)
76
(No Transcript)
