The Cellulose Nanocrystal Electro-optic Effect

1

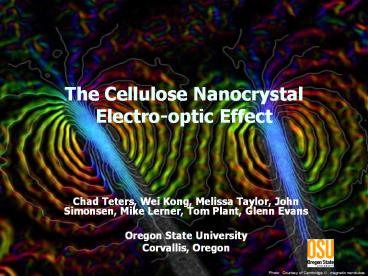

The Cellulose Nanocrystal Electro-optic Effect

• Chad Teters, Wei Kong, Melissa Taylor, John
  Simonsen, Mike Lerner, Tom Plant, Glenn Evans
• Oregon State University
• Corvallis, Oregon

2
PRESENTATION OVERVIEW

• Cellulose nanocrystals (CNXLs)
• Production
• Properties
• Transient electric birefringence (TEB)
• Alignment
• Optical effects
• Multi-order rotation
• Device fabrication
• issues

3
Cellulose
4
CELLULOSE NANOCRYSTAL PRODUCTION

• Native cellulose - Semi crystalline Polymer (70
  crystalline).

Amorphous portion
Crystalline portion
CONTROLLED ACID HYDROLYSIS
5
TEM image of cellulose nanocrystals
6
(No Transcript)
7
(No Transcript)
8
7 nm
9
150 nm
10
SOURCES OF CELLULOSE NANOCRYSTALS CELLULOSE
WHISKERSCELLULOSE NANOWHISKERSCELLULOSE
CRYSTALLITES
11
Wood
12
Sugar Beets
13
Cotton
14
Barnacles (tunicin)
15
Bacterial Cellulose
16
CELLULOSE BIOSYNTHESIS
R.M. Brown, 1996. J. Mat. Sci. Pure Appl.
Chem. A33(10) 1345-1373
17
Slide from Wankei Wan, U. W. Ontario, London, ON,
Canada
18
CELLULOSE NANOCRYSTALS
Beck-Candanedo, et. al. Biomacromol. (2005)
61048-1054
19
Surface Area
m2/g
http//www.jm.com/engineered_products/filtration/
products/microfiber.pdf Winter, W.
presentation at ACS meeting, San Diego, March
2005 http//www.ipme.ru/e-journals/RAMS/no_5503
/staszczuk/staszczuk.pdf.
20
MECHANICAL PROPERTIES

• Marks, Cell wall mechanics of tracheids 1967
• Sturcova, et al. (2005) Biomacromol. 6, 1055
• Yu, et al Science (2000) 287, 637

21
OPTICS
22
TRANSIENT ELECTRIC BIREFRINGENCE, AKA THE KERR
EFFECT

• Crossed polarizers typically emit no light
• Unless an optically active substance rotates the
  light
• Electric field can align birefringent substances
  and allow light to pass polarizers
• Kerr cells, Pokels cells used in fiber optics,
  lasers, confocal microscopy, etc.

23
Original Kerr Cell 1875
Optically active medium glass
from Kelvin's Instruments and the Kelvin Museum
by G. Green and J. T. Lloyd
http//www.elec.gla.ac.uk/groups/opto/Kerr.html
24
KERR CELL
http//www.photonics.com/dictionary/images/terms/k
25
SETUP
26
(No Transcript)
27
(No Transcript)
28
BASIC DETECTION THEORY
29
ALIGNMENT THEORY (STATIC FIELD)
30
ALIGNMENT THEORY (STATIC FIELD)
31
Alignment Theory (static field)
32
ALIGNMENT THEORY (T-DEPENDENT FIELD)
Growth
Decay
33
EMPIRICAL FIT
decay
rise
on
off
34
ALIGNMENT THEORY (FITTING PARAMETERS)
fast
slow
35
CNXL RESULTS (E FIELD DEPENDENCE)
36
CNXL RESULTS (CONC. DEPENDENCE)
37
KERR CELL COMPARISON
38
CNXL RESULTS (MULTI-ORDER ROTATION)
39
CNXL RESULTS (MULTI-ORDER ROTATION)
40
CNXL RESULTS (MULTI-ORDER ROTATION)
41
CNXL RESULTS (MULTI-ORDER ROTATION)
42
CNXL RESULTS (MULTI-ORDER ROTATION)
43
WAVE PLATE OPTICS
Kerr equation
G phase shift n refractive index d
pathlength ? wavelength
n refractive index K Kerr constant ?
wavelength E electric field strength
K f(concentration) K C Linearity is an
assumption
44
APPLICATIONS

• Display devices
• Privacy glass
• Electrically variable waveplate for microscopy,
  general optics
• ???

45
SCHEMATIC OF LIQUID CRYSTAL DISPLAY
46
TRANSMITTANCE OF CNXL DISPERSION
47
CNXL vs LCD
48
CNXL CHALLENGES

• Colloid stability
• Conductivity, Joule heating
• Scattering
• Field direction in plane switching

49
CONCLUSIONS

• Cellulose nanoparticle dispersions exhibit a
  strong electro-optic effect
• Effect dependent on square of field strength,
  concentration, path length, surface chemistry
• Device geometry requires in-plane switching
• CNXL dispersions hold the potential for
  electro-optic applications in a variety of fields
  and devices
