Introduction to ShiftReduce Parsing

1

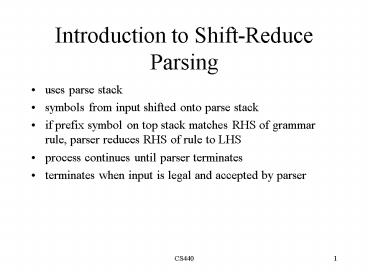

Introduction to Shift-Reduce Parsing

• uses parse stack
• symbols from input shifted onto parse stack
• if prefix symbol on top stack matches RHS of
  grammar rule, parser reduces RHS of rule to LHS
• process continues until parser terminates
• terminates when input is legal and accepted by
  parser

2
Control of the parser

• Action Table
• The action table is a table with rows indexed by
  states and columns indexed by terminal symbols
• action taken by the parser depends on the
  contents of actionst, which can contain four
  different kinds of entries
• Shift s' - Shift state s' onto the parse stack.
• Reduce r - Reduce by rule r.
• Accept - Terminate the parse with success,
  accepting the input.
• Error - Signal a parse error.
• Goto Table
• When the parser is in state s immediately after
  reducing by rule N, then the next state to enter
  is given by gotosN.

3
Operation of a parser is as follows

• 1. Initialize the parse stack to contain a single
  state s0, where s0 is the distinguished initial
  state of the parser.
• 2. Use the state s on top of the parse stack and
  the current lookahead t to consult the action
  table entry actionst
• If the action table entry is shift s then push
  state s onto the stack and advance the input so
  that the lookahead is set to the next token.
• If the action table entry is reduce r and rule r
  has m symbols in its RHS, then pop m symbols off
  the parse stack. Let s be the state now revealed
  on top of the parse stack and N be the LHS
  nonterminal for rule r. Then consult the goto
  table and push the state given by gotosN
  onto the stack. The lookahead token is not
  changed by this step.
• If the action table entry is accept, then
  terminate the parse with success.
• If the action table entry is error, then signal
  an error.
• 3. Repeat step (2) until the parser terminates.

4
consider the following simple grammar

• 0) S stmt ltEOFgt
• 1) stmt ID expr
• 2) expr expr ID
• 3) expr expr - ID
• 4) expr ID
• which describes assignment statements like a b
  c - d. (Rule 0 is a special augmenting
  production added to the grammar).

5
Parser Tables
6
A trace of the parser on input a b c - d
7
Construction of Shift-Reduce Parsing Tables

• The general idea of bottom-up parsing is to
  repeatedly match the RHS of some rule and reduce
  it to the rules LHS.
• To identify the matching RHSs, the parser needs
  to keep track of all possible rules which may
  match.
• This is done by means of the parser state, where
  each state keeps track of the set of rules the
  parser may currently be in, and how far along the
  parser may be within each rule.

8
Consider the grammar

• 0) S stmt ltEOFgt
• 1) stmt ID expr
• 2) expr expr ID
• 3) expr expr - ID
• 4) expr ID
• denote an item as a rule with a dot . just before
  the next expected symbol.

9
Parser

• 0) S . stmt ltEOFgt
• State 0
• 0) S . stmt ltEOFgt
• 1) stmt . ID expr

10

• State 1
• 1) stmt ID . expr
• State 2
• 0) S stmt . ltEOFgt

11

• State 3
• 1) stmt ID . expr
• the dot is before the nonterminal expr, the
  parser could be in any of the rules for expr.
• State 3
• 1) stmt ID . expr
• 2) expr . expr ID
• 3) expr . expr - ID

12

• 4) expr . ID
• Continue this process of following all possible
  transitions out of states until we cannot
  construct any new states.
• Completing this construction results in an
  automaton called a LR(0) machine. The transitions
  on terminal symbols correspond to shift actions
  in the parser the transitions on nonterminal
  symbols correspond to goto actions in the parser.

13
For our example grammar, we get the following
LR(0) machine

• State 0
• 0) S . stmt
• 1) stmt . ID expr
• GOTO 2 on stmt
• SHIFT 1 on ID
• State 1
• 1) stmt ID . expr
• SHIFT 3 on

• State 2
• 0) S stmt .
• SHIFT 4 on
• State 3
• 1) stmt ID . expr
• 2) expr . expr ID
• 3) expr . expr - ID
• 4) expr . ID
• GOTO 6 on expr
• SHIFT 5 on ID

14

• State 4
• 0) S stmt .
• State 5
• 4) expr ID .
• State 6
• 1) stmt ID expr .
• 2) expr expr . ID
• 3) expr expr . - ID
• SHIFT 7 on
• SHIFT 8 on -

• State 7
• 2) expr expr . ID
• SHIFT 9 on ID
• State 8
• 3) expr expr - . ID
• SHIFT 10 on ID
• State 9
• 2) expr expr ID .
• State 10
• 3) expr expr - ID .

15
Computer Architecture

• To generate efficient code, a translator needs to
  understand of the target architecture

16
Instruction Cycle
17
Memory Hierarchy
18
Data Representation

• Instructions
• Addresses
• Binary Integers
• Floating point numbers
• Characters
• BCD (binary-coded decimals)

19
Instructions

• move
• computation
• control transfer
• special operations
• addressing modes
• conditional branches

20
Integers

• unsigned integers have values ranging from 0 to
  2n -1
• signed integers have values in the range of
  -2n-1 to 2n-1
• 2s complement arithmetic

21
Floating point arithmetic

• 1985 IEEE Std 754

22
Architecture Evolution

• 1960s - IBM microprogramming
• mid-1970s - VLSI
• early 1980s
• 32 bit processor cold be implemented on a single
  chip
• processor speeds increased at rate higher than
  memory speed
• compilers could match speed of assembly language

23
RISC

• low level instruction set
• large number of registers
• optimizing compilers
