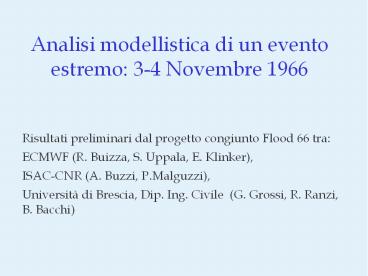

Analisi modellistica di un evento estremo: 34 Novembre 1966

1
Analisi modellistica di un evento estremo 3-4
Novembre 1966
Risultati preliminari dal progetto congiunto
Flood 66 tra ECMWF (R. Buizza, S. Uppala, E.
Klinker), ISAC-CNR (A. Buzzi, P.Malguzzi),
Università di Brescia, Dip. Ing. Civile (G.
Grossi, R. Ranzi, B. Bacchi)
2
FLOOD 66
Grosseto
Venezia
Firenze
Dolomiti bellunesi

• Major widespread hystorical storm and flood
  event, which caused disasters mainly in Tuscany
  (Florence, Grosseto and other towns) and in other
  parts of central and north-eastern Italy, such as
  Venice (highest tide on record), Trento and in
  many valleys situated in Veneto and Friuli, in
  Eastern Alps, Emilia etc. in the period 3-5
  November.

3
Objectives

• Use the ERA database to analayze the extreme
  event and to assess the value of the ERA-40 for
  a-posteriori studies of the ECMWF forecasting
  system value for weather risk assessment.
• Examine the accuracy of deterministic and
  probabilistic forecasts during the period of the
  1966 flood in Florence and in the Eastern Alps
• Investigate the possibility of using forecasts to
  drive river-basin discharge hydrological models
  using direct model output from a meteorological
  model chain, including hydrostatic and
  non-hydrostatic, cloud-resolving models.

4
Tuscany (Arno and Ombrone River basins)

• extreme event for precipitation intensity,
  extension and continuity most of the rain fell
  on 4 November

200
200
200
400
300
5
The Eastern Alps (Adige and other river basins)
250
Most of precip. fell 3-4 November)
500
400
700
250
500
400
6
Z500 TL511L60 analysis 12 UTC of 1-4 November

• This figure shows the TL511L60 analyses at 12UTC
  of 1-4 November.
• Contour interval is 4dam.

7
ERA40 and TL511L60 analyses 12 UTC of 1-2
November

• The ERA-40 (TL159L60, left) and the TL511L60
  (right) analyses at 12UTC of 1 and 2 November are
  very similar (ci is 2dam for full fields and 1dam
  for difference).

8
MSLP, 4 Nov. 1966, 00 and 12 UTC. ECMWF ERA-40
special high-resolution (TL511L60), interpolated
on the BOLAM grid
9
950 hPa wind, 4 Nov. 1966, 00 and 12 UTC. ECMWF
ERA-40 special high-resolution (TL511L60),
interpolated on the BOLAM grid
10
500 hPa wind, 4 Nov. 1966, 00 and 12 UTC. ECMWF
ERA-40 special high-resolution (TL511L60),
interpolated on the BOLAM grid
11
24h TP ECMWF TL511L60 deterministic forecasts
for 3-4 Nov (168h, 120h, 72h)
t96-120h
t144-168h

• This figure shows TL511L60 forecasts of
  24h-accumulated precipitation started at 12UTC of
  the 27 (144-168h) and 29 (96-120h) October, and 1
  November (48-72h) and valid for 3-4 November.
• The right-bottom panel shows a proxi for
  verification defined by the TL511L60 24h forecast
  started at 12UTC of 3 November.
• Contour isolines are 2-25-50-75-100-150-300 mm
  for precipitation.

t48-72h
3-4 Nov
12
24h TP EPS fc from 30 Oct for 3-4 Nov (96-120h)
P(TPgt25mm)
P(TPgt50mm)

• This figure shows three EPS (51TL255L40)
  probabilistic forecasts started on 30 October
  (96-120h) and valid for 3-4 November, for 24-h
  accumulated precipitation in excess of 25, 50 and
  75 mm.
• The right-bottom panel shows a proxi for
  verification given by the TL511L40 24h forecast
  started on 3 November.
• Contour isolines are 2-10-20-40-60-100 for
  probabilities and 2-25-50-75-100-150-300 mm for
  precipitation.

P(TPgt75mm)
3-4 Nov
Good EPS t96-120h fc over Friuli for all
thresholds, and some signals that 75mm could hit
also Tuscany
13
24h TP EPS fc from 31 Oct for 3-4 Nov (72-96h)
P(TPgt25mm)
P(TPgt50mm)

• This figure shows three EPS (51TL255L40)
  probabilistic forecasts started on 31 October
  (72-96h) and valid for 3-4 November, for 24-h
  accumulated precipitation in excess of 25, 50 and
  75 mm.
• The right-bottom panel shows a proxi for
  verification given by the TL511L40 24h forecast
  started on 3 November.
• Contour isolines are 2-10-20-40-60-100 for
  probabilities and 2-25-50-75-100-150-300 mm for
  precipitation.

3-4 Nov
P(TPgt75mm)
EPS t72-96h fc does not propagate quickly
enough, but there is a stronger signal that 75mm
could hit also Tuscany Compared to previous fc,
consistent but delayed signal, with more
localized probability values ..
14
24h TP EPS fc from 1 Nov for 3-4 Nov (48-72h)
P(TPgt25mm)
P(TPgt50mm)

• This figure shows three EPS (51TL255L40)
  probabilistic forecasts started on 30 October
  (96-120h) and valid for 3-4 November, for 24-h
  accumulated precipitation in excess of 25, 50 and
  75 mm.
• The right-bottom panel shows a proxi for
  verification given by the TL511L40 24h forecast
  started on 3 November.
• Contour isolines are 2-10-20-40-60-100 for
  probabilities and 2-25-50-75-100-150-300 mm for
  precipitation.

P(TPgt75mm)
3-4 Nov
Good EPS t48-72h fc for all thresholds Compared
to previous fc, consistent but with higher and
correctly localized probability values ..
15
Rianalisi ECMWF (T511, 45 km)
BOLAM 18
4 nov
3 nov
5 nov
2 nov
12 UTC 1 Nov 66
06 UTC 5 Nov
BOLAM 6 km
00 UTC 2 Nov
MOLOCH 2 km
00 UTC 3 Nov
Accumulated precipitation period
06 UTC 3 Nov
16
The BOLAM 6km precipitation forecast
17
The MOLOCH 2 km precipitation forecast
18
The MOLOCH 2 km precipitation forecast
19
The MOLOCH 2 km precipitation forecast but
starting with the NCEP reanalysis (300 km!)
20
ECMWF
NCEP
Short digression about ECMWF vs NCEP reanalyses
21
ECMWF
NCEP
22
ECMWF
NCEP
23
ECMWF
NCEP
24
Some sensitivity experiments role of orography
and sea surface fluxes
25
Some sensitivity experiments role of orography
and sea surface fluxes
Reference case a 24 hour FC
26
Accumulated precipitation with different sea
surface fluxes
Case with different surface fluxes
No sens. lat. heat fluxes
Reference
SST 3 K
27
Simulazioni idrologiche
Isarco a Chiusa A3059 km²
Adige a Bronzolo A6926 km²
Avisio a Lavis A934 km²
Adige a Trento A9763 km²
Noce a S.Giustina A1050 km²
28
Esempio di risultato della modellistica
idrologica (Univ. di Brescia)
29
(No Transcript)
30
Conclusioni

• Levento viene ricostruito in maniera
  realistica, nonostante le incertezze nelle
  analisi e le notevoli differenze tra lanalisi
  NCEP e quella ECMWF, probabilmente associate alle
  incertezze sullAtlantico.
• Sorprende la possibilità di ricostruire campi di
  precipitazione dettagliati a partire dalle
  analisi NCEP, persino meglio che con le analisi
  ECMWF.
• Lorigine appare nelle scale grandi (crescita di
  unonda baroclina, associata a jet meridionale e
  intensa frontogenesi)
• Nonostante questo, la predicibilità appare bassa
  prima di 3 giorni la natura estrema
  dellevento non appare ad un orizzonte gt 2-3 gg.

• Precipitazione orografica sulle Alpi,
  apparentemente convettiva sullItalia centrale,
  questultima predicibile solo con il modello non
  idrostatico.
• Lorografia determina totalmente la distribuzione
  della precipitazione orografica e la
  ciclogenesi i flussi superficiali sono
  relativamente poco importanti.
