Aspect Oriented Programming

1

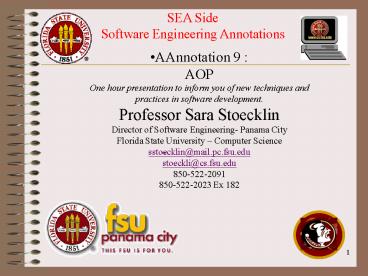

SEA Side Software Engineering Annotations

• AAnnotation 9 AOP
• One hour presentation to inform you of new
  techniques and practices in software development.

• Professor Sara Stoecklin
• Director of Software Engineering- Panama City
• Florida State University Computer Science
• sstoecklin_at_mail.pc.fsu.edu
• stoeckli_at_cs.fsu.edu
• 850-522-2091
• 850-522-2023 Ex 182

2
Adaptive Oriented Programming
Dr. Sara Stoecklin Florida State University
3
Adaptive Oriented Programming

• MIT Technology Review
• January/February 2001 issue defined ten emerging
  areas of technology that will soon have a
  PROFOUND impact on the economy and on how we live
  and work.
• They listed as one of those ten areas adaptive
  programming.

4
Adaptive Oriented Programming

• Alias
• Adaptive Oriented Programming (Northwestern
  University)
• Subject Oriented Programming (IBM)
• Aspect Oriented Programming (XEROX)

5
Adaptive Oriented Programming

• Definition
• A technique for creating robustness to changes in
  a particular aspect of a system, program, or
  software component.

6
Adaptive Oriented Programming

• Concept
• Design software iteratively, identifying those
  things that will become necessary to change at
  later dates.
• Build abstractions for these changes so that
  changes during maintenance will be necessary only
  in parts of the system.

7
Adaptive Oriented Programming

• Concept
• Software is written in a manner that allows the
  programmer to work at a higher level of
  abstractions than the normal executable code.
• It can be implemented as meta programming.

8
Adaptive Oriented Programming

• Concept
• Adaptive Programming is an extension of OO
  software development where relationships between
  functions and data are flexible or loosely
  coupled.

9


Aspect Oriented Programming
Agenda

• Why Aspect Oriented Programming?
• What are Aspects?
• What is a cross-cutting with Aspects?
• How AOP tackle a software problem?
• Examples.
• Conclusions

10
Aspect Oriented Programming
Why Aspect Oriented Programming?

• A typical process model.
• Divide system into small units of functionality.
• Write code for each functional unit.
• Have the units collaborate to form the system.
• Design decisions are tangled, business rules are
  tangled.
• Results in tangled code.

11
Aspect Oriented Programming
Why Aspect Oriented Programming --Contd.

• Hard to manage, maintain and expand.
• OO and Procedural languages have a few points in
  common, functional decomposition into
  procedure/function/object.
• Called GP(Generalized Procedure Languages).
• The Tangling problem is not solved by GPs.

12
Aspect Oriented Programming
What is a Cross Cutting with Aspects?
SOFTWARE PROJECT
13
Aspect Oriented Programming
What is a Cross Cut?
SOFTWARE PROJECT
14
Aspect Oriented Programming
What is an Aspect?

• Its not a unit of systems functional
  decomposition.
• Its a property that effect the performance of
  the components in the system.
• e.g. synchronization, memory access patterns etc.


15


Aspect Oriented Programming
How AOP addresses the problem.

• A new technique called AOP.
• Aspects and concerns can be dealt with in a
  relatively new way.
• Provides appropriate isolation between the
  components and the aspects.

16


Aspect Oriented Programming
Proposed Solution

• AOP is a step ahead in this direction of
  separation of concern.
• Allows to write a separate code block for a
  design decision instead of spreading it all over.
• Aspect Oriented Languages
• AspectJ (core functionality),
• Cool(synchronization) and
• Ridl( distribution concerns).

17


Aspect Oriented Programming
An Example
Suppose you have an order entry system and one
use case allows you to create and cancel orders.
18


Aspect Oriented Programming
Order Entry System

• Lets assume we have the following simplified
  Order class as our base object
• public class Order
• int orderID
• public void placeOrder()
• public void cancelOrder()

19


Aspect Oriented Programming
Order Entry System

• Suppose we now need to add authorization checks
  for the persons entering and canceling orders.
• Suppose also we would like to check in particular
  if the requester has access rights to the methods
  placeOrder() and cancelOrder().

20


Aspect Oriented Programming
Order Entry System

• If we have written this in an OO architecture
  with something like EJB. Then we are stuck with
  the strict OO implementation of EJB.
• EJB separates the services from the business
  objects BUT now we want to add a service to the
  already written C/S service (i.e EJB services)
  and messaging provided in both Java and EJB

21


Aspect Oriented Programming
Order Entry System

• Thus this access to user procedures may be an
  ASPECT of C/S systems.

22


Aspect Oriented Programming
The Difference

• In OO, components are glued together with bits of
  code using create this object, create that
  object, etc.
• A transaction processing goes something along
  these lines log this method to a file for
  debugging, run a security check, start a
  transaction, open a database connection, remember
  to catch exceptions or Win32 structured
  exceptions and validate parameters.
• Thus this code is duplicated across transactions
  for transaction and session management.

23


Aspect Oriented Programming
The Difference

• In the realm of AOP, these aspects need to be
  programmed separately.
• Aspects associated with components often use
  metadata such as the session management aspect or
  data management aspect or transaction management
  aspect.

24


Aspect Oriented Programming
The Difference

• The runtime uses the metadata to compose the
  stack of aspects, typically occurs at object
  creation time.
• Thus the correct class is created according to
  the aspect technique (CICS like transaction
  management)

25


Aspect Oriented Programming
What are some main uses?
26


Aspect Oriented Programming
What are some main uses?
27


Aspect Oriented Programming
What are some main uses?
28


Aspect Oriented Programming
Related work

• Mehmet Aksit et al. at university of Twente
  developed composition filters,object model.
• Component language is OOP.
• Aspects used to synchronization and
  communication.
• Calton Pu et. Al. at Oregon Graduate institute,
  OS kernels. Components are typical OS kernels,
  aspects are optimizations based on invariants.

29


Aspect Oriented Programming
Related work

• Karl Lieberherr et al at north eastern university
  trying to make OOP more reusable by introducing
  aspects to control cross cutting issues.
• Joe Yoder has made progress Reflection and
  Meta-object Proposals
• Subjective Programming introduced by IBM
• Other Engineering Disciplines
• Mechanical engineers use static, dynamic and
  thermal models as these models cross cut each
  other.

30


Aspect Oriented Programming
Conclusions

• Components are properties of a system for which
  implementation can be easily encapsulated in a
  procedure/function/object.
• Aspects are properties for which implementation
  cant be encapsulated.
• Aspects cross-cut in systems implementation.
• AOP is needed for clean abstraction and
  composition of both components and aspects.

31


Aspect Oriented Programming
Conclusions

• AOP is different from other languages as it
  provides separate languages for component and
  aspects.
• Also provides different abstraction and
  composition mechanisms.
• Aspect weaver is used to co-ordinate them.
• These systems are proven to be easier to develop
  and maintain and being more efficient too.
