Macromolecules

1

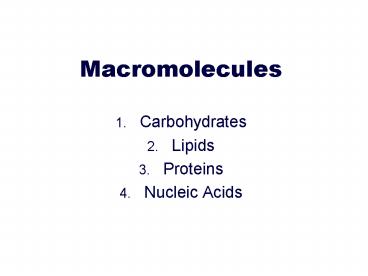

Macromolecules

• Carbohydrates
• Lipids
• Proteins
• Nucleic Acids

2
1. Carbohydraytes

• Are organic compounds made of sugars and their
  monomers.
• Monomers are called monosaccharides.
• 2 monomers are disaccharides
• Polymers are polysaccharides

3
monosaccharides

• C, H, and O occur in a ratio that is ALWAYS
• Are the major source energy for all cells.

4
monosaccharides

• Aldehydes-
• Ketones-

5
Figure 5.3 The structure and classification of
some monosaccharides
6
monosaccharides

• Location/spatial arrangement of functional groups
  are important!
• Isomers

7
(No Transcript)
8
monosaccharides

• Carbohydrates can be linear, but form rings in
  aqueous solutions.

9
(No Transcript)
10
Disaccharides

• contain two monosaccharides.
• formed through the process of
• Monosaccharide monosaccharide ? Disaccharide

11
(No Transcript)
12
(No Transcript)
13
Figure 5.5 Examples of disaccharide synthesis
14
Polysaccharides

• Macromolecules that are polymers of a few hundred
  or thousand monosaccharides.
• Important in
• 1.
• 2.

15
Polysaccharides Energy Storage

• starch

16
Polysaccharides Energy - Starch

• Starch is the energy found in plants.
• Made entirely of
• Two common forms are amylose (unbranched) and
  amylopectin (branched).

17
Polysaccharides Energy - Glycogen

• Glycogen is how store their energy.
• Made entirely of glucose and highly branched.
• Where do animals store their glycogen reserves?

18
Polysaccharides Structural

• Cellulose is found in
• Made entirely of glucose, but differs from starch
  because of where the branching is.
• Can you digest cellulose?
• What can?

19
(No Transcript)
20
Figure 5.8 The arrangement of cellulose in plant
cell walls
21
Figure 5.6 Storage polysaccharides
22
Figure 5.7b,c Starch and cellulose structures
23

• Chitin is found in the exoskeleton of arthropods
  and the walls of some fungi.
• Chitins monomer is an amino sugar.

24
Figure 5.9 Chitin, a structural polysaccharide
exoskeleton and surgical thread
25
Macromolecules 2. Lipids

• Diverse group of molecules that are non-polar.
  There are three major groups
• 1. Fats
• 2.
• 3.

26
Lipids 1. Fats

• glycerol attached to 3 fatty acid chains.
• Glycerol is a
• Fatty acids are hydrocarbons with a carboxyl
  group at one end.
• Hydrocarbon tail is extremely hydrophobic.

27
Fats

• Hydrocarbons have a long Carbon skeleton with an
  even number of Cs (usually 16 or 18).
• Fats are built by condensation synthesis, linking
  3 fatty acid tails to a single glycerol molecule.

28
(No Transcript)
29

• This linking results in a covalent bond called an

• Entire macromolecule (glycerol 3 fatty acids)
  is called a

30
Lipids

• Fatty acid (FA) chains in a triglyceride may all
  be the same, or can all be different.
• Variation comes from
• 1. Different FA chains
• 2.
• 3. Number location of double bonds
• in a chain.

31
Lipids

• Fats may be
• 1.
• 2.
• What are fats saturated with?

32
Lipids Saturated Fats

• No C to C
• C skeleton is bonded to the maximum number of Hs
  (saturated w/Hs).
• Usually a solid at room temperature.
• Most
• Ex

33
(No Transcript)
34
Lipids Unsaturated Fats

• Are not saturated with H, because there are C C
  double bonds present.
• The chain bends at each C C, so molecules can
  not pack tight together.
• Are at room temperature.
• Most
• Corn oil, peanut oil, olive oil

35

• In many commercially produced foods, unsaturated
  fats are artificially hydrogenated to prevent
  them from spreading out into an oil.
• Ex

36
(No Transcript)
37
Figure 5.11 Examples of saturated and
unsaturated fats and fatty acids
38
Lipids The functions of Fats

• Energy storage- one gram of fat stores 2x the
  energy of a carbohydrate.
• More compact fuel
• Cushions
• Insulation
• Fat

39
Lipids 2. Phospholipids

• Compound with a backbone of glycerol, bonded to 2
  FA chains.
• Replacing the 3rd FA chain is instead a phosphate
  group.
• Attached to the phosphate group is another small
  chemical group.

40
Figure 5.12 The structure of a phospholipid
41
Figure 5.13 Two structures formed by
self-assembly of phospholipids in aqueous
environments
42
(No Transcript)
43
Lipids 3. Steroids

• Steroids have four fused carbon rings with
  various f(x)al groups.
• Some hormones are steroids.
• Cholesterol is an important steroid because
• 1. it is the precursor
• 2. Found in animal

44
Figure 5.14 Cholesterol, a steroid
45
(No Transcript)
46
Figure 4.8 A comparison of functional groups of
female (estradiol) and male (testosterone) sex
hormones
47
(No Transcript)
48
(No Transcript)
49
Figure 46.10 Ovulation
50
Figure 46.13b Oogenesis
51
Figure 46.9x Ovary (left) and follicle (right)
52
Figure 46.15 The reproductive cycle of the human
female
53
FSH

• Follicle stimulating hormone
• It is the main hormone involved in producing
  mature eggs.

54
LH

• In both sexes, LH stimulates secretion of sex
  steroids from the gonads.

55
GnRH

• gonadotropin-releasing hormone
• Made by the hypothalamus.
• Signals the pituitary to make LH and FSH
• Works as a negative feedback loop

56
Figure 46.14 Hormonal control of the testes
57
Progesterone

• maintains the uterine lining during pregnancy

58
Figure 46.16 Formation of the zygote and early
postfertilization events
59
Figure 46.19 Hormonal induction of labor
60

61
Figure 46.11x Spermatogenesis Seminiferous
tubules (left), sperm in semen (right)
62
Figure 46.12 Structure of a human sperm cell
63
Testosterone

• synthesized mostly by the testes in males and by
  the adrenal glands of both sexes.

64
Figure 46.14 Hormonal control of the testes
65
Macromolecules 3. Proteins

• The molecular tools for most cellular functions.

• Consist of one or more polypeptide chains folded
  into a specific shape.
• Extremely specific for the jobs they do in the
  cell.
• Are abundant,

66
Proteins their functions

• They are the most diverse type of macromolecule.
  They are responsible for
• 1. Structural support
• 2.
• 3. Transport
• 4. Signaling

67
Proteins their functions

• 5. Cellular response to chemical stimuli
• (receptors)
• 6. Movement (contractile proteins).
• 7. Defense
• 8.

68
Figure 5.21 Spider silk a structural protein
69

• Each type of protein has a unique 3-D shape.
• Despite diversity, there are only 20 amino acids
  monomers most commonly found in nature.

70

• Amino acids are the building blocks of proteins.
• AA AA AA protein
• Every amino acid has
• Terminal
• Amino group
• Variable group

71
(No Transcript)
72
Variable R group can be

• Nonpolar
• Polar
• Uncharged polar
• Charged Polar
• - acidic
• - basic

73
(No Transcript)
74

• Polypeptides are made through condensation
  synthesis linking AA to another AA through a
  covalent peptide bond.
• Rxn always occurs at the carboxyl end of one AA
  with the amino group of the adjacent AA.

75
(No Transcript)
76
Figure 5.16 Making a polypeptide chain
77

• Proteins can range in length from a few monomers
  to over a thousand.
• Native conformation is the f(x)al shape of a
  protein under normal biological conditions.
• There are four levels to protein structure
• 1. Primary
• 2. Secondary
• 3. Tertiary
• 4. Quaternary

78
Proteins Primary Level

• Primary level is just the unique sequence of
  amino acids in a protein.
• This sequence is determined
• Any change in the order can result in

79
(No Transcript)
80
(No Transcript)
81
Figure 5.19 A single amino acid substitution in
a protein causes sickle-cell disease
82
Proteins Secondary Level

• Is the regulated, repeated coiling folding of a
  protein.
• Coiling is stabilized by hydrogen bonds.
• There are two major types
• beta

83
Proteins Secondary Level a helix

• Alpha helix is stabilized by H-bonds.
• Found in fibrous proteins (keratin collagen)
  and some globular proteins.

84
Figure 5.20 The secondary structure of a protein
85
Proteins Tertiary Structure

• Irregular contortions due to bonding of side
  chains (R-groups).
• Types of bonds are
• A.
• B.

86
Proteins Tertiary Structure

• A. Weak interactions include
• - hydrogen bonding
• -
• - hydrophobic interactions between
• nonpolar side chains

87
Proteins Tertiary Structure

• B. Covalent links disulfide bridges form
  between two cysteine monomers brought together

88
Figure 5.22 Examples of interactions
contributing to the tertiary structure of a
protein
89
Proteins Quaternary Structure

• Structure that results from the interaction among
  several polypeptides in a single protein.
• This is the overall shape of the protein.
• Collagen

90
Figure 5.23 The quaternary structure of proteins
91
(No Transcript)
92
Proteins

• All 4 levels of protein structure contribute to
  its shape.
• Changing any part of any level can have drastic
  effects on the proteins function.
• If a protein is altered, it may become

93
Figure 5.25 Denaturation and renaturation of a
protein
94
Macromolecules 4. Nucleic Acids
95
Nucleic Acids

• There are two type of nucleic acids

96
DNA Deoxyribonucleic Acid

• Contains coded information that programs cell
  activity.
• Is copied and passed from one generation of cells
  to another.
• Has genes that contain instructions for protein
  synthesis.
• Usually double

97
DNA

• Is a polymer of nucleotides joined by
  phosphodiester linkages between the phosphate
  group of one nucleotide and the sugar of the
  next.
• This results in a backbone pattern of

98
(No Transcript)
99
(No Transcript)
100
(No Transcript)
101
Figure 5.30 The DNA double helix and its
replication
102
RNA Ribonucleic Acid

• Functions in the actual synthesis of proteins
  coded for by DNA.
• Usually single stranded.
• Flow of genetic information is

103
Nucleic Acids

• Nucleic acids are polymers of nucleotides linked
  together.
• Nucleotides are the monomers they have

104
(No Transcript)
105
Nucleic Acids

• The phosphate group is attached to the number 5
  carbon of the sugar.
• The nitrogenous base is where variation comes
  from. There are two families

106
Nitrogenous Bases Pyrimidines

• Characterized by a 6-membered ring made up of
  carbon nitrogen atoms.
• Abbreviated with letters
• C (cytosine)
• T (thymine)
• U (uracil)

107
(No Transcript)
108
Nitrogenous Bases Purines

• Characterized by a five-membered ring fused to a
  six-membered ring (are larger in size than
  pyrimidines).

109
(No Transcript)
110

• Pyrimidines only bond with purines.
• Bonding occurs from one stand of helix to the
  other.
• It is hydrogen bonding that holds the double
  helix together.
• A always bonds with

111
Figure 5.29 The components of nucleic acids
